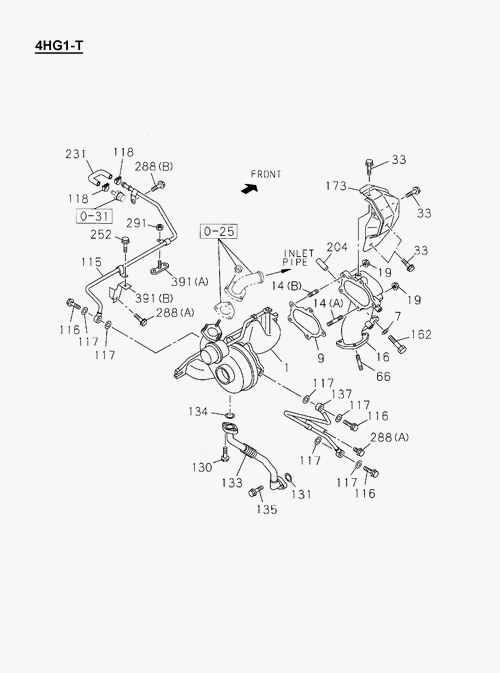

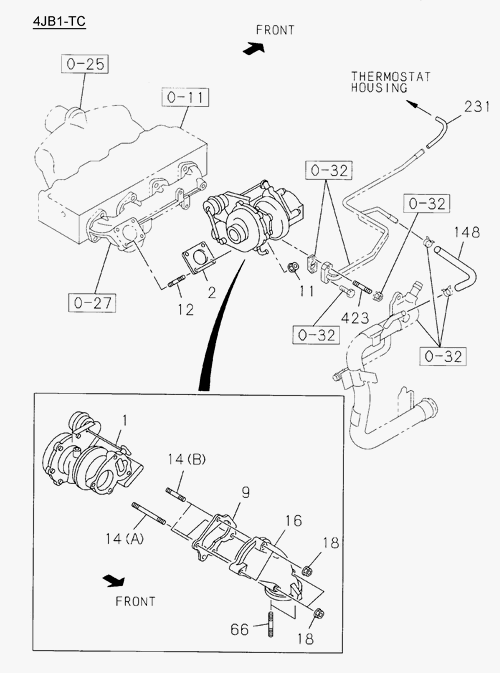

0-36 | TURBOCHARGER SYSTEM
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | I8-98172 659-0 | PIPE OIL DRAIN, TURBOCHAARGER | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 1 | I8-97331 185-2 | TURBOCHARGER ASM | 1 | 0702-1010 | 4JB1-TC | 75 ps, NHR55/NKR55 | ||
| 231 | I6-97209 950-0 | HOSE RUBBER, TURBOCHARGER | 1 | 0702- | 4HG1-T | (IADG) NKR71T/THD | ||
| 116 | I8-98037 827-0 | BOLT WATER PIPE | 3 | 0702- | 4HG1-T | NKR71T/THD | ||
| 134 | I1-09623 462-0 | GASKET OIL PIPE, TURBOCHGR | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 19 | I8-94170 486-0 | NUT EXH PIPE, TURBOCHARGER | 5 | 0702- | 4HG1-T | NKR71T/THD | ||
| 16 | I8-97192 332-0 | ADAPTER EXH PIPE | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 291 | I0-91180 108-0 | NUT PIPE TO BRKT | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 173 | I8-97178 497-2 | PROTECTOR HEAT, FUEL PIPE | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 1 | I6-97331 185-0 | TURBOCHARGER ASM | 1 | 0702-1010 | 4JB1-TC | (IADG) 75 ps, NHR55/NKR55 | ||
| 391 | I8-97210 078-A | BRACKET WATER PIPE | 1 | 0702- | 4HG1-T | (A) NKR71T/THD | ||
| 16 | I8-97178 488-1 | ADAPTER EXH PIPE | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 231 | I8-97209 950-A | HOSE RUBBER, TURBOCHARGER | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 66 | I0-44011 025-0 | STUD EXH PIPE | 3 | 0702- | 4HG1-T | NKR71T/THD | ||
| 9 | I8-97139 726-0 | GASKET TURBOCHARGER TO EXH DUCT | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 231 | I8-97212 155-0 | HOSE RUBBER, TURBOCHARGER | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 14 | I8-97019 477-0 | STUD TURBOCHARGER TO EXH PIPE | 2 | 0702- | 4HG1-T | (B) NKR71T/THD | ||
| 1 | I8-97326 752-1 | TURBOCHARGER ASM | 1 | 0702-1404 | 4HG1-T | GARRET | ||
| 11 | I8-97161 607-0 | NUT TURBOCHARGER | 4 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 288 | I0-28050 812-A | BOLT WATER PIPE CLIP | 2 | 0702- | 4HG1-T | (A) M8X12, NKR71T/THD | ||
| 14 | I8-97378 067-0 | STUD TURBOCHARGER TO EXH PIPE | 2 | 0702- | 4JB1-TC | (B) NHR55/NKR55 | ||
| 14 | I8-97200 763-0 | STUD TURBOCHARGER TO EXH PIPE | 2 | 0702- | 4JB1-TC | (A) NHR55/NKR55 | ||
| 2 | I8-97315 266-0 | GASKET TURBOCHARGER TO EXH MANI | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 391 | I8-97221 061-0 | BRACKET WATER PIPE | 1 | 0702- | 4HG1-T | (B) NKR71T/THD | ||
| 9 | I8-97039 777-1 | GASKET TURBOCHARGER TO EXH DUCT | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 231 | I6-97212 155-0 | HOSE RUBBER, TURBOCHARGER | 1 | 0702- | 4JB1-TC | (IADG) NHR55/NKR55 | ||
| 162 | I5-09000 275-0 | BOLT ADAPTER | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 117 | I1-09630 085-0 | GASKET WATER PIPE | 6 | 0702- | 4HG1-T | NKR71T/THD | ||
| 288 | I0-28151 016-0 | BOLT WATER PIPE CLIP | 2 | 0702- | 4HG1-T | (B) M10X16, NKR71T/THD | ||
| 1 | I8-98254 714-0 | TURBOCHARGER ASM | 1 | 1405- | 4HG1-T | IHI | ||
| 1 | I8-97192 331-5 | TURBOCHARGER ASM | 1 | 1011- | 4JB1-TC | 100 ps, NHR55 T/B, NKR55 T/B, | ||
| 148 | I0-03559 300-0 | HOSE TURBOCHARGER, INL | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 135 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 0702- | 4HG1-T | NKR71T/THD | ||
| 18 | I8-97161 607-0 | NUT EXH PIPE | 4 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 118 | I8-94221 519-0 | CLIP WATER HOSE | 2 | 0702- | 4HG1-T | NKR71T/THD | ||
| 252 | I0-28050 812-A | BOLT BRKT | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 137 | I8-97229 036-0 | PIPE WATER, TURBOCHARGER IN | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 12 | I8-97378 060-0 | STUD TURBOCHARGER | 4 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 14 | I8-97019 478-0 | STUD TURBOCHARGER TO EXH PIPE | 3 | 0702- | 4HG1-T | (C) NKR71T/THD | ||
| 115 | I8-97210 077-2 | PIPE WATER , TURBOCHARGER OUT | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 7 | I8-94174 537-0 | WASHER PL, BKRT | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 130 | I0-50540 620-0 | BOLT OIL PIPE TO TURBOCHARGER D | 2 | 0702- | 4HG1-T | NKR71T/THD | ||
| 204 | I8-97214 384-1 | COLLAR PIPE ADAPTER | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 33 | I8-97108 669-0 | BOLT HEAT PROTECTOR | 4 | 0702- | 4HG1-T | NKR71T/THD | ||
| 131 | I9-09566 226-0 | GASKET OIL PIPE, C/BL | 1 | 0702- | 4HG1-T | NKR71T/THD | ||
| 66 | I8-97032 977-1 | STUD EXH PIPE | 2 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 423 | I0-41010 620-0 | STUD WATER PIPE | 1 | 0702- | 4HG1-T | M6X20, L=28, NKR71T/THD |
