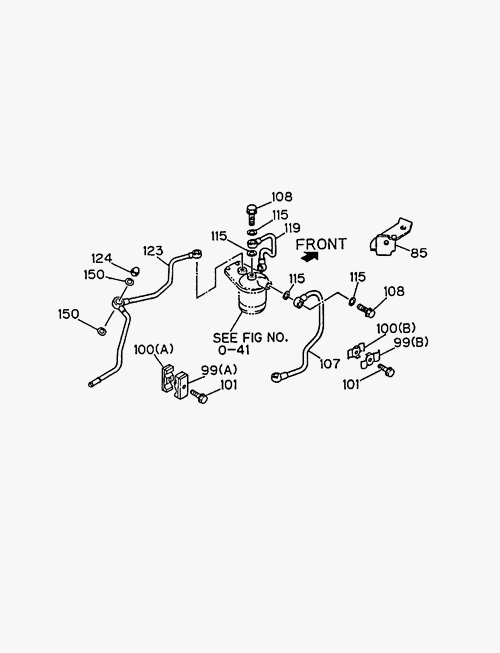

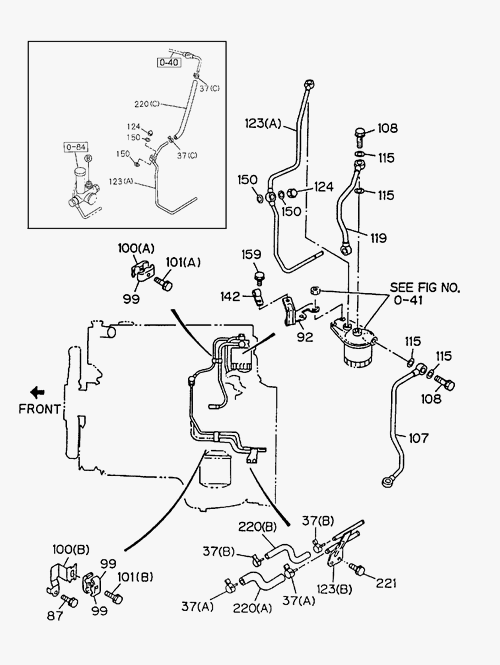

0-42 | FUEL PUMP AND PIPE
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 124 | I1-09468 002-1 | NUT CAP, FUEL PIPE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 99 | I8-94107 500-0 | CLIP A, FUEL PIPE | 1 | 9312- | 4BE1 | (A) ID=6 & 7.5 ( NKR 58 ) | ||
| 220 | I8-97087 227-2 | HOSE FUEL | 1 | 9312- | 4HF1 | (A) NKR 66, NKR 71 | ||
| 99 | I9-09716 114-0 | CLIP A, FUEL PIPE | 1 | 9312- | 4BE1 | (B) ID=10 & 10 ( NKR 58 ) | ||
| 107 | I8-97080 924-0 | PIPE FUEL, FEED PUMP TO FUEL FIL | 1 | 9312-9510 | 4HF1 | NKR 66 | ||
| 99 | I8-97016 323-1 | CLIP A, FUEL PIPE | 3 | 9312- | 4HF1 | ID=6.1 & 9.6 ( NKR 66 ) | ||
| 101 | I0-28050 635-0 | BOLT FUEL CLIP | 1 | 9312- | 4HF1 | (B) M 6 X 35 FLANGE BOLT | ||
| 119 | I8-97080 925-1 | PIPE FUEL,FUEL FILTER TO IJN PU | 1 | 9312-9510 | 4HF1 | NKR 66 | ||
| 107 | I8-94141 127-0 | PIPE FUEL, FEED PUMP TO FUEL FIL | 1 | 9312- | 4BE1 | NKR 58 | ||
| 100 | I9-09716 124-0 | CLIP B FUEL PIPE | 1 | 9312- | 4BE1 | (B) ( NKR 58 ) | ||
| 123 | I8-97025 146-0 | PIPE FUEL, FUEL FILTER LEAK OFF | 1 | 9312- | 4BE1 | NKR 58 | ||
| 37 | I8-98150 358-0 | CLIP FUEL HOSE | 2 | 9811- | 4HF1 | (C) ID=12 | ||
| 100 | I8-97108 315-0 | CLIP B FUEL PIPE | 1 | 9312- | 4HF1 | (B) ( NKR 66 ) | ||
| 221 | I0-50540 818-0 | BOLT FUEL PIPE | 2 | 9312- | 4HF1 | M 8 X 18 W/SP WASHER | ||
| 123 | I8-97087 196-0 | PIPE FUEL, FUEL FILTER LEAK OFF | 1 | 9312- | 4HF1 | (B) ( NKR 66, NKR 71 ) | ||
| 150 | I9-09572 014-1 | GASKET FUEL PIPE | 2 | 9312- | 4BE1 | ID=14.2 ( NKR 58 ) | ||
| 115 | I9-09572 014-1 | GASKET JOIN BOLT, FUEL PIPE | 4 | 9312- | 4HF1-2 | ID=14.2 OD = 23.0 | ||
| 37 | I8-98008 098-0 | CLIP FUEL HOSE | 1 | 0702- | 4HG1-T | (A) ID=16, NKR 71 EURO2 | ||
| 115 | I9-09572 014-1 | GASKET JOIN BOLT, FUEL PIPE | 4 | 9312- | 4BE1 | ID=14.2 OD = 23.0 | ||
| 100 | I8-97016 322-0 | CLIP B FUEL PIPE | 1 | 9312- | 4HF1 | ID=6.1 & 9.5 ( NKR 66 ) | ||
| 108 | I1-09675 086-0 | BOLT JOINT, FUEL FILTER | 2 | 9312- | 4HF1 | M 14 X 27 ( NKR 66 ) | ||
| 87 | I0-28050 812-A | BOLT STAY, FUEL PIPE | 1 | 9312- | 4HF1 | M 8 X 12 ( NKR 66, NKR 71 ) | ||
| 119 | I8-97088 047-0 | PIPE FUEL,FUEL FILTER TO IJN PU | 1 | 9511- | 4HF1 | NKR 66, NKR 71 | ||
| 150 | I9-09572 014-1 | GASKET FUEL PIPE | 2 | 9312- | 4HF1 | ID=14.2 ( NKR 66 ) | ||
| 92 | I8-97085 387-2 | BRACKET FUEL PIPE | 1 | 9312- | 4HF1 | NKR 66 | ||
| 37 | I8-98008 098-0 | CLIP FUEL HOSE | 1 | 9312- | 4HF1 | (A) ID=16 ( NKR 66 ) | ||
| 221 | I0-28650 640-0 | BOLT FUEL PIPE | 1 | 9503- | 4HF1 | M 6 X 40 FLANGE | ||
| 119 | I5-15411 851-0 | PIPE FUEL,FUEL FILTER TO IJN PU | 1 | 9312- | 4BE1 | NKR 58 | ||
| 123 | I8-97118 894-1 | PIPE FUEL, FUEL FILTER LEAK OFF | 1 | 9511- | 4HF1 | (A) ( NKR 66, NKR 71 ) | ||
| 123 | I8-97070 345-3 | PIPE FUEL, FUEL FILTER LEAK OFF | 1 | 9312-9510 | 4HF1 | (A) ( NKR 66 ) | ||
| 37 | I8-98150 357-0 | CLIP FUEL HOSE | 1 | 9312- | 4HF1 | (B) ID=13 ( NKR 66, NKR 71 ) | ||
| 220 | I8-97087 228-2 | HOSE FUEL | 1 | 9312- | 4HF1 | (B) NKR 66, NKR 71 | ||
| 37 | I8-98008 098-0 | CLIP FUEL HOSE | 1 | 0211- | 4HG1 | (A) ID=16 ( NKR 71 ) | ||
| 100 | I8-94107 499-0 | CLIP B FUEL PIPE | 1 | 9312- | 4BE1 | (A) ID=6 & 7.5 ( NKR 58 ) | ||
| 142 | I0-95234 622-0 | CLIP FUEL PIPE | 1 | 9312- | 4HF1 | ID=7 ( NKR 66 ) | ||
| 220 | I8-97145 019-2 | HOSE FUEL | 1 | 9903- | 4HF1 | (C) NKR66-2 | ||
| 100 | I8-97108 315-0 | CLIP B FUEL PIPE | 1 | 0211- | 4HG1 | NKR 71 | ||
| 115 | I9-09572 014-1 | GASKET JOIN BOLT, FUEL PIPE | 4 | 9312- | 4HF1 | ID=14.2 OD = 23.0 | ||
| 159 | I0-28050 612-0 | BOLT CHECK HOLE COVER | 1 | 9312- | 4HF1 | M 6 X 12 | ||
| 85 | I8-94454 963-2 | BRACKET ACCEL CABLE, FUEL FILTER | 1 | 9312- | 4BE1 | T=2.3 ( NKR 58 ) | ||
| 107 | I8-97088 046-3 | PIPE FUEL, FEED PUMP TO FUEL FIL | 1 | 9511- | 4HF1 | NKR 66, NKR 71 | ||
| 124 | I1-09468 002-1 | NUT CAP, FUEL PIPE | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 101 | I0-28050 625-0 | BOLT FUEL CLIP | 1 | 9312- | 4HF1 | (A) M 6 X 25 ( NKR 66 ) | ||
| 101 | I0-28050 625-0 | BOLT FUEL CLIP | 2 | 9312- | 4BE1 | M 6 X 25 W/SP & PL WASHER | ||
| 108 | I8-98037 827-0 | BOLT JOINT, FUEL FILTER | 2 | 9312- | 4BE1 | NKR 58, NKR 71 |
