| 43 |
I8-94344 429-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4BE1 |
L=45.5 D = 3.2 ( NKR 58 ) |
| 42 |
I8-97026 946-0 |
|
RING SNAP, TIMER COVER, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 8 |
I0-50540 616-0 |
|
BOLT DRIVE GEAR FIX, INJ PUMP |
6 |
9312- |
|
4HF1 |
NKR 66 |
| 44 |
I8-97085 039-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.12 ( NKR 71 ) |
| 32 |
I1-15749 135-0 |
|
RING SNAP, SPRING SEAT, TIMER, INJ |
4 |
0106- |
|
4HF1 |
NKR 66 |
| 66 |
I9-81345 330-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.20 ( NKR 58 ) |
| 70 |
I8-97085 032-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1-T |
T=0.20 ( NKR71 EURO 2 ) |
| 20 |
I1-15749 397-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=1.00 ( NKR 71 ) |
| 49 |
I8-94426 069-0 |
|
PISTON TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 70 |
I8-97026 949-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.12 ( NKR 66 ) |
| 41 |
I8-94227 495-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=0.60 ( NHR 55 ) |
| 41 |
I1-15749 391-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4HG1-T |
T=0.30 ( NKR71 EURO 2 ) |
| 70 |
I8-97026 948-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.10 ( NKR 66 ) |
| 41 |
I8-94227 496-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=0.70 ( NHR 55 ) |
| 70 |
I8-97026 955-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=1.30 ( NKR 66 ) |
| 38 |
I8-94227 500-0 |
|
COVER TIMER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 20 |
I1-15749 496-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.70 ( NKR71 EURO 2 ) |
| 1 |
I8-97224 581-0 |
|
TIMER ASM INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 35 |
I8-97223 405-0 |
|
SPRING TIMER, OUTER, INJ PUMP |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 31 |
I8-97231 933-0 |
|
SCREW TIMER COVER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 6 |
I8-97223 409-0 |
|
FLANGE DRIVE GEAR, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 59 |
I8-94339 989-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.70 ( NKR 66 ) |
| 36 |
I8-97085 029-0 |
|
PIN PILOT, TIMER SPRING, INJ PUMP |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I1-15749 394-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.10 ( NKR 71 ) |
| 47 |
I8-94227 487-0 |
|
PIN HOLDER PIN, TIMER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 41 |
I1-15749 393-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=1.00 ( NKR 71 ) |
| 44 |
I8-97026 953-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.90 |
| 58 |
I8-97125 961-0 |
|
FLYWEIGHT ASM TIMER, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 23 |
I8-98124 775-0 |
|
NUT TIMER FLANGE, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 20 |
I5-15749 023-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=1.00 ( NKR 58 ) |
| 66 |
I9-81345 329-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.50 ( NKR 58 ) |
| 40 |
I8-97233 116-0 |
|
GASKET TIMER COVER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 20 |
I9-81325 419-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=0.20 ( NKR 58 ) |
| 1 |
I8-97223 286-0 |
|
TIMER ASM INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 41 |
I8-94227 498-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 6 |
I8-97026 947-0 |
|
FLANGE DRIVE GEAR, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 44 |
I8-97026 949-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.12 |
| 28 |
I8-94172 269-0 |
|
CAM INNER, ECCENTRIC, TIMER, INJ P |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I5-15749 022-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=0.60 ( NKR 58 ) |
| 22 |
I8-94132 763-0 |
|
SEAT INNER SPRING, TIMER, INJ PUM |
4 |
9312- |
|
4HF1 |
NKR 66 |
| 43 |
I8-94313 680-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=38.4 ( NHR 55 ) |
| 41 |
I8-94227 498-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=1.00 ( NHR 55 ) |
| 59 |
I8-94339 983-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.10 ( NKR 66 ) |
| 36 |
I9-84132 749-0 |
|
PIN PILOT, TIMER SPRING, INJ PUMP |
2 |
0106- |
|
4HF1 |
NKR 66 |
| 41 |
I1-15749 494-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.70 ( NKR71 EURO 2) |
| 44 |
I8-97085 046-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=1.50 ( NKR 71 ) |
| 23 |
I1-15749 144-0 |
|
NUT TIMER FLANGE, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 70 |
I8-97085 036-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1-T |
T=0.60 ( NKR71 EURO 2) |
| 8 |
I0-50540 616-0 |
|
BOLT DRIVE GEAR FIX, INJ PUMP |
6 |
0106- |
|
4HF1 |
NKR 66 |
| 31 |
I8-94313 276-0 |
|
SCREW TIMER COVER, INJ PUMP |
2 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 15 |
I5-15743 012-0 |
|
FLYWEIGHT TIMER, INJ PUMP |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 42 |
I8-97026 946-0 |
|
RING SNAP, TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 70 |
I8-97026 951-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.16 ( NKR 66 ) |
| 41 |
I8-94227 499-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=1.20 ( NHR 55 ) |
| 59 |
I8-94339 991-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.90 ( NKR 66 ) |
| 66 |
I9-81345 328-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.18 ( NKR 58 ) |
| 41 |
I1-15749 493-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.40 ( NKR71 EURO 2 ) |
| 58 |
I8-97137 786-0 |
|
FLYWEIGHT ASM TIMER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 41 |
I8-94227 496-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 43 |
I8-97115 737-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
4 |
0106- |
|
4HF1 |
NKR 66 |
| 44 |
I8-97085 038-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.10 ( NKR 71 ) |
| 29 |
I8-94172 268-0 |
|
CAM OUTER, ECCENTRIC, TIMER, INJ P |
2 |
0106- |
|
4HF1 |
NKR 66 |
| 73 |
I1-14319 034-0 |
|
WASHER DRIVE GEAR, INJ PUMP |
4 |
0211- |
|
4HG1 |
D = 18 ( NKR 71 ) |
| 20 |
I1-15749 396-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.50 ( NKR 71 EURO 2 ) |
| 20 |
I8-94227 495-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 72 |
I1-15749 205-0 |
|
RING SNAP, FLANGE TIMER |
1 |
0702- |
|
4HG1-T |
D = 18 ( NKR71 EURO 2 ) |
| 23 |
I8-94171 193-0 |
|
NUT TIMER FLANGE, INJ PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 44 |
I8-97026 951-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.16 |
| 48 |
I8-97214 493-0 |
|
PIN ROLLER HOLDER, TIMER, INJ PUM |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 70 |
I8-97026 956-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=1.50 ( NKR 66 ) |
| 70 |
I8-97026 957-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=1.70 ( NKR 66 ) |
| 40 |
I8-97233 116-0 |
|
GASKET TIMER COVER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 68 |
I8-94171 189-0 |
|
WASHER FLANGE, TIMER, INJECTION PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 29 |
I8-97085 030-0 |
|
CAM OUTER, ECCENTRIC, TIMER, INJ P |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 66 |
I9-81345 331-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.30 ( NKR 58 ) |
| 29 |
I8-94172 268-0 |
|
CAM OUTER, ECCENTRIC, TIMER, INJ P |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 43 |
I8-94343 340-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=38.5 ( NHR 55 ) |
| 20 |
I1-15749 495-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.40 ( NKR 71 ) |
| 20 |
I5-15749 021-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=0.30 ( NKR 58 ) |
| 48 |
I8-94227 486-0 |
|
PIN ROLLER HOLDER, TIMER, INJ PUM |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 20 |
I8-94227 495-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 44 |
I8-97085 043-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.90 ( NKR 71 ) |
| 43 |
I8-94343 340-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 , L=38.5 |
| 6 |
I8-97085 031-0 |
|
FLANGE DRIVE GEAR, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 59 |
I8-94339 987-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.50 ( NKR 66 ) |
| 41 |
I1-15749 391-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.30 ( NKR 71 ) |
| 44 |
I8-97085 044-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=1.10 ( NKR 71 ) |
| 41 |
I1-15749 392-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4HG1-T |
T=0.50 ( NKR71 EURO 2 ) |
| 46 |
I8-94227 488-0 |
|
CLIP HOLDER PIN, TIMER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 36 |
I9-84132 749-0 |
|
PIN PILOT, TIMER SPRING, INJ PUMP |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 32 |
I1-15749 159-0 |
|
RING SNAP, SPRING SEAT, TIMER, INJ |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 70 |
I8-97085 036-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1 |
T=0.60 ( NKR 71 ) |
| 20 |
I1-15749 495-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.40 ( NKR71 EURO 2 ) |
| 26 |
I8-97127 576-0 |
|
FLANGE TIMER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 58 |
I8-97037 307-0 |
|
FLYWEIGHT ASM TIMER, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 41 |
I8-94121 620-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=2.40 |
| 38 |
I8-97026 945-0 |
|
COVER TIMER, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 70 |
I8-97085 035-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1 |
T=0.50 ( NKR 71 ) |
| 59 |
I8-94339 992-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=1.00 ( NKR 66 ) |
| 70 |
I8-97026 953-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.90 ( NKR 66 ) |
| 15 |
I8-97037 308-0 |
|
FLYWEIGHT TIMER, INJ PUMP |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 41 |
I1-15749 392-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.50 ( NKR 71 ) |
| 44 |
I8-97026 955-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=1.30 |
| 43 |
I8-97037 277-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4BE1 |
L=45.5 D = 3.3 ( NKR 58 ) |
| 63 |
I8-94171 191-0 |
|
PLATE NUT LOCK, TIMER, INJECTION PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 31 |
I8-94313 276-0 |
|
SCREW TIMER COVER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 3 |
I8-97203 921-1 |
|
GEAR DRIVE, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 50 |
I8-94227 493-0 |
|
SLIDER TIMER PISTON, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 1 |
I8-94362 026-1 |
|
TIMER ASM INJ PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 35 |
I8-97125 967-0 |
|
SPRING TIMER, OUTER, INJ PUMP |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 8 |
I8-97223 410-0 |
|
BOLT DRIVE GEAR FIX, INJ PUMP |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 41 |
I8-94227 496-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=0.70 |
| 20 |
I1-15749 394-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.10 ( NKR71 EURO 2 ) |
| 15 |
I8-97125 962-0 |
|
FLYWEIGHT TIMER, INJ PUMP |
2 |
0211- |
|
4HG1 |
NKR 71 |
| 26 |
I8-97026 942-1 |
|
FLANGE TIMER, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 23 |
I8-98124 775-0 |
|
NUT TIMER FLANGE, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 54 |
I5-15741 004-0 |
|
HOLDER FLYWEIGHT, TIMER, INJECTION PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 41 |
I8-94227 497-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 32 |
I1-15749 159-0 |
|
RING SNAP, SPRING SEAT, TIMER, INJ |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 41 |
I1-15749 390-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4HG1-T |
T=0.10 ( NKR71 EURO 2 ) |
| 20 |
I1-15749 396-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.50 ( NKR 71 ) |
| 43 |
I8-97231 931-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=42.0 ( NHR55, NKR55 E2 ) |
| 44 |
I8-97085 040-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.14 ( NKR 71 ) |
| 20 |
I9-81325 420-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=0.50 ( NKR 58 ) |
| 59 |
I8-94339 988-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.60 ( NKR 66 ) |
| 34 |
I8-97125 963-0 |
|
SPRING TIMER, INNER, INJ PUMP |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 25 |
I8-94472 289-0 |
|
WASHER LK, TIMER FLANGE, INJ PUMP |
2 |
0106- |
|
4HF1 |
NKR 66 |
| 41 |
I8-94227 498-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=1.00 |
| 41 |
I1-15749 493-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.40 ( NKR 71 ) |
| 38 |
I8-97085 037-0 |
|
COVER TIMER, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 70 |
I8-97085 032-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1 |
T=0.20 ( NKR 71 ) |
| 49 |
I8-97119 169-0 |
|
PISTON TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 38 |
I8-97085 037-0 |
|
COVER TIMER, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 70 |
I8-97085 033-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1 |
T=0.30 ( NKR 71 ) |
| 34 |
I8-97223 404-0 |
|
SPRING TIMER, INNER, INJ PUMP |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 41 |
I8-94227 497-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=0.90 |
| 44 |
I8-97026 950-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.14 |
| 32 |
I1-15749 135-0 |
|
RING SNAP, SPRING SEAT, TIMER, INJ |
4 |
9312- |
|
4HF1 |
NKR 66 |
| 43 |
I8-97037 310-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
4 |
9312- |
|
4HF1 |
NKR 66 |
| 26 |
I5-15742 016-0 |
|
FLANGE TIMER, INJ PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 20 |
I1-15749 496-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.70 ( NKR 71 ) |
| 22 |
I8-97085 026-0 |
|
SEAT INNER SPRING, TIMER, INJ PUM |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 15 |
I8-97037 308-0 |
|
FLYWEIGHT TIMER, INJ PUMP |
2 |
0106- |
|
4HF1 |
NKR 66 |
| 70 |
I8-97026 954-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=1.10 ( NKR 66 ) |
| 25 |
I1-15749 145-0 |
|
WASHER LK, TIMER FLANGE, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 41 |
I1-15749 494-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.70 ( NKR 71 ) |
| 8 |
I8-94457 517-0 |
|
BOLT DRIVE GEAR FIX, INJ PUMP |
6 |
9312- |
|
4BE1 |
NKR 58 |
| 70 |
I8-97085 034-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1-T |
T=0.40 ( NKR71 EURO 2 ) |
| 33 |
I1-15749 134-0 |
|
SEAT OUTER SPRING, TIMER, INJ PUM |
4 |
0106- |
|
4HF1 |
NKR 66 |
| 47 |
I8-94227 487-0 |
|
PIN HOLDER PIN, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 41 |
I1-15749 393-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4HG1-T |
T=1.00 ( NKR71 EURO 2) |
| 1 |
I8-97223 287-0 |
|
TIMER ASM INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 70 |
I8-97026 952-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.18 ( NKR 66 ) |
| 58 |
I8-97223 400-0 |
|
FLYWEIGHT ASM TIMER, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 41 |
I1-15749 390-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.10 ( NKR 71 ) |
| 44 |
I8-97026 948-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.10 |
| 28 |
I8-94172 269-0 |
|
CAM INNER, ECCENTRIC, TIMER, INJ P |
2 |
0106- |
|
4HF1 |
NKR 66, NKR 71 |
| 49 |
I8-97231 928-0 |
|
PISTON TIMER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 44 |
I8-97085 045-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=1.30 ( NKR 71 ) |
| 33 |
I8-97085 026-0 |
|
SEAT OUTER SPRING, TIMER, INJ PUM |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 43 |
I8-97231 930-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=41.7 ( NHR55, NKR55 E2 ) |
| 41 |
I8-94227 495-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 52 |
I8-94343 307-0 |
|
SENSOR TIMING, TACHOMETER, INJ PU |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 41 |
I8-94121 620-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=2.40 ( NHR 55 ) |
| 41 |
I8-94227 499-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 51 |
I8-94227 671-0 |
|
GASKET TIMING SENSOR, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 59 |
I8-94339 990-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.80 ( NKR 66 ) |
| 33 |
I8-97085 026-0 |
|
SEAT OUTER SPRING, TIMER, INJ PUM |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 46 |
I8-94227 488-0 |
|
CLIP HOLDER PIN, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 15 |
I8-97223 402-0 |
|
FLYWEIGHT TIMER, INJ PUMP |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 46 |
I8-94227 488-0 |
|
CLIP HOLDER PIN, TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 44 |
I8-97026 954-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=1.10 |
| 6 |
I8-97026 947-0 |
|
FLANGE DRIVE GEAR, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 1 |
I8-97083 261-0 |
|
TIMER ASM INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 44 |
I8-97026 956-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=1.50 |
| 37 |
I1-15749 402-0 |
|
PIN PILOT, TIMER SPRING, INJECTION PUMP |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 28 |
I8-94172 269-0 |
|
CAM INNER, ECCENTRIC, TIMER, INJ P |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 70 |
I8-97085 033-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1-T |
T=0.30 ( NKR71 EURO 2 ) |
| 43 |
I8-94313 669-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 , L=38.8 |
| 44 |
I8-97085 047-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=1.70 ( NKR 71 ) |
| 66 |
I9-81345 325-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.12 ( NKR 58 ) |
| 29 |
I8-97085 030-0 |
|
CAM OUTER, ECCENTRIC, TIMER, INJ P |
2 |
0211- |
|
4HG1 |
NKR 71 |
| 22 |
I8-97085 026-0 |
|
SEAT INNER SPRING, TIMER, INJ PUM |
4 |
0211- |
|
4HG1 |
NKR 71 |
| 44 |
I8-97026 952-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=0.18 |
| 42 |
I1-15749 185-0 |
|
RING SNAP, TIMER COVER, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 23 |
I1-15749 144-0 |
|
NUT TIMER FLANGE, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 43 |
I8-94313 669-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=38.8 ( NHR 55 ) |
| 3 |
I8-97212 197-0 |
|
GEAR DRIVE, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 66 |
I9-81345 332-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=1.10 ( NKR 58 ) |
| 8 |
I8-97223 410-0 |
|
BOLT DRIVE GEAR FIX, INJ PUMP |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 41 |
I8-94227 497-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4JB1 |
T=0.90 ( NHR 55 ) |
| 41 |
I8-94227 499-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=1.20 |
| 36 |
I8-97085 029-0 |
|
PIN PILOT, TIMER SPRING, INJ PUMP |
2 |
0211- |
|
4HG1 |
NKR 71 |
| 44 |
I8-97085 042-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.18 ( NKR 71 ) |
| 69 |
I8-94171 190-0 |
|
WASHER FLANGE FIX, TIMER, INJECTION PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 44 |
I8-97026 957-0 |
|
SHIM TIMER COVER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 T=1.70 |
| 72 |
I8-97026 946-0 |
|
RING SNAP, FLANGE TIMER |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 26 |
I8-97223 399-0 |
|
FLANGE TIMER, INJ PUMP |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I9-81325 418-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
9312- |
|
4BE1 |
T=0.10 ( NKR 58 ) |
| 20 |
I1-15749 395-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1 |
T=0.30 ( NKR 71 ) |
| 50 |
I8-94227 493-0 |
|
SLIDER TIMER PISTON, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 66 |
I8-94372 518-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.25 ( NKR 58 ) |
| 66 |
I9-81345 327-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.16 ( NKR 58 ) |
| 22 |
I8-94132 763-0 |
|
SEAT INNER SPRING, TIMER, INJ PUM |
4 |
0106- |
|
4HF1 |
NKR 66 |
| 25 |
I8-94472 289-0 |
|
WASHER LK, TIMER FLANGE, INJ PUMP |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 59 |
I8-94339 984-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.20 ( NKR 66 ) |
| 50 |
I8-97218 961-0 |
|
SLIDER TIMER PISTON, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 73 |
I8-97211 797-0 |
|
WASHER DRIVE GEAR, INJ PUMP |
4 |
0702- |
|
4HG1-T |
D = 18 ( NKR71 EURO 2 ) |
| 38 |
I8-97026 945-0 |
|
COVER TIMER, INJ PUMP |
1 |
0106- |
|
4HF1 |
NKR 66 |
| 20 |
I8-94227 495-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 26 |
I8-97121 651-0 |
|
FLANGE TIMER, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 70 |
I8-97026 950-0 |
|
SHIM FLANGE, TIMER |
AR |
9312- |
|
4HF1 |
T=0.14 ( NKR 66 ) |
| 25 |
I5-15749 032-0 |
|
WASHER LK, TIMER FLANGE, INJ PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 72 |
I1-15749 205-0 |
|
RING SNAP, FLANGE TIMER |
1 |
0211- |
|
4HG1 |
D = 18 ( NKR 71 ) |
| 42 |
I1-15749 185-0 |
|
RING SNAP, TIMER COVER, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 59 |
I8-94339 986-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.40 ( NKR 66 ) |
| 70 |
I8-97085 035-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1-T |
T=0.50 ( NKR71 EURO 2 ) |
| 41 |
I8-94227 495-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
9902- |
|
4HF1-2 |
NKR 66-2 , T=0.60 |
| 20 |
I1-15749 397-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=1.00 ( NKR71 EURO 2 ) |
| 38 |
I8-94473 120-0 |
|
COVER TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 40 |
I8-97383 765-0 |
|
GASKET TIMER COVER, INJ PUMP |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 43 |
I8-97175 324-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 , L=39.7 |
| 3 |
I8-94341 674-4 |
|
GEAR DRIVE, INJ PUMP |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 66 |
I9-81345 340-0 |
|
SHIM TIMER FLANGE, INJECTION PUMP |
AR |
9312- |
|
4BE1 |
T=0.14 ( NKR 58 ) |
| 38 |
I8-94473 120-0 |
|
COVER TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 19 |
I8-94171 192-0 |
|
NUT HOLDER, TIMER, INJECTION PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 3 |
I1-12524 070-0 |
|
GEAR DRIVE, INJ PUMP |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 3 |
I8-97203 920-1 |
|
GEAR DRIVE, INJ PUMP |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 20 |
I1-15749 395-0 |
|
SHIM INNER SPRING, TIMER, INJ PUM |
AR |
0211- |
|
4HG1-T |
T=0.30 ( NKR71 EURO 2 ) |
| 70 |
I8-97085 034-0 |
|
SHIM FLANGE, TIMER |
AR |
0211- |
|
4HG1 |
T=0.40 ( NKR 71 ) |
| 48 |
I8-94227 486-0 |
|
PIN ROLLER HOLDER, TIMER, INJ PUM |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |
| 43 |
I8-97231 929-0 |
|
SPRING PISTON, TIMER, INJ PUMP |
1 |
9312- |
|
4JB1 |
L=44.0 ( NHR55, NKR55 E2 ) |
| 59 |
I8-94339 985-0 |
|
SHIM SPRING, TIMER |
AR |
9312- |
|
4HF1 |
T=0.30 ( NKR 66 ) |
| 25 |
I1-15749 145-0 |
|
WASHER LK, TIMER FLANGE, INJ PUMP |
1 |
0106- |
|
4HG1 |
NKR 71 |
| 41 |
I8-94121 620-0 |
|
SHIM OUTER SPRING, TIMER, INJ PUM |
AR |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 33 |
I1-15749 134-0 |
|
SEAT OUTER SPRING, TIMER, INJ PUM |
4 |
9312- |
|
4HF1 |
NKR 66 |
| 44 |
I8-97085 041-0 |
|
SHIM TIMER COVER, INJ PUMP |
AR |
0211- |
|
4HG1 |
T=0.16 ( NKR 71 ) |
| 47 |
I8-94227 487-0 |
|
PIN HOLDER PIN, TIMER, INJ PUMP |
1 |
9902- |
|
4HF1-2 |
NKR 66-2 |

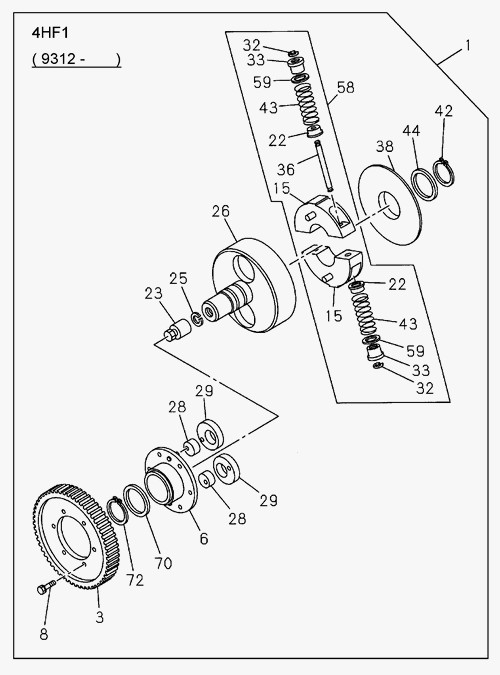

 4HF1.png)
 4HF1-2.png)
