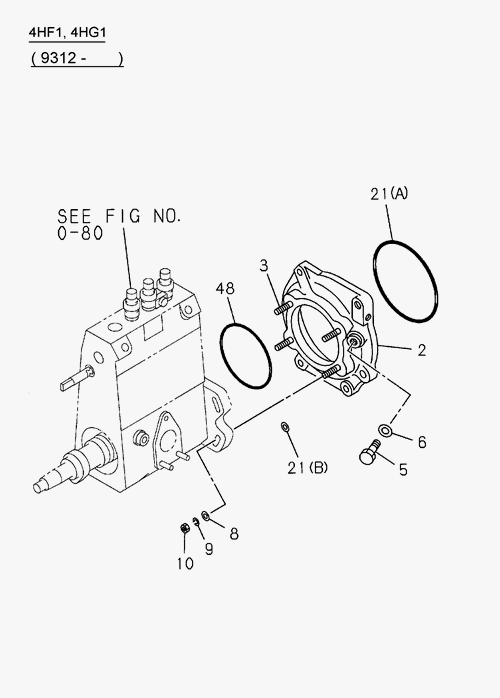

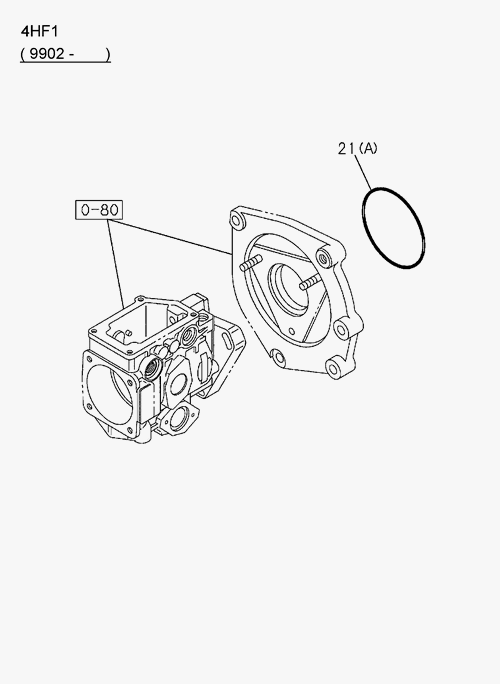

0-86 | MISCELLANEOUS PARTS; INJECTION PUMP

Partial Engine Partial Engine Partial Engine

ELF

NHR NKR

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
21 I9-09572 014-1 GASKET; INJ PUMP 1 9408- 4HF1 (B) NKR 66, NKR 71
2 I8-97123 609-0 BRACKET; HSG & TIMER, INJ PUMP 1 0702- 4HG1-T NKR 71 EURO 2
9 I1-09985 185-0 WASHER; LK, HSG BRKT, INJ PUMP 4 0211- 4HF1 ID=10.2
2 I8-97027 943-0 BRACKET; HSG & TIMER, INJ PUMP 1 9312-9510 4HF1 NKR 66
21 I8-97039 200-1 GASKET; INJ PUMP 1 9312- 4HF1 (A) NKR 66, NK66-2, NKR 71
5 I8-97026 919-0 PLUG; HSG BRKT, INJ PUMP 1 0702- 4HG1-T NKR71 EURO 2
10 I5-15639 002-0 NUT; HSG BRKT, INJ PUMP 4 9312- 4BE1 NKR 58
9 I1-09985 185-0 WASHER; LK, HSG BRKT, INJ PUMP 4 9312- 4BE1 NKR 58
8 I9-09164 510-0 WASHER; PL, HSG BRKT, INJ PUMP 4 9312- 4HF1 ID=10
3 I9-04101 030-0 STUD; HOUSING BRACKET, INJECTION PUMP 1 9312- 4HF1 M10X30 L=45
21 I9-09572 014-1 GASKET; INJ PUMP 1 0702- 4HG1-T (B) NKR 71 EURO2
6 I1-15729 787-0 GASKET; PLUG, INJ PUMP BRKT 1 9312- 4HF1 NKR 66, NKR 66-2, NKR 71
10 I5-15639 002-0 NUT; HSG BRKT, INJ PUMP 4 0702- 4HG1-T NKR71 EURO 2
3 I9-04101 030-0 STUD; HOUSING BRACKET, INJECTION PUMP 1 9312- 4BE1 NKR 58
8 I9-09164 510-0 WASHER; PL, HSG BRKT, INJ PUMP 4 9312- 4BE1 NKR 58
20 I9-09572 008-0 GASKET; COVER TO BOLT 4 9312- 4BE1 NKR 58
6 I1-15729 787-0 GASKET; PLUG, INJ PUMP BRKT 1 0702- 4HG1-T NKR71 EURO 2
2 I8-97121 615-0 BRACKET; HSG & TIMER, INJ PUMP 1 9511- 4HF1 NKR 66, NKR 66-2
8 I9-09164 510-0 WASHER; PL, HSG BRKT, INJ PUMP 4 0702- 4HG1-T ID=10
21 I8-97039 200-1 GASKET; INJ PUMP 1 0702- 4HG1-T (A) NKR 71 EURO2
9 I1-09985 185-0 WASHER; LK, HSG BRKT, INJ PUMP 4 0702- 4HG1-T ID=10.2
2 I8-97123 609-0 BRACKET; HSG & TIMER, INJ PUMP 1 0211- 4HG1 NKR 71
2 I5-19750 050-0 BRACKET; HSG & TIMER, INJ PUMP 1 9312- 4BE1 NKR 58
9 I1-09985 185-0 WASHER; LK, HSG BRKT, INJ PUMP 4 9312- 4HF1 NKR 66
21 I8-94370 675-1 GASKET; INJ PUMP 1 9312- 4BE1 NKR 58
48 I8-97026 918-0 GASKET; FRONT COVER TO HOUSING 1 9312- 4HF1 NKR 66
5 I8-97026 919-0 PLUG; HSG BRKT, INJ PUMP 1 9312- 4HF1 NKR 66, NKR 71
10 I5-15639 002-0 NUT; HSG BRKT, INJ PUMP 4 9312- 4HF1 NKR 66, NKR 66-2, NKR 71
