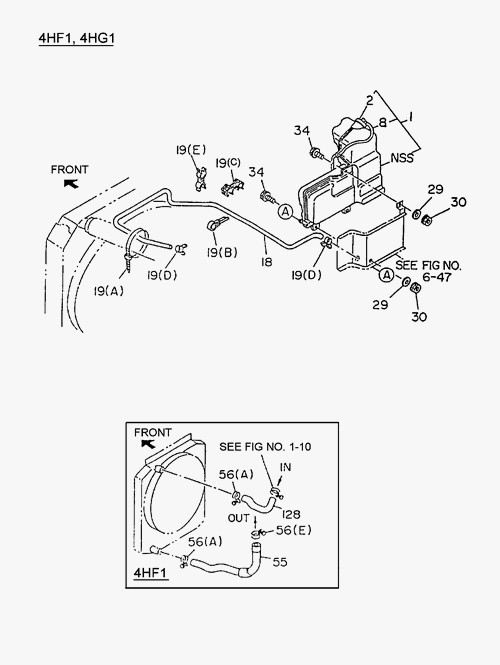

1-11 | RADIATOR HOSE AND SUB TANK
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 128 | I8-97147 473-A | HOSE WATER, RAD INL | 1 | 9608-0701 | 4JB1 | NHR 55 | ||
| 1 | I8-97138 509-0 | TANK SURGE, RAD | 1 | 9312- | 4JB1 | NHR 55 | ||
| 8 | I8-97096 394-0 | HOSE VINYL | 1 | 9312- | 4JB1 | NHR 55 | ||
| 128 | I8-97162 163-A | HOSE WATER, RAD INL | 1 | 0702- | 4HG1-T | NKR71T/THD EURO2 | ||
| 19 | I8-98150 358-0 | CLIP HOSE, SURGE TANK | 2 | 9312- | 4BE1 | (D) NKR 58 | ||
| 128 | I8-97162 163-A | HOSE WATER, RAD INL | 1 | 9608- | 4HF1 | (NKR 66, NKR 66-2, NKR 71 ) | ||
| 19 | I8-94235 793-0 | CLIP HOSE, SURGE TANK | 2 | 9312- | 4BE1 | (A) NKR 58 | ||
| 55 | I8-97090 581-0 | HOSE WATER, RAD OUTLET | 1 | 9312- | 4BE1 | NKR 58 | ||
| 8 | I8-97096 394-0 | HOSE VINYL | 1 | 9312- | 4BE1 | NKR 58 | ||
| 2 | I8-97217 796-0 | CAP SURGE TANK | 1 | 9811- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 18 | I8-97095 064-4 | HOSE RAD TO SURGE TANK | 1 | 9312- | 4HF1 | NKR 66 | ||
| 34 | I0-50140 620-0 | BOLT RESERVE TANK | 3 | 9312-9702 | 4HF1 | NKR 66 | ||
| 56 | I8-94156 158-0 | CLIP WATER HOSE, RAD | 1 | 9312- | 4BE1 | (D) NKR 58 | ||
| 34 | I0-28050 616-0 | BOLT RESERVE TANK | 3 | 9703- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 56 | I1-09704 066-0 | CLIP WATER HOSE, RAD | 1 | 9312- | 4BE1 | (C) NKR 58 | ||
| 1 | I8-98178 177-0 | TANK SURGE, RAD | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 30 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 3 | 9312- | 4BE1 | NKR 58 | ||
| 56 | I9-09915 265-A | CLIP WATER HOSE, RAD | 1 | 9312- | 4HF1 | (E) NKR 66 | ||
| 55 | I8-97124 740-0 | HOSE WATER, RAD OUTLET | 1 | 0702- | 4HG1-T | NKR71T/THD EURO2 | ||
| 30 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 3 | 9312- | 4JB1 | NHR 55 | ||
| 1 | I8-97205 136-1 | TANK SURGE, RAD | 1 | 0702- | 4JB1-TC | NHR, NKR55 EURO 2 | ||
| 56 | I9-09915 512-1 | CLIP WATER HOSE, RAD | 2 | 9312-0001 | 4BE1 | (A) NKR 58 | ||
| 56 | I8-94362 266-0 | CLIP WATER HOSE, RAD | 1 | 9312- | 4BE1 | (E) NKR 58 | ||
| 18 | I8-97129 554-1 | HOSE RAD TO SURGE TANK | 1 | 9608- | 4HF1 | NKR 66, NKR66-2, NKR 71 | ||
| 30 | I0-91180 106-0 | BOLT CABLE FIX | 3 | 0211- | 4HG1 | NKR 71 | ||
| 56 | I9-09915 512-1 | CLIP WATER HOSE, RAD | 2 | 0702- | 4JB1-TC | (A) NKR55 EURO2 | ||
| 29 | I0-91610 706-0 | WASHER PL, RESERVE TANK | 3 | 0211- | 4HG1 | ID=6 | ||
| 55 | I8-97124 740-0 | HOSE WATER, RAD OUTLET | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 128 | I8-97177 853-A | HOSE WATER, RAD INL | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 19 | I8-94416 613-0 | CLIP HOSE, SURGE TANK | 1 | 9312- | 4HF1 | (C) NKR 66, NKR 66-2, NKR 71 | ||
| 18 | I8-97106 370-0 | HOSE RAD TO SURGE TANK | 1 | 9312- | 4BE1 | NKR 58 | ||
| 29 | I0-91610 706-0 | WASHER PL, RESERVE TANK | 3 | 9312- | 4JB1 | NHR 55 | ||
| 19 | I5-09700 319-0 | CLIP HOSE, SURGE TANK | 2 | 0702- | 4JB1-TC | (B) NKR55 EURO2 | ||
| 2 | I8-94449 363-0 | CAP SURGE TANK | 1 | 9312-9810 | 4HF1 | NKR 58, NKR 66, NKR66-2 | ||
| 18 | I8-97100 929-0 | HOSE RAD TO SURGE TANK | 1 | 9312- | 4JB1 | NHR 55 | ||
| 56 | I8-97245 216-0 | CLIP WATER HOSE, RAD | 2 | 0002- | 4HF1 | (A) ID=40 | ||
| 19 | I5-09700 319-0 | CLIP HOSE, SURGE TANK | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 1 | I8-97138 509-0 | TANK SURGE, RAD | 1 | 9312- | 4BE1 | NKR 58 | ||
| 128 | I8-97034 004-0 | HOSE WATER, RAD INL | 1 | 9312- | 4BE1 | NKR 58 | ||
| 2 | I8-97217 796-0 | CAP SURGE TANK | 1 | 9811- | 4JB1 | NHR 55 | ||
| 56 | I8-97031 339-0 | CLIP WATER HOSE, RAD | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 1 | I8-98178 177-0 | TANK SURGE, RAD | 1 | 9511- | 4HF1 | NKR 66, NKR66-2, NKR 71 | ||
| 29 | I0-91610 706-0 | WASHER PL, RESERVE TANK | 3 | 9312- | 4BE1 | NKR 58 | ||
| 131 | I0-50740 820-0 | BOLT OIL PAN | 1 | 9312- | 4BE1 | NKR 58 | ||
| 19 | I8-94314 293-0 | CLIP HOSE, SURGE TANK | 1 | 9312- | 4HF1 | (E) NKR 66 | ||
| 56 | I9-09915 512-1 | CLIP WATER HOSE, RAD | 2 | 9312- | 4JB1 | (A) NHR 55 | ||
| 55 | I8-97089 916-A | HOSE WATER, RAD OUTLET | 1 | 9312- | 4JB1 | NHR 55 | ||
| 55 | I6-97124 740-0 | HOSE WATER, RAD OUTLET | 1 | 0702- | 4HG1-T | (IADG) NKR71T/THD EURO2 | ||
| 56 | I8-97245 217-0 | CLIP WATER HOSE, RAD | 1 | 0002- | 4HF1 | (E) ID=50 | ||
| 128 | I8-97034 003-0 | HOSE WATER, RAD INL | 1 | 9312-9607 | 4JB1 | NHR 55 | ||
| 34 | I0-50540 616-0 | BOLT RESERVE TANK | 3 | 9312-9702 | 4BE1 | NKR 58 | ||
| 19 | I5-09700 319-0 | CLIP HOSE, SURGE TANK | 1 | 9312- | 4BE1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 30 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 3 | 9312- | 4HF1 | NKR 66 | ||
| 19 | I8-98150 358-0 | CLIP HOSE, SURGE TANK | 2 | 9312- | 4JB1 | (D) NHR 55 | ||
| 128 | I6-97034 003-0 | HOSE WATER, RAD INL | 1 | 9312-9607 | 4JB1 | (IADG) NHR 55 | ||
| 2 | I8-94449 363-0 | CAP SURGE TANK | 1 | 9312-9810 | 4JB1 | NHR 55 | ||
| 34 | I0-50540 616-0 | BOLT RESERVE TANK | 3 | 9312- | 4JB1 | NHR 55 | ||
| 34 | I0-28050 620-0 | BOLT RESERVE TANK | 3 | 0211- | 4HG1 | NKR 71 | ||
| 128 | I8-97162 163-A | HOSE WATER, RAD INL | 1 | 9312-9607 | 4HF1 | NKR 66 | ||
| 55 | I8-97089 916-A | HOSE WATER, RAD OUTLET | 1 | 0702- | 4JB1-TC | NHR55/NKR55 | ||
| 55 | I6-97124 740-0 | HOSE WATER, RAD OUTLET | 1 | 9312- | 4HF1 | (IADG) NKR 66, NKR 66-2, NKR 71 |
