| 22 |
I8-94110 075-2 |
|
HOSE; CONNECTOR, ENGINE TO PIPE |
1 |
9312- |
|
4JB1 |
(B) NHR 55 |
| 389 |
I8-97080 149-A |
|
RUBBER; SUPPORT, AIR INT UPR |
1 |
0702- |
|
4HG1-T |
(A) NKR71 EURO2 |
| 22 |
I8-97107 173-0 |
|
HOSE; CONNECTOR, ENGINE TO PIPE |
1 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 508 |
I6-97217 911-0 |
|
HOSE; AIR, TURBO TO PIPE |
1 |
0702- |
|
4JB1-TC |
(IADG) NHR55/NKR55 |
| 181 |
I0-28250 816-0 |
|
BOLT; CABLE FIX |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 281 |
I8-94313 520-3 |
|
DUCT; AIR, VERTICAL INT |
1 |
0702- |
|
4JB1-TC |
NHR55-T, NKR55-T |
| 5 |
I9-09915 733-1 |
|
CLIP; AIR DUCT |
1 |
0702- |
|
4HG1-T |
(B) NKR71 EURO2 |
| 147 |
I1-09704 075-0 |
|
CLIP; HOSE TO ENGINE |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 509 |
I8-97228 657-1 |
|
HOSE; AIR, PIPE TO CHARGER |
1 |
0702- |
|
4JB1-TC |
(B) NHR55/NKR55 |
| 389 |
I8-97080 149-A |
|
RUBBER; SUPPORT, AIR INT UPR |
1 |
9312- |
|
4HF1 |
(A) NKR 66, NKR 66-2, NKR 71 |
| 391 |
I8-94327 073-0 |
|
NUT; LAMP BRACKET |
8 |
9312- |
|
4JB1 |
NHR 55 |
| 389 |
I8-97080 149-A |
|
RUBBER; SUPPORT, AIR INT UPR |
1 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 190 |
I8-97042 301-2 |
|
HOSE; CONNECTOR, DUCT TO AIR CLEANER |
1 |
0702- |
|
4HG1-T |
NKR71 EURO2 |
| 487 |
I8-97216 223-0 |
|
PIPE; INTAKE, TURB |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 242 |
I8-97856 935-0 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4BE1 |
(B) NKR 58 |
| 477 |
I0-74160 520-0 |
|
SCREW; COVER |
4 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2TRUK, NKR 71 |
| 242 |
I8-97856 967-1 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 281 |
I8-97108 552-0 |
|
DUCT; AIR, VERTICAL INT |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 192 |
I8-97087 432-0 |
|
CLIP; HOSE |
1 |
0702- |
|
4HG1-T |
(A) NKR71 EURO2 |
| 147 |
I1-09704 075-0 |
|
CLIP; HOSE TO ENGINE |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 242 |
I8-97853 634-0 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4HF1 |
(F) NKR 66 |
| 60 |
I8-97856 956-1 |
|
BRACKET; AIR DUCT, UPPER |
1 |
9312- |
|
4JB1 |
( RH ) NHR 55 |
| 190 |
I7-33336 015-A |
|
HOSE; CONNECTOR, DUCT TO AIR CLEANER |
1 |
0702- |
|
4JB1-TC |
NHR55B/NKR55B |
| 509 |
I8-97221 914-3 |
|
HOSE; AIR, PIPE TO CHARGER |
1 |
0702- |
|
4JB1-TC |
(A) NHR55/NKR55 |
| 242 |
I8-97856 933-0 |
|
BRACKET; AIR DUCT |
1 |
0702- |
|
4JB1-TC |
(D) , NHR55/NKR55 |
| 64 |
I8-94279 207-0 |
|
BOLT; BRKT, AIR DUCT |
3 |
9312- |
|
4HF1 |
(A) NKR 66, NKR 71 |
| 281 |
I8-97076 959-2 |
|
DUCT; AIR, VERTICAL INT |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 64 |
I8-94279 207-0 |
|
BOLT; BRKT, AIR DUCT |
3 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 381 |
I1-09984 141-0 |
|
NUT; BRKT, AIR DUCT |
2 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 389 |
I8-97081 886-A |
|
RUBBER; SUPPORT, AIR INT UPR |
2 |
9312- |
|
4HF1 |
(B) NKR 66, NKR 66-2, NKR 71 |
| 242 |
I8-97853 633-2 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4HF1 |
(E) NKR 66, NKR 66-2, NKR 71 |
| 60 |
I8-97856 957-1 |
|
BRACKET; AIR DUCT, UPPER |
1 |
9312- |
|
4HF1 |
( LH ) NKR 66, NKR 66-2, NKR 71 |
| 399 |
I8-94273 605-0 |
|
CAP; BRACKET, AIR DUCT |
2 |
9312- |
|
4JB1 |
NHR 55 |
| 242 |
I8-97853 635-1 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4HF1 |
(A) NKR 66 |
| 389 |
I8-97081 886-A |
|
RUBBER; SUPPORT, AIR INT UPR |
2 |
9312- |
|
4BE1 |
(B) NKR 58 |
| 399 |
I8-94273 605-0 |
|
CAP; BRACKET, AIR DUCT |
2 |
9312- |
|
4JB1-TC |
NHR55/NKR55 |
| 281 |
I8-97076 959-2 |
|
DUCT; AIR, VERTICAL INT |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 209 |
I8-97091 040-1 |
|
BRACKET; ACL |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 242 |
I8-97856 958-0 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4BE1 |
(C) NKR 58 |
| 399 |
I8-94273 605-0 |
|
CAP; BRACKET, AIR DUCT |
2 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2TRUK, NKR 71 |
| 5 |
I9-09915 502-1 |
|
CLIP; AIR DUCT |
1 |
0702- |
|
4HG1-T |
(A) NKR71 EURO2 |
| 281 |
I8-97125 174-2 |
|
DUCT; AIR, VERTICAL INT |
1 |
0702- |
|
4HG1-T |
NKR55L-T, NKR71-T/THD |
| 78 |
I5-14231 115-1 |
|
HOSE; INT SILENCER TO AIR CLEANER |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 391 |
I8-94327 073-0 |
|
NUT; LAMP BRACKET |
7 |
9312- |
|
4JB1-TC |
NHR55/NKR55 |
| 508 |
I8-97178 748-3 |
|
PIPE; INL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO2 |
| 60 |
I8-97856 956-1 |
|
BRACKET; AIR DUCT, UPPER |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 17 |
I8-97853 699-2 |
|
GASKET; AIR DUCT |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 242 |
I8-97856 935-0 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4JB1 |
(B) NHR 55 |
| 507 |
I8-97228 660-0 |
|
PIPE; CHARGE AIR COOLER |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 242 |
I8-97857 844-1 |
|
BRACKET; AIR DUCT |
1 |
9811- |
|
4HF1 |
(D) NKR 66, NKR 66-2, NKR 71 |
| 5 |
I8-97087 432-0 |
|
CLIP; AIR DUCT |
1 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 192 |
I8-94126 771-0 |
|
CLIP; HOSE |
2 |
0702- |
|
4JB1-TC |
(B) NHR55/NKR55 |
| 290 |
I8-97087 432-0 |
|
CLIP; ACL TO AIR DUCT |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 190 |
I8-97042 301-2 |
|
HOSE; CONNECTOR, DUCT TO AIR CLEANER |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 320 |
I8-97205 771-0 |
|
HOSE; CONN,ACL |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 242 |
I8-97856 958-0 |
|
BRACKET; AIR DUCT |
1 |
0702- |
|
4JB1-TC |
(C) , NHR55/NKR55 |
| 64 |
I8-98051 939-0 |
|
BOLT; BRKT, AIR DUCT |
1 |
9312- |
|
4HF1 |
(B) NKR 66 |
| 320 |
I8-97178 749-1 |
|
HOSE; CONN,ACL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO2 |
| 10 |
I0-50040 814-0 |
|
BOLT; BRACKET FIX |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 232 |
I8-97224 994-A |
|
HOSE; CONN |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 17 |
I8-97853 699-2 |
|
GASKET; AIR DUCT |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 193 |
I8-97044 953-1 |
|
COVER; DUCT, AIR INTAKE |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 22 |
I8-97106 732-0 |
|
HOSE; CONNECTOR, ENGINE TO PIPE |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 192 |
I1-09704 075-0 |
|
CLIP; HOSE TO ENGINE |
2 |
9312- |
|
4JB1 |
NHR 55 |
| 389 |
I8-97080 149-A |
|
RUBBER; SUPPORT, AIR INT UPR |
1 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 508 |
I8-97217 911-4 |
|
HOSE; AIR, TURBO TO PIPE |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 22 |
I8-94313 594-0 |
|
HOSE; CONNECTOR, ENGINE TO PIPE |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 5 |
I8-97087 432-0 |
|
CLIP; AIR DUCT |
1 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 60 |
I8-97856 956-1 |
|
BRACKET; AIR DUCT, UPPER |
1 |
9312- |
|
4BE1 |
( RH ) NKR 58 |
| 10 |
I0-28050 812-A |
|
BOLT; HANGER, FRT |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 281 |
I8-97161 847-2 |
|
DUCT; AIR, VERTICAL INT |
1 |
0211- |
|
4HF1 |
NKR 66, NKR 66-2TRUK, NKR 71 |
| 297 |
I0-28050 812-A |
|
BOLT; DUCT |
2 |
0702- |
|
4JB1-TC |
(C) , NHR55/NKR55 |
| 2 |
I8-97217 471-1 |
|
HOSE; AIR CLEANER |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 209 |
I8-97091 040-1 |
|
BRACKET; ACL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO2 |
| 5 |
I9-09915 733-1 |
|
CLIP; AIR DUCT |
1 |
9312- |
|
4HF1 |
(B) NKR 66, NKR 66-2, NKR 71 |
| 64 |
I8-94279 207-0 |
|
BOLT; BRKT, AIR DUCT |
3 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 9 |
I8-94155 425-1 |
|
BRACKET; INLET PIPE |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 242 |
I8-97856 967-1 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 476 |
I1-09983 810-0 |
|
GROMMET; SCREW, COVER |
4 |
9312- |
|
4HF1 |
NKR 66 |
| 320 |
I8-97205 771-0 |
|
HOSE; CONN,ACL |
1 |
0502- |
|
4JB1-TC |
NHR55 |
| 17 |
I8-97853 699-2 |
|
GASKET; AIR DUCT |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2 TRUK, NKR 71 |
| 190 |
I8-97224 994-A |
|
HOSE; CONNECTOR, DUCT TO AIR CLEANER |
1 |
0702- |
|
4JB1-TC |
NHR55T/NKR55T |
| 242 |
I8-97856 958-0 |
|
BRACKET; AIR DUCT |
1 |
9312- |
|
4JB1 |
(C) NHR 55 |
| 1 |
I8-94417 173-1 |
|
DUCT; AIR, INLET |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 64 |
I8-94279 207-0 |
|
BOLT; BRKT, AIR DUCT |
3 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 389 |
I8-97081 886-A |
|
RUBBER; SUPPORT, AIR INT UPR |
2 |
9312- |
|
4JB1 |
(B) NHR 55 |
| 2 |
I8-97069 875-2 |
|
HOSE; AIR CLEANER |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 192 |
I8-98133 347-0 |
|
CLIP; HOSE |
7 |
0702- |
|
4JB1-TC |
(A) NHR55/NKR55 |
| 281 |
I7-11127 020-A |
|
DUCT; AIR, VERTICAL INT |
1 |
0005- |
|
4JB1 |
NHR 55, NPN-ENG-7020 |
| 13 |
I0-91180 108-0 |
|
NUT; COVER, ENG |
2 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 391 |
I8-94327 073-0 |
|
NUT; LAMP BRACKET |
7 |
9312- |
|
4BE1 |
NKR 58 |
| 391 |
I8-94327 073-0 |
|
NUT; LAMP BRACKET |
6 |
9312- |
|
4HF1 |
NKR 66 |
| 9 |
I8-97226 059-0 |
|
BRACKET; INLET PIPE |
1 |
0702- |
|
4JB1-TC |
(E) NHR55/NKR55 |
| 242 |
I8-97856 932-0 |
|
BRACKET; AIR DUCT |
1 |
0702- |
|
4JB1-TC |
(E) , NHR55/NKR55 |
| 297 |
I0-28051 012-0 |
|
BOLT; DUCT |
2 |
0702- |
|
4JB1-TC |
(D) , NHR55/NKR55 |
| 181 |
I0-28650 825-0 |
|
BOLT; COVER |
1 |
9811- |
|
4HF1 |
M8X25 FLANGE |
| 5 |
I8-97087 432-0 |
|
CLIP; AIR DUCT |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 10 |
I0-50541 020-0 |
|
BOLT; HANGER, FRT |
2 |
9312- |
|
4JB1 |
NHR 55 |
| 9 |
I8-97035 698-0 |
|
BRACKET; INLET PIPE |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 78 |
I5-14231 115-1 |
|
HOSE; INT SILENCER TO AIR CLEANER |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 381 |
I1-09984 141-0 |
|
NUT; BRKT, AIR DUCT |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 281 |
I8-97161 847-2 |
|
DUCT; AIR, VERTICAL INT |
1 |
9811-0210 |
|
4HF1 |
NKR 66, NKR 66-2 |
| 381 |
I1-09984 141-0 |
|
NUT; BRKT, AIR DUCT |
2 |
9312- |
|
4JB1 |
NHR 55 |
| 399 |
I8-94273 605-0 |
|
CAP; BRACKET, AIR DUCT |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 17 |
I8-97853 699-2 |
|
GASKET; AIR DUCT |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 510 |
I8-97228 658-2 |
|
HOSE; AIR, PIPE TO INL MANIF |
1 |
0702- |
|
4JB1-TC |
NHR55/NKR55 |
| 389 |
I8-97081 886-A |
|
RUBBER; SUPPORT, AIR INT UPR |
2 |
0702- |
|
4JB1-TC |
(B) NHR55/NKR55 |
| 381 |
I1-09984 141-0 |
|
NUT; BRKT, AIR DUCT |
2 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2TRUK, NKR 71 |
| 281 |
I7-57310 215-A |
|
DUCT; AIR, VERTICAL INT |
1 |
0702- |
|
4JB1-TC |
NHR55-B, NKR55-B, NKR55-LWB |
| 5 |
I9-09915 502-1 |
|
CLIP; AIR DUCT |
1 |
9312- |
|

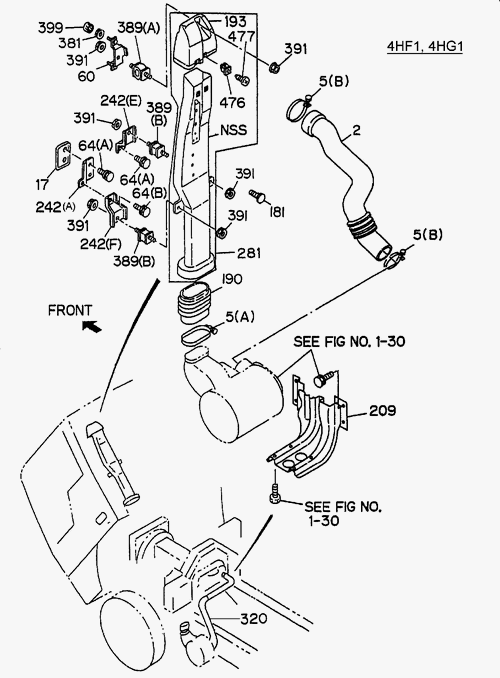

4HF1 |
(A) NKR 66, NKR 66-2 TRUK, NKR 71 |
