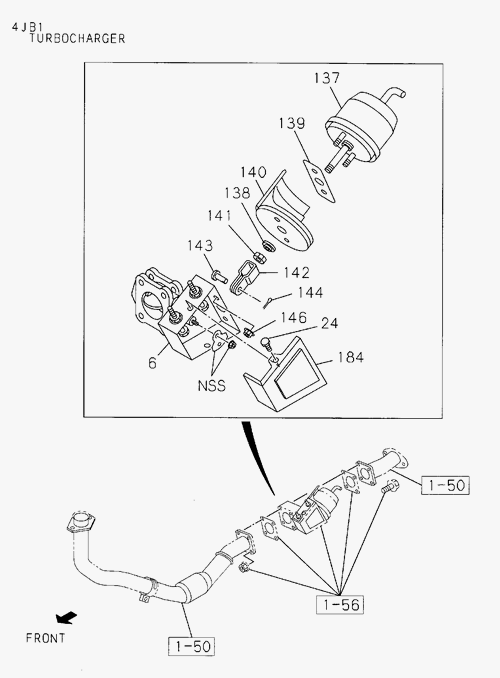

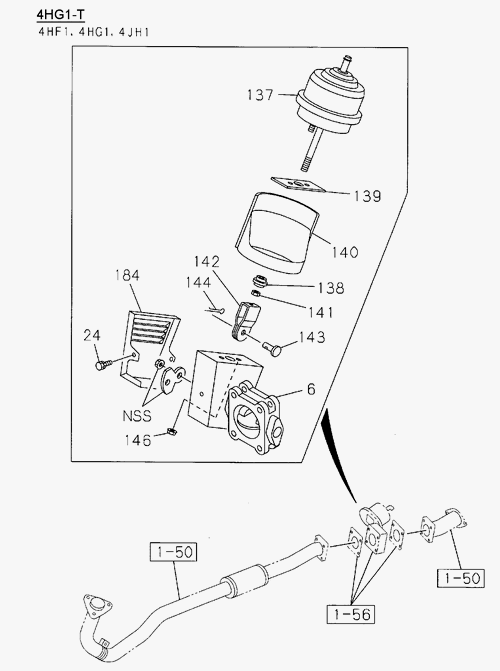

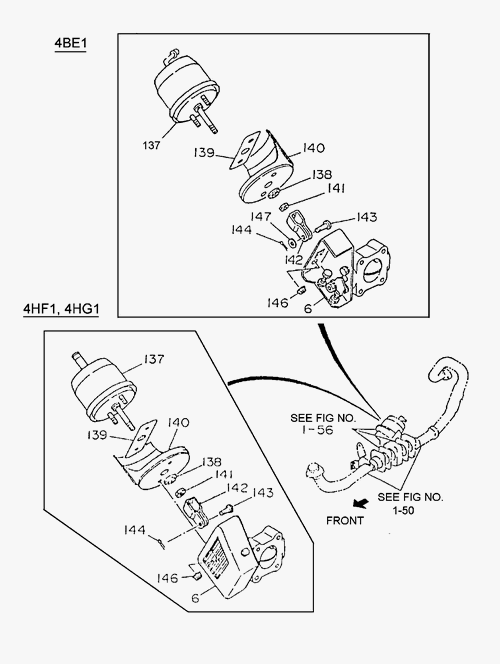

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 143 | I8-94311 452-0 | PIN EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 24 | I8-97065 029-0 | BOLT COVER | 2 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 6 | I8-97108 612-0 | VALVE EXH BRAKE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 138 | I8-94311 446-0 | BEARING EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 24 | I8-97065 029-0 | BOLT COVER | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 142 | I8-97177 311-0 | CLEVIS EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 184 | I8-97311 447-0 | COVER BRKT | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 138 | I8-94311 446-0 | BEARING EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 140 | I8-94383 633-0 | INSULATOR EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 146 | I0-91180 208-0 | NUT EXH BRKT VLV | 2 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 138 | I8-94311 446-0 | BEARING EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 137 | I8-97173 327-0 | CHAMBER POWER | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 184 | I8-97311 447-0 | COVER BRKT | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 137 | I8-97108 617-0 | CHAMBER POWER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 137 | I8-97257 279-0 | CHAMBER POWER | 1 | 0211- | 4HG1 | NKR 71 | ||
| 139 | I8-94328 234-0 | GASKET EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 6 | I8-97308 581-1 | VALVE EXH BRAKE | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 140 | I8-97257 283-0 | INSULATOR EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 144 | I8-97029 428-0 | PIN SPLIT, EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 146 | I0-91180 208-0 | NUT EXH BRKT VLV | 2 | 0211- | 4HG1 | NKR 71 | ||
| 6 | I8-97209 820-0 | VALVE EXH BRAKE | 1 | 9312- | 4HF1 | NKR 66 | ||
| 143 | I8-94311 452-0 | PIN EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 143 | I8-94311 452-0 | PIN EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 138 | I8-94311 446-0 | BEARING EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 140 | I8-97257 283-0 | INSULATOR EXH BRKT VLV | 1 | 0211- | 4HG1 | NKR 71 | ||
| 147 | I8-97311 447-0 | WASHER PL, EXH BRK VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 142 | I8-94428 084-0 | CLEVIS EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66 | ||
| 147 | I8-97311 447-0 | WASHER PL, EXH BRK VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 144 | I8-97029 428-0 | PIN SPLIT, EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 141 | I9-09111 508-A | NUT CLEVS, EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 143 | I8-94311 452-0 | PIN EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 141 | I9-88510 258-0 | NUT CLEVS, EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 146 | I8-94279 050-0 | NUT EXH BRKT VLV | 2 | 9312- | 4BE1 | NKR 58 | ||
| 147 | I0-91614 608-0 | WASHER PL, EXH MANIF | 1 | 9312- | 4BE1 | NKR 58 | ||
| 141 | I9-09111 508-A | NUT CLEVS, EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 140 | I8-97093 853-0 | INSULATOR EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66 | ||
| 139 | I8-94328 234-0 | GASKET EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 6 | I8-97308 581-1 | VALVE EXH BRAKE | 1 | 0203- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 139 | I8-94328 234-0 | GASKET EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 6 | I8-97177 309-0 | VALVE EXH BRAKE | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 139 | I8-94328 234-0 | GASKET EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 137 | I8-97257 279-0 | CHAMBER POWER | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 137 | I8-97094 458-0 | CHAMBER POWER | 1 | 9312- | 4HF1 | NKR 66 | ||
| 140 | I8-97079 006-0 | INSULATOR EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 142 | I8-94428 084-0 | CLEVIS EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 146 | I8-94279 050-0 | NUT EXH BRKT VLV | 2 | 9312- | 4HF1 | NKR 66 | ||
| 142 | I8-97177 311-0 | CLEVIS EXH BRKT VLV | 1 | 0211- | 4HG1 | NKR 71 | ||
| 141 | I9-09111 508-A | NUT CLEVS, EXH BRKT VLV | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 146 | I0-91180 208-0 | NUT EXH BRKT VLV | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 144 | I8-97010 295-1 | PIN SPLIT, EXH BRKT VLV | 1 | 9312- | 4BE1 | NKR 58 | ||
| 144 | I8-97029 428-0 | PIN SPLIT, EXH BRKT VLV | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 142 | I8-97177 311-0 | CLEVIS EXH BRKT VLV | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 |
