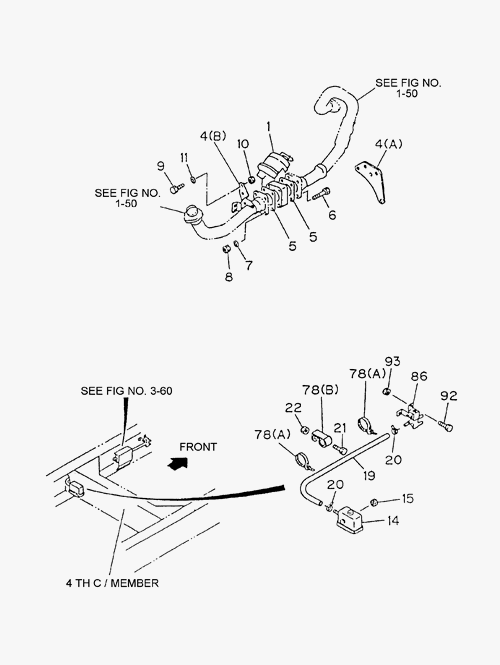

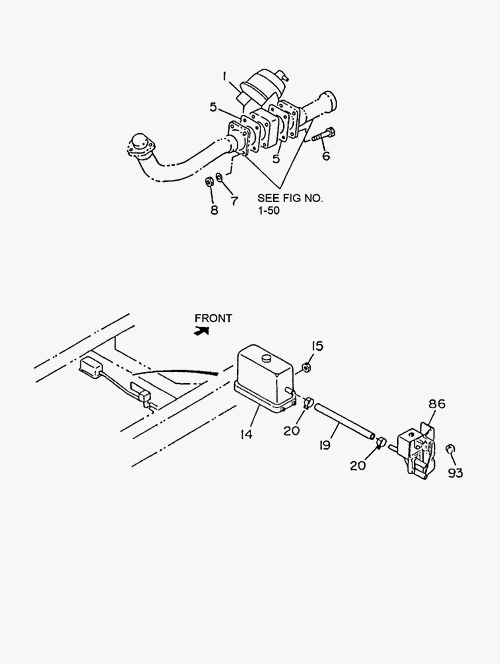

1-56 | EXHAUST BRAKE SYSTEM
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 92 | I0-50641 030-0 | BOLT MAG VLV | 2 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-98268 705-0 | BRAKE UNIT EXH | 1 | 0011- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 7 | I5-09500 012-0 | WASHER EXH BRAKE UNIT FIX | 4 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 7 | I5-09500 012-0 | WASHER EXH BRAKE UNIT FIX | 4 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 5 | I8-94328 354-A | GASKET EXH BRAKE UNIT | 2 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 20 | I8-98008 098-0 | CLIP FUEL HOSE | 2 | 9312- | 4BE1 | NKR 58 | ||
| 86 | I8-97374 160-2 | VALVE MAG,EXH BRK | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 8 | I0-91110 508-0 | NUT EXH BRAKE UNIT FIX | 4 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 5 | I8-94328 354-A | GASKET EXH BRAKE UNIT | 2 | 9312- | 4BE1 | NKR 58 | ||
| 8 | I0-91110 508-0 | NUT EXH BRAKE UNIT FIX | 4 | 9312- | 4BE1 | NKR 58 | ||
| 6 | I0-10855 870-0 | BOLT EXH BRAKE UNIT FIX | 4 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 15 | I0-91180 208-0 | NUT AIR FILTER | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 19 | I0-08258 300-0 | HOSE AIR FILTER | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 92 | I0-28650 825-0 | BOLT MAG VLV | 1 | 9901- | 4HF1 | M8X25 FLANGE | ||
| 93 | I0-91180 208-0 | NUT MAG VLV | 2 | 9312- | 4HF1 | NKR 66 | ||
| 10 | I0-91110 510-0 | NUT BRKT, EXH BRAKE | 2 | 9312- | 4BE1 | NKR 58, NKR 71 | ||
| 9 | I0-50741 025-0 | BOLT OIL PUMP | 2 | 9312- | 4BE1 | NKR 58 | ||
| 15 | I0-91180 208-0 | NUT AIR FILTER | 2 | 9312- | 4BE1 | NKR 58 | ||
| 21 | I0-28050 825-0 | BOLT COOLER TO RAD | 1 | 9312- | 4BE1 | NKR 58 | ||
| 6 | I0-10855 870-0 | BOLT EXH BRAKE UNIT FIX | 4 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 7 | I5-09500 012-0 | WASHER EXH BRAKE UNIT FIX | 4 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 1 | I8-97106 362-2 | BRAKE UNIT EXH | 1 | 9312- | 4BE1 | NKR 58 | ||
| 19 | I0-08258 300-0 | HOSE AIR FILTER | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 5 | I8-94328 354-A | GASKET EXH BRAKE UNIT | 2 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 86 | I8-97374 160-2 | VALVE MAG,EXH BRK | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 86 | I8-97374 157-2 | VALVE MAG,EXH BRK | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 14 | I8-94417 220-2 | FILTER AIR, EXH BRAKE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 86 | I8-97374 154-0 | VALVE MAG,EXH BRK | 1 | 9312- | 4BE1 | NKR 58 | ||
| 93 | I0-91180 108-0 | NUT MAG VLV | 2 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 15 | I0-91180 208-0 | NUT AIR FILTER | 2 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 14 | I8-97033 888-0 | FILTER AIR, EXH BRAKE | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 1 | I8-98268 705-0 | BRAKE UNIT EXH | 1 | 9312- | 4HF1 | NKR 66 | ||
| 4 | I5-22186 011-0 | BRACKET EXH BRAKE UNIT | 1 | 9312- | 4BE1 | (A) NKR 58 | ||
| 1 | I8-97102 372-4 | BRAKE UNIT EXH | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 14 | I8-97033 888-0 | FILTER AIR, EXH BRAKE | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 15 | I0-91180 208-0 | NUT AIR FILTER | 2 | 0211- | 4HG1 | NKR 71 | ||
| 78 | I5-09707 031-1 | CLIP ENGINE STOP CABLE | 2 | 9312- | 4BE1 | (A) NKR 58, NKR 71 | ||
| 86 | I8-97374 157-2 | VALVE MAG,EXH BRK | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 8 | I0-91110 508-0 | NUT EXH BRAKE UNIT FIX | 4 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 4 | I8-97094 814-1 | BRACKET EXH BRAKE UNIT | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 20 | I8-98008 098-0 | CLIP FUEL HOSE | 2 | 9312- | 4HF1 | NKR 66 | ||
| 22 | I0-91180 208-0 | NUT CAM BRKT | 1 | 9312- | 4BE1 | NKR 58 | ||
| 6 | I0-10855 870-0 | BOLT EXH BRAKE UNIT FIX | 4 | 9312- | 4BE1 | NKR 58 | ||
| 15 | I0-91180 208-0 | NUT AIR FILTER | 2 | 9312- | 4HF1 | NKR 66 | ||
| 8 | I0-91110 508-0 | NUT EXH BRAKE UNIT FIX | 4 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 6 | I0-10855 870-0 | BOLT EXH BRAKE UNIT FIX | 4 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 93 | I7-05110 010-A | NUT MAG VLV | 2 | 9312- | 4BE1 | NKR 58, NKR 71 | ||
| 11 | I0-91614 710-0 | WASHER PL, CONT CABLE | 2 | 9312- | 4BE1 | NKR 58, NKR 71 | ||
| 7 | I5-09500 012-0 | WASHER EXH BRAKE UNIT FIX | 4 | 9312- | 4BE1 | NKR 58 | ||
| 78 | I8-94455 485-0 | CLIP HOSE | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 19 | I0-08258 300-0 | HOSE AIR FILTER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-98268 705-0 | BRAKE UNIT EXH | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 19 | I0-08258 300-0 | HOSE AIR FILTER | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 5 | I8-94328 354-A | GASKET EXH BRAKE UNIT | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 108 | I8-97106 474-2 | BRACKET AIR FILTER | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 14 | I8-97033 888-0 | FILTER AIR, EXH BRAKE | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 93 | I0-91180 108-0 | NUT MAG VLV | 2 | 0702- | 4HG1-T | NKR71 EURO 2 |
