| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 27 |
I8-94156 626-0 |
|
NUT FULCRUM PIN |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 6 |
I8-94238 596-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4HF1 |
(C) NKR 66 |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 265 |
I8-97329 625-0 |
|
NUT BRACKET, COLUMN SUPT TO CLUTCH PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 1 |
I8-97853 219-2 |
|
PEDAL CLU |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 242 |
I8-94279 207-0 |
|
BOLT BRKT, CLUTCH |
2 |
9312- |
|
4JB1 |
M 8 X 16 ( NHR 55 ) |
| 85 |
I8-98031 178-0 |
|
CLIP HOSE TO M/CYL |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 4 |
I8-97851 534-1 |
|
STOPPER CLU PEDAL |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 30 |
I8-97313 188-0 |
|
BOLT CLU MTG BRKT |
1 |
9312- |
|
4HF1 |
M10X25 ( NKR 66 ) |
| 242 |
I8-94279 207-0 |
|
BOLT BRKT, CLUTCH |
2 |
9312- |
|
4BE1 |
M 8 X 16 ( NKR 58 ) |
| 85 |
I8-98031 178-0 |
|
CLIP HOSE TO M/CYL |
2 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
9312-0210 |
|
4HF1 |
NKR 66 |
| 32 |
I8-94279 050-0 |
|
NUT BRKT TO CLU M/CYL |
2 |
9312- |
|
4JB1 |
M8 W/LK WASHER ( NHR 55 ) |
| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 4 |
I8-97851 534-1 |
|
STOPPER CLU PEDAL |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 1 |
I8-97857 984-2 |
|
PEDAL CLU |
1 |
0211-0701 |
|
4HG1 |
NKR 71 |
| 4 |
I8-97851 534-1 |
|
STOPPER CLU PEDAL |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 11 |
I8-94279 912-0 |
|
PIN SNAP, PUSH ROD TO PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 177 |
I8-94279 050-0 |
|
NUT BRKT |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 10 |
I8-97359 812-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2, NKR 71 |
| 4 |
I8-97851 534-1 |
|
STOPPER CLU PEDAL |
2 |
9312- |
|
4JB1 |
NHR 55 |
| 61 |
I8-94279 050-0 |
|
NUT BOOSTER TO BRKT |
4 |
9312- |
|
4JB1 |
NHR 55 |
| 1 |
I8-97857 984-2 |
|
PEDAL CLU |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 30 |
I0-28661 025-0 |
|
BOLT CLU MTG BRKT |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 32 |
I8-94279 050-0 |
|
NUT BRKT TO CLU M/CYL |
2 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 265 |
I8-94327 073-0 |
|
NUT LAMP BRACKET |
1 |
9312-9609 |
|
4HF1 |
M 8 FLANGE NUT |
| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
9312-0210 |
|
4JB1 |
NHR 55 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
9312-9406 |
|
4HF1 |
M 10 H = 8 ( NKR 66 ) |
| 242 |
I0-28450 816-0 |
|
BOLT BRKT, CLUTCH |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 13 |
I8-97853 221-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4HF1 |
(B) NKR 66 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 177 |
I8-94279 050-0 |
|
NUT BRKT |
2 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 32 |
I8-94279 050-0 |
|
NUT BRKT TO CLU M/CYL |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 11 |
I8-94279 912-0 |
|
PIN SNAP, PUSH ROD TO PEDAL |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 66-2, NKR 71 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 61 |
I8-94279 050-0 |
|
NUT BOOSTER TO BRKT |
4 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 242 |
I0-28450 816-0 |
|
BOLT BRKT, CLUTCH |
2 |
0211- |
|
4HG1 |
M 8 X 16 ( NKR 71 ) |
| 13 |
I8-97853 221-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
0702- |
|
4JB1-TC |
(B) NHR55, NKR55 EURO 2 |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 12 |
I0-20801 035-1 |
|
BOLT CLU PEDAL ADJ |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 10 |
I8-97359 812-0 |
|
PIN CLU PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 27 |
I8-94156 626-0 |
|
NUT FULCRUM PIN |
1 |
0211- |
|
4HG1 |
M 10 FLANGE ( NKR 71 ) |
| 25 |
I8-97313 188-0 |
|
BOLT PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 6 |
I8-97853 620-0 |
|
BUSHING CLU PEDAL |
1 |
9312- |
|
4JB1 |
(B) NHR 55 |
| 10 |
I8-97359 812-0 |
|
PIN CLU PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 12 |
I0-20801 035-1 |
|
BOLT CLU PEDAL ADJ |
1 |
9312- |
|
4JB1 |
M10X35 ( NHR 55 ) |
| 27 |
I8-94156 626-0 |
|
NUT FULCRUM PIN |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 10 |
I8-97359 812-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 11 |
I8-94279 912-0 |
|
PIN SNAP, PUSH ROD TO PEDAL |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 11 |
I8-94279 912-0 |
|
PIN SNAP, PUSH ROD TO PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 28 |
I1-09985 185-0 |
|
WASHER LK, CUSHION RUBBER TO FRAME |
1 |
9312- |
|
4BE1 |
ID=10 ( NKR 58 ) |
| 4 |
I8-97851 534-1 |
|
STOPPER CLU PEDAL |
2 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 30 |
I0-28661 025-0 |
|
BOLT CLU MTG BRKT |
1 |
9604- |
|
4HF1 |
M10X25 ( NKR66, 66-2, 71 ) |
| 13 |
I8-97853 535-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 30 |
I0-28661 025-0 |
|
BOLT CLU MTG BRKT |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 13 |
I8-97853 535-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 13 |
I8-97853 221-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
0702- |
|
4HG1-T |
(B) NKR71 EURO 2 |
| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 13 |
I8-97853 221-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4BE1 |
(B) NKR 58 |
| 6 |
I8-97853 619-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4HF1 |
(A) NKR 66, NKR 71 |
| 6 |
I8-94238 596-0 |
|
BUSHING CLU PEDAL |
2 |
0702- |
|
4JB1-TC |
(C) NKR71 EURO 2 |
| 6 |
I8-97853 620-0 |
|
BUSHING CLU PEDAL |
1 |
9312- |
|
4HF1 |
(B) NKR 66, NKR 71 |
| 61 |
I8-94279 050-0 |
|
NUT BOOSTER TO BRKT |
4 |
9312- |
|
4BE1 |
NKR 58 |
| 28 |
I1-09985 185-0 |
|
WASHER LK, CUSHION RUBBER TO FRAME |
1 |
9312- |
|
4JB1 |
ID=10 ( NHR 55 ) |
| 30 |
I8-97313 188-0 |
|
BOLT CLU MTG BRKT |
1 |
9312- |
|
4BE1 |
M10X25 ( NKR 58 ) |
| 6 |
I8-94238 596-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4BE1 |
(C) NKR 58 |
| 13 |
I8-97853 221-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4JB1 |
(B) NHR 55 |
| 265 |
I8-97329 625-0 |
|
NUT BRACKET, COLUMN SUPT TO CLUTCH PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 265 |
I8-94327 073-0 |
|
NUT LAMP BRACKET |
1 |
9312-9609 |
|
4BE1 |
M 8 FLANGE NUT |
| 13 |
I8-97853 535-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
9312- |
|
4HF1 |
(A) NKR 66 |
| 27 |
I0-91110 510-0 |
|
NUT FULCRUM PIN |
1 |
9312- |
|
4HF1 |
M 10 H = 8 ( NKR 66 ) |
| 12 |
I0-20801 035-1 |
|
BOLT CLU PEDAL ADJ |
1 |
9312- |
|
4HF1 |
M10X35 ( NKR 66, NKR 71 ) |
| 30 |
I0-28661 025-0 |
|
BOLT CLU MTG BRKT |
2 |
9604- |
|
4JB1 |
M10X25 ( NHR 55 ) |
| 61 |
I8-94279 050-0 |
|
NUT BOOSTER TO BRKT |
4 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 242 |
I8-94279 207-0 |
|
BOLT BRKT, CLUTCH |
2 |
9312- |
|
4HF1 |
M 8 X 16 ( NKR 66 ) |
| 1 |
I8-97853 219-2 |
|
PEDAL CLU |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 265 |
I8-97329 625-0 |
|
NUT BRACKET, COLUMN SUPT TO CLUTCH PEDAL |
1 |
9610- |
|
4HF1 |
M 8 FLANGE |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
9407- |
|
4JB1 |
M 10 ( NHR 55 ) |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 10 |
I8-97359 812-0 |
|
PIN CLU PEDAL |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 242 |
I0-28450 816-0 |
|
BOLT BRKT, CLUTCH |
2 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 14 |
I8-97892 848-3 |
|
BRACKET ASM CLU PEDAL MTG |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 1 |
I8-97853 219-2 |
|
PEDAL CLU |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 6 |
I8-97853 620-0 |
|
BUSHING CLU PEDAL |
1 |
9312- |
|
4BE1 |
(B) NKR 58 |
| 27 |
I0-91110 510-0 |
|
NUT FULCRUM PIN |
1 |
9312- |
|
4BE1 |
M 10 H = 8 ( NKR 58 ) |
| 265 |
I8-97329 625-0 |
|
NUT BRACKET, COLUMN SUPT TO CLUTCH PEDAL |
1 |
9610- |
|
4JB1 |
M 8 FLANGE ( NHR 55 ) |
| 6 |
I8-97853 619-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4JB1 |
(A) NHR 55 |
| 6 |
I8-94238 596-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4JB1 |
(C) NHR 55 |
| 9 |
I8-97866 667-0 |
|
PIN CLU PEDAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 1 |
I8-97853 219-2 |
|
PEDAL CLU |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 7 |
I8-97853 522-5 |
|
BRACKET CLU PEDAL |
1 |
9312-0210 |
|
4BE1 |
NKR 58 |
| 12 |
I0-20801 035-1 |
|
BOLT CLU PEDAL ADJ |
1 |
9312- |
|
4BE1 |
M10X35 ( NKR 58 ) |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
9312-9406 |
|
4JB1 |
M 10 H = 8 ( NHR 55 ) |
| 25 |
I8-97313 188-0 |
|
BOLT PEDAL |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |

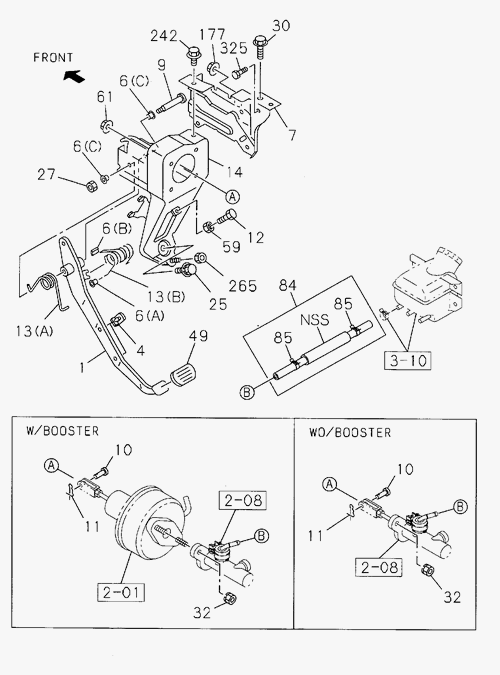

| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 6 |
I8-94238 596-0 |
|
BUSHING CLU PEDAL |
2 |
0702- |
|
4HG1-T |
(C) NHR55, NKR55 EURO 2 |
| 6 |
I8-97853 619-0 |
|
BUSHING CLU PEDAL |
2 |
9312- |
|
4BE1 |
(A) NKR 58 |
| 265 |
I8-94327 073-0 |
|
NUT LAMP BRACKET |
1 |
9312-9609 |
|
4JB1 |
M 8 FLANGE NUT |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
9312-9406 |
|
4BE1 |
M 10 H = 8 ( NKR 58 ) |
| 13 |
I8-97853 535-1 |
|
SPRING ASSIST, CLU PEDAL |
1 |
0211- |
|
4HG1 |
NKR 71 |
| 32 |
I8-94279 050-0 |
|
NUT BRKT TO CLU M/CYL |
2 |
9312- |
|
4HF1 |
M8 W/LK WASHER ( NKR66, 71 ) |
| 30 |
I8-97313 188-0 |
|
BOLT CLU MTG BRKT |
1 |
9312- |
|
4JB1 |
M10X25 ( NHR 55 ) |
| 32 |
I8-94279 050-0 |
|
NUT BRKT TO CLU M/CYL |
2 |
9312- |
|
4BE1 |
M8 W/LK WASHER ( NKR 58 ) |
| 59 |
I0-91110 510-0 |
|
NUT CLU PEDAL ADJ |
1 |
9407- |
|
4HF1 |
M10 ( NKR 66, NKR 66-2, NKR 71 ) |
| 61 |
I8-94279 050-0 |
|
NUT BOOSTER TO BRKT |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 28 |
I1-09985 185-0 |
|
WASHER LK, CUSHION RUBBER TO FRAME |
1 |
9312- |
|
4HF1 |
ID=10 ( NKR 66 ) |
| 11 |
I8-94279 912-0 |
|
PIN SNAP, PUSH ROD TO PEDAL |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 49 |
I8-97853 413-2 |
|
RUBBER PAD, CLU PEDAL |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 12 |
I0-20801 035-1 |
|
BOLT CLU PEDAL ADJ |
1 |
0702- |
|
4JB1-TC |
NHR55, NKR55 EURO 2 |
| 27 |
I0-91110 510-0 |
|
NUT FULCRUM PIN |
1 |
9312- |
|
4JB1 |
M 10 H = 8 ( NHR 55 ) |
| 84 |
I8-98193 434-0 |
|
HOSE RUBBER, CLU LINE |
1 |
9508- |
|
4HF1-2 |
NKR 66-2 |
