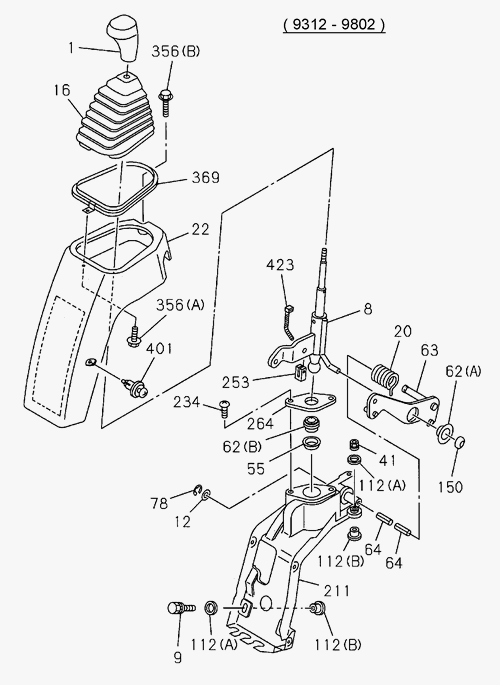

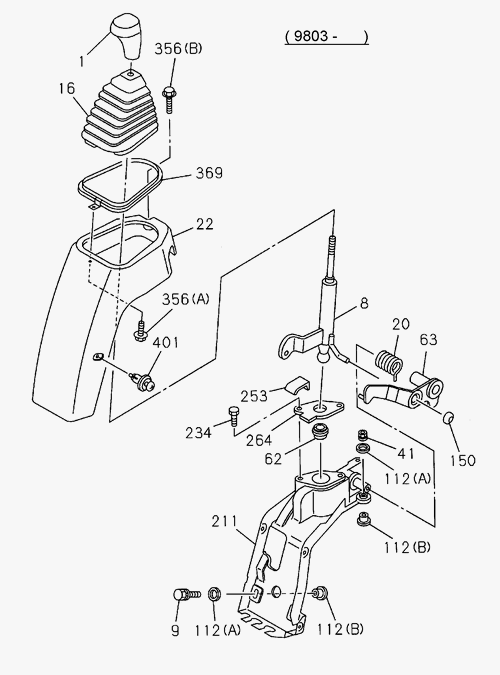

2-35 | MANUAL TRANSMISSION SHIFT CONTROL LEVER
.png)
.png)
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 78 | I0-91805 510-0 | RING SNAP, CHANGE LEVER | 1 | 9312- | 4HF1 | ID=10 ( NKR 66, NKR 71 ) | ||
| 150 | I8-97049 147-0 | BALL DETENT, CONT LEVER | 1 | 9312- | 4HF1 | NKR 66,NKR 71 | ||
| 234 | I8-97011 898-0 | BOLT BRKT | 2 | 9312-9802 | 4HF1 | NKR 66 | ||
| 62 | I8-97011 895-1 | SEAT BALL, CHANGE LEVER | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 423 | I8-97062 120-0 | CLIP BAND | 1 | 9312- | 4HF1 | NKR 66 | ||
| 16 | I8-97066 287-2 | BOOT CHANGE LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 62 | I8-97091 423-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4HF1 | (B) NKR 66 | ||
| 1 | I8-97196 286-1 | KNOB CHANGE LEVER | 1 | 9801- | 4HG1 | NKR71, DARK GRAY | ||
| 112 | I8-97091 427-0 | RUBBER CUSHION | 4 | 9312- | 4BE1 | (B) NKR 58 | ||
| 64 | I8-97083 149-0 | BUSHING SELECT LEVER | 2 | 9312- | 4JB1 | NHR 55 | ||
| 20 | I8-97204 514-1 | SPRING CHANGE LEVER | 1 | 9803- | 4HF1-2 | NKR 66-2 | ||
| 64 | I8-97083 149-0 | BUSHING SELECT LEVER | 2 | 9312- | 4HF1 | NKR 66 | ||
| 253 | I8-97204 510-0 | STOPPER CHANGE LEVER | 1 | 9803- | 4BE1 | NKR 58 | ||
| 62 | I8-97049 148-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4HF1 | (A) NKR 66 | ||
| 63 | I8-97083 147-1 | LEVER RELAY, SELECT | 1 | 9312-9604 | 4JB1 | NHR 55 | ||
| 63 | I8-97083 147-1 | LEVER RELAY, SELECT | 1 | 9312-9604 | 4BE1 | NKR 58 | ||
| 55 | I8-97083 150-0 | SEAT RUBBER, SELECT SPRING | 1 | 9312- | 4JB1 | NHR 55 | ||
| 369 | I8-97066 288-1 | RETAINER REINF | 1 | 9312- | 4JB1 | NHR 55 | ||
| 62 | I8-97011 895-1 | SEAT BALL, CHANGE LEVER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 369 | I8-97066 288-1 | RETAINER REINF | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-97009 442-1 | KNOB CHANGE LEVER | 1 | 9312-9711 | 4BE1 | NKR 58 DARK GRAY | ||
| 234 | I8-97011 898-0 | BOLT BRKT | 2 | 9312-9802 | 4BE1 | NKR 58 | ||
| 62 | I8-97091 423-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4JB1 | (B) NHR 55 | ||
| 356 | I8-97094 854-0 | SCREW COVER | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 264 | I8-97204 511-0 | PLATE COVER | 1 | 9803- | 4JB1 | NHR 55 | ||
| 356 | I0-74160 514-0 | SCREW COVER | 1 | 9312- | 4BE1 | (A) NKR 58 | ||
| 112 | I8-97091 426-0 | RUBBER CUSHION | 4 | 9312- | 4BE1 | (A) NKR 58 | ||
| 22 | I8-97082 704-1 | COVER DUST, CHANGE LEVER | 1 | 9312-9711 | 4HF1 | NKR 66, DARK BEIGE | ||
| 78 | I0-91805 510-0 | RING SNAP, CHANGE LEVER | 1 | 9312- | 4JB1 | ID=10 ( NHR 55 ) | ||
| 12 | I0-91610 512-0 | WASHER PL, STARTER | 1 | 9312- | 4JB1 | ID=12 ( NHR 55 ) | ||
| 20 | I8-97204 514-1 | SPRING CHANGE LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 253 | I8-97026 014-0 | STOPPER CHANGE LEVER | 1 | 9312-9802 | 4HF1 | NKR 66 | ||
| 22 | I8-94351 595-1 | COVER DUST, CHANGE LEVER | 1 | 9712- | 4HF1 | NKR 66, NKR 66-2, GARK GRAY | ||
| 20 | I8-97204 514-1 | SPRING CHANGE LEVER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 41 | I8-97065 435-0 | NUT CHANGE LEVER | 2 | 9312- | 4HF1 | M8 FLANGE ( NKR 66, NKR71 ) | ||
| 16 | I8-97066 287-2 | BOOT CHANGE LEVER | 1 | 9312- | 4HF1 | NKR 66 | ||
| 264 | I8-97083 151-0 | PLATE COVER | 1 | 9312-9802 | 4JB1 | NHR 55 | ||
| 401 | I8-97098 523-0 | CLIP COVER | 3 | 9712- | 4HF1 | NKR66, NKR 71, DARK GRAY | ||
| 12 | I0-91610 512-0 | WASHER PL, STARTER | 1 | 9312- | 4BE1 | ID=12 ( NKR 58 ) | ||
| 234 | I8-97204 512-0 | BOLT BRKT | 2 | 9803- | 4JB1 | NHR 55 | ||
| 401 | I8-97009 447-0 | CLIP COVER | 3 | 9312-9711 | 4JB1 | NHR 55, DARK BEIGE | ||
| 22 | I8-97082 704-1 | COVER DUST, CHANGE LEVER | 1 | 9312-9711 | 4BE1 | NKR 58, DARK BEIGE | ||
| 22 | I8-97082 704-1 | COVER DUST, CHANGE LEVER | 1 | 9312-9711 | 4JB1 | NHR 55, DARK BEIGE | ||
| 234 | I8-97011 898-0 | BOLT BRKT | 2 | 9312-9802 | 4JB1 | NHR 55 | ||
| 8 | I8-97093 841-1 | LEVER CHANGE | 1 | 9312-9802 | 4JB1 | NHR 55 | ||
| 234 | I8-97204 512-0 | BOLT BRKT | 2 | 9811- | 4HF1-2 | NKR 66-2 | ||
| 1 | I8-97009 441-0 | KNOB CHANGE LEVER | 1 | 9312-9711 | 4JB1 | NHR 55, DARK BEIGE | ||
| 264 | I8-97083 151-0 | PLATE COVER | 1 | 9312-9802 | 4HF1 | NKR 66 | ||
| 253 | I8-97026 014-0 | STOPPER CHANGE LEVER | 1 | 9312-9802 | 4BE1 | NKR 58 | ||
| 150 | I8-97049 147-0 | BALL DETENT, CONT LEVER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 356 | I8-97094 854-0 | SCREW COVER | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 211 | I8-97083 139-1 | BRACKET CHANGE LEVER | 1 | 9312-9604 | 4JB1 | NHR 55 | ||
| 22 | I8-94351 595-1 | COVER DUST, CHANGE LEVER | 1 | 9712- | 4BE1 | NKR 58, DARK GRAY | ||
| 62 | I8-97049 148-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4JB1 | (A) NHR 55 | ||
| 356 | I0-74160 514-0 | SCREW COVER | 1 | 9312- | 4HF1 | (A) NKR 66, NKR 71 | ||
| 423 | I8-97062 120-0 | CLIP BAND | 1 | 9312- | 4JB1 | NHR 55 | ||
| 22 | I8-94351 595-1 | COVER DUST, CHANGE LEVER | 1 | 0108- | 4HG1 | NKR 71 | ||
| 253 | I8-97204 510-0 | STOPPER CHANGE LEVER | 1 | 9803- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 63 | I8-97143 199-0 | LEVER RELAY, SELECT | 1 | 9605- | 4JB1 | NHR 55 | ||
| 234 | I8-97204 512-0 | BOLT BRKT | 2 | 9803- | 4HF1 | NKR 66,NKR 71 | ||
| 63 | I8-97143 199-0 | LEVER RELAY, SELECT | 1 | 9605- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 8 | I8-97093 841-1 | LEVER CHANGE | 1 | 9312-9802 | 4BE1 | NKR 58 | ||
| 112 | I8-97091 426-0 | RUBBER CUSHION | 4 | 9312- | 4HF1 | (A) NKR 66, NKR 71 | ||
| 264 | I8-97204 511-0 | PLATE COVER | 1 | 9803- | 4HF1 | NKR 66,NKR 71 | ||
| 1 | I8-97098 657-1 | KNOB CHANGE LEVER | 1 | 9712- | 4HF1 | NKR66, NKR 66-2 DARK GRAY | ||
| 401 | I8-97098 523-0 | CLIP COVER | 3 | 9712- | 4HF1-2 | NKR66-2, DARK GRAY | ||
| 41 | I8-97065 435-0 | NUT CHANGE LEVER | 2 | 9312- | 4JB1 | M8 FLANGE ( NHR 55 ) | ||
| 12 | I0-91610 512-0 | WASHER PL, STARTER | 1 | 9312- | 4HF1 | ID=12 (NKR 66, NKR 66-2, NKR 71) | ||
| 423 | I8-97062 120-0 | CLIP BAND | 1 | 9312- | 4BE1 | NKR 58 | ||
| 64 | I8-97083 149-0 | BUSHING SELECT LEVER | 2 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-97196 285-1 | KNOB CHANGE LEVER | 1 | 0211- | 4JB1 | NHR 55, BLACK | ||
| 112 | I8-97091 427-0 | RUBBER CUSHION | 4 | 9312- | 4JB1 | (B) NHR 55 | ||
| 62 | I8-97091 423-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4BE1 | (B) NKR 58 | ||
| 356 | I8-97094 854-0 | SCREW COVER | 1 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 8 | I8-97093 841-1 | LEVER CHANGE | 1 | 9312-9802 | 4HF1 | NKR 66 | ||
| 253 | I8-97204 510-0 | STOPPER CHANGE LEVER | 1 | 9803- | 4JB1 | NHR 55 | ||
| 55 | I8-97083 150-0 | SEAT RUBBER, SELECT SPRING | 1 | 9312- | 4BE1 | NKR 58 | ||
| 22 | I8-94351 595-1 | COVER DUST, CHANGE LEVER | 1 | 9712- | 4JB1 | NHR 55, DARK BRAY | ||
| 8 | I8-97204 506-0 | LEVER CHANGE | 1 | 9803- | 4HF1 | NKR 66, NKR 66-2 | ||
| 63 | I8-97143 199-0 | LEVER RELAY, SELECT | 1 | 9605- | 4BE1 | NKR 58 | ||
| 112 | I8-97091 426-0 | RUBBER CUSHION | 4 | 9312- | 4JB1 | (A) NHR 55 | ||
| 8 | I8-97204 506-0 | LEVER CHANGE | 1 | 9803- | 4JB1 | NHR 55 | ||
| 41 | I8-97065 435-0 | NUT CHANGE LEVER | 2 | 9312- | 4BE1 | M8 FLANGE ( NKR 58 ) | ||
| 211 | I8-97083 139-1 | BRACKET CHANGE LEVER | 1 | 9312-9604 | 4HF1 | NKR 66 | ||
| 63 | I8-97083 147-1 | LEVER RELAY, SELECT | 1 | 9312-9604 | 4HF1 | NKR 66 | ||
| 78 | I0-91805 510-0 | RING SNAP, CHANGE LEVER | 1 | 9811- | 4HF1-2 | ID=10 ( NKR 66-2 ) | ||
| 9 | I0-50640 828-0 | BOLT CHANGE LEVER | 2 | 9312- | 4JB1 | NHR 55 | ||
| 253 | I8-97026 014-0 | STOPPER CHANGE LEVER | 1 | 9312-9802 | 4JB1 | NHR 55 | ||
| 211 | I8-97083 139-1 | BRACKET CHANGE LEVER | 1 | 9312-9604 | 4BE1 | NKR 58 | ||
| 9 | I0-50640 828-0 | BOLT CHANGE LEVER | 2 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 211 | I8-97143 198-0 | BRACKET CHANGE LEVER | 1 | 9605- | 4JB1 | NHR 55 | ||
| 401 | I8-97009 447-0 | CLIP COVER | 3 | 9312-9711 | 4HF1 | NKR 66, DARK BEIGE | ||
| 356 | I0-74160 514-0 | SCREW COVER | 1 | 9312- | 4JB1 | (A) NHR 55 | ||
| 20 | I8-97204 514-1 | SPRING CHANGE LEVER | 1 | 9312- | 4HF1 | NKR 66 | ||
| 62 | I8-97011 895-1 | SEAT BALL, CHANGE LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 150 | I8-97049 147-0 | BALL DETENT, CONT LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 369 | I8-97066 288-1 | RETAINER REINF | 1 | 9312- | 4HF1 | NKR 66,NKR 71 | ||
| 401 | I8-97009 447-0 | CLIP COVER | 3 | 9312-9711 | 4BE1 | NKR 58, DARK BEIGE | ||
| 62 | I8-97049 148-0 | SEAT BALL, CHANGE LEVER | 1 | 9312-9802 | 4BE1 | (A) NKR 58 | ||
| 234 | I8-97204 512-0 | BOLT BRKT | 2 | 9803- | 4BE1 | NKR 58 | ||
| 8 | I8-97204 506-0 | LEVER CHANGE | 1 | 0610- | 4HG1 | NKR71 | ||
| 16 | I8-97066 287-2 | BOOT CHANGE LEVER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 264 | I8-97204 511-0 | PLATE COVER | 1 | 9803- | 4BE1 | NKR 58 | ||
| 78 | I0-91805 510-0 | RING SNAP, CHANGE LEVER | 1 | 9312- | 4BE1 | ID=10 ( NKR 58 ) | ||
| 211 | I8-97143 198-0 | BRACKET CHANGE LEVER | 1 | 9605- | 4HF1 | NKR 66,NKR 71 | ||
| 9 | I0-50640 828-0 | BOLT CHANGE LEVER | 2 | 9312- | 4BE1 | NKR 58 | ||
| 112 | I8-97091 427-0 | RUBBER CUSHION | 4 | 9312- | 4HF1 | (B) NKR 66, NKR 71 | ||
| 1 | I8-97155 173-1 | KNOB CHANGE LEVER | 1 | 9712- | 4JB1 | NHR 55, DARK GRAY | ||
| 55 | I8-97083 150-0 | SEAT RUBBER, SELECT SPRING | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 264 | I8-97083 151-0 | PLATE COVER | 1 | 9312-9802 | 4BE1 | NKR 58 | ||
| 8 | I8-97204 506-0 | LEVER CHANGE | 1 | 9803- | 4BE1 | NKR 58 | ||
| 401 | I8-97098 523-0 | CLIP COVER | 3 | 9712- | 4JB1 | NHR 55, DARK GRAY | ||
| 211 | I8-97143 198-0 | BRACKET CHANGE LEVER | 1 | 9605- | 4BE1 | NKR 58 |
