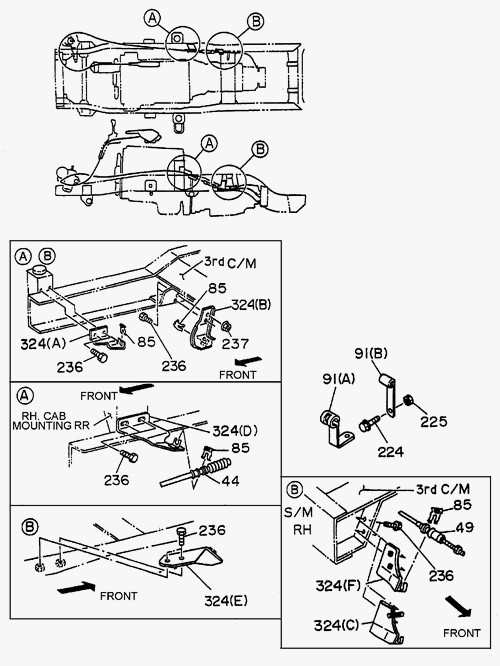

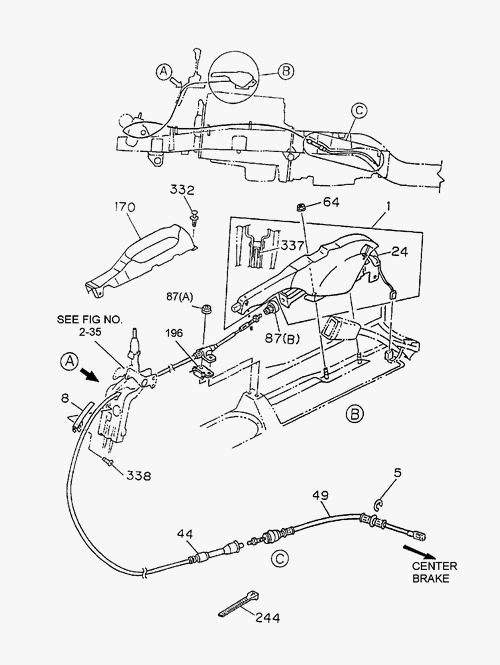

3-11 | PARKING BRAKE CONTROL
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 244 | I5-09707 031-1 | CLIP ENGINE STOP CABLE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 225 | I0-91180 208-0 | NUT CABLE CLIP | 1 | 9312- | 4JB1 | M8 FLANGE ( NHR 55 ) | ||
| 224 | I0-28651 025-0 | BOLT INL PIPE | 1 | 9712- | 4HF1 | M10X25 FLANGE (NKR 66, NKR 71) | ||
| 225 | I7-05110 010-A | NUT CABLE CLIP | 1 | 9712- | 4BE1 | M10 FLANGE ( NKR 58 ) | ||
| 87 | I8-97088 730-1 | NUT | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 224 | I0-28650 825-0 | BOLT HANGER TO BODY | 1 | 9811- | 4HF1 | M8X25 FLANGE | ||
| 196 | I8-98034 201-0 | SPACER CABLE TO LEVER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 170 | I8-97097 008-0 | COVER PARKING BRK LEVER | 1 | 9312-9711 | 4JB1 | NHR 55 | ||
| 236 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 9312-9711 | 4BE1 | M 8 X 20 FLANGE ( NKR 58 ) | ||
| 324 | I8-97105 721-0 | BRACKET | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 224 | I0-28650 825-0 | BOLT HANGER TO BODY | 1 | 9712- | 4JB1 | M8X25 FLANGE ( NHR 55 ) | ||
| 85 | I8-97084 216-0 | CLIP BRACKET | 2 | 9312- | 4JB1 | NHR 55 | ||
| 338 | I9-03497 610-0 | SCREW GUIDE | 1 | 9312- | 4HF1 | ( NKR66,NKR66-2,NKR71 ) | ||
| 44 | I7-85204 210-B | CABLE PARKING BRK, RR | 1 | 1011- | 4JB1-TC | NKR55-T, NKR55-B, EURO 2 GOLD | ||
| 338 | I9-03497 610-0 | SCREW GUIDE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 49 | I7-85204 210-B | CABLE PARKING BRK, RR | 1 | 0702- | 4JB1-TC | NKR55T/B EURO 2 | ||
| 85 | I8-97084 216-0 | CLIP BRACKET | 2 | 9312- | 4BE1 | NKR 58, NKR 66, NKR 66-2, NKR 71 | ||
| 44 | I8-97176 237-0 | CABLE PARKING BRK, FRT | 1 | 9505-9607 | 4HF1 | NKR 66 | ||
| 24 | I8-97890 859-0 | SWITCH ASM PARK BRK | 1 | 9711- | 4HF1 | NKR 66, NKR 66-2 | ||
| 8 | I8-97190 672-0 | GUIDE PARKING BRK | 1 | 9312-9904 | 4JB1 | NHR 55 | ||
| 1 | I8-97427 540-0 | STEM ASM PARKING BRK | 1 | 9312-9711 | 4HF1 | NKR 58, NKR 66 | ||
| 8 | I8-97190 672-0 | GUIDE PARKING BRK | 1 | 9905- | 4JB1 | NHR 55 | ||
| 236 | I0-28050 830-0 | BOLT COVER TO CASE | 2 | 9312- | 4BE1 | M 8 X 30 ( NKR 58 ) | ||
| 87 | I0-91180 208-0 | NUT | 2 | 9312- | 4JB1 | (A) M8 FLANGE ( NHR 55 ) | ||
| 1 | I8-97427 541-0 | STEM ASM PARKING BRK | 1 | 9712- | 4JB1 | NHR 55, DARK GRAY | ||
| 196 | I8-98034 201-0 | SPACER CABLE TO LEVER | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 170 | I8-97097 008-0 | COVER PARKING BRK LEVER | 1 | 9312-9711 | 4BE1 | NKR 58 | ||
| 44 | I8-97063 123-4 | CABLE PARKING BRK, FRT | 1 | 9312- | 4BE1 | NKR 58 | ||
| 244 | I5-09707 031-1 | CLIP ENGINE STOP CABLE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 236 | I0-50541 020-0 | BOLT BRACKET TO FRAME | 2 | 9312- | 4HF1 | M 10 X 20 | ||
| 324 | I8-97140 998-2 | BRACKET | 1 | 9312- | 4HG1 | NKR 71 | ||
| 236 | I0-50541 020-0 | BOLT BRACKET TO FRAME | 2 | 9312- | 4JB1 | M 10 X 20 ( NHR 55 ) | ||
| 237 | I7-05110 010-A | NUT BRKT TO FRAME | 2 | 9312- | 4JB1 | M 10 ( NHR 55 ) | ||
| 49 | I8-97063 113-6 | CABLE PARKING BRK, RR | 1 | 9312- | 4HF1 | NKR 66 | ||
| 24 | I8-97890 859-0 | SWITCH ASM PARK BRK | 1 | 9711- | 4JB1 | NHR 55 | ||
| 224 | I0-28651 025-0 | BOLT INL PIPE | 1 | 9712- | 4BE1 | M10X25 FLANGE ( NKR 58 ) | ||
| 1 | I8-97996 537-1 | STEM ASM PARKING BRK | 1 | 0203- | 4JB1 | NHR 55 | ||
| 236 | I0-50541 020-0 | BOLT BRACKET TO FRAME | 2 | 9312- | 4BE1 | M 10 X 20 ( NKR 58 ) | ||
| 44 | I8-97063 121-5 | CABLE PARKING BRK, FRT | 1 | 9312-9504 | 4JB1 | NHR 55 | ||
| 49 | I8-97063 106-5 | CABLE PARKING BRK, RR | 1 | 9312-9711 | 4BE1 | NKR 58 | ||
| 49 | I8-97169 963-0 | CABLE PARKING BRK, RR | 1 | 9712- | 4BE1 | NKR 58 | ||
| 225 | I7-05110 010-A | NUT CABLE CLIP | 1 | 9712- | 4HF1 | M10 FLANGE ( NKR 66, NKR 71 ) | ||
| 337 | I8-97857 230-1 | SILENCER PARKING BRK | 1 | 9312- | 4JB1 | NHR 55 | ||
| 24 | I8-98238 611-0 | SWITCH ASM PARK BRK | 1 | 0211- | 4HG1 | NKR 71 | ||
| 49 | I7-85204 210-B | CABLE PARKING BRK, RR | 1 | 9712- | 4JB1 | NHR 55 | ||
| 1 | I8-97427 540-0 | STEM ASM PARKING BRK | 1 | 9312-9711 | 4JB1 | NHR 55 | ||
| 49 | I7-11127 060-A | CABLE PARKING BRK, RR | 1 | 0211- | 4HG1 | ( NKR66,NKR66-2,NKR71 ) | ||
| 64 | I8-94279 060-0 | NUT PARKING BRK | 2 | 9312- | 4JB1 | M 8 FLANGE NUT ( NHR 55 ) | ||
| 237 | I0-91180 208-0 | NUT BRKT TO FRAME | 2 | 9312- | 4BE1 | M8 FLANGE NUT ( NKR 58 ) | ||
| 87 | I0-91180 208-0 | NUT | 2 | 9312- | 4HF1 | (A) M8 FLANGE ( NKR 58, NKR 66 ) | ||
| 24 | I8-97890 859-0 | SWITCH ASM PARK BRK | 1 | 9312-9710 | 4HF1 | NKR 58, NKR 66 | ||
| 332 | I8-94146 425-0 | CLIP COVER | 1 | 9312- | 4HF1 | D 6.2 X 12.5 | ||
| 337 | I8-97857 230-1 | SILENCER PARKING BRK | 1 | 9312- | 4BE1 | NKR 58 | ||
| 8 | I8-97190 672-0 | GUIDE PARKING BRK | 1 | 9905- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 236 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 9312-9711 | 4JB1 | M 8 X 20 FLANGE ( NHR 55 ) | ||
| 170 | I8-97097 008-0 | COVER PARKING BRK LEVER | 1 | 9312-9711 | 4HF1 | NKR 66 | ||
| 44 | I8-97176 237-0 | CABLE PARKING BRK, FRT | 1 | 9608- | 4HF1 | NKR 66 | ||
| 196 | I8-98034 201-0 | SPACER CABLE TO LEVER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 224 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 9312-9711 | 4JB1 | M8X20 FLANGE ( NHR 55 ) | ||
| 75 | I0-91805 512-0 | RING SNAP, HAND BRK CABLE | 1 | 9312- | 4BE1 | ID=12 ( NKR 58 ) | ||
| 338 | I9-03497 610-0 | SCREW GUIDE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 75 | I0-91805 512-0 | RING SNAP, HAND BRK CABLE | 1 | 9312- | 4HF1 | ID=12 ( NKR66, 662, 71 ) | ||
| 236 | I0-28650 825-0 | BOLT HANGER TO BODY | 2 | 9712- | 4JB1 | M 8 X 25 FLANGE ( NKR 66-2 ) | ||
| 324 | I8-97063 090-1 | BRACKET | 1 | 9312- | 4JB1 | (A) NHR 55 | ||
| 324 | I8-97063 095-4 | BRACKET | 1 | 9312- | 4BE1 | (E) NKR 58 | ||
| 244 | I5-09707 031-1 | CLIP ENGINE STOP CABLE | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 332 | I8-94146 425-0 | CLIP COVER | 1 | 9312- | 4BE1 | D 6.2 X 12.5 ( NKR 58 ) | ||
| 237 | I0-91180 208-0 | NUT BRKT TO FRAME | 2 | 9312- | 4HF1 | M 8 FLANGE NUT ( NKR 66 ) | ||
| 44 | I8-97063 124-5 | CABLE PARKING BRK, FRT | 1 | 9312-9504 | 4HF1 | NKR 66 | ||
| 236 | I0-28650 825-0 | BOLT HANGER TO BODY | 2 | 9712- | 4HF1 | M 8 X 25 FLANGE | ||
| 1 | I8-97427 541-0 | STEM ASM PARKING BRK | 1 | 9712- | 4HF1 | DARK GRAY, ( NKR66, NKR 66-2 ) | ||
| 87 | I0-91180 208-0 | NUT | 2 | 0211- | 4HG1 | NKR 71 | ||
| 24 | I8-97890 859-0 | SWITCH ASM PARK BRK | 1 | 9312-9710 | 4JB1 | NHR 55 | ||
| 236 | I0-28050 820-0 | BOLT OIL PIPE TO C/BL | 2 | 9312-9711 | 4HF1 | M 8 X 20 FLANGE ( NKR 66 ) | ||
| 64 | I8-94279 060-0 | NUT PARKING BRK | 2 | 9312- | 4HF1 | M 8 FLANGE NUT (NKR58, NKR66) | ||
| 324 | I8-97112 916-0 | BRACKET | 1 | 9312-9411 | 4BE1 | (D) NKR 58 | ||
| 87 | I8-97088 730-1 | NUT | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 44 | I7-85400 201-A | CABLE PARKING BRK, FRT | 1 | 9905- | 4JB1 | NHR 55 | ||
| 49 | I7-85202 210-A | CABLE PARKING BRK, RR | 1 | 0702- | 4HG1-T | NKR71T/THD EURO 2 | ||
| 337 | I8-97857 230-1 | SILENCER PARKING BRK | 1 | 9312- | 4HF1 | NKR 66 | ||
| 324 | I8-97112 916-0 | BRACKET | 1 | 9312-9411 | 4HF1 | (D) NKR 66 | ||
| 1 | I8-97427 541-0 | STEM ASM PARKING BRK | 1 | 0203- | 4JB1 | NHR 55, NKR 66, NKR 66-2, NKR 71 | ||
| 332 | I8-94146 425-0 | CLIP COVER | 1 | 9312- | 4JB1 | D 6.2 X 12.5 ( NHR 55 ) | ||
| 170 | I8-97412 945-0 | COVER PARKING BRK LEVER | 1 | 9712- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 91 | I1-09701 138-1 | CLIP PARKING BRK CABLE | 1 | 9312- | 4BE1 | NKR 58, NKR66, NKR 71 | ||
| 324 | I8-97105 722-0 | BRACKET | 1 | 9312- | 4HF1 | (F) NKR66,NKR66-2,NKR71 | ||
| 75 | I0-91805 512-0 | RING SNAP, HAND BRK CABLE | 1 | 9312- | 4JB1 | ID=12 ( NHR 55 ) | ||
| 44 | I8-97204 344-0 | CABLE PARKING BRK, FRT | 1 | 9802- | 4BE1 | NKR 58 | ||
| 49 | I7-85400 201-A | CABLE PARKING BRK, FRT | 1 | 0702- | 4JB1-TC | NHR55T/NUS EURO 2 | ||
| 324 | I8-97112 916-0 | BRACKET | 1 | 9412- | 4HF1 | (D) NKR66,NKR66-2,NKR71 | ||
| 44 | I8-97204 344-0 | CABLE PARKING BRK, FRT | 1 | 9712-9801 | 4BE1 | NKR 58 | ||
| 324 | I8-97105 724-1 | BRACKET | 1 | 9312- | 4BE1 | (C) NKR 58 | ||
| 64 | I8-94327 073-0 | NUT PARKING BRK | 2 | 9606- | 4HF1 | M8 W/LK WASHER | ||
| 64 | I8-94327 073-0 | NUT PARKING BRK | 2 | 9606- | 4JB1 | M8 W/LK WASHER ( NHR 55 ) | ||
| 44 | I7-85400 200-A | CABLE PARKING BRK, FRT | 1 | 0307- | 4HF1 | NKR66, NKR66-2, NKR 71 | ||
| 44 | I7-11117 069-A | CABLE PARKING BRK, FRT | 1 | 0211-0306 | 4HF1 | NKR66, NKR66-2, NKR 71 | ||
| 91 | I0-95235 286-0 | CLIP PARKING BRK CABLE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 8 | I8-97190 672-0 | GUIDE PARKING BRK | 1 | 9312-9904 | 4HF1 | NKR 58, NKR 66 | ||
| 87 | I8-97088 730-1 | NUT | 1 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 170 | I8-97412 945-0 | COVER PARKING BRK LEVER | 1 | 9712- | 4JB1 | NHR 55 | ||
| 49 | I7-11117 058-A | CABLE PARKING BRK, RR | 1 | 9312- | 4JB1 | NHR 55 |
