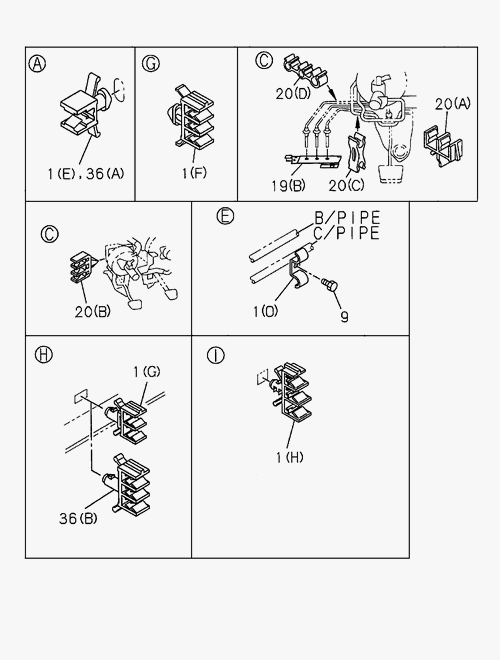

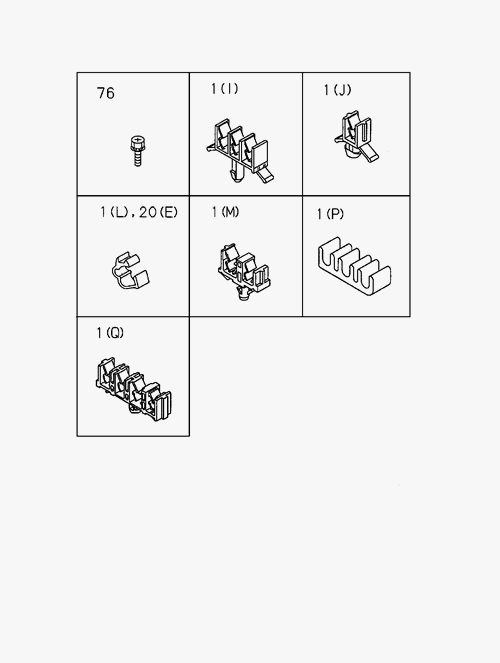

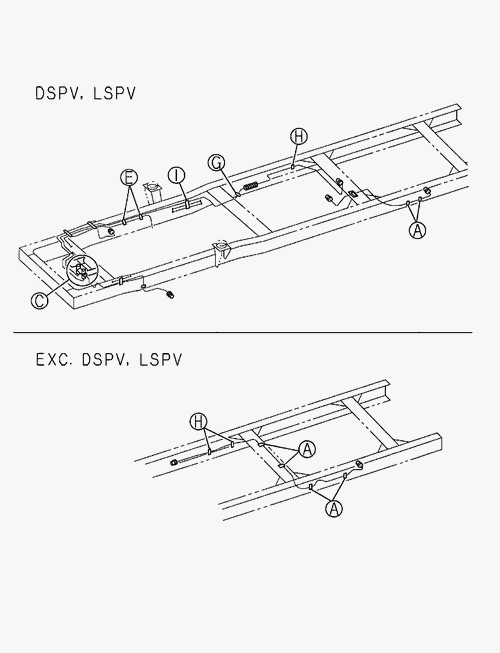

3-58 | FIXING PARTS OIL PIPING
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-94249 685-0 | CLIP OIL PIPE TO BODY | 2 | 9312- | 4HF1 | (A) NKR 66 | ||
| 1 | I8-94122 333-0 | CLIP OIL PIPE TO BODY | 1 | 9512- | 4HF1 | (P) NKR 66, NKR 71 | ||
| 14 | I0-28650 820-0 | BOLT CLIP,OIL PIPE | 2 | 0211- | 4HG1 | NKR 71 | ||
| 1 | I8-94316 410-0 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4BE1 | (G) NKR 58 | ||
| 1 | I8-94249 685-0 | CLIP OIL PIPE TO BODY | 1 | 9312- | 4HF1 | (E) NKR 66, NKR 66-2, NKR 71 | ||
| 20 | I8-94107 732-1 | CLIP BRK PIPE | 1 | 9312- | 4BE1 | (E) NKR 58 | ||
| 20 | I8-94113 470-0 | CLIP BRK PIPE | 1 | 9312- | 4BE1 | (A) NKR 58 | ||
| 1 | I8-94131 710-2 | CLIP OIL PIPE TO BODY RH | 2 | 9312- | 4BE1 | (I) NKR 58 | ||
| 20 | I8-94250 923-2 | CLIP BRK PIPE | 1 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I8-94405 141-0 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4HF1-2 | (J) NKR 66-2 TRUK | ||
| 1 | I8-94107 732-1 | CLIP OIL PIPE TO BODY LH | 1 | 9312- | 4HF1-2 | (L) NKR 66-2 | ||
| 1 | I8-94249 689-2 | CLIP CLUTCH OIL PIPE | 1 | 9312- | 4JB1 | (F) NHR 55 | ||
| 76 | I8-94279 209-0 | BOLT BRKT, OIL PIPE | 2 | 9606- | 4HF1 | NKR 66, NKR 66-2 | ||
| 1 | I8-94249 685-0 | CLIP OIL PIPE TO BODY | 1 | 9312- | 4BE1 | (E) NKR 58 | ||
| 18 | I8-94146 043-0 | CLIP BRKT PIPE | 1 | 0211- | 4HG1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 20 | I8-94250 923-2 | CLIP BRK PIPE | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 36 | I8-94486 808-0 | CLIP CLUTCH OIL PIPE | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 1 | I8-94492 600-1 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4BE1 | (Q) NKR 58 | ||
| 20 | I8-94241 454-0 | CLIP BRK PIPE | 1 | 9312- | 4HF1 | ? NKR 66, NKR 66-2, NKR 71 | ||
| 9 | I0-28650 820-0 | BOLT BRKT | 1 | 9312- | 4JB1 | NHR 55 | ||
| 76 | I8-94279 209-0 | BOLT BRKT, OIL PIPE | 2 | 9312-9605 | 4JB1 | NHR 55 | ||
| 1 | I8-94492 600-1 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4HF1 | (Q) NKR 66 | ||
| 1 | I8-94131 710-2 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4HF1 | (I) NKR 66, NKR 66-2, NKR 71 | ||
| 19 | I8-97042 258-A | BRACKET OIL PIPE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-97064 484-1 | CLIP FUEL PIPE TO HOSE LH | 1 | 9312- | 4HF1 | (H) NKR 66 | ||
| 20 | I8-94146 043-0 | CLIP BRK PIPE | 1 | 9312- | 4JB1 | (D) NHR 55 | ||
| 1 | I8-94455 816-0 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4HF1 | (M) NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I8-94131 710-2 | CLIP OIL PIPE TO BODY RH | 2 | 9312- | 4JB1 | (I) NHR 55 | ||
| 18 | I8-97064 484-1 | CLIP BRKT PIPE | 2 | 0211- | 4HG1 | (H), NKR 71, ( LH ) | ||
| 20 | I8-94146 043-0 | CLIP BRK PIPE | 1 | 9312- | 4BE1 | (D) NKR 58 | ||
| 76 | I8-94279 209-0 | BOLT BRKT, OIL PIPE | 2 | 9312-9605 | 4BE1 | NKR 58 | ||
| 1 | I8-94249 689-2 | CLIP CLUTCH OIL PIPE | 1 | 9312- | 4BE1 | (F) NKR 58 | ||
| 20 | I8-94241 454-0 | CLIP BRK PIPE | 1 | 9312- | 4BE1 | (C) NKR 58 | ||
| 1 | I8-97064 484-1 | CLIP FUEL PIPE TO HOSE LH | 2 | 9312- | 4BE1 | (H) NKR 58 | ||
| 1 | I8-94316 410-0 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4HF1 | (G) NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I8-94249 685-0 | CLIP OIL PIPE TO BODY | 1 | 9312- | 4JB1 | (E) NHR 55 | ||
| 20 | I8-94107 732-1 | CLIP BRK PIPE | 1 | 9312- | 4JB1 | (E) NHR 55 | ||
| 18 | I1-09700 372-0 | CLIP BRKT PIPE | 2 | 0211- | 4HG1 | (A) NKR 71 | ||
| 20 | I8-94107 732-1 | CLIP BRK PIPE | 1 | 9312- | 4HF1 | (E) NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I8-94107 732-1 | CLIP OIL PIPE TO BODY LH | 1 | 9312- | 4HF1 | (L) NKR 66 | ||
| 76 | I8-94279 209-0 | BOLT BRKT, OIL PIPE | 2 | 9312-9605 | 4HF1 | NKR 66 | ||
| 76 | I0-28650 825-0 | BOLT COVER | 2 | 9606- | 4JB1 | NHR 55, NKR 71 | ||
| 36 | I8-94486 808-0 | CLIP CLUTCH OIL PIPE | 1 | 9312- | 4HF1 | (B) NKR 66 | ||
| 20 | I8-94146 043-0 | CLIP BRK PIPE | 1 | 9312- | 4HF1 | (D) NKR 66, NKR 71 | ||
| 20 | I8-94113 470-0 | CLIP BRK PIPE | 1 | 9312- | 4JB1 | (A) NHR 55 | ||
| 18 | I8-97326 158-1 | CLIP BRKT PIPE | 2 | 0211- | 4HG1 | ( O ), NKR 71 | ||
| 12 | I8-97349 917-0 | BRACKET OIL PIPE | 1 | 0211- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I8-94316 410-0 | CLIP OIL PIPE TO BODY RH | 1 | 9312- | 4JB1 | (G) NHR 55 | ||
| 19 | I8-97042 258-A | BRACKET OIL PIPE | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 9 | I0-28650 820-0 | BOLT BRKT | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-94122 333-0 | CLIP OIL PIPE TO BODY | 1 | 9512- | 4HF1-2 | (P) NKR 66-2 | ||
| 19 | I8-97042 258-A | BRACKET OIL PIPE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 20 | I8-94241 454-0 | CLIP BRK PIPE | 1 | 9312- | 4JB1 | (C) NHR 55 | ||
| 36 | I8-94249 685-0 | CLIP OIL PIPE TO BODY | 2 | 9312- | 4BE1 | (A) NKR 58 | ||
| 9 | I0-28650 820-0 | BOLT BRKT | 1 | 9312- | 4HF1 | NKR 66 | ||
| 1 | I8-97064 484-1 | CLIP FUEL PIPE TO HOSE LH | 2 | 9312- | 4JB1 | (H) NHR 55 | ||
| 15 | I0-91180 208-0 | NUT CLIP,OIL PIPE | 2 | 0211- | 4HG1 | NKR 71 | ||
| 20 | I8-94250 923-2 | CLIP BRK PIPE | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 18 | I8-97168 819-0 | CLIP BRKT PIPE | 2 | 0211- | 4HG1 | (L), NKR 71 | ||
| 1 | I8-94249 689-2 | CLIP CLUTCH OIL PIPE | 1 | 9312- | 4HF1 | (F) NKR 66 | ||
| 20 | I8-94113 470-0 | CLIP BRK PIPE | 1 | 9312- | 4HF1 | (A) NKR 66, NKR 66-2, NKR 71 |
