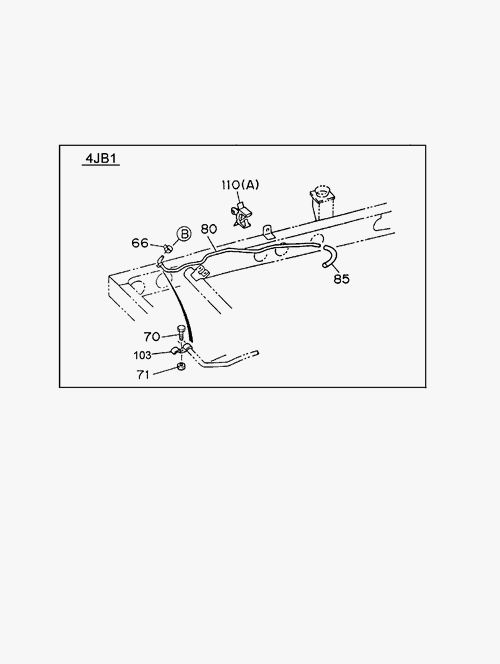

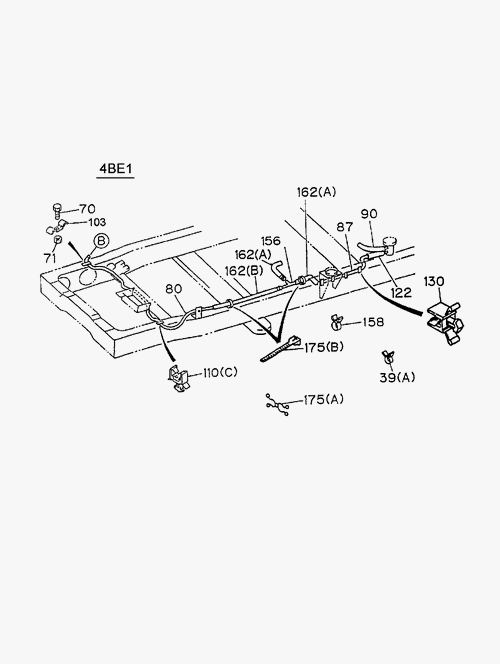

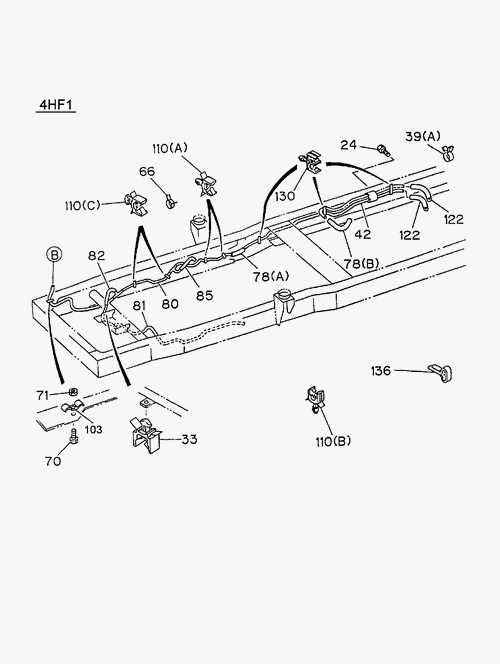

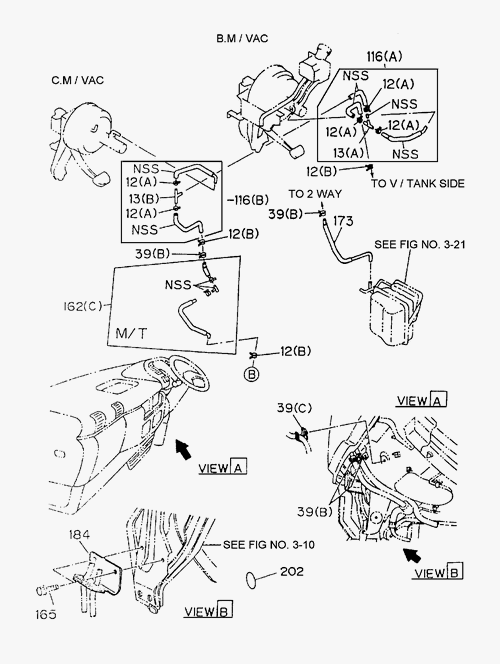

3-60 | BRAKE PIPING VACUUM
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I8-98008 098-0 | CLIP HOSE | 6 | 0211- | 4HG1 | (B) NKR 71 | ||
| 165 | I8-94139 963-0 | BOLT BRKT | 2 | 9312-9406 | 4HF1 | NKR 66 | ||
| 39 | I8-97077 492-0 | CLIP HOSE, VAC | 1 | 9312- | 4JB1 | (C) NHR 55 | ||
| 110 | I8-97017 902-0 | CLIP PIPE TO FRAME | 2 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 71 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 2 | 9312- | 4BE1 | NKR 58 | ||
| 173 | I8-97129 875-0 | HOSE VAC, VACK TANK SIDE | 1 | 9504- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 70 | I0-50140 620-0 | BOLT RESERVE TANK | 2 | 9312- | 4JB1 | NHR 55 | ||
| 173 | I8-97129 875-0 | HOSE VAC, VACK TANK SIDE | 1 | 9312-9503 | 4JB1 | NHR 55 | ||
| 82 | I0-04740 300-0 | HOSE AIR BOOST | 1 | 9312- | 4HF1 | NKR 66 | ||
| 136 | I8-97032 589-0 | CLIP VAC HOSE | 1 | 9312- | 4HF1 | NKR 66 | ||
| 130 | I8-97018 605-0 | CLIP VAC PIPE TO FRAME | 1 | 9811- | 4HF1-2 | (RH) NKR 66-2 | ||
| 173 | I8-97129 875-0 | HOSE VAC, VACK TANK SIDE | 1 | 9312-9503 | 4BE1 | NKR 58, NKR 66 | ||
| 175 | I5-09707 031-1 | CLIP ENGINE STOP CABLE | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 78 | I8-97028 386-2 | HOSE VAC, PIPE TO PIPE | 1 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 162 | I0-08258 300-0 | HOSE AIR FILTER | 2 | 9312- | 4BE1 | (A) NHR 55 | ||
| 71 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 2 | 9312- | 4JB1 | NHR 55 | ||
| 13 | I8-94167 478-0 | JOINT HOSE, VAC | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 103 | I1-09700 070-0 | CLIP VAC PIPE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 12 | I8-98008 098-0 | CLIP HOSE | 4 | 9312- | 4BE1 | (B) NKR 58 | ||
| 130 | I8-97326 157-1 | CLIP VAC PIPE TO FRAME | 1 | 0406- | 4HF1 | NKR 66-2, NKR 71 | ||
| 71 | I0-91110 506-0 | NUT FUEL FEED PUMP FIX | 2 | 9312- | 4HF1 | NKR 66, NKR66-2 | ||
| 39 | I8-97077 492-0 | CLIP HOSE, VAC | 1 | 9312- | 4HF1 | (C) NKR 66, NKR 66-2, NKR 71 | ||
| 158 | I8-94167 480-0 | CLIP HOSE | 3 | 9312- | 4BE1 | NKR 58 | ||
| 66 | I8-98008 098-0 | CLIP VAC HOSE, M/VAC | 6 | 9312- | 4BE1 | NKR 58 | ||
| 110 | I8-94462 219-0 | NUT BRKT, CONT WIRE | 1 | 9312- | 4HF1-2 | (A) NKR 66-2 TRUK | ||
| 130 | I8-94249 686-1 | CLIP PIPE TO FRAME | 2 | 9312- | 4BE1 | NKR 58 | ||
| 116 | I8-97379 286-1 | HOSE VAC, M/VAC | 1 | 9312- | 4BE1 | (B) NKR 58, NKR 66 | ||
| 162 | I8-97102 369-A | HOSE VACUUM | 1 | 9801- | 4HF1 | (C) NKR 66,NKR 66-2TRUK, NKR 71 | ||
| 201 | I1-76798 029-0 | SEAL | 1 | 0211- | 4HF1 | NKR 66, NKR 66-2 TRUK, NKR 71 | ||
| 116 | I8-97048 909-1 | HOSE VAC, M/VAC | 1 | 9312- | 4BE1 | (A) NKR 58, NKR 66 | ||
| 24 | I0-28050 825-0 | BOLT COOLER TO RAD | 1 | 9401-9411 | 4HF1 | NKR 66 | ||
| 66 | I8-98008 098-0 | CLIP VAC HOSE, M/VAC | 6 | 9312- | 4JB1 | NHR 55 | ||
| 66 | I8-98008 098-0 | CLIP VAC HOSE, M/VAC | 2 | 9312- | 4HF1 | NKR 66, NKR66-2, NKR 71 | ||
| 165 | I0-28650 616-0 | BOLT BRKT | 2 | 9811- | 4HF1 | M6X16 FLANGE | ||
| 85 | I8-94459 971-0 | HOSE VAC, ENG SIDE | 1 | 0211- | 4HG1 | NKR 71 | ||
| 13 | I8-94441 184-0 | JOINT HOSE, VAC | 1 | 9312- | 4HF1 | (A) NKR 66, NKR 71 | ||
| 12 | I8-94167 480-0 | CLIP HOSE | 3 | 9312- | 4JB1 | (A) NHR 55 | ||
| 103 | I1-09700 070-0 | CLIP VAC PIPE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 165 | I8-94279 201-0 | BOLT BRKT | 2 | 9407-9605 | 4JB1 | NHR 55 | ||
| 24 | I0-28650 825-0 | BOLT COVER | 1 | 9412- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 13 | I8-94441 184-0 | JOINT HOSE, VAC | 1 | 9312- | 4JB1 | (A) NHR 55 | ||
| 87 | I8-97074 747-2 | PIPE VACUUM, ENGINE TO MAG VALVE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 12 | I8-94167 480-0 | CLIP HOSE | 3 | 9312- | 4BE1 | (A) NKR 58, NKR 71 | ||
| 122 | I0-08258 300-0 | HOSE AIR, MAG VLV TO AIR PIPE | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 103 | I1-09700 070-0 | CLIP VAC PIPE | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 165 | I8-94139 963-0 | BOLT BRKT | 2 | 9312-9406 | 4JB1 | NHR 55 | ||
| 80 | I8-97070 034-1 | PIPE VAC, ENG SIDE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 122 | I0-08258 300-0 | HOSE AIR, MAG VLV TO AIR PIPE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 130 | I8-97326 157-1 | CLIP VAC PIPE TO FRAME | 1 | 0211-0405 | 4HG1 | NKR 71 | ||
| 162 | I8-97102 998-2 | HOSE VACUUM | 1 | 9312- | 4HF1 | (C) NKR 66 | ||
| 39 | I8-98008 098-0 | CLIP HOSE, VAC | 4 | 9312- | 4JB1 | (A) NHR 55 | ||
| 39 | I8-97077 492-0 | CLIP HOSE, VAC | 1 | 9312- | 4BE1 | (C) NKR 58 | ||
| 175 | I8-94428 437-0 | CLIP VAC HOSE, INT THROTLE | 1 | 9312-9406 | 4BE1 | (A) NKR 58 | ||
| 165 | I8-94139 963-0 | BOLT BRKT | 2 | 9312-9406 | 4BE1 | NKR 58 | ||
| 173 | I8-97129 875-0 | HOSE VAC, VACK TANK SIDE | 1 | 9504- | 4JB1 | NHR 55 | ||
| 156 | I8-94167 477-0 | JOINT 3 WAY | 1 | 9312- | 4BE1 | NKR 58 | ||
| 80 | I8-97361 326-A | PIPE VAC, ENG SIDE | 1 | 0211- | 4HG1 | NKR 71 | ||
| 162 | I7-11111 319-A | HOSE VACUUM | 1 | 9801- | 4HF1-2 | (C) NKR 66-2 BUS | ||
| 39 | I5-09707 023-2 | CLIP HOSE, VAC | 2 | 9312- | 4JB1 | (B) NHR 55 | ||
| 39 | I8-98008 098-0 | CLIP HOSE, VAC | 4 | 9312- | 4HF1 | (A) NKR 66, NKR 66-2, NKR 71 | ||
| 33 | I1-09700 075-0 | CLIP VAC PIPE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 39 | I5-09707 023-2 | CLIP HOSE, VAC | 2 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2, NKR 71 | ||
| 162 | I8-94467 385-0 | HOSE VACUUM | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 30 | I0-28650 620-0 | BOLT CLIP, VAC PIPE | 1 | 0211- | 4HF1 | NKR 66, NKR 66-2 TRUK, NKR 71 | ||
| 13 | I8-94167 478-0 | JOINT HOSE, VAC | 1 | 9312- | 4HF1 | (B) NKR 66 | ||
| 165 | I8-94279 201-0 | BOLT BRKT | 2 | 9407-9605 | 4BE1 | NKR 58 | ||
| 30 | I0-91180 106-0 | BOLT CABLE FIX | 1 | 0211- | 4HG1 | NKR 71 | ||
| 39 | I5-09707 023-2 | CLIP HOSE, VAC | 2 | 9312- | 4BE1 | (B) NKR 58 | ||
| 24 | I0-50540 825-0 | BOLT HANGER, FRT | 1 | 9312-9312 | 4HF1 | NKR 66 | ||
| 110 | I8-94249 686-1 | CLIP PIPE TO FRAME | 2 | 9312- | 4JB1 | (C) NHR 55 | ||
| 42 | I8-97325 999-A | PIPE VACUUM, UNION TO MAG VALVE | 1 | 0211- | 4HG1 | NKR 71 | ||
| 85 | I8-94438 246-0 | HOSE VAC, ENG SIDE | 1 | 9405- | 4HF1 | NKR 66 | ||
| 130 | I8-97018 546-0 | CLIP VAC PIPE TO FRAME | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 116 | I8-97379 286-1 | HOSE VAC, M/VAC | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 110 | I8-94249 686-1 | CLIP PIPE TO FRAME | 2 | 9312- | 4BE1 | NKR 66, NKR 66-2, NKR 71 | ||
| 165 | I0-28650 616-0 | BOLT BRKT | 2 | 9606- | 4HF1 | NKR 66-2 | ||
| 80 | I8-97072 946-3 | PIPE VAC, ENG SIDE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 85 | I8-97074 827-0 | HOSE VAC, ENG SIDE | 1 | 9312-9409 | 4HF1 | NKR 66 | ||
| 90 | I8-97095 446-0 | HOSE VAC, MAG VALVE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 70 | I0-50140 620-0 | BOLT RESERVE TANK | 2 | 9312- | 4BE1 | NKR 58 | ||
| 210 | I8-94404 963-0 | RUBBER CAP | 1 | 0211- | 4HG1 | NKR 71 | ||
| 81 | I8-97070 286-3 | PIPE VAC,VSV | 1 | 9312- | 4HF1 | NKR 66 | ||
| 85 | I8-97109 066-0 | HOSE VAC, ENG SIDE | 1 | 9410- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 184 | I8-97035 967-3 | BRACKET UNION FIX | 1 | 9312- | 4BE1 | NKR 58 | ||
| 184 | I8-97035 967-3 | BRACKET UNION FIX | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 13 | I8-94167 478-0 | JOINT HOSE, VAC | 1 | 9312- | 4JB1 | (B) NHR 55 | ||
| 116 | I8-97048 909-1 | HOSE VAC, M/VAC | 1 | 9312- | 4JB1 | (A) NHR 55 | ||
| 78 | I0-08258 300-0 | HOSE VAC, PIPE TO PIPE | 1 | 9312- | 4BE1 | (A) NKR 58, NKR 71 | ||
| 42 | I8-97176 416-0 | PIPE VACUUM, UNION TO MAG VALVE | 1 | 9706- | 4HF1 | NKR 66 | ||
| 116 | I8-97314 597-1 | HOSE VAC, M/VAC | 1 | 0111- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 12 | I8-98008 098-0 | CLIP HOSE | 4 | 9312- | 4JB1 | (B) NHR 55 | ||
| 12 | I8-98008 098-0 | CLIP HOSE | 8 | 9312- | 4HF1 | (B) NKR 66 | ||
| 165 | I0-28650 616-0 | BOLT BRKT | 2 | 9606- | 4JB1 | NHR 55 | ||
| 80 | I8-97074 752-5 | PIPE VAC, ENG SIDE | 1 | 9312- | 4HF1 | NKR 66, NKR66-2 | ||
| 33 | I8-94249 685-0 | CLIP VAC PIPE | 1 | 9312- | 4HF1 | NKR 66 | ||
| 39 | I8-98008 098-0 | CLIP HOSE, VAC | 4 | 9312- | 4BE1 | (A) NKR 58 | ||
| 184 | I8-97035 967-3 | BRACKET UNION FIX | 1 | 9312- | 4JB1 | NHR 55 | ||
| 42 | I8-97180 744-0 | PIPE VACUUM, UNION TO MAG VALVE | 1 | 9312-9705 | 4HF1 | NKR 66 | ||
| 42 | I8-97180 744-0 | PIPE VACUUM, UNION TO MAG VALVE | 1 | 9312-9705 | 4HF1 | NKR 66 | ||
| 70 | I0-50140 620-0 | BOLT RESERVE TANK | 2 | 9312- | 4HF1 | NKR 66, NKR66-2 | ||
| 13 | I8-94441 184-0 | JOINT HOSE, VAC | 1 | 9312- | 4BE1 | (A) NKR 58 | ||
| 165 | I8-94279 201-0 | BOLT BRKT | 2 | 9407-9605 | 4HF1 | NKR 66 | ||
| 85 | I8-94438 246-0 | HOSE VAC, ENG SIDE | 1 | 9312-9404 | 4JB1 | NHR 55 |
