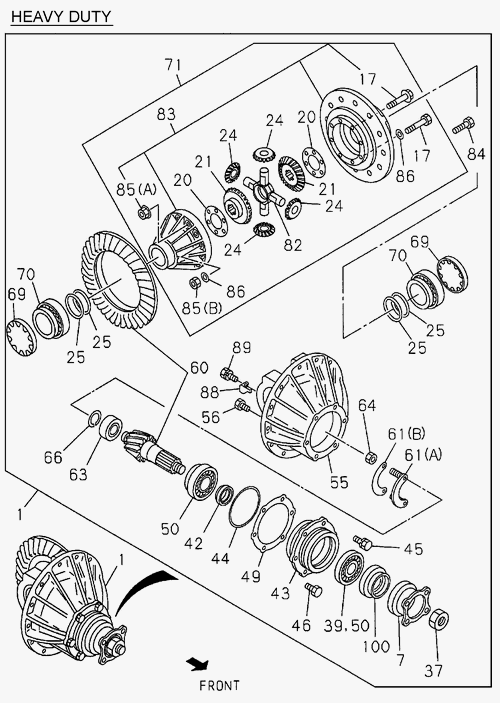

| 71 |
I8-98015 182-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
0502-0510 |
|
4HF1-2 |
REAR AXLE HEAVY DUTY 292 MM |
| 83 |
I8-97319 402-1 |
|
CAGE ASM DIFF |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 50 |
I5-09812 063-A |
|
BEARING FINAL PINION |
2 |
0702- |
|
4JB1-TC |
NKR55 |
| 66 |
I8-97047 297-0 |
|
RING SNAP, PILOT BRG |
1 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 17 |
I8-97314 497-0 |
|
BOLT DIFF CAGE SETTING |
4 |
0108- |
|
4JB1 |
NHR 55 |
| 82 |
I1-41521 035-2 |
|
SPIDER DIFF PINION |
1 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 49 |
I8-94401 340-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.20 (NKR 58, NKR 66-2) |
| 20 |
I9-41562 602-0 |
|
WASHER THRUST, SIDE GEAR |
2 |
0702- |
|
4JB1-TC |
T = 1.00, NKR55 EURO2 |
| 89 |
I0-50540 818-0 |
|
BOLT LK PLATE |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 61 |
I8-97047 149-0 |
|
RETAINER PILOT BRG, PINION |
1 |
9312- |
|
4HF1 |
(A) NKR 66, NKR 71 |
| 50 |
I1-09812 042-A |
|
BEARING FINAL PINION |
1 |
0702- |
|
4HG1-T |
(IADG) NKR71-E2 |
| 19 |
I0-91510 612-0 |
|
WASHER LOCK, OIL SHIELD COVER |
8 |
9312- |
|
4JB1 |
NHR 55 |
| 20 |
I9-41562 601-0 |
|
WASHER THRUST, SIDE GEAR |
2 |
0702- |
|
4JB1-TC |
T = 1.00, NHR55 EURO2 |
| 84 |
I9-09606 505-2 |
|
BOLT FINAL DRIVE GEAR |
12 |
9312- |
|
4JB1 |
NHR 55 |
| 20 |
I1-41562 078-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=3.30 (NKR 66 TRUK ), NKR 71 |
| 61 |
I5-41227 001-0 |
|
RETAINER PILOT BRG, PINION |
1 |
0702- |
|
4JB1-TC |
(A) NKR55 EURO 2 |
| 49 |
I8-94401 337-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.14 (NKR 58, NKR 66-2) |
| 131 |
I5-41525 002-0 |
|
PIECE THRUST, DIFF BOX |
1 |
9312- |
|
4JB1 |
NHR 55, EURO 2 |
| 39 |
I9-00093 079-1 |
|
BEARING FINAL PINION |
1 |
9312- |
|
4JB1 |
INNER, ( NHR 55 ) |
| 61 |
I8-97047 149-0 |
|
RETAINER PILOT BRG, PINION |
1 |
0702- |
|
4HG1-T |
(A) NKR71 EURO 2 |
| 84 |
I8-97318 938-1 |
|
BOLT FINAL DRIVE GEAR |
12 |
0206- |
|
4HF1-2 |
M 14 X 25, NKR 66-2, NKR55 E2 |
| 86 |
I9-09651 116-0 |
|
WASHER PL, DIFF CAGE SETTING |
24 |
9312- |
|
4BE1 |
NKR 58, NKR66-2 |
| 82 |
I5-41521 008-0 |
|
SPIDER DIFF PINION |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 25 |
I1-41552 020-0 |
|
WASHER THRUST, PINION |
4 |
9811- |
|
4HF1 |
NKR 66, NKR 71 |
| 60 |
I8-97083 126-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4HG1-T |
41/7 ( NKR71T EURO2 ) |
| 71 |
I8-97228 309-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
FINAL GEAR ARATIO 39/8 NHR55 E2 |
| 88 |
I8-97027 281-0 |
|
PLATE LK, ADJ NUT |
2 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 49 |
I8-94401 338-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.16 (NKR 58, NKR 66-2) |
| 83 |
I8-98219 707-0 |
|
CAGE ASM DIFF |
1 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 49 |
I8-97047 299-0 |
|
SHIM FINAL PINION CAGE |
3 |
0307- |
|
4HG1 |
NKR 71 |
| 20 |
I1-41562 075-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=3.00 (NKR 66 TRUK ), NKR 71 |
| 46 |
I0-50551 435-0 |
|
BOLT |
1 |
0702- |
|
4JB1-TC |
M14X35 ( NKR55 EURO2 ) |
| 69 |
I5-41121 001-0 |
|
NUT ADJ, DIFF CAGE |
2 |
0702- |
|
4JB1-TC |
NHR/NKR55 E2, M110 H=10 |
| 20 |
I1-41562 079-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=3.40 (NKR 66 TRUK ), NKR 71 |
| 55 |
I8-97094 637-0 |
|
CARRIER DIFF |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 71 |
I8-98015 182-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
9312- |
|
4BE1 |
FINAL GEAR RATIO 39/7 |
| 60 |
I8-97211 236-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4JB1-TC |
39/8 ( NHR55T/BUS EURO2 ) |
| 21 |
I8-97362 599-1 |
|
GEAR SIDE, DIFF |
2 |
0306- |
|
4HF1-2 |
Z = 20 ( NKR 66-2 ) |
| 70 |
I9-00032 211-A |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4JB1 |
NHR55 |
| 70 |
I9-00093 130-A |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4HF1 |
(IADG) NKR 66, NKR 71 |
| 50 |
I1-09812 042-A |
|
BEARING FINAL PINION |
1 |
9410- |
|
4HF1 |
(IADG) NKR66, NKR71 |
| 1 |
I8-97094 684-0 |
|
DRIVE ASM FINAL, RR |
1 |
9312- |
|
4HF1 |
43/7 ( NKR 66, NKR 71 ) |
| 43 |
I8-97047 098-0 |
|
CAGE FINAL PINION |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 69 |
I5-41121 001-0 |
|
NUT ADJ, DIFF CAGE |
2 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 70 |
I9-00032 211-A |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4JB1 |
NHR55 |
| 73 |
I9-41519 601-0 |
|
SHIM DIFF SIDE BRG |
AR |
9312- |
|
4JB1 |
T = 0.30 ( NHR 55, NHR55E2 ) |
| 51 |
I9-41219 610-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
9312- |
|
4JB1 |
OD = 89.5 T = 2.24 ( NHR 55 ) |
| 100 |
I8-97328 648-0 |
|
SEAL OIL, FINAL PINION |
1 |
9312- |
|
4JB1 |
NOK, NHR 55 |
| 39 |
I9-00093 078-A |
|
BEARING FINAL PINION |
1 |
0702- |
|
4JB1-TC |
OUTER, NHR55-E2 |
| 24 |
I9-41551 029-1 |
|
GEAR PINION, DIFF |
4 |
9312-9912 |
|
4JB1 |
Z = 10 ( NHR 55 ) |
| 49 |
I8-94401 335-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.10 (NKR 58, NKR 66-2) |
| 100 |
I1-09625 484-1 |
|
SEAL OIL, FINAL PINION |
1 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 49 |
I8-97047 298-0 |
|
SHIM FINAL PINION CAGE |
3 |
0307- |
|
4HG1 |
NKR 71 |
| 55 |
I8-97307 760-0 |
|
CARRIER DIFF |
1 |
0108- |
|
4HF1-2 |
NKR 66-2 |
| 85 |
I8-98056 949-0 |
|
NUT DIFF CAGE SETTING |
12 |
9312- |
|
4BE1 |
(B) M10 ( NKR 58 ) |
| 86 |
I8-97047 294-0 |
|
WASHER PL, DIFF CAGE SETTING |
24 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 39 |
I9-00093 078-A |
|
BEARING FINAL PINION |
1 |
9312- |
|
4JB1 |
OUTER, NHR55 |
| 39 |
I9-00093 079-A |
|
BEARING FINAL PINION |
1 |
9312- |
|
4JB1 |
(IADG) INNER, NHR 55 EURO 2 |
| 17 |
I8-97232 161-0 |
|
BOLT DIFF CAGE SETTING |
12 |
0702- |
|
4JB1-TC |
M10 X 75, NKR55 EURO 2 |
| 83 |
I8-97319 402-1 |
|
CAGE ASM DIFF |
1 |
0304- |
|
4HF1-2 |
NKR66-2 |
| 66 |
I9-09752 002-0 |
|
RING SNAP, PILOT BRG |
1 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 82 |
I5-41521 006-0 |
|
SPIDER DIFF PINION |
1 |
0702- |
|
4JB1-TC |
NHR 55 EURO 2 |
| 43 |
I8-94400 890-0 |
|
CAGE FINAL PINION |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 60 |
I6-97209 168-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4HG1-T |
(IADG) 39/6 ( NKR71THD EURO2 ) |
| 1 |
I8-97367 500-0 |
|
DRIVE ASM FINAL, RR |
1 |
9312- |
|
4JB1 |
39/8 ( NHR 55 ) |
| 19 |
I0-91510 612-0 |
|
WASHER LOCK, OIL SHIELD COVER |
8 |
0702- |
|
4JB1-TC |
NHR55 EURO 2 |
| 51 |
I9-41219 610-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
NHR/NKR55 EURO 2 |
| 37 |
I8-94376 261-1 |
|
NUT DRIVING PINION |
1 |
0702- |
|
4JB1-TC |
NHR55 EURO 2 |
| 84 |
I9-09606 505-2 |
|
BOLT FINAL DRIVE GEAR |
12 |
9312- |
|
4BE1 |
NKR 58, NHR55 EURO 2 |
| 21 |
I8-98359 567-0 |
|
GEAR SIDE, DIFF |
2 |
9312- |
|
4HF1 |
Z = 16 ( NKR 66, NKR 71 ) |
| 44 |
I8-97048 053-0 |
|
GASKET PINION CAGE |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 50 |
I5-09812 063-A |
|
BEARING FINAL PINION |
2 |
0108- |
|
4HF1 |
NKR 66, NKR 66-2 |
| 17 |
I8-97232 161-0 |
|
BOLT DIFF CAGE SETTING |
12 |
0206- |
|
4HF1-2 |
M 10 X 75 FLANGE, NKR 66-2 |
| 20 |
I1-41562 076-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=3.10, NKR71 EURO 2 |
| 43 |
I8-97047 098-0 |
|
CAGE FINAL PINION |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 55 |
I8-94376 227-3 |
|
CARRIER DIFF |
1 |
0203- |
|
4JB1 |
NHR 55 |
| 71 |
I8-97047 100-4 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
9410-0701 |
|
4HF1 |
REAR AXLE HEAVY DUTY 320 MM |
| 83 |
I8-94161 010-1 |
|
CAGE ASM DIFF |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 25 |
I1-41552 020-0 |
|
WASHER THRUST, PINION |
4 |
9811- |
|
4HG1-T |
NKR71 EURO 2 |
| 70 |
I9-00093 602-0 |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4BE1 |
NKR58 |
| 24 |
I8-98359 568-0 |
|
GEAR PINION, DIFF |
4 |
0702- |
|
4HG1-T |
Z = 10 ( NKR 71 ) EURO 2 |
| 44 |
I8-97048 053-0 |
|
GASKET PINION CAGE |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 17 |
I8-97314 497-0 |
|
BOLT DIFF CAGE SETTING |
8 |
9312- |
|
4JB1 |
NHR 55 |
| 60 |
I8-97035 455-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
9312- |
|
4BE1 |
NKR 58, G.V.W = 5,5 - 6 TON |
| 60 |
I8-97211 236-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
9312- |
|
4JB1 |
NHR 55, G.V.W = 3,3 TON |
| 60 |
I8-97320 103-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0206- |
|
4HF1-2 |
NKR 66-2 |
| 42 |
I9-41219 603-1 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 100 |
I6-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
0702- |
|
4JB1-TC |
(IADG) NKR55 EURO 2 |
| 60 |
I8-97211 236-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0305- |
|
4JB1 |
NHR 55, G.V.W = 3,3 TON |
| 49 |
I8-97048 419-0 |
|
SHIM FINAL PINION CAGE |
AR |
9410- |
|
4HF1 |
ID=142 T = 0.50 ( NKR 66 ) |
| 45 |
I8-98220 227-0 |
|
BOLT FINAL PINION CAGE |
5 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 56 |
I8-94365 377-3 |
|
BOLT BRG CAP |
4 |
9312- |
|
4JB1 |
NHR 55 |
| 100 |
I6-09625 484-0 |
|
SEAL OIL, FINAL PINION |
1 |
9410- |
|
4HF1 |
(IADG) NKR 66, NKR 71 |
| 88 |
I8-97087 821-0 |
|
PLATE LK, ADJ NUT |
2 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 50 |
I1-09812 042-1 |
|
BEARING FINAL PINION |
1 |
9410- |
|
4HF1 |
NKR66, NKR71 |
| 42 |
I9-41219 634-1 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
0702- |
|
4JB1-TC |
NHR55 EURO 2 |
| 20 |
I1-41562 077-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=3.20, NKR71 EURO 2 |
| 73 |
I9-41519 009-0 |
|
SHIM DIFF SIDE BRG |
AR |
9312- |
|
4JB1 |
T = 0.50 ( NHR 55, NHR55E2 ) |
| 73 |
I9-41519 010-0 |
|
SHIM DIFF SIDE BRG |
AR |
9312- |
|
4JB1 |
T = 0.25 ( NHR 55, NHR55E2 ) |
| 1 |
I8-97367 500-0 |
|
DRIVE ASM FINAL, RR |
1 |
0702- |
|
4JB1-TC |
39/8 ( NHR55T/BUS EURO2 ) |
| 20 |
I1-41562 074-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=2.90 (NKR 66 TRUK ), NKR 71 |
| 100 |
I8-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 60 |
I8-97047 092-1 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0306- |
|
4HF1 |
NKR 66, NKR 71 |
| 71 |
I8-97228 310-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
9312-9911 |
|
4JB1 |
FINAL GEAR RATIO 41/8, |
| 1 |
I8-97094 682-0 |
|
DRIVE ASM FINAL, RR |
1 |
0702- |
|
4HG1-T |
41/7 ( NKR71T EURO2 ) |
| 51 |
I9-41219 626-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
NHR/NKR55 EURO 2 |
| 88 |
I8-97027 282-0 |
|
PLATE LK, ADJ NUT |
2 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 49 |
I8-97048 418-0 |
|
SHIM FINAL PINION CAGE |
3 |
0307- |
|
4HG1 |
NKR 71 |
| 55 |
I8-94376 227-3 |
|
CARRIER DIFF |
1 |
9312-9409 |
|
4JB1 |
NHR 55 |
| 56 |
I8-94365 377-3 |
|
BOLT BRG CAP |
4 |
0702- |
|
4JB1-TC |
NHR55/NKR55 EURO2 |
| 84 |
I8-97047 147-0 |
|
BOLT FINAL DRIVE GEAR |
12 |
9312- |
|
4HF1 |
NKR 66, NKR 71, NKR55 EURO 2 |
| 17 |
I8-97047 295-0 |
|
BOLT DIFF CAGE SETTING |
12 |
9811- |
|
4HF1 |
NKR 66, NKR 71 |
| 60 |
I8-97123 444-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
9811- |
|
4HF1-2 |
NKR 66-2, G.V.W = 5,5 - 6 TON |
| 49 |
I8-97048 419-0 |
|
SHIM FINAL PINION CAGE |
3 |
0307- |
|
4HG1 |
NKR 71 |
| 20 |
I1-41562 076-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=3.10 (NKR 66 TRUK ), NKR 71 |
| 7 |
I8-94477 723-4 |
|
FLANGE FINAL |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 1 |
I8-97094 685-0 |
|
DRIVE ASM FINAL, RR |
1 |
9312- |
|
4HF1 |
41/6 ( NKR 66, NKR 71 ) |
| 84 |
I8-97123 937-0 |
|
BOLT FINAL DRIVE GEAR |
12 |
9412- |
|
4HF1-2 |
NKR 66-2 |
| 70 |
I9-00093 602-A |
|
BEARING DIFF CAGE |
2 |
0702- |
|
4JB1-TC |
(IADG) NKR 55 EURO 2 |
| 63 |
I8-97047 296-A |
|
BEARING PINION PILOT |
1 |
9312- |
|
4HF1 |
(IADG) NKR 66 |
| 64 |
I0-91110 506-0 |
|
NUT RET |
2 |
9312- |
|
4BE1 |
NKR 58 |
| 1 |
I8-98038 686-0 |
|
DRIVE ASM FINAL, RR |
1 |
0702- |
|
4HG1-T |
39/6 ( NKR71THD EURO2 ) |
| 71 |
I8-98015 182-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
REAR AXLE HEAVY DUTY 292 MM |
| 49 |
I8-97047 298-0 |
|
SHIM FINAL PINION CAGE |
AR |
9410- |
|
4HF1 |
ID=142 T = 0.12 ( NKR 66 ) |
| 21 |
I9-41561 047-1 |
|
GEAR SIDE, DIFF |
2 |
9312-9912 |
|
4JB1 |
Z = 18 ( NHR 55 ) |
| 63 |
I8-97047 296-0 |
|
BEARING PINION PILOT |
1 |
9312- |
|
4HF1 |
NKR 66 |
| 69 |
I1-41121 039-0 |
|
NUT ADJ, DIFF CAGE |
2 |
9709- |
|
4HF1 |
M115 H = 20 ( NKR 66, NKR 71 ) |
| 49 |
I8-94401 336-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.12 (NKR 58, NKR 66-2) |
| 21 |
I8-97362 599-1 |
|
GEAR SIDE, DIFF |
2 |
0702- |
|
4JB1-TC |
Z = 20 (NHR55/NKR55) EURO 2 |
| 19 |
I0-91510 612-0 |
|
WASHER LOCK, OIL SHIELD COVER |
8 |
9312- |
|
4HF1 |
NKR 66 |
| 61 |
I9-41227 601-0 |
|
RETAINER PILOT BRG, PINION |
1 |
9312- |
|
4BE1 |
(B) NKR 58, NKR 66-2 |
| 88 |
I9-41124 015-0 |
|
PLATE LK, ADJ NUT |
2 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 55 |
I8-97307 760-0 |
|
CARRIER DIFF |
1 |
0108- |
|
4JB1-TC |
NKR 55T/B EURO 2 |
| 17 |
I8-97047 295-0 |
|
BOLT DIFF CAGE SETTING |
12 |
9811- |
|
4HG1-T |
NKR71 EURO 2 |
| 51 |
I9-41219 616-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
9312- |
|
4JB1 |
OD = 89.5 T = 2.28 ( NHR 55 ) |
| 89 |
I0-20850 816-0 |
|
BOLT LK PLATE |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 51 |
I9-41219 618-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
NHR/NKR55 EURO 2 |
| 39 |
I5-09812 063-A |
|
BEARING FINAL PINION |
1 |
0108- |
|
4HF1 |
NKR 66, NKR 66-2, NKR 71 |
| 60 |
I8-97092 946-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71, G.V.W = 6,5 - 7 TON |
| 83 |
I8-94159 027-0 |
|
CAGE ASM DIFF |
1 |
9312- |
|
4BE1 |
NKR 58, NKR66-2 |
| 100 |
I8-94408 085-1 |
|
SEAL OIL, FINAL PINION |
1 |
0305- |
|
4JB1 |
TKK, NHR 55 |
| 21 |
I8-97035 388-0 |
|
GEAR SIDE, DIFF |
2 |
9312-0009 |
|
4BE1 |
Z = 23 ( NKR 58 ) |
| 60 |
I8-98092 031-1 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4JB1-TC |
41/7 ( NKR55T/B EURO2 ) |
| 7 |
I8-97075 216-3 |
|
FLANGE FINAL |
1 |
0702- |
|
4JB1-TC |
NHR55 EURO 2 |
| 45 |
I0-50051 238-0 |
|
BOLT FINAL PINION CAGE |
5 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 61 |
I8-97047 150-0 |
|
RETAINER PILOT BRG, PINION |
1 |
9312- |
|
4HF1 |
(B) NKR 66, NKR 71 |
| 63 |
I8-97047 296-A |
|
BEARING PINION PILOT |
1 |
0702- |
|
4HG1-T |
(IADG) NKR 71 EURO 2 |
| 88 |
I9-41124 015-0 |
|
PLATE LK, ADJ NUT |
2 |
9410- |
|
4HF1 |
NKR 66, NKR 71 |
| 49 |
I8-97047 300-0 |
|
SHIM FINAL PINION CAGE |
3 |
0307- |
|
4HG1 |
NKR 71 |
| 56 |
I8-94365 377-3 |
|
BOLT BRG CAP |
4 |
9312- |
|
4BE1 |
NKR 58, NKR 66 |
| 61 |
I5-41227 001-0 |
|
RETAINER PILOT BRG, PINION |
1 |
9312- |
|
4BE1 |
(A) NKR 58, NKR 66-2 |
| 55 |
I8-97307 760-0 |
|
CARRIER DIFF |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 37 |
I8-94329 526-1 |
|
NUT DRIVING PINION |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 17 |
I8-97314 497-0 |
|
BOLT DIFF CAGE SETTING |
8 |
0702- |
|
4JB1-TC |
NHR55 EURO 2 |
| 70 |
I9-00093 602-A |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4BE1 |
(IADG) NKR58 |
| 82 |
I5-41521 006-0 |
|
SPIDER DIFF PINION |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 46 |
I0-50151 440-0 |
|
BOLT |
1 |
9312-9504 |
|
4HF1 |
NKR 66 |
| 83 |
I9-41510 610-0 |
|
CAGE ASM DIFF |
1 |
0702- |
|
4JB1-TC |
NHR 55 EURO 2 |
| 63 |
I5-09810 009-0 |
|
BEARING PINION PILOT |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 66 |
I9-09752 002-0 |
|
RING SNAP, PILOT BRG |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 69 |
I1-41121 039-0 |
|
NUT ADJ, DIFF CAGE |
2 |
0702- |
|
4HG1-T |
NKR71 EURO 2, M115 H=20 |
| 20 |
I1-41562 073-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=2.80 (NKR 66 TRUK ), NKR 71 |
| 64 |
I0-91110 506-0 |
|
NUT RET |
2 |
9312- |
|
4HF1 |
NKR 66 |
| 55 |
I8-97094 637-0 |
|
CARRIER DIFF |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 45 |
I0-50051 238-0 |
|
BOLT FINAL PINION CAGE |
5 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 37 |
I8-94329 526-1 |
|
NUT DRIVING PINION |
1 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 70 |
I9-00093 130-0 |
|
BEARING DIFF CAGE |
2 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 44 |
I9-09720 505-0 |
|
GASKET PINION CAGE |
1 |
9312- |
|
4BE1 |
NKR 58, NKR66-2 |
| 83 |
I8-97319 396-1 |
|
CAGE ASM DIFF |
1 |
0206- |
|
4BE1 |
NKR 58, NKR66-2 |
| 82 |
I1-41521 035-2 |
|
SPIDER DIFF PINION |
1 |
0702- |
|
4HG1-T |
NKR 71 EURO 2 |
| 69 |
I5-41121 001-0 |
|
NUT ADJ, DIFF CAGE |
2 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 20 |
I9-41562 601-0 |
|
WASHER THRUST, SIDE GEAR |
2 |
9312- |
|
4BE1 |
T = 1.40 ( NKR 58 ) |
| 7 |
I8-97075 216-3 |
|
FLANGE FINAL |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 63 |
I5-09810 009-0 |
|
BEARING PINION PILOT |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 63 |
I5-09810 009-0 |
|
BEARING PINION PILOT |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 19 |
I0-91510 612-0 |
|
WASHER LOCK, OIL SHIELD COVER |
8 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 88 |
I8-97027 282-0 |
|
PLATE LK, ADJ NUT |
2 |
9312- |
|
4BE1 |
NKR 58, NKR66-2 |
| 49 |
I8-94401 339-0 |
|
SHIM FINAL PINION CAGE |
AR |
9312- |
|
4BE1 |
ID=132 T = 0.18 (NKR 58, NKR 66-2) |
| 37 |
I8-97047 146-0 |
|
NUT DRIVING PINION |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 83 |
I8-97303 734-0 |
|
CAGE ASM DIFF |
1 |
0107- |
|
4HF1-2 |
NKR 66-2 |
| 37 |
I8-94376 261-1 |
|
NUT DRIVING PINION |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 7 |
I8-94426 787-4 |
|
FLANGE FINAL |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 100 |
I6-97328 648-0 |
|
SEAL OIL, FINAL PINION |
1 |
9312- |
|
4JB1 |
(IADG) NOK, NHR 55 |
| 24 |
I8-98015 202-0 |
|
GEAR PINION, DIFF |
4 |
0010- |
|
4HF1-2 |
Z = 10 ( NKR 66-2 ) |
| 24 |
I8-97226 762-0 |
|
GEAR PINION, DIFF |
4 |
0702- |
|
4JB1-TC |
Z = 10 ( NHR55, NKR55 ) |
| 1 |
I8-98015 146-0 |
|
DRIVE ASM FINAL, RR |
1 |
0702- |
|
4JB1-TC |
41/7 ( NKR55T/B EURO2 ) |
| 71 |
I8-98015 182-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
0511- |
|
4HF1-2 |
REAR AXLE HEAVY DUTY 292 MM |
| 21 |
I8-98190 383-1 |
|
GEAR SIDE, DIFF |
2 |
0702- |
|
4JB1-TC |
Z = 18 (NHR55/NKR55) EURO 2 |
| 20 |
I1-41562 079-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=3.40, NKR71 EURO 2 |
| 49 |
I8-97047 299-0 |
|
SHIM FINAL PINION CAGE |
AR |
9410- |
|
4HF1 |
ID=142 T = 0.15 ( NKR 66 ) |
| 7 |
I8-94477 723-4 |
|
FLANGE FINAL |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 71 |
I8-97047 100-4 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
0702- |
|
4HG1-T |
REAR AXLE HEAVY DUTY 320 MM |
| 21 |
I8-97362 599-1 |
|
GEAR SIDE, DIFF |
2 |
0010- |
|
4HF1-2 |
Z = 23 ( NKR 66-2 ) |
| 61 |
I9-41227 601-0 |
|
RETAINER PILOT BRG, PINION |
1 |
0702- |
|
4JB1-TC |
(A) NKR55 EURO 2 |
| 20 |
I1-41562 073-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=2.80, NKR71 EURO 2 |
| 21 |
I8-98190 383-1 |
|
GEAR SIDE, DIFF |
2 |
0003- |
|
4JB1 |
Z = 18 ( NHR 55 ) |
| 55 |
I8-94376 227-3 |
|
CARRIER DIFF |
1 |
0702- |
|
4JB1-TC |
NHR 55 EURO 2 |
| 43 |
I8-97047 098-0 |
|
CAGE FINAL PINION |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I9-41562 602-0 |
|
WASHER THRUST, SIDE GEAR |
2 |
9312- |
|
4JB1 |
T = 1.00 ( NHR 55 ) |
| 1 |
I8-98015 143-0 |
|
DRIVE ASM FINAL, RR |
1 |
9312- |
|
4BE1 |
43/7 ( NKR 58 ) |
| 49 |
I8-97048 418-0 |
|
SHIM FINAL PINION CAGE |
AR |
9410- |
|
4HF1 |
ID=142 T = 0.25 ( NKR 66 ) |
| 39 |
I5-09812 063-A |
|
BEARING FINAL PINION |
1 |
0702- |
|
4HG1-T |
NKR71-E2 |
| 60 |
I6-97083 126-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4HG1-T |
(IADG) 41/7 ( NKR71T EURO2 ) |
| 73 |
I9-41519 602-0 |
|
SHIM DIFF SIDE BRG |
AR |
9312- |
|
4JB1 |
T = 0.35 ( NHR 55, NHR55E2 ) |
| 44 |
I9-09720 505-0 |
|
GASKET PINION CAGE |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 88 |
I8-97027 281-0 |
|
PLATE LK, ADJ NUT |
2 |
9312- |
|
4BE1 |
NKR 58, NKR66-2 |
| 43 |
I8-94400 890-0 |
|
CAGE FINAL PINION |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 46 |
I0-50551 435-0 |
|
BOLT |
1 |
9412- |
|
4HF1-2 |
M14X35 ( NKR 66-2 ) |
| 49 |
I8-97047 300-0 |
|
SHIM FINAL PINION CAGE |
AR |
9410- |
|
4HF1 |
ID=142 T = 0.20 ( NKR 66 ) |
| 70 |
I9-00093 602-A |
|
BEARING DIFF CAGE |
2 |
9811- |
|
4HF1-2 |
(IADG) NKR 66-2 |
| 56 |
I1-09070 027-0 |
|
BOLT BRG CAP |
4 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 100 |
I8-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
9312- |
|
4BE1 |
NKR 58 |
| 100 |
I6-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
9811- |
|
4HF1-2 |
(IADG) NKR 66-2 |
| 17 |
I5-09000 213-0 |
|
BOLT DIFF CAGE SETTING |
12 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 51 |
I9-41219 618-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
9312- |
|
4JB1 |
OD = 89.5 T = 2.40 ( NHR 55 ) |
| 82 |
I5-41521 008-0 |
|
SPIDER DIFF PINION |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 69 |
I1-41121 039-0 |
|
NUT ADJ, DIFF CAGE |
2 |
9410-9708 |
|
4HF1 |
M115 H = 20 ( NKR 66 ) |
| 20 |
I1-41562 078-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=3.30, NKR71 EURO 2 |
| 82 |
I5-41521 008-0 |
|
SPIDER DIFF PINION |
1 |
0702- |
|
4HG1-T |
NKR55 EURO 2 |
| 20 |
I9-41562 601-0 |
|
WASHER THRUST, SIDE GEAR |
2 |
9811- |
|
4HF1-2 |
T = 1.40 ( NKR 66-2 ) |
| 21 |
I8-98359 567-0 |
|
GEAR SIDE, DIFF |
2 |
0702- |
|
4HG1-T |
Z = 16 ( NKR 71 ) EURO 2 |
| 60 |
I8-97209 168-0 |
|
GEAR SET FINAL DRIVE, RR |
1 |
0702- |
|
4HG1-T |
39/6 ( NKR71THD EURO2 ) |
| 61 |
I8-97047 150-0 |
|
RETAINER PILOT BRG, PINION |
1 |
0702- |
|
4HG1-T |
(B) NKR71 EURO 2 |
| 85 |
I8-97065 214-0 |
|
NUT DIFF CAGE SETTING |
12 |
9410- |
|
4HF1 |
(A) (B) M12 ( NKR 66,NKR 71 ) |
| 71 |
I8-97228 310-0 |
|
CAGE ASM DIFF, FINAL DRIVE |
1 |
9912-0701 |
|
4JB1 |
FINAL GEAR RATIO 41/8, |
| 43 |
I8-94400 890-0 |
|
CAGE FINAL PINION |
1 |
9811- |
|
4HF1-2 |
NKR 66-2 |
| 24 |
I8-98359 568-0 |
|
GEAR PINION, DIFF |
4 |
9312- |
|
4HF1 |
Z = 10 ( NKR 66, NKR 71 ) |
| 45 |
I8-98220 227-0 |
|
BOLT FINAL PINION CAGE |
5 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I1-41562 075-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=3.00, NKR71 EURO 2 |
| 100 |
I8-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
0702- |
|
4JB1-TC |
NKR55 EURO 2 |
| 46 |
I0-50151 440-0 |
|
BOLT |
1 |
9312-9504 |
|
4BE1 |
NKR 58 |
| 51 |
I9-41219 616-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
0702- |
|
4JB1-TC |
NHR/NKR55 EURO 2 |
| 42 |
I9-41219 634-1 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 42 |
I8-97047 097-0 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 83 |
I8-98219 707-0 |
|
CAGE ASM DIFF |
1 |
0702- |
|
4HG1-T |
NKR 71 EURO 2 |
| 88 |
I8-97087 821-0 |
|
PLATE LK, ADJ NUT |
2 |
9410- |
|
4HG1-T |
NKR 71 EURO 2 |
| 100 |
I6-94408 083-0 |
|
SEAL OIL, FINAL PINION |
1 |
9312- |
|
4BE1 |
(IADG) NKR 58 |
| 24 |
I8-98015 202-0 |
|
GEAR PINION, DIFF |
4 |
9312-0009 |
|
4BE1 |
Z = 10 ( NKR 58 ) |
| 24 |
I8-98015 202-0 |
|
GEAR PINION, DIFF |
4 |
0304- |
|
4HF1-2 |
NKR 66-2 |
| 20 |
I1-41562 077-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
9410- |
|
4HF1 |
T=3.20 (NKR 66 TRUK ), NKR 71 |
| 1 |
I8-97123 443-0 |
|
DRIVE ASM FINAL, RR |
1 |
9811- |
|
4HF1-2 |
43/7 ( NKR 66-2 ) |
| 51 |
I9-41219 626-0 |
|
SHIM PINION, FINAL DRIVE |
1 |
9312- |
|
4JB1 |
OD = 89.5 T = 2.56 ( NHR 55 ) |
| 7 |
I8-97073 802-2 |
|
FLANGE FINAL |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 20 |
I1-41562 074-0 |
|
WASHER THRUST, SIDE GEAR |
AR |
0702- |
|
4HG1-T |
T=2.90, NKR71 EURO 2 |
| 42 |
I9-41219 603-1 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
9312- |
|
4BE1 |
NKR 58, NKR 66-2 |
| 42 |
I8-97047 097-0 |
|
COLLAR DIST, COLLAPSIBLE |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 83 |
I9-41510 610-0 |
|
CAGE ASM DIFF |
1 |
9312- |
|
4JB1 |
NHR 55 |
| 7 |
I8-97073 802-2 |
|
FLANGE FINAL |
1 |
9312- |
|
4HF1 |
NKR 66, NKR 71 |
| 66 |
I8-97047 297-0 |
|
RING SNAP, PILOT BRG |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
| 37 |
I8-97047 146-0 |
|
NUT DRIVING PINION |
1 |
0702- |
|
4HG1-T |
NKR71 EURO 2 |
