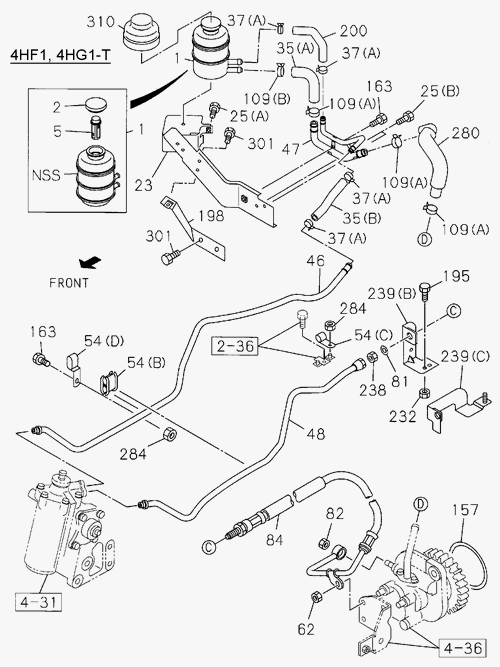

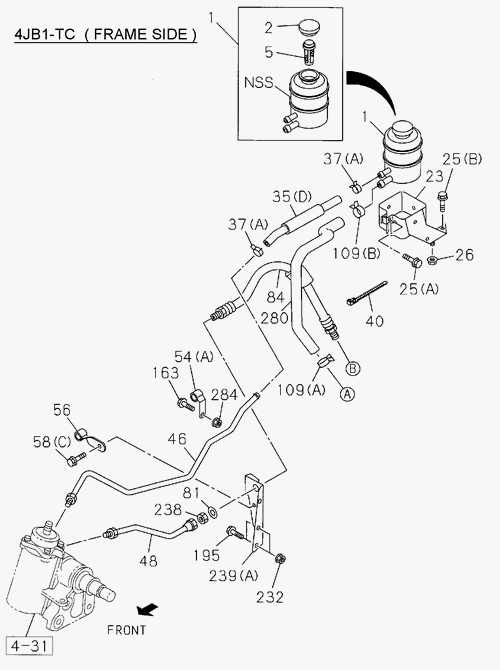

4-35 | POWER STEERING CONTROL CHASSIS SIDE
.png)
.png)
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 25 | I0-28650 825-0 | BOLT OIL TANK BRKT | 1 | 0702- | 4JB1-TC | (B) NKR55 EURO 2 | ||
| 35 | I0-09809 150-0 | HOSE RETURN, P/S TANK | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2, L=150 | ||
| 82 | I8-97028 390-1 | NUT FLEX HOSE, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 198 | I8-97081 778-2 | STAY OIL TANK, POWER STEERING | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 1 | I8-97107 987-0 | TANK ASM OIL, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 62 | I0-91180 108-0 | NUT COVER, ENG | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 284 | I0-91180 108-0 | NUT PIPE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 280 | I8-97205 635-0 | HOSE P/S OIL PUMP, INL | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 82 | I8-94370 339-0 | NUT FLEX HOSE, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 232 | I0-91180 208-0 | NUT BRKT | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 109 | I8-98150 355-0 | CLIP RUBBER HOSE | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 58 | I0-28650 616-0 | BOLT CLIP | 2 | 0702- | 4JB1-TC | (C) NKR55 EURO 2 | ||
| 195 | I0-28650 825-0 | BOLT BRKT | 2 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 46 | I8-97364 361-0 | PIPE OIL, P/S UNIT TO OIL TANK | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 54 | I8-94252 455-2 | CLIP OIL PIPE | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 58 | I8-94279 112-0 | BOLT CLIP | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 56 | I8-94123 171-1 | CLIP OIL PIPE | 2 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 77 | 8-97208-424-0 | BRACKET POWER STEERING HOSE | 1 | 0702- | 4JB1-TC | (A) | ||
| 5 | I8-97094 732-0 | STRAINER OIL TANK, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 62 | I8-97208 424-0 | BRACKET P/STEER HOSE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 77 | 8-97075-615-0 | BRACKET POWER STEERING HOSE | 1 | 0702- | 4JB1-TC | (B) | ||
| 238 | I8-94370 339-0 | NUT FLEX HOSE, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 5 | I8-97094 732-0 | STRAINER OIL TANK, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 239 | I8-97089 879-0 | BRACKET FLEX HOSE | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 89 | I8-97312 556-0 | PIPE OIL, P/S OIL PUMP TO FLEX H | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 200 | I6-98044 060-0 | HOSE RUBBER, RETURN | 1 | 0702- | 4HG1-T | (IADG) NKR71 EURO 2 | ||
| 54 | I0-95235 035-0 | CLIP OIL PIPE | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 284 | I0-91180 108-0 | NUT PIPE | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 109 | I8-97359 141-0 | CLIP RUBBER HOSE | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 109 | I8-97359 141-0 | CLIP RUBBER HOSE | 1 | 0702- | 4JB1-TC | (B) NKR55 EURO 2 | ||
| 35 | I6-97081 444-0 | HOSE RETURN, P/S TANK | 2 | 0702- | 4JB1-TC | (IADG) (D) NKR55 EURO 2 | ||
| 35 | I8-97081 444-3 | HOSE RETURN, P/S TANK | 2 | 0702- | 4JB1-TC | (D) NKR55 EURO 2 | ||
| 25 | I0-25450 620-0 | BOLT OIL TANK BRKT | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 102 | I8-97312 557-1 | PIPE SUCTION, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 54 | I1-09700 744-0 | CLIP OIL PIPE | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 109 | I8-98150 355-0 | CLIP RUBBER HOSE | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 271 | I0-28650 840-0 | BOLT P/S OIL PIPE FIX | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 2 | I8-94146 153-2 | CAP OIL TANK, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 23 | I8-97101 040-A | BRACKET OIL TANK, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 23 | I8-97066 500-3 | BRACKET OIL TANK, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 200 | I8-98044 060-0 | HOSE RUBBER, RETURN | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 262 | I8-97300 961-1 | CLIP P/S PIPE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 87 | I0-28050 812-A | BOLT POWER STRG PIPE | 2 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 1 | I8-97107 987-0 | TANK ASM OIL, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 163 | I0-28650 825-0 | BOLT OIL PIPE | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 2 | I8-94146 153-2 | CAP OIL TANK, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 26 | I0-91180 208-0 | NUT OIL TANK TO BRKT | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 238 | I8-94370 339-0 | NUT FLEX HOSE, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 40 | I5-09707 030-1 | CLIP CABLE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 37 | I8-98008 098-0 | CLIP HOSE, P/S | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 46 | I8-97364 358-0 | PIPE OIL, P/S UNIT TO OIL TANK | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 47 | I8-97046 041-1 | PIPE RETURN | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 232 | I0-91180 208-0 | NUT BRKT | 2 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 57 | I8-97312 558-3 | BRACKET POWER STRG PIPE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 157 | I8-97101 875-2 | GASKET P/S PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 84 | I8-97358 334-2 | HOSE FLEX, P/S | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 48 | I8-97364 354-0 | PIPE OIL, FLEX HOSE TO STRG UNIT | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 58 | I0-50640 825-0 | BOLT CLIP | 1 | 0702- | 4JB1-TC | (B) NKR55 EURO 2 | ||
| 25 | I0-28650 825-0 | BOLT OIL TANK BRKT | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 79 | I0-50740 820-0 | BOLT BRKT | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 280 | I8-97106 424-0 | HOSE P/S OIL PUMP, INL | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 81 | I0-91541 216-0 | WASHER LK,FLEX HOSE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 310 | I8-97103 394-0 | COVER OIL TANK | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 25 | I0-25450 620-0 | BOLT OIL TANK BRKT | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 35 | I6-09809 150-0 | HOSE RETURN, P/S TANK | 1 | 0702- | 4HG1-T | (IADG) (B) NKR71 EURO 2, L=150 | ||
| 84 | I8-97358 326-0 | HOSE FLEX, P/S | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 239 | I8-97187 402-1 | BRACKET FLEX HOSE | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 35 | I8-97080 108-1 | HOSE RETURN, P/S TANK | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 280 | I6-97106 424-0 | HOSE P/S OIL PUMP, INL | 1 | 0702- | 4HG1-T | (IADG) NKR71 EURO 2 | ||
| 301 | I0-28650 825-0 | BOLT STAY, OIL TANK | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 88 | I9-09561 111-0 | RING OIL PIPE | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 |
