4-42 | POWER STEERING OIL PUMP
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-94379 659-0 | GASKET; PLUG TO VLV | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 27 | I8-97075 586-0 | VALVE ASM; OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 22 | I8-97313 095-0 | CARTRIDGE ASM; OIL PUMP | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 14 | I8-97064 620-0 | RING; RET, OIL PUMP | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 32 | I8-94121 906-0 | SPRING; OIL PUMP | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 33 | I8-97075 585-0 | BOLT; COVER | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 33 | I8-97029 773-0 | BOLT; COVER | 3 | 0702- | 4JB1-TC | (B) NKR71 EURO 2 | ||
| 33 | I8-97064 979-0 | BOLT; COVER | 4 | 0702- | 4JB1-TC | (C) NKR55 EURO 2 | ||

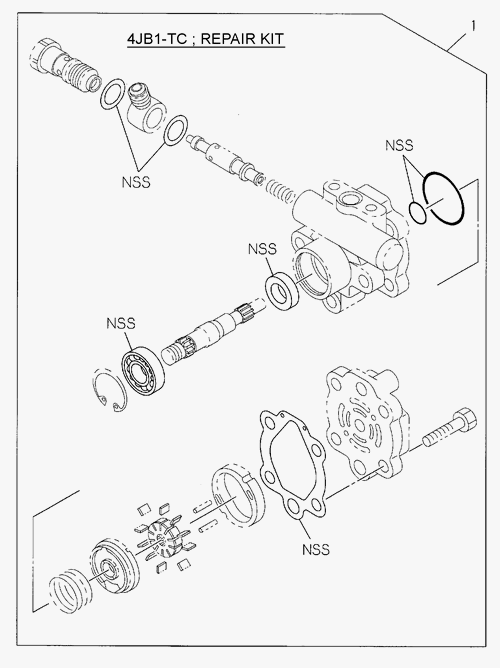

| 1 | I8-97354 944-0 | REPAIR KIT; OIL PUMP | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 37 | I8-97029 777-0 | GASKET; PIPE CONN, OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 36 | I8-94121 914-0 | BOLT; CONN, PIPE | 2 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 32 | I8-97064 982-0 | SPRING; OIL PUMP | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 13 | I8-97354 935-0 | SHAFT KIT; RET | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 39 | I8-97147 441-0 | GASKET; OUL PUMP | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 21 | I8-97062 329-0 | GASKET; FRT COVER TO BODY | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 23 | I8-97147 453-0 | PLATE; SIDE,OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 29 | I8-97075 581-0 | GASKET; PLUG TO VLV | 1 | 0702- | 4HG1-T | (D) NKR71 EURO 2 | ||
| 25 | I8-97080 859-0 | PIN; HSG, P/S | 2 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 38 | I8-97093 504-0 | CONNECTOR; OIL PUMP | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 35 | I8-97088 640-0 | PIPE; HOSE CONN, OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 23 | I8-97354 679-0 | PLATE; SIDE,OIL PUMP | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 27 | I8-97094 142-0 | VALVE ASM; OIL PUMP | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||

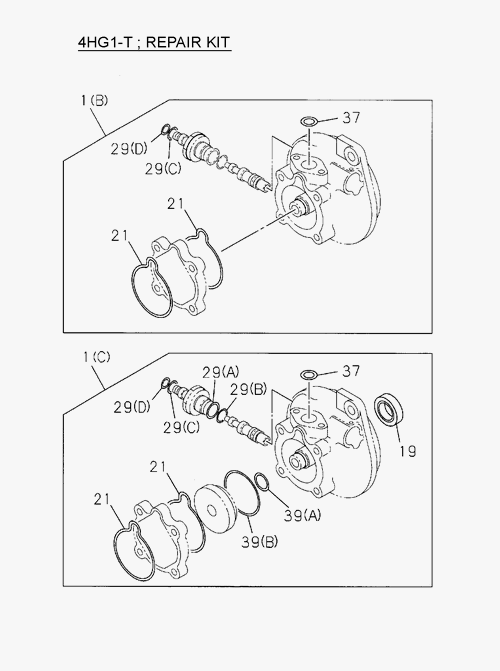

| 1 | I8-97388 649-0 | REPAIR KIT; OIL PUMP | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 32 | I8-97064 987-0 | SPRING; OIL PUMP | 1 | 0702- | 4JB1-TC | (B) NKR55 EURO 2 | ||
| 10 | I8-97029 772-0 | BODY ASM; RR, OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 9 | I8-97354 933-0 | BODY ASM; FRT, OIL PUMP | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 29 | I8-94379 666-0 | GASKET; PLUG TO VLV | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 9 | I8-97388 641-0 | BODY ASM; FRT, OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 38 | I8-97354 941-0 | CONNECTOR; OIL PUMP | 1 | 0702- | 4JB1-TC | (A) NKR55 EURO 2 | ||
| 29 | I8-94379 658-0 | GASKET; PLUG TO VLV | 1 | 0702- | 4HG1-T | (A) NKR71 EURO 2 | ||
| 1 | I8-97388 648-0 | REPAIR KIT; OIL PUMP | 1 | 0702- | 4HG1-T | (C) NKR71 EURO 2 | ||
| 38 | I8-97354 943-0 | CONNECTOR; OIL PUMP | 1 | 0702- | 4JB1-TC | (B) NKR55 EURO 2 | ||
| 10 | I8-97102 294-0 | BODY ASM; RR, OIL PUMP | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 39 | I8-94379 647-0 | GASKET; OUL PUMP | 1 | 0702- | 4HG1-T | (B) NKR71 EURO 2 | ||
| 22 | I8-97148 690-0 | CARTRIDGE ASM; OIL PUMP | 1 | 0702- | 4HG1-T | NKR71 EURO 2 |
