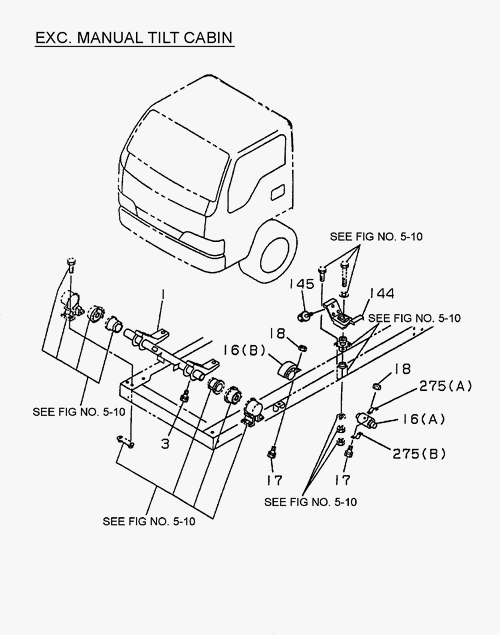

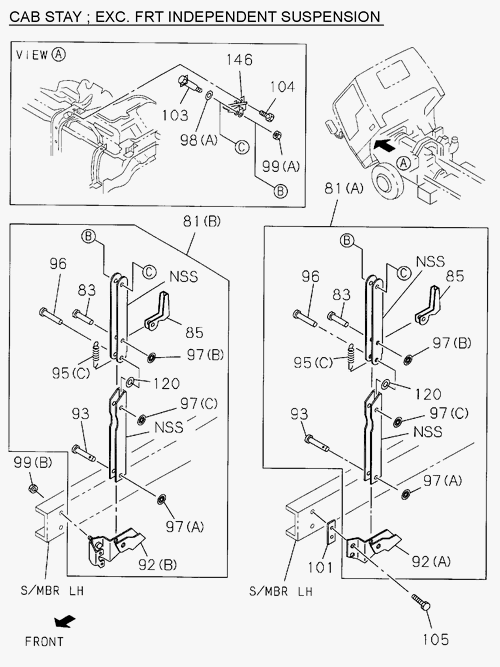

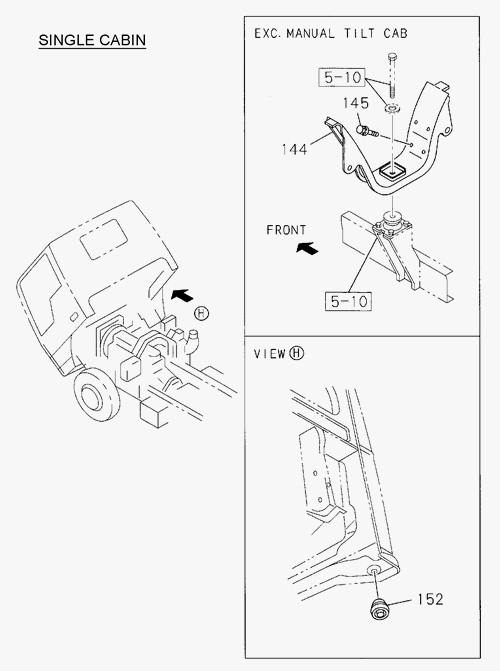

5-15 | CAB MOUNTING CAB SIDE
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 145 | I8-98051 939-0 | BOLT CAB RR MTG BRKT | 12 | 9312- | 4BE1 | NKR 58 | ||
| 104 | I0-28660 820-0 | BOLT CAB STAY BRKT | 3 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 97 | I8-97022 565-0 | NUT CAB STAY PIN | 1 | 0702- | 4HG1-T | (B) NKR71 E2, TILT CAB | ||
| 146 | I8-97076 587-1 | BRACKET ASM CAB STAY UPR | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 212 | I1-09985 340-0 | NUT BRKT, CAB LOCK | 8 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 99 | I0-91180 110-0 | NUT CAB STAY | 1 | 0702- | 4JB1-TC | (B) NKR55 E2, TILT CAB | ||
| 1 | I8-97061 483-9 | LEVER TORSION BAR | 1 | 9312-9405 | 4JB1 | NHR 55 | ||
| 99 | I8-97185 205-1 | NUT CAB STAY | 1 | 0702- | 4JB1-TC | (A) NKR55 E2, TILT CAB | ||
| 1 | I8-97328 488-0 | LEVER TORSION BAR | 1 | 0202- | 4JB1 | NHR 55 | ||
| 141 | I1-09987 158-1 | PIN SNAP, CAB LOCK ROD | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 18 | I0-91110 508-0 | NUT CLIP HARNESS | 2 | 9312- | 4HF1 | NKR 66 | ||
| 141 | I1-09987 158-1 | PIN SNAP, CAB LOCK ROD | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 144 | I8-97853 066-4 | BRACKET ASM CAB RR MTG | 2 | 9312- | 4BE1 | NKR 58 | ||
| 3 | I8-97359 033-0 | BOLT LEVER | 4 | 0201- | 4JB1 | NHR 55 | ||
| 1 | I8-97114 076-4 | LEVER TORSION BAR | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 93 | I8-97218 926-0 | PIN CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 96 | I8-97096 661-0 | PIN JOINT | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 97 | I8-97022 565-0 | NUT CAB STAY PIN | 1 | 0702- | 4JB1-TC | (B) NKR55 E2, TILT CAB | ||
| 99 | I0-91180 110-0 | NUT CAB STAY | 1 | 0702- | 4HG1-T | (B) NKR71 E2, TILT CAB | ||
| 140 | I8-98060 839-0 | WASHER LK, CAB LOCK ROD | 3 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 12 | I8-97261 870-0 | BAR TORSION, UPR | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 83 | I8-97039 548-0 | PIN JOINT, CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 152 | I1-76798 029-0 | GROMMET DUMMY HOLE, CAB TILT LOCK | 2 | 0211- | 4HG1 | NKR 71 | ||
| 245 | I9-33659 249-0 | BUSHING CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 142 | I8-97856 099-1 | ROD HOOK TO HOOK | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 96 | I8-97096 661-0 | PIN JOINT | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 1 | I8-97114 076-4 | LEVER TORSION BAR | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 275 | I8-97031 818-0 | BRACKET DYNAMIC DAMPER | 2 | 9312- | 4BE1 | (A) NKR 58 | ||
| 92 | I8-97096 654-0 | BRACKET CAB STAY TO FRAME | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 144 | I8-97853 066-4 | BRACKET ASM CAB RR MTG | 2 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 81 | I8-97120 940-0 | STAY ASM CAB TILT | 1 | 0702- | 4JB1-TC | (B) NKR55 E2, TILT CAB | ||
| 148 | I8-97856 106-0 | JOINY HAW, HOOK TO HOOK | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 15 | I8-97359 034-0 | RING SNAP, TORSION BAR | 2 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 98 | I8-97184 701-0 | WASHER CAB STAY | 1 | 0702- | 4HG1-T | (A) NKR71 E2, TILT CAB | ||
| 1 | I8-97114 082-2 | LEVER TORSION BAR | 1 | 9406- | 4JB1 | NHR 55 | ||
| 97 | I8-97022 566-0 | NUT CAB STAY PIN | 1 | 0702- | 4HG1-T | (C) NKR71 E2, TILT CAB | ||
| 275 | I8-97031 818-0 | BRACKET DYNAMIC DAMPER | 2 | 9312- | 4HF1 | (A) NKR 66 | ||
| 149 | I8-97853 054-4 | HANDEL TILT | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 3 | I8-94401 729-1 | BOLT LEVER | 4 | 9312- | 4JB1 | NHR 55 | ||
| 103 | I8-97359 151-0 | PIN JOINT, CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 3 | I8-97359 033-0 | BOLT LEVER | 4 | 0201- | 4HF1 | NKR 66, NKR 6-2, NKR 71 | ||
| 85 | I8-94331 481-0 | LEVER LOCK, CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 1 | I8-97114 082-2 | LEVER TORSION BAR | 1 | 0107- | 4HF1 | NKR 66, NKR 66-2 | ||
| 120 | I8-97103 223-0 | WASHER NYLON | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 145 | I8-98051 939-0 | BOLT CAB RR MTG BRKT | 12 | 0702- | 4JB1-TC | NHR55 EURO 2, EXC.TILT CAB | ||
| 18 | I0-91110 508-0 | NUT CLIP HARNESS | 2 | 9312- | 4HF1-2 | NKR 66-2 | ||
| 16 | I8-97031 817-2 | DAMPER DYNAMIC | 1 | 9312- | 4HF1 | (A) NKR 66 | ||
| 133 | I8-97853 056-8 | LOCK ASM CAB | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 152 | I8-94279 055-0 | GROMMET DUMMY HOLE, CAB TILT LOCK | 2 | 9811- | 4HF1 | 0D = 19 ( NKR 66, NKR 6-2 ) | ||
| 152 | I8-94279 055-0 | GROMMET DUMMY HOLE, CAB TILT LOCK | 2 | 9811- | 4JB1 | 0D = 19 ( NHR 55 ) | ||
| 143 | I0-91110 510-0 | NUT JAW JOINT, HOOK TO HOOK | 2 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 1 | I8-97114 082-2 | LEVER TORSION BAR | 1 | 9406- | 4HF1 | NKR 66, NKR 66-2 | ||
| 1 | I8-97114 082-2 | LEVER TORSION BAR | 1 | 0107- | 4JB1 | NHR 55 | ||
| 103 | I8-97359 151-0 | PIN JOINT, CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 245 | I9-33659 249-0 | BUSHING CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 253 | I8-97077 459-0 | RUBBER STOPPER | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 17 | I0-28650 835-0 | BOLT COVER | 2 | 9509- | 4HF1 | NKR 66, NKR 6-2 | ||
| 83 | I8-97039 548-0 | PIN JOINT, CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 95 | I8-94160 167-2 | SPRING RETRUN, CAB STAY | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 133 | I8-97853 055-9 | LOCK ASM CAB | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 143 | I0-91110 510-0 | NUT JAW JOINT, HOOK TO HOOK | 2 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 15 | I8-97359 034-0 | RING SNAP, TORSION BAR | 2 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 139 | I8-97997 597-0 | ROD CAB LOCK, LEVER TO HOOK | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 92 | I8-97096 654-0 | BRACKET CAB STAY TO FRAME | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 145 | I8-98051 939-0 | BOLT CAB RR MTG BRKT | 12 | 9312- | 4JB1 | NHR 55 | ||
| 275 | I8-97032 026-0 | BRACKET DYNAMIC DAMPER | 2 | 9312- | 4HF1 | (B) NKR 66 | ||
| 3 | I8-97359 033-0 | BOLT LEVER | 4 | 0702- | 4JB1-TC | NHR55 E2, EXC.TILT CAB | ||
| 17 | I0-50540 830-0 | BOLT HSG TO HD | 2 | 9312-9508 | 4BE1 | NKR 58 | ||
| 3 | I8-94401 729-1 | BOLT LEVER | 4 | 9312- | 4BE1 | NKR 58 | ||
| 138 | I8-94279 207-0 | BOLT CAB LOCK CONT UNIT | 3 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 150 | I0-28650 825-0 | BOLT TILT HANDEL | 3 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 133 | I8-97853 056-8 | LOCK ASM CAB | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 81 | I8-97120 940-0 | STAY ASM CAB TILT | 1 | 0702- | 4HG1-T | (B) NKR71 E2, TILT CAB | ||
| 17 | I0-50540 830-0 | BOLT HSG TO HD | 2 | 9312-9508 | 4HF1 | NKR 66 | ||
| 148 | I8-97856 106-0 | JOINY HAW, HOOK TO HOOK | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 139 | I8-97997 597-0 | ROD CAB LOCK, LEVER TO HOOK | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 133 | I8-97853 055-9 | LOCK ASM CAB | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 95 | I8-94160 167-2 | SPRING RETRUN, CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 93 | I8-97218 926-0 | PIN CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 122 | I0-91610 512-0 | WASHER PL, CAB LOCK ROD | 5 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 275 | I8-97032 026-0 | BRACKET DYNAMIC DAMPER | 2 | 9312- | 4BE1 | (B) NKR 58 | ||
| 104 | I0-28660 820-0 | BOLT CAB STAY BRKT | 3 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 3 | I8-94401 729-1 | BOLT LEVER | 4 | 9312- | 4HF1 | NKR 66 | ||
| 212 | I1-09985 340-0 | NUT BRKT, CAB LOCK | 8 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 16 | I8-97031 817-2 | DAMPER DYNAMIC | 1 | 9312- | 4BE1 | (A) NKR 58 | ||
| 1 | I8-97328 488-0 | LEVER TORSION BAR | 1 | 0202- | 4HG1 | NKR 66, NKR 66-2, NKR 71 | ||
| 122 | I0-91610 512-0 | WASHER PL, CAB LOCK ROD | 5 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 145 | I8-98051 939-0 | BOLT CAB RR MTG BRKT | 12 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 1 | I8-97061 483-9 | LEVER TORSION BAR | 1 | 9312-9405 | 4HF1 | NKR 58, NKR 66 | ||
| 16 | I8-94148 384-0 | DAMPER DYNAMIC | 1 | 9312- | 4HF1 | (B) NKR 66 | ||
| 97 | I8-97022 567-0 | NUT CAB STAY PIN | 1 | 0702- | 4HG1-T | (A) NKR71 E2, TILT CAB | ||
| 137 | I8-97853 051-9 | CONTROL UNIT CAB LOCK | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 120 | I8-97103 223-0 | WASHER NYLON | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 1 | I8-97328 488-0 | LEVER TORSION BAR | 1 | 0702- | 4JB1-TC | NHR55 E2, EXC.TILT CAB | ||
| 97 | I8-97022 566-0 | NUT CAB STAY PIN | 1 | 0702- | 4JB1-TC | (C) NKR55 E2, TILT CAB | ||
| 150 | I0-28650 825-0 | BOLT TILT HANDEL | 3 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 253 | I8-97077 459-0 | RUBBER STOPPER | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 144 | I8-97853 066-4 | BRACKET ASM CAB RR MTG | 2 | 9312- | 4JB1 | NHR 55 | ||
| 146 | I8-97076 587-1 | BRACKET ASM CAB STAY UPR | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 98 | I8-97184 701-0 | WASHER CAB STAY | 1 | 0702- | 4JB1-TC | (A) NKR55 E2, TILT CAB | ||
| 97 | I8-97022 567-0 | NUT CAB STAY PIN | 1 | 0702- | 4JB1-TC | (A) NKR55 E2, TILT CAB | ||
| 99 | I8-97185 205-1 | NUT CAB STAY | 1 | 0702- | 4HG1-T | (A) NKR71 E2, TILT CAB | ||
| 3 | I8-97359 033-0 | BOLT LEVER | 4 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 12 | I8-97261 870-0 | BAR TORSION, UPR | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 144 | I8-97853 066-4 | BRACKET ASM CAB RR MTG | 2 | 0702- | 4JB1-TC | NHR55 EURO 2, EXC.TILT CAB | ||
| 3 | I8-97359 033-0 | BOLT LEVER | 4 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 137 | I8-97853 051-9 | CONTROL UNIT CAB LOCK | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 138 | I8-94279 207-0 | BOLT CAB LOCK CONT UNIT | 3 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 149 | I8-97853 054-4 | HANDEL TILT | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 16 | I8-94148 384-0 | DAMPER DYNAMIC | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 140 | I8-98060 839-0 | WASHER LK, CAB LOCK ROD | 3 | 0702- | 4HG1-T | NKR71 E2, TILT CAB | ||
| 142 | I8-97856 099-1 | ROD HOOK TO HOOK | 1 | 0702- | 4JB1-TC | NKR55 E2, TILT CAB | ||
| 18 | I0-91110 508-0 | NUT CLIP HARNESS | 2 | 9312- | 4BE1 | NKR 58 | ||
| 85 | I8-94331 481-0 | LEVER LOCK, CAB STAY | 1 | 0702- | 4HG1-T | NKR71 E2, TILT CAB |
