PORTAL SPAREPART

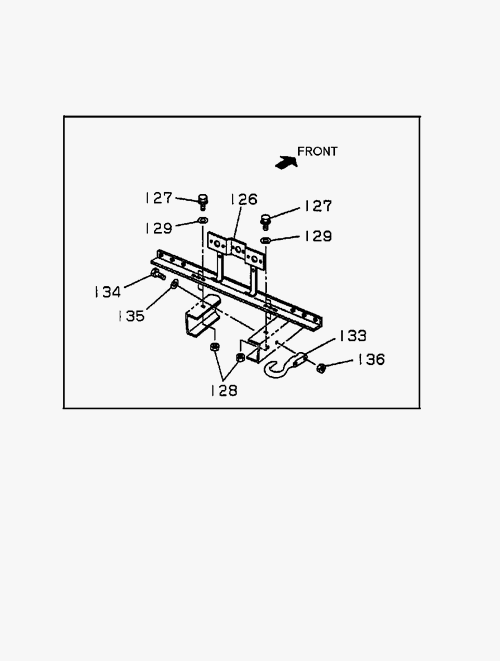

6-90 | REAR BUMPER

Partial Engine

ELF

NHR NKR

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
133 I8-94249 270-A HOOK 1 9312- 4HF1 NKR 66, NKR 66-2
128 I0-91110 508-0 NUT CROSS PLATE 2 9312- 4HF1 NKR 66, NKR 66-2
127 I0-50140 835-0 BOLT BRKT 2 9312- 4JB1 NHR 55
127 I0-28650 840-0 BOLT NOISE SHIELD COVER 2 0404- 4HF1 NKR 66, NKR 66-2, NKR 71
134 I0-50041 045-0 BOLT HOOK 2 9312- 4JB1 NHR 55
128 I0-91110 508-0 NUT CROSS PLATE 2 9312- 4BE1 NKR 58
128 I0-91110 508-0 NUT CROSS PLATE 2 9312- 4JB1 NHR 55
129 I0-91614 808-0 WASHER PL, SUPPORT RUBBER, EXHAUST PIPE 2 9312- 4JB1 NHR 55
127 I0-28650 840-0 BOLT NOISE SHIELD COVER 2 0404- 4JB1 NHR 55
133 I8-94183 262-A HOOK 1 9312- 4JB1 NHR 55
134 I0-10856 450-0 BOLT HOOK 2 9312- 4BE1 NKR 58
136 I0-91110 510-0 NUT HOOK 2 9312- 4JB1 NHR 55
127 I0-50140 835-0 BOLT BRKT 2 9312- 4BE1 NKR 58, NKR 66
135 I0-91510 814-0 WASHER LK,HOOK 2 9312- 4HF1 NKR 66, NKR 66-2
126 I8-97096 644-3 PLATE CROSS 1 9312- 4BE1 NKR 58, NKR 66
134 I0-10856 450-0 BOLT HOOK 2 9312- 4HF1 NKR 66, NKR 66-2
129 I0-91614 808-0 WASHER PL, SUPPORT RUBBER, EXHAUST PIPE 2 9312- 4BE1 NKR 58, NKR 66, NKR 66-2
126 I7-41900 200-A PLATE CROSS 1 0310- 4HF1 NKR 66, NKR 66-2, NKR 71
127 I0-50140 840-0 BOLT CROSS PLATE 2 9811-0403 4HF1 M8X40 W/LK&PL WASHER
135 I0-91510 814-0 WASHER LK,HOOK 2 9312- 4BE1 NKR 58
133 I8-94249 270-A HOOK 1 9312- 4BE1 NKR 58
127 I0-50140 840-0 BOLT CROSS PLATE 2 9811-0403 4JB1 M8X40 W/LK&PL WASHER
136 I7-05014 012-A NUT HOOK 2 9312- 4HF1 NKR 58, NKR 66, NKR 66-2
126 I7-41900 200-A PLATE CROSS 1 0312- 4JB1 NHR 55 ( P419002001)
126 I8-97096 644-3 PLATE CROSS 1 9312- 4JB1 NHR 55
