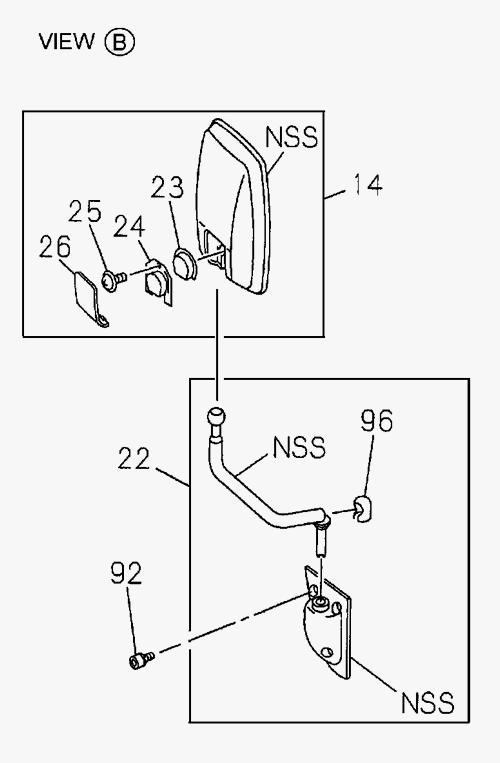

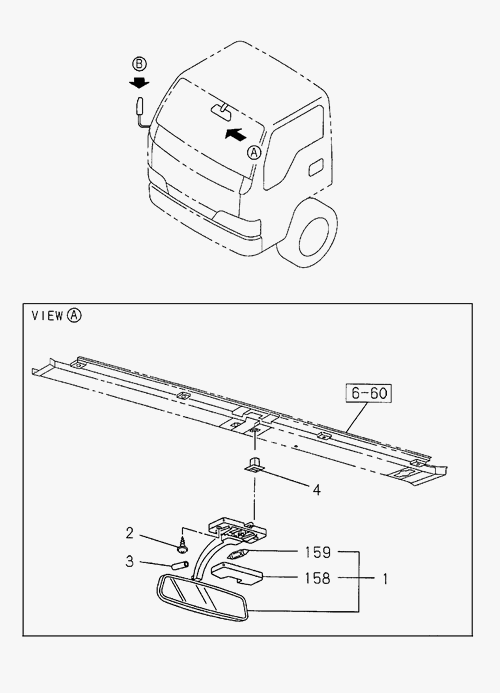

7-20 | MIRROR AND STAY MIRROR
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97856 772-2 | MlRROR; ROOM | 1 | 9312-9711 | 4JB1 | NHR 55 | ||
| 22 | I8-97868 237-2 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4BE1 | NKR 58 | ||
| 159 | I5-82194 030-0 | BULB; ROOM LAMP | 1 | 9312- | 4BE1 | 24V 10W ( NKR 58 ) | ||
| 14 | I7-45910 220-A | MIRROR ASM; OUTSIDE | 1 | 1112- | - | 4HG1-T | NKR 71 EURO2 GOLD | |
| 22 | I7-45911 221-A | STAY; OUT SIDE MIRROR | 1112- | LH | 4JB1-TC | NHR55,NKR55 EURO 2 GOLD | ||
| 25 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 9811- | 4JB1 | NHR 55 | ||
| 4 | I8-94279 039-0 | GROMMET; SCREW, ROOM MIRROR | 1 | 9504- | 4HF1 | NKR 66, NKR 66-2 | ||
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4JB1 | (IADG) NHR 55 | ||
| 22 | I8-97856 557-9 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 14 | I6-45910 220-0 | MIRROR ASM; OUTSIDE | 1 | 1112- | - | 4HG1-T | (IADG) NKR 71 EURO2 GOLD | |
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 0702-1111 | 4HG1-T | NKR 71 EURO2 | ||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4BE1 | NKR 58 | ||
| 3 | I8-97857 428-0 | STOPPER; RR VIEW MIRROR | 1 | 9312-9401 | 4HF1 | NKR 66 | ||
| 26 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 9811- | 4JB1 | NHR 55 | ||
| 2 | I5-09981 093-0 | SCREW; MIRROR TO BODY | 2 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 0702-1111 | 4JB1-TC | (IADG) NHR55,NKR55 EURO2 | ||
| 23 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 9811- | 4JB1 | NHR 55 | ||
| 3 | I8-97859 098-2 | STOPPER; RR VIEW MIRROR | 1 | 9604- | 4JB1 | NHR 55 | ||
| 22 | I8-97868 237-2 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4HF1 | NKR 66, NKR66-2 | ||
| 96 | I8-97853 206-2 | CAP; MIRROR STAY | 1 | 9312- | 4HF1 | NKR 66 | ||
| 4 | I8-94279 084-2 | GROMMET; SCREW, ROOM MIRROR | 1 | 9312-9503 | 4JB1 | NHR 55 | ||
| 4 | I7-42200 203-A | GROMMET; SCREW, ROOM MIRROR | 1 | 0402- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 22 | I7-45910 221-A | STAY; OUT SIDE MIRROR | 1 | 1112- | RH | 4JB1-TC | NHR55,NKR55 EURO 2 GOLD | |
| 4 | I8-94279 084-2 | GROMMET; SCREW, ROOM MIRROR | 1 | 9312-9503 | 4BE1 | NKR 58, NKR 66 | ||
| 3 | I8-97857 428-0 | STOPPER; RR VIEW MIRROR | 1 | 9312-9401 | 4BE1 | NKR 58 | ||
| 158 | I5-73117 108-1 | LENS; ROOM LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 158 | I5-73117 108-1 | LENS; ROOM LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 22 | I8-97868 237-2 | STAY; OUT SIDE MIRROR | 1 | 0702-1111 | 4JB1-TC | NHR55,NKR55 EURO2 | ||
| 159 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 9312-9907 | 4JB1 | 12V 10W ( NHR 55 ) | ||
| 22 | I7-45911 222-A | STAY; OUT SIDE MIRROR | 1112- | LH | 4HG1-T | NKR 71 EURO2 GOLD | ||
| 24 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 9811- | 4BE1 | NKR 58 | ||
| 23 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 9811- | 4BE1 | NKR 58 | ||
| 96 | I8-97853 206-2 | CAP; MIRROR STAY | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I7-36915 261-A | MlRROR; ROOM | 1 | 9312-9711 | 4HF1 | NKR 66 | ||
| 2 | I5-09981 093-0 | SCREW; MIRROR TO BODY | 2 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I7-36915 261-A | MlRROR; ROOM | 1 | 9712- | 4JB1 | NHR 55 | ||
| 96 | I8-97853 206-2 | CAP; MIRROR STAY | 1 | 9312- | 4JB1 | NHR 55 | ||
| 24 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 9811- | 4JB1 | NHR 55 | ||
| 25 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 9811- | 4HF1 | NKR 66 | ||
| 22 | I8-97856 557-9 | STAY; OUT SIDE MIRROR | 1 | 0702-1111 | 4HG1-T | NKR 71 EURO2 | ||
| 22 | I7-45910 221-A | STAY; OUT SIDE MIRROR | 1 | 1112- | RH | 4HG1-T | NKR 71 EURO2 GOLD | |
| 3 | I8-97857 428-0 | STOPPER; RR VIEW MIRROR | 1 | 9312-9401 | 4JB1 | NHR 55 | ||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 0702-1111 | 4JB1-TC | NHR55,NKR55 EURO2 | ||
| 14 | I6-45910 220-0 | MIRROR ASM; OUTSIDE | 1 | 1112- | - | 4JB1-TC | (IADG) NHR55,NKR55 EURO 2 GOLD | |
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4BE1 | (IADG) NKR 58 | ||
| 25 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 9811- | 4BE1 | NKR 58 | ||
| 14 | I7-45910 220-A | MIRROR ASM; OUTSIDE | 1 | 1112- | - | 4JB1-TC | NHR55,NKR55 EURO 2 GOLD | |
| 22 | I8-97868 237-2 | STAY; OUT SIDE MIRROR | 1 | 0702-1111 | 4HG1-T | NKR 71 EURO2 | ||
| 159 | I5-82194 030-0 | BULB; ROOM LAMP | 1 | 9312- | 4HF1 | 24V 10W ( NKR 66 ) | ||
| 22 | I8-97856 557-9 | STAY; OUT SIDE MIRROR | 1 | 0702-1111 | 4JB1-TC | NHR55,NKR55 EURO2 | ||
| 1 | I7-36915 261-A | MlRROR; ROOM | 1 | 9312-9711 | 4BE1 | NKR 58 | ||
| 159 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 9908- | 4JB1 | 12V 10W ( NHR 55 ) | ||
| 22 | I8-97868 237-2 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 2 | I5-09981 093-0 | SCREW; MIRROR TO BODY | 2 | 9312- | 4JB1 | NHR 55 | ||
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 0702-1111 | 4HG1-T | (IADG) NKR 71 EURO2 | ||
| 26 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 9811- | 4BE1 | NKR 58 | ||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 3 | I8-97859 098-2 | STOPPER; RR VIEW MIRROR | 1 | 9604- | 4HF1 | NKR 66, NKR 66-2 | ||
| 26 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 9811- | 4HF1 | NKR 66 | ||
| 92 | I8-94279 183-1 | BOLT; STAY BRKT, MIRROR | 6 | 9312- | 4JB1 | M8X30 W/LK WASHER | ||
| 22 | I8-97856 557-9 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4HF1 | NKR 66, NKR66-2 | ||
| 22 | I8-97856 557-9 | STAY; OUT SIDE MIRROR | 1 | 9312-0701 | 4BE1 | NKR 58 | ||
| 92 | I8-94279 183-1 | BOLT; STAY BRKT, MIRROR | 6 | 9312- | 4BE1 | M8X30 W/LK WASHER | ||
| 23 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 9811- | 4HF1 | NKR 66 | ||
| 158 | I5-73117 108-1 | LENS; ROOM LAMP | 1 | 9312- | 4HF1 | NKR 66, NKR66-2 | ||
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4HF1 | (IADG) NKR 66, NKR66-2 | ||
| 1 | I7-36915 260-A | MlRROR; ROOM | 1 | 9712- | 4HF1 | DARK GRAY | ||
| 4 | I8-94279 039-0 | GROMMET; SCREW, ROOM MIRROR | 1 | 9504- | 4JB1 | NHR 55 | ||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 9312-0701 | 4HF1 | NKR 66, NKR66-2 | ||
| 4 | I8-94279 084-2 | GROMMET; SCREW, ROOM MIRROR | 1 | 9312-9503 | 4HF1 | NKR 66 | ||
| 92 | I8-94279 183-1 | BOLT; STAY BRKT, MIRROR | 6 | 9312- | 4HF1 | M8X30 W/LK WASHER | ||
| 4 | I7-42200 203-A | GROMMET; SCREW, ROOM MIRROR | 1 | 0402- | 4JB1 | NHR 55 | ||
| 24 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 9811- | 4HF1 | NKR 66 | ||
| 159 | I5-82194 030-0 | BULB; ROOM LAMP | 1 | 9811- | 4HF1-2 | 24V 10W ( NKR 66-2 ) |
