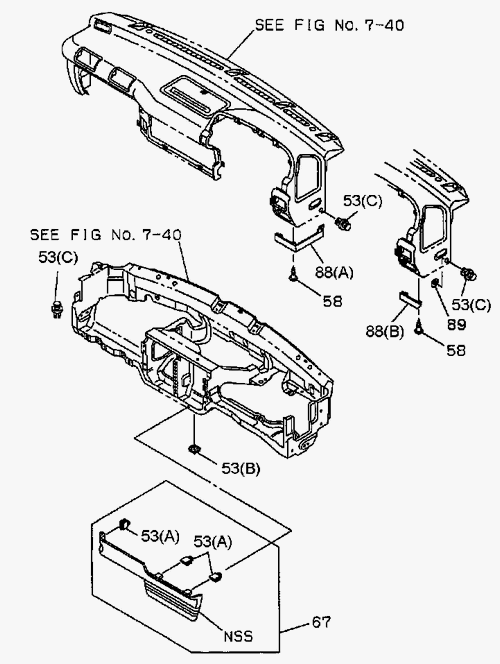

7-41 | UNDER COVER INSTRUMENT
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 88 | I8-97853 888-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9312-9711 | 4BE1 | (A) NKR 58 | ||
| 88 | I8-97853 889-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 67 | I8-97856 660-4 | COVER UNDER, INST PNL | 1 | 9312- | 4BE1 | NKR 58 | ||
| 53 | I8-97856 011-0 | CLIP STEERING SHAFT | 1 | 9312-9711 | 4JB1 | (C) NHR 55 | ||
| 58 | I8-94279 325-0 | SCREW STOPPER | 2 | 9312- | 4HF1 | M5X14 ( NKR 66, NKR 66-2 ) | ||
| 88 | I8-97859 801-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9712- | 4JB1 | DARK GRAY ( NHR 55 ) | ||
| 53 | I8-97868 409-0 | CLIP STEERING SHAFT | 1 | 9712- | 4HF1 | (C) DARK GRAY | ||
| 53 | I8-97868 409-0 | CLIP STEERING SHAFT | 1 | 9712- | 4JB1 | (C) DARK GRAY ( NHR 55 ) | ||
| 53 | I8-97853 249-5 | CLIP UNDER COVER | 3 | 9312- | 4JB1 | (B) NHR 55 | ||
| 88 | I8-97853 889-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9312- | 4HF1 | (B) NKR 66 | ||
| 89 | I9-09164 706-0 | WASHER UNDER COVER | 2 | 9312-9506 | 4BE1 | NKR 58 | ||
| 53 | I8-97853 249-5 | CLIP UNDER COVER | 3 | 9312- | 4HF1 | (B) NKR 66, NKR 66-2,NKR 71 | ||
| 53 | I8-97853 169-0 | CLIP INSTRUMENT CLUSTER | 3 | 9312- | 4HF1 | (A) NKR 66 | ||
| 53 | I8-97853 169-0 | CLIP INSTRUMENT CLUSTER | 3 | 9312- | 4JB1 | (A) NHR 55 | ||
| 58 | I8-94279 325-0 | SCREW STOPPER | 2 | 9312- | 4BE1 | M5X14 ( NKR 58 ) | ||
| 53 | I8-97856 011-0 | CLIP STEERING SHAFT | 1 | 9312-9711 | 4BE1 | (C) NKR 58 | ||
| 53 | I8-97853 169-0 | CLIP INSTRUMENT CLUSTER | 3 | 9312- | 4BE1 | (A) NKR 58 | ||
| 88 | I8-97859 801-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9712- | 4HF1 | (A) DARK GRAY | ||
| 88 | I8-97853 888-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9312-9711 | 4JB1 | (A) NHR 55 | ||
| 53 | I8-97856 011-0 | CLIP STEERING SHAFT | 1 | 9312-9711 | 4HF1 | (C) NKR 66 | ||
| 67 | I8-97856 660-4 | COVER UNDER, INST PNL | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 67 | I8-97856 660-4 | COVER UNDER, INST PNL | 1 | 9312- | 4JB1 | NHR 55 | ||
| 58 | I8-94279 325-0 | SCREW STOPPER | 2 | 9312- | 4JB1 | M5X14 ( NHR 55 ) | ||
| 53 | I8-97853 249-5 | CLIP UNDER COVER | 3 | 9312- | 4BE1 | (B) NKR 58 | ||
| 89 | I9-09164 706-0 | WASHER UNDER COVER | 2 | 9312-9506 | 4HF1 | NKR 66 | ||
| 88 | I8-97853 888-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 9312-9711 | 4HF1 | (A) NKR 66 | ||
| 88 | I8-97859 801-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 0702- | 4JB1-TC | (A) DARK GRAY | ||
| 88 | I8-97859 801-2 | COVER UNDER, INSTRUMENT PANEL SIDE | 1 | 0702- | 4HG1-T | (A) DARK GRAY |
