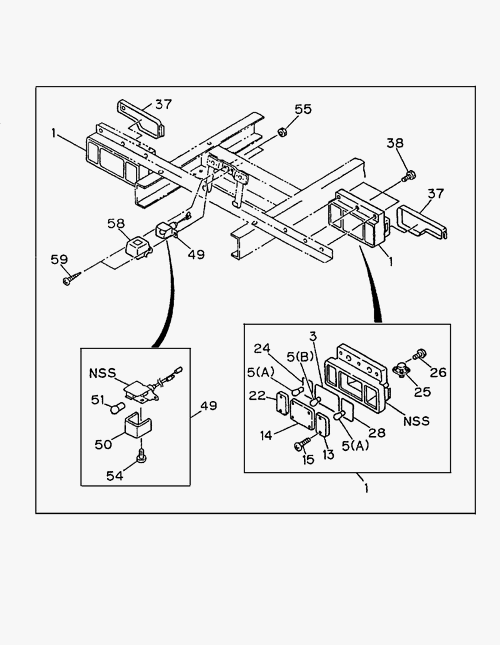

8-03 | LAMP REAR AND REAR SIDE
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 26 | I0-71240 410-0 | SCREW BACK HORN | 1 | 9312-9408 | 4BE1 | M4X10 ( NKR 58 ) | ||
| 1 | I8-94178 623-A | LAMP ASM RR COMB | 1 | 9312- | 4BE1 | NKR 58 | ||
| 58 | I7-41411 211-A | COVER LICENSE PLATE LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 25 | I8-94257 518-A | HORN ASM BACK | 1 | 9312- | 4BE1 | NKR 58 | ||
| 37 | I8-97520 137-A | COVER RR COMB LAMP | 1 | 9312- | RH | 4JB1 | NHR 55 | |
| 26 | I9-07076 414-0 | SCREW BACK HORN | 2 | 9312- | LH | 4HF1 | M4X14 ( NKR 66 ) | |
| 1 | I6-94178 623-0 | LAMP ASM RR COMB | 1 | 9810- | 4JB1 | (IADG) NHR 55 24 V | ||
| 59 | I8-97085 098-0 | SCREW TAP, LICENSE LAMP BODY | 1 | 9312-9404 | 4BE1 | NKR 58 | ||
| 59 | I8-97085 098-0 | SCREW TAP, LICENSE LAMP BODY | 1 | 9312-9404 | 4JB1 | NHR 55 | ||
| 26 | I0-71240 412-0 | SCREW BACK HORN | 2 | 9409- | 4HF1 | M4X12 ( NKR 66, NKR 66-2 ) | ||
| 22 | I8-94257 512-A | LENS BACKUP,RR COMB LAMP | 2 | 9312- | 4JB1 | NHR 55 | ||
| 14 | I8-94178 624-A | LENS TAIL & STOP, RR COMB LAMP | 1 | 9312- | RH | 4BE1 | NKR 58 | |
| 15 | I9-93490 520-0 | SCREW RR COMB LAMP | 2 | 9407- | 4HF1 | M5X20 ( NKR 66, NKR 66-2 ) | ||
| 5 | I6-94125 959-0 | BULB RR COMB LAMP | 2 | 9312- | 4JB1 | (IADG) (B) NHR 55 | ||
| 5 | I8-94124 074-0 | BULB RR COMB LAMP | 4 | 9312- | 4JB1 | (A) NHR 55 | ||
| 54 | I8-94419 312-0 | SCREW LICENSE PLATE LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-94178 621-A | LAMP ASM RR COMB | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 14 | I8-94178 625-A | LENS TAIL & STOP, RR COMB LAMP | 1 | 9312- | LH | 4JB1 | NHR 55 | |
| 25 | I8-94257 518-A | HORN ASM BACK | 1 | 9312- | 4HF1 | NKR 66 | ||
| 22 | I8-94257 512-A | LENS BACKUP,RR COMB LAMP | 2 | 9312- | 4HF1 | NKR 66 | ||
| 59 | I8-97085 098-0 | SCREW TAP, LICENSE LAMP BODY | 1 | 9312-9404 | 4HF1 | NKR 66 | ||
| 26 | I0-71240 410-0 | SCREW BACK HORN | 1 | 9312-9408 | 4HF1 | M4X10 ( NKR 66 ) | ||
| 1 | I6-94178 619-0 | LAMP ASM RR COMB | 1 | 9810- | LH | 4JB1 | (IADG) NHR 55 | |
| 1 | I8-94178 619-2 | LAMP ASM RR COMB | 1 | 9810- | LH | 4JB1 | NHR 55 | |
| 55 | I8-94153 039-0 | NUT LICENSE PLATE LAMP | 2 | 9405- | 4HF1 | M5 FLANGE | ||
| 51 | I1-82194 030-0 | BULB LICENSE PLATE LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 15 | I0-71190 420-0 | SCREW RR COMB LAMP | 8 | 9312- | 4BE1 | M4X20 ( NkR 58 ) | ||
| 49 | I7-41410 212-A | LAMP LICENSE PLATE | 1 | 9312- | 4BE1 | NKR 58 | ||
| 37 | I8-97520 137-A | COVER RR COMB LAMP | 1 | 9312- | RH | 4HF1 | NKR 58, NKR 66 | |
| 13 | I8-94174 639-A | LENS TURN SIGNAL | 1 | 9312- | LH | 4JB1 | NHR 55 | |
| 1 | I6-94178 623-0 | LAMP ASM RR COMB | 1 | 9312- | 4BE1 | (IADG) NKR 58 | ||
| 13 | I8-94174 638-A | LENS TURN SIGNAL | 1 | 9312- | RH | 4BE1 | NKR 58 | |
| 49 | I7-41410 212-A | LAMP LICENSE PLATE | 1 | 9312- | 4HF1 | NHR 55 24 V | ||
| 24 | I8-94257 506-0 | GASKET BACK, LAMP | 1 | 9312- | 4HF1 | NKR 66 | ||
| 50 | I5-82125 004-1 | LENS LICENSE PLATE LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 5 | I1-82194 036-0 | BULB RR COMB LAMP | 4 | 9312- | 4HF1 | (A) NKR 66 | ||
| 3 | I8-94257 505-0 | GASKET RR COMB LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 15 | I9-93490 520-0 | SCREW RR COMB LAMP | 2 | 9407- | 4JB1 | M5X20 ( NHR 55 ) | ||
| 3 | I8-94257 505-0 | GASKET RR COMB LAMP | 1 | 9312- | 4BE1 | NKR 58, NKR 66 | ||
| 51 | I1-82194 030-0 | BULB LICENSE PLATE LAMP | 1 | 9312- | 4HF1 | NKR 66 | ||
| 28 | I8-94257 507-0 | GASKET TURN, LAMP | 1 | 9312- | 4HF1 | NKR 66 | ||
| 55 | I8-97068 819-0 | NUT LICENSE PLATE LAMP | 2 | 9312-9404 | 4JB1 | NHR 55 | ||
| 25 | I8-94257 518-A | HORN ASM BACK | 1 | 9811- | 4HF1-2 | NKR 66-2 | ||
| 58 | I7-41411 211-A | COVER LICENSE PLATE LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 37 | I8-97520 138-A | COVER RR COMB LAMP | 1 | 9312- | LH | 4HF1 | NKR 58, NKR 66 | |
| 49 | I7-41410 212-A | LAMP LICENSE PLATE | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 14 | I8-94178 624-A | LENS TAIL & STOP, RR COMB LAMP | 1 | 9312- | RH | 4HF1 | NKR 66 | |
| 22 | I8-94257 512-A | LENS BACKUP,RR COMB LAMP | 2 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-94178 623-A | LAMP ASM RR COMB | 1 | 9312- | 4HF1 | NKR 66, NKR 71 | ||
| 28 | I8-94257 507-0 | GASKET TURN, LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 1 | I6-94178 623-0 | LAMP ASM RR COMB | 1 | 9312- | 4HF1 | (IADG) NKR 66, NKR 71 | ||
| 1 | I6-94178 622-0 | LAMP ASM RR COMB | 1 | 9312-9809 | RH | 4JB1 | (IADG) NHR 55 | |
| 51 | I8-94126 494-0 | BULB LICENSE PLATE LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 55 | I8-97068 819-0 | NUT LICENSE PLATE LAMP | 2 | 9312-9404 | 4BE1 | NKR 58 | ||
| 38 | I8-94402 623-0 | BOLT LAMP, RR COMB | 6 | 9312- | 4BE1 | M6X20 ( NKR 58 ) | ||
| 26 | I0-71240 412-0 | SCREW BACK HORN | 2 | 9409- | 4JB1 | M4X12 ( NHR 55 ) | ||
| 15 | I0-71190 420-0 | SCREW RR COMB LAMP | 8 | 9312- | 4JB1 | M4X20 ( NHR 55 ) | ||
| 1 | I8-94178 623-A | LAMP ASM RR COMB | 1 | 9810- | 4JB1 | NHR 55 24 V | ||
| 1 | I6-94178 621-0 | LAMP ASM RR COMB | 1 | 9810- | 4JB1 | (IADG) NHR 55 24 V | ||
| 14 | I8-94178 624-A | LENS TAIL & STOP, RR COMB LAMP | 1 | 9312- | RH | 4JB1 | NHR 55 | |
| 13 | I8-94174 639-A | LENS TURN SIGNAL | 1 | 9312- | LH | 4BE1 | NKR 58 | |
| 59 | I9-93490 520-0 | SCREW TAP, LICENSE LAMP BODY | 1 | 9405- | 4JB1 | NHR 55 | ||
| 26 | I0-71240 410-0 | SCREW BACK HORN | 1 | 9312-9408 | 4JB1 | M4X10 ( NHR 55 ) | ||
| 13 | I8-94174 638-A | LENS TURN SIGNAL | 1 | 9312- | RH | 4JB1 | NHR 55 | |
| 54 | I8-94419 312-0 | SCREW LICENSE PLATE LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 14 | I8-94174 638-A | LENS TAIL & STOP, RR COMB LAMP | 1 | 9312- | RH | 4HF1 | NKR 66 | |
| 54 | I8-94419 312-0 | SCREW LICENSE PLATE LAMP | 1 | 9312- | 4HF1 | NKR 66 | ||
| 1 | I8-94178 622-2 | LAMP ASM RR COMB | 1 | 9810- | RH | 4JB1 | NHR 55 | |
| 1 | I8-94178 621-A | LAMP ASM RR COMB | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I6-94178 619-0 | LAMP ASM RR COMB | 1 | 9312-9809 | LH | 4JB1 | (IADG) NHR 55 | |
| 59 | I9-93490 520-0 | SCREW TAP, LICENSE LAMP BODY | 1 | 9405- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I6-94178 621-0 | LAMP ASM RR COMB | 1 | 9312- | 4BE1 | (IADG) NKR 58 | ||
| 58 | I7-41411 211-A | COVER LICENSE PLATE LAMP | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I6-94178 621-0 | LAMP ASM RR COMB | 1 | 9312- | 4HF1 | (IADG) NKR 66, NKR 66-2, NKR 71 | ||
| 1 | I6-94178 622-0 | LAMP ASM RR COMB | 1 | 9810- | RH | 4JB1 | (IADG) NHR 55 | |
| 49 | I7-41410 211-A | LAMP LICENSE PLATE | 1 | 9312- | 4JB1 | NHR 55 | ||
| 50 | I5-82125 004-1 | LENS LICENSE PLATE LAMP | 1 | 9312- | 4BE1 | NKR 58, NKR 66 | ||
| 5 | I1-82194 036-0 | BULB RR COMB LAMP | 4 | 9312- | 4BE1 | (A) NKR 58 | ||
| 37 | I8-97520 138-A | COVER RR COMB LAMP | 1 | 9312- | LH | 4JB1 | NHR 55 | |
| 1 | I8-94178 621-A | LAMP ASM RR COMB | 1 | 9810- | 4JB1 | NHR 55 24 V | ||
| 38 | I8-94402 623-0 | BOLT LAMP, RR COMB | 6 | 9312- | 4HF1 | M6X20 ( NKR 66, NKR 66-2, NKR 71 ) | ||
| 55 | I8-94153 039-0 | NUT LICENSE PLATE LAMP | 2 | 9405- | 4JB1 | M5 FLANGE ( NHR 55 ) | ||
| 55 | I8-97068 819-0 | NUT LICENSE PLATE LAMP | 2 | 9312-9404 | 4HF1 | NKR 66 | ||
| 24 | I8-94257 506-0 | GASKET BACK, LAMP | 1 | 9312- | 4JB1 | NHR 55 | ||
| 13 | I8-94174 639-A | LENS TURN SIGNAL | 1 | 9312- | LH | 4HF1 | NKR 66 | |
| 1 | I8-94178 623-A | LAMP ASM RR COMB | 1 | 9811- | 4HF1-2 | NKR 66-2 | ||
| 25 | I8-94257 518-A | HORN ASM BACK | 1 | 9312- | 4JB1 | NHR 55 | ||
| 1 | I8-94178 619-2 | LAMP ASM RR COMB | 1 | 9312-9809 | LH | 4JB1 | NHR 55 | |
| 1 | I6-94178 623-0 | LAMP ASM RR COMB | 1 | 9811- | 4HF1-2 | (IADG) NKR 66-2 | ||
| 26 | I9-07076 414-0 | SCREW BACK HORN | 2 | 9312-9408 | LH | 4BE1 | M4X14 ( NKR 58 ) | |
| 38 | I8-94402 623-0 | BOLT LAMP, RR COMB | 6 | 9312- | 4JB1 | M6X20 ( NHR 55 ) | ||
| 5 | I8-94125 959-0 | BULB RR COMB LAMP | 2 | 9312- | 4JB1 | (B) NHR 55 | ||
| 37 | I8-97520 137-A | COVER RR COMB LAMP | 1 | 9312- | RH | 4JB1 | NHR 55 | |
| 5 | I1-82194 038-0 | BULB RR COMB LAMP | 2 | 9312- | 4BE1 | (B) NKR 58, NKR 66 | ||
| 24 | I8-94257 506-0 | GASKET BACK, LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 28 | I8-94257 507-0 | GASKET TURN, LAMP | 1 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I8-94178 622-2 | LAMP ASM RR COMB | 1 | 9312-9809 | RH | 4JB1 | NHR 55 | |
| 15 | I0-71190 420-0 | SCREW RR COMB LAMP | 8 | 9312- | 4HF1 | M4X20 ( NKR 66 ) | ||
| 37 | I8-97520 138-A | COVER RR COMB LAMP | 1 | 9312- | LH | 4JB1 | NHR 55 | |
| 26 | I9-07076 414-0 | SCREW BACK HORN | 2 | 9312- | LH | 4JB1 | M4X14 ( NHR 55 ) |
