8-25 | SWITCH AND RELAY INSTRUMENT PANEL
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 307 | I8-97116 331-0 | BULB ASM SW | 1 | 9811- | 4HF1 | NKR 66 | ||

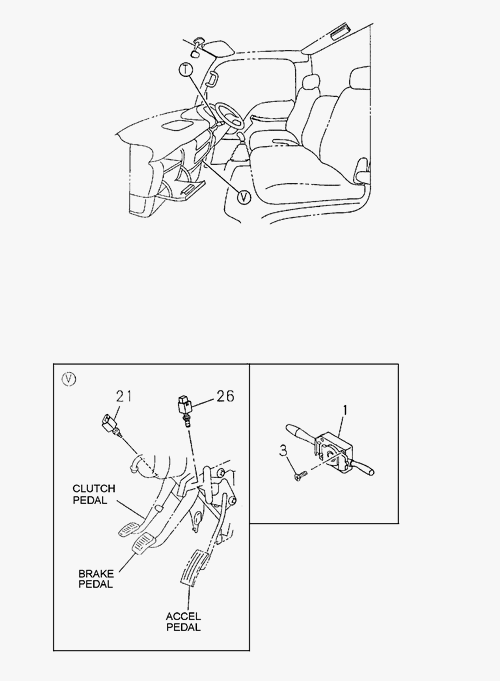

| 21 | I8-97358 248-0 | SWITCH CLU | 1 | 0302- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 186 | I8-97088 652-1 | BRACKET RELAY BOX | 1 | 9312-9510 | 4HF1 | NKR 66 | ||

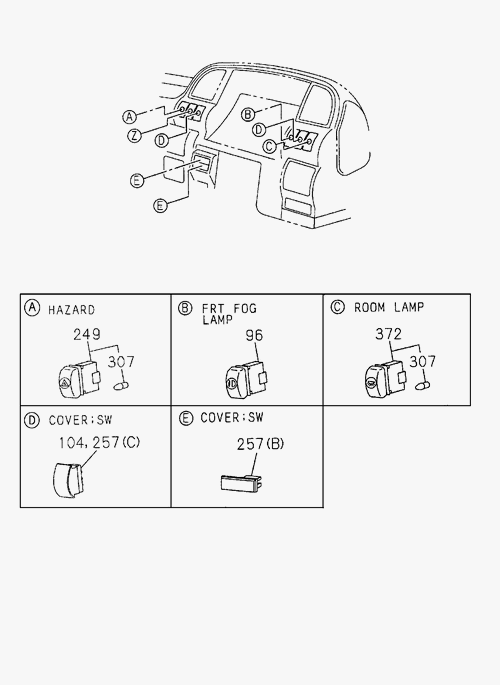

| 249 | I8-97202 478-0 | SWITCH HAZARD | 1 | 9312- | 4HF1 | NKR 66 | ||
| 257 | I8-94310 890-0 | COVER HOLE, SW | 1 | 9312- | 4JB1 | (B) NHR 55 | ||

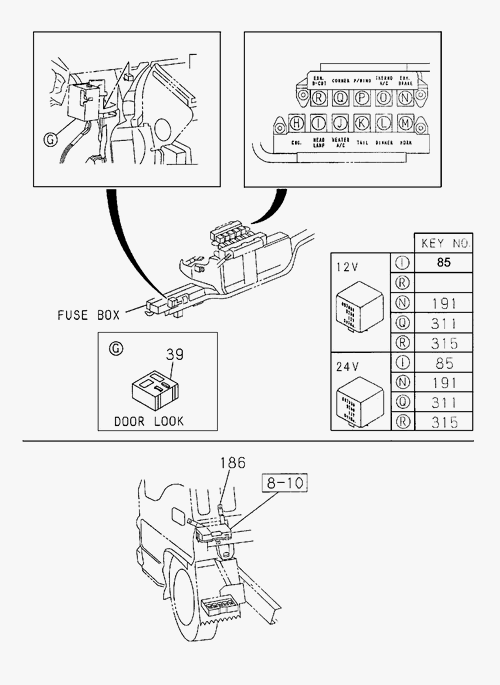

| 315 | I8-97262 933-0 | RELAY EXH BRAKE CONT | 1 | 9312-0104 | 4BE1 | 24V - 12.5V ( NKR 58 ) | ||
| 96 | I8-97076 351-3 | SWITCH FOG LAMP | 1 | 9312-9711 | 4HF1 | NKR 66 | ||

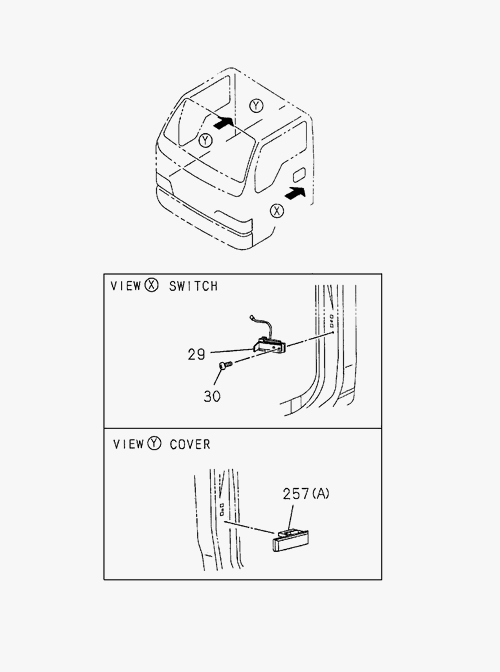

| 29 | I8-94272 915-0 | SWITCH DOOR | 2 | 9312-9404 | 4HF1 | NKR 66 | ||
| 26 | I8-97358 315-0 | SWITCH ACCEL | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 85 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4BE1 | 24V - 12.5V ( NKR 58 ) | ||
| 29 | I8-94272 915-0 | SWITCH DOOR | 2 | 9312-9404 | 4JB1 | NHR 55 | ||
| 191 | I8-97262 933-0 | RELAY EXH BRK CUT | 1 | 9312-0104 | 4BE1 | 24V - 12.5V ( NKR 58 ) | ||
| 372 | I8-97122 193-0 | SWITCH ROOM LAMP | 1 | 9312-9703 | 4HF1 | NKR 66 | ||
| 3 | I9-03910 520-0 | SCREW COMB SW | 4 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 26 | I8-94368 343-0 | SWITCH ACCEL | 1 | 9312- | 4BE1 | NKR 58, NKR 66 | ||
| 372 | I8-97122 193-0 | SWITCH ROOM LAMP | 1 | 9704-9711 | 4HF1 | NKR 66, NKR 66-2 | ||
| 257 | I8-97047 694-1 | COVER HOLE, SW | 1 | 9312-9711 | 4JB1 | (C) NHR 55 | ||
| 372 | I8-97117 660-0 | SWITCH ROOM LAMP | 1 | 9704-9711 | 4JB1 | NHR 55 | ||
| 30 | I8-94279 341-0 | SCREW DOOR SW | 2 | 9312- | 4HF1 | M5X16 ( NKR 66, NKR 66-2 ) | ||
| 315 | I8-97262 933-0 | RELAY EXH BRAKE CONT | 1 | 0105- | 4HF1 | 24V ( NKR 66, NKR 66-2 ) | ||
| 1 | I8-97287 886-0 | SWITCH COMB | 1 | 9312-0101 | 4HF1 | NKR 66 | ||
| 186 | I8-97135 422-1 | BRACKET RELAY BOX | 1 | 9511- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 315 | I8-97060 926-1 | RELAY EXH BRAKE CONT | 1 | 9312- | 4JB1 | 12V 20A ( NHR 55 ) | ||
| 104 | I8-97047 694-1 | COVER SW HOLE, FOG LAMP | 1 | 9312-9711 | 4HF1 | NKR 66 | ||
| 257 | I8-94310 890-0 | COVER HOLE, SW | 1 | 9312- | 4HF1 | (B) NKR 66 | ||
| 191 | I8-97262 933-0 | RELAY EXH BRK CUT | 1 | 9312-0104 | 4HF1 | 24V - 12.5V ( NKR 66 ) | ||
| 26 | I8-97358 315-0 | SWITCH ACCEL | 1 | 0302- | 4HF1 | NKR 66, NKR 66-2 | ||
| 372 | I8-97136 693-0 | SWITCH ROOM LAMP | 1 | 9712- | 4HF1 | NKR 66, NKR 66-2 | ||
| 1 | I8-97287 886-0 | SWITCH COMB | 1 | 0102- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 96 | I8-97076 350-4 | SWITCH FOG LAMP | 1 | 9312-9711 | 4JB1 | NHR 55 | ||
| 1 | I7-43101 212-A | SWITCH COMB | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 311 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 0105- | 4HF1 | 24V ( NKR 66, NKR 66-2 ) | ||
| 307 | I8-97116 331-0 | BULB ASM SW | 1 | 9811- | 4HF1-2 | NKR 66-2 | ||
| 26 | I8-94368 343-0 | SWITCH ACCEL | 1 | 9312- | 4JB1 | NHR 55 | ||
| 249 | I8-97202 475-0 | SWITCH HAZARD | 1 | 9808- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 29 | I8-97855 032-3 | SWITCH DOOR | 1 | 9405- | 4HF1 | NKR 66, NKR 66-2 | ||
| 26 | I8-97358 315-0 | SWITCH ACCEL | 1 | 0702- | 4JB1-TC | NKR55,NKR55 EURO 2 | ||
| 104 | I8-97047 694-1 | COVER SW HOLE, FOG LAMP | 1 | 9312-9711 | 4BE1 | NKR 58 | ||
| 249 | I8-97202 476-0 | SWITCH HAZARD | 1 | 0203- | 4JB1 | NHR 55 | ||
| 30 | I8-94279 341-0 | SCREW DOOR SW | 2 | 9312- | 4JB1 | M5X16 ( NHR 55 ) | ||
| 257 | I8-97047 694-1 | COVER HOLE, SW | 1 | 9312-9711 | 4HF1 | (C) NKR 66 | ||
| 85 | I8-97060 926-1 | RELAY HEADLAMP | 1 | 9312- | 4JB1 | 12V 20A ( NHR 55 ) | ||
| 96 | I8-97140 964-0 | SWITCH FOG LAMP | 1 | 9712- | 4JB1 | NHR 55 | ||
| 257 | I8-94229 914-1 | COVER HOLE, SW | 1 | 9405- | 4HF1 | (A) NKR 66, NKR 66-2 | ||
| 311 | I8-97060 926-1 | RELAY HEADLAMP | 1 | 9312- | 4JB1 | 12V 20A ( NHR 55 ) | ||
| 104 | I8-97136 694-0 | COVER SW HOLE, FOG LAMP | 1 | 9712- | 4JB1 | NHR 55 | ||
| 21 | I8-94331 723-1 | SWITCH CLU | 1 | 9312- | 4JB1 | NHR 55 | ||
| 29 | I8-94272 915-0 | SWITCH DOOR | 2 | 9312-9404 | 4BE1 | NKR 58 | ||
| 315 | I8-97262 933-0 | RELAY EXH BRAKE CONT | 1 | 9312-0104 | 4HF1 | 24V - 12.5V ( NKR 66 ) | ||
| 257 | I8-94310 890-0 | COVER HOLE, SW | 1 | 9312- | 4BE1 | (B) NKR 58 | ||
| 21 | I8-97358 248-0 | SWITCH CLU | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 1 | I7-43101 213-A | SWITCH COMB | 1 | 0702-1012 | 4JB1-TC | NHR55 EURO 2 | ||
| 257 | I8-97047 694-1 | COVER HOLE, SW | 1 | 9312-9711 | 4BE1 | (C) NKR 58 | ||
| 1 | I8-97364 073-0 | SWITCH COMB | 1 | 0102- | 4JB1 | NHR 55 | ||
| 257 | I8-97136 694-0 | COVER HOLE, SW | 1 | 9712- | 4HF1-2 | (C) NKR 66-2 | ||
| 104 | I8-97136 694-0 | COVER SW HOLE, FOG LAMP | 1 | 9712- | 4BE1 | NKR 58 | ||
| 249 | I8-97202 479-0 | SWITCH HAZARD | 1 | 9312- | 4JB1 | NHR 55 | ||
| 29 | I8-97855 032-3 | SWITCH DOOR | 1 | 9405- | 4JB1 | NHR 55 | ||
| 1 | I8-97364 073-0 | SWITCH COMB | 1 | 9312-0101 | 4JB1 | NHR 55 | ||
| 191 | I8-97262 933-0 | RELAY EXH BRK CUT | 1 | 0105- | 4HF1 | 24V ( NKR 66, NKR 66-2 ) | ||
| 21 | I8-97358 248-0 | SWITCH CLU | 1 | 0702- | 4JB1-TC | NKR55,NKR55 EURO 2 | ||
| 104 | I8-97047 694-1 | COVER SW HOLE, FOG LAMP | 1 | 9312-9711 | 4JB1 | NHR 55 | ||
| 249 | I8-97202 476-0 | SWITCH HAZARD | 1 | 0702- | 4JB1-TC | NKR55,NKR55 EURO 2 | ||
| 96 | I7-43101 211-A | SWITCH FOG LAMP | 1 | 1011- | 4HG1-T | NKR71-T, NKR71-THD E2 GOLD | ||
| 307 | I8-97116 329-0 | BULB ASM SW | 1 | 9811- | 4JB1 | NHR 55 | ||
| 307 | I8-97116 331-0 | BULB ASM SW | 1 | 9811- | 4BE1 | NKR 58 | ||
| 257 | I8-94229 914-1 | COVER HOLE, SW | 1 | 9405- | 4JB1 | (A) NHR 55 | ||
| 372 | I8-97117 660-0 | SWITCH ROOM LAMP | 1 | 9312-9703 | 4JB1 | NHR 55 | ||
| 104 | I8-97136 694-0 | COVER SW HOLE, FOG LAMP | 1 | 9712- | 4HF1 | NKR 66, NKR 66-2 | ||
| 257 | I8-97136 694-0 | COVER HOLE, SW | 1 | 9712- | 4HF1 | (C) NKR 66, NKR 71 | ||
| 249 | I8-97202 475-0 | SWITCH HAZARD | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 3 | I9-03910 520-0 | SCREW COMB SW | 4 | 9312- | 4JB1 | NHR 55 | ||
| 85 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4HF1 | 24V - 12.5V ( NKR 66 ) | ||
| 191 | I8-97060 926-1 | RELAY EXH BRK CUT | 1 | 9312- | 4JB1 | 12V 20A ( NHR 55 ) | ||
| 1 | I8-97287 886-0 | SWITCH COMB | 1 | 9312-0101 | 4BE1 | NKR 58 | ||
| 249 | I8-97202 478-0 | SWITCH HAZARD | 1 | 9312- | 4BE1 | NKR 58 | ||
| 311 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4BE1 | 24V - 12.5V ( NKR 58 ) | ||
| 21 | I8-94331 723-1 | SWITCH CLU | 1 | 9312- | 4BE1 | NKR 58, NKR 66 | ||
| 96 | I8-97076 351-3 | SWITCH FOG LAMP | 1 | 9312-9711 | 4BE1 | NKR 58 | ||
| 1 | I6-97364 073-A | SWITCH COMB | 1 | 9312-0101 | 4JB1 | (IADG) NHR 55 | ||
| 96 | I7-43101 210-A | SWITCH FOG LAMP | 1 | 1011- | 4JB1-TC | NHR55-T/B, NKR55-T, E2 GOLD | ||
| 311 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4HF1 | 24V - 12.5V ( NKR 66 ) | ||
| 30 | I8-94279 341-0 | SCREW DOOR SW | 2 | 9312- | 4BE1 | M5X16 ( NKR 58 ) | ||
| 85 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 0105- | 4HF1 | 24V ( NKR 66, NKR 66-2 ) | ||
| 1 | I7-43101 212-A | SWITCH COMB | 1 | 0702- | 4JB1-TC | NKR55 EURO 2 | ||
| 372 | I8-97136 692-0 | SWITCH ROOM LAMP | 1 | 9712- | 4JB1 | NHR 55 | ||
| 3 | I9-03910 520-0 | SCREW COMB SW | 4 | 9312- | 4BE1 | NKR 58 | ||
| 372 | I8-97122 193-0 | SWITCH ROOM LAMP | 1 | 9312-9703 | 4BE1 | NKR 58 | ||
| 1 | I7-43101 213-A | SWITCH COMB | 1 | 1101- | 4JB1-TC | NHR55 EURO 2 | ||
| 257 | I8-97136 694-0 | COVER HOLE, SW | 1 | 9712- | 4JB1 | (C) NHR 55 | ||
| 1 | I6-97364 073-A | SWITCH COMB | 1 | 0102- | 4JB1 | (IADG) NHR 55 | ||
| 96 | I8-97170 441-0 | SWITCH FOG LAMP | 1 | 9712- | 4HF1 | NKR 66, NKR 66-2 |
