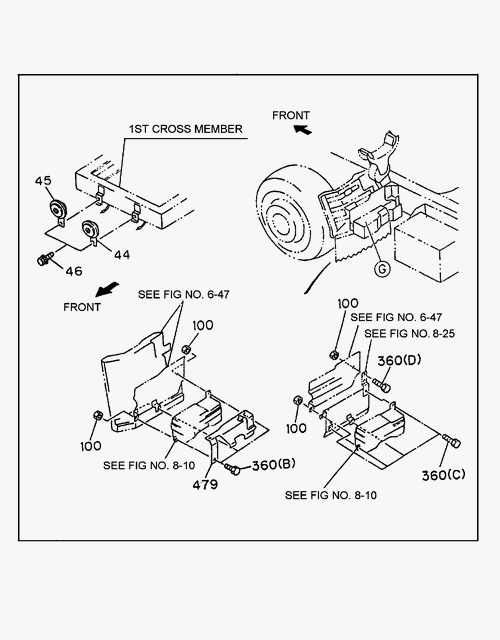

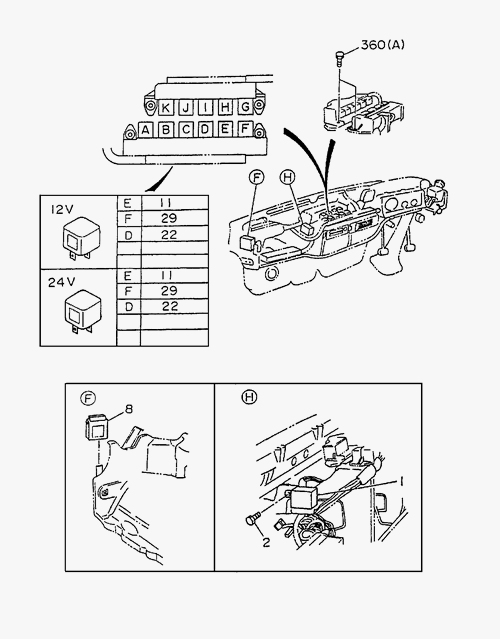

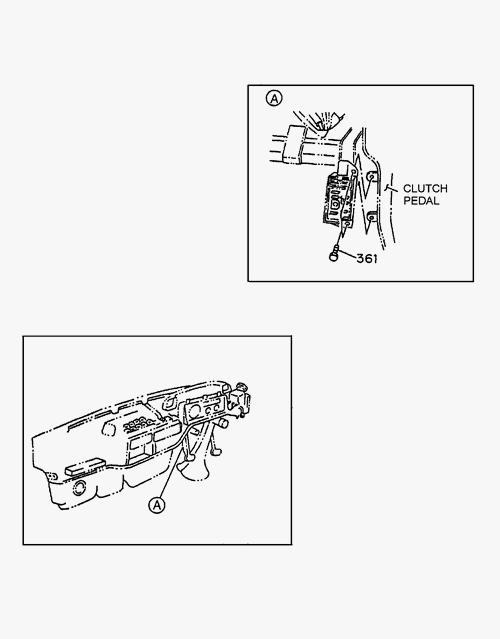

8-28 | CHASSIS ELECTRICAL
ELF
NHR NKR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97358 840-1 | UNIT FLASHER | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2 | ||
| 479 | I7-43140 240-A | PROTECTOR RELAY BOX | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 11 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4BE1 | NKR 58 | ||
| 46 | I8-97086 825-0 | BOLT CAB EARTH | 2 | 9312- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 44 | I8-97109 361-0 | HORN HIGH NOTE | 1 | 9405- | 4JB1 | NHR 55 | ||
| 361 | I8-94279 201-0 | BOLT BRACKET | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2 | ||
| 11 | I8-97060 926-1 | RELAY HEADLAMP | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 8 | I8-97363 984-0 | RELAY WIPER | 1 | 9312- | 4JB1 | NHR 55 | ||
| 360 | I0-28050 825-0 | BOLT RELAY BOX | 4 | 9312- | 4HF1 | (B) (C) NKR 66, NKR 66-2 | ||
| 45 | I7-43600 200-A | HORN LOW NOTE | 1 | 9312- | 4HF1 | NKR 66, NKR 66-2 | ||
| 22 | I8-97060 926-1 | RELAY STOP LAMP | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 2 | I8-94139 963-0 | BOLT FLASHER UNIT | 1 | 9604- | 4JB1 | NHR 55 | ||
| 29 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 0105-0701 | 4HF1 | NKR 66, NKR 66-2 | ||
| 29 | I8-97173 037-1 | RELAY DIMMER | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 2 | I8-94279 201-0 | BOLT FLASHER UNIT | 1 | 9312-9603 | 4JB1 | NHR 55 | ||
| 1 | I8-97358 840-1 | UNIT FLASHER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 22 | I8-97262 933-0 | RELAY STOP LAMP | 1 | 9312-0104 | 4BE1 | NKR 58 | ||
| 1 | I7-43700 235-A | UNIT FLASHER | 1 | 9312- | 4JB1 | NHR55 ( EXC. 24 V ) | ||
| 29 | I8-97173 035-1 | RELAY CHARGE WARNING | 1 | 0702- | 4HF1 | NKR 66, NKR 66-2 | ||
| 479 | I7-11117 164-A | PROTECTOR RELAY BOX | 1 | 0404- | 4JB1 | NHR 55 | ||
| 45 | I7-43600 200-A | HORN LOW NOTE | 1 | 9312-9404 | 4BE1 | VOLTAGE 24V, NKR 58 | ||
| 45 | I8-97109 362-1 | HORN LOW NOTE | 1 | 9405- | 4JB1 | EXC. VOLTAGE24 V, NHR 55 | ||
| 360 | I0-28050 825-0 | BOLT RELAY BOX | 3 | 9312- | 4BE1 | (B) (C) NKR 58, NKR 66-2 | ||
| 45 | I7-43600 201-A | HORN LOW NOTE | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 11 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4HF1 | NKR 66, NKR66-2 | ||
| 479 | I7-43140 240-A | PROTECTOR RELAY BOX | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 360 | I8-94279 201-0 | BOLT RELAY BOX | 4 | 9312- | 4BE1 | (A) NKR 58, NKR 66-2 | ||
| 22 | I8-97262 933-0 | RELAY STOP LAMP | 1 | 0105-0701 | 4HF1 | NKR 66, NKR 66-2 | ||
| 22 | I6-97173 035-0 | RELAY STOP LAMP | 1 | 0702- | 4HF1 | (IADG) NKR 66, NKR 66-2 | ||
| 1 | I8-97360 084-1 | UNIT FLASHER | 1 | 0702- | 4HG1-T | NKR71 EURO 2 | ||
| 44 | I8-97109 363-0 | HORN HIGH NOTE | 1 | 9312-9404 | 4BE1 | NKR 58, NKR 66 | ||
| 45 | I7-11127 002-A | HORN LOW NOTE | 1 | 0209- | 4JB1 | NHR 5524 V, (NPN-CHS-7002) | ||
| 46 | I8-97086 825-0 | BOLT CAB EARTH | 2 | 9312- | 4JB1 | NHR 55 | ||
| 45 | I7-43600 200-A | HORN LOW NOTE | 1 | 9312-9404 | 4JB1 | EXC. VOLTAGE24 V, NHR 55 | ||
| 29 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4BE1 | NKR 58 | ||
| 22 | I8-97173 037-1 | RELAY STOP LAMP | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 11 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 0105-0701 | 4HF1 | NKR 66, NKR 66-2 | ||
| 2 | I8-94279 201-0 | BOLT FLASHER UNIT | 1 | 9312-9603 | 4BE1 | NKR 58 | ||
| 100 | I0-91180 208-0 | NUT RELAY BOX COVER | 3 | 9312- | 4BE1 | NKR 58, NKR 66 | ||
| 22 | I6-97173 037-0 | RELAY STOP LAMP | 1 | 0702- | 4JB1-TC | (IADG) NHR55, NKR55 EURO 2 | ||
| 29 | I8-97060 926-1 | RELAY HEADLAMP | 1 | 9312-0701 | 4JB1 | NHR 55 | ||
| 360 | I0-28050 825-0 | BOLT RELAY BOX | 3 | 9312- | 4JB1 | (B) (C) NHR 55 | ||
| 360 | I0-28050 816-0 | BOLT RELAY BOX | 1 | 9312- | 4HF1 | (D) NKR 66 | ||
| 2 | I8-94279 201-0 | BOLT FLASHER UNIT | 1 | 9312-9603 | 4HF1 | NKR 66, NKR 66-2 | ||
| 479 | I8-97072 505-2 | PROTECTOR RELAY BOX | 1 | 9312- | 4HF1 | NKR 66 | ||
| 44 | I8-97109 361-0 | HORN HIGH NOTE | 1 | 9312-9404 | 4JB1 | NHR 55 | ||
| 8 | I8-97363 983-0 | RELAY WIPER | 1 | 9312- | 4HF1 | NKR 66, NKR66-2 | ||
| 361 | I8-94279 201-0 | BOLT BRACKET | 1 | 9312- | 4BE1 | NKR 58 | ||
| 11 | I8-97173 035-1 | RELAY CHARGE WARNING | 1 | 0702- | 4HF1 | NKR 66, NKR 66-2 | ||
| 479 | I7-43140 240-A | PROTECTOR RELAY BOX | 1 | 0403- | 4HF1 | NKR 66, NKR 66-2, NKR 71 | ||
| 45 | I7-43600 201-A | HORN LOW NOTE | 1 | 0209- | 4JB1 | EXC. VOLTAGE24 V, NHR 55 | ||
| 2 | I8-94139 963-0 | BOLT FLASHER UNIT | 1 | 9604- | 4HF1 | NKR 66, NKR 66-2 | ||
| 44 | I8-97109 363-0 | HORN HIGH NOTE | 1 | 9405- | 4HF1 | NKR 66, NKR 66-2 | ||
| 29 | I8-97262 933-0 | RELAY COLD START DEVICE | 1 | 9312-0104 | 4HF1 | NKR 66, NKR66-2 | ||
| 46 | I8-97086 825-0 | BOLT CAB EARTH | 2 | 9312- | 4BE1 | NKR 58 | ||
| 1 | I7-43700 235-A | UNIT FLASHER | 1 | 0702- | 4JB1-TC | NHR55,NKR55 EURO 2 | ||
| 11 | I6-97173 037-0 | RELAY DIMMER | 1 | 0702- | 4JB1-TC | (IADG) NHR55, NKR55 EURO 2 | ||
| 29 | I6-97173 035-0 | RELAY CHARGE WARNING | 1 | 0702- | 4HF1 | (IADG) NKR 66, NKR 66-2 | ||
| 360 | I8-94279 201-0 | BOLT RELAY BOX | 4 | 9312- | 4JB1 | (A) NHR 55 | ||
| 8 | I8-97363 983-0 | RELAY WIPER | 1 | 9312- | 4BE1 | NKR 58 | ||
| 100 | I0-91180 208-0 | NUT RELAY BOX COVER | 3 | 9312- | 4JB1 | NHR 55 | ||
| 44 | I7-11117 029-A | HORN HIGH NOTE | 1 | 0209- | 4JB1 | NHR 55 (NPN-CHS-7029) | ||
| 22 | I8-97173 035-1 | RELAY STOP LAMP | 1 | 0702- | 4HF1 | NKR 66, NKR 66-2 | ||
| 1 | I8-97360 084-1 | UNIT FLASHER | 1 | 0301- | 4HF1 | NKR66,66-2,71 ( 24 V ) | ||
| 45 | I7-43600 200-A | HORN LOW NOTE | 1 | 0209- | 4JB1 | NHR 5524V, (P436002000) | ||
| 44 | I7-11117 001-A | HORN HIGH NOTE | 1 | 0209- | 4JB1 | NHR 55 24 V (NPN-CHS-7001) | ||
| 11 | I8-97173 037-1 | RELAY DIMMER | 1 | 0702- | 4JB1-TC | NHR55, NKR55 EURO 2 | ||
| 22 | I8-97262 933-0 | RELAY STOP LAMP | 1 | 9312-0104 | 4HF1 | NKR 66, NKR66-2 | ||
| 11 | I6-97173 035-0 | RELAY CHARGE WARNING | 1 | 0702- | 4HF1 | (IADG) NKR 66, NKR 66-2 | ||
| 29 | I6-97173 037-0 | RELAY DIMMER | 1 | 0702- | 4JB1-TC | (IADG) NHR55, NKR55 EURO 2 | ||
| 361 | I8-94279 201-0 | BOLT BRACKET | 1 | 9312- | 4JB1 | NHR 55 |
