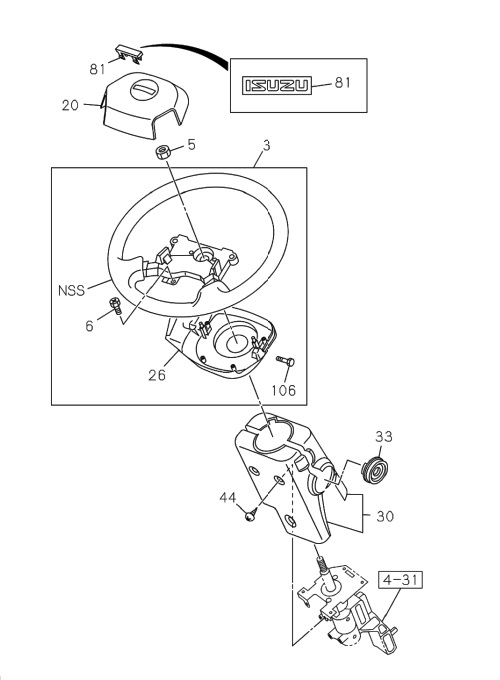

4-30 | STEERING WHEEL AND COWL
ELF
NLR55 NMR71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 81 | I8-97405 986-0 | EMBLEM, STRG WHEEL | 1 | 1512- | ALL | |||
| 30 | I8-97418 761-1 | COWL, STEERING | 1 | 1512- | ALL | |||
| 33 | I8-97409 495-0 | COVER, STRG COWL | 1 | 1512- | ALL | |||
| 106 | I8-98231 397-0 | BOLT, TORX | 2 | 1512- | ALL | |||
| 5 | I0-91111 514-0 | NUT, STRG WHEEL TO SHAFT | 1 | 1512- | ALL | M14 | ||
| 20 | I8-97405 985-1 | SHROUD, PAD, STRG WHEEL | 1 | 1512- | ALL | |||
| 6 | I8-97167 588-0 | SCREW, HORN SPR CONTACT | 4 | 1512- | ALL | M4X12 | ||
| 26 | I8-97409 275-2 | COVER, STRG WHEEL, LWR | 1 | 1512- | ALL | |||
| 3 | I8-97412 556-1 | WHEEL, STRG | 1 | 1512- | ALL | |||
| 44 | I0-38050 512-0 | SCREW, STRG COW | 3 | 1512- | ALL | M5X12 |
