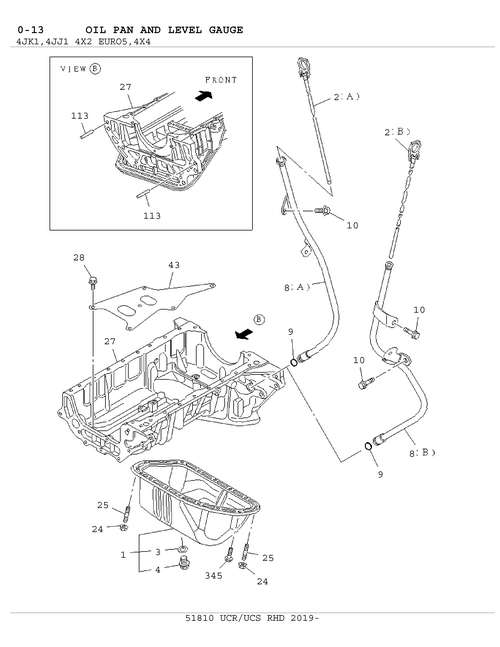

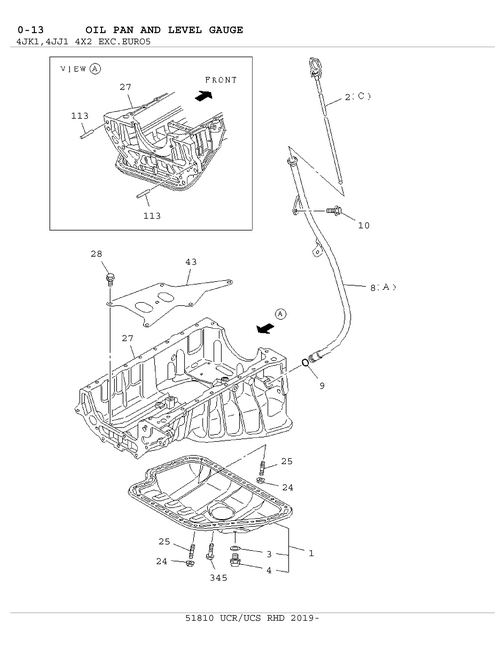

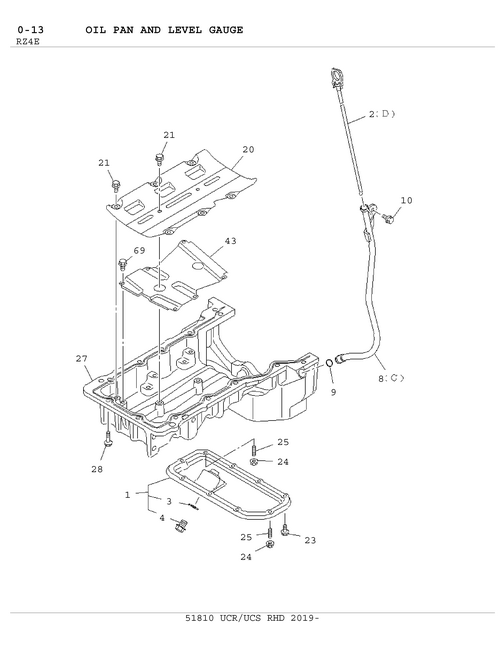

0-13 | OIL PAN AND LEVEL GAUGE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I0-28050 612-0 | BOLT; OIL PAN | 7 | 1812- | A | 03.162 M6X12 FLANGE | ||
| 28 | I0-28050 816-0 | BOLT; CRANKCASE TO C/BL | 6 | 1812- | BC | 02 .343 M8X16 FLANGE | ||
| 27 | I8-98225 709-3 | CRANKCASE | 1 | 1812- | C | 4X2(UCB***) EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI | ||
| 113 | I9-08161 032-0 | PIN; STRAIGHT | 2 | 1812- | C | 08.939 OD=10 L=3 2 | ||
| 8 | I8-98228 277-2 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1812- | C | EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI (A) | ||
| 24 | I0-91180 106-0 | NUT; OIL PAN | 2 | 1812- | A | 01.062 M6 FLANGE | ||
| 1 | I8-98156 371-0 | PAN ASM; OIL | 1 | 1812- | B | 4X2 (UCB***) | ||
| 1 | I8-98156 371-0 | PAN ASM; OIL | 1 | 1812- | C | 4X2(UCB***) EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI | ||
| 9 | I8-98034 629-0 | GASKET; GUIDE TUBE,OIL LEVEL GAU | 1 | 1812- | BC | ID=11 OD=15.8 ALSO INCLUDED IN GASKET SET | ||
| 113 | I9-08161 032-0 | PIN; STRAIGHT | 2 | 1812- | B | A/T 5 SPEED-AISIN(MA1) 08.939 OD=10 L=3 2 | ||
| 25 | I0-41010 616-0 | STUD; OIL PAN | 2 | 1812- | A | 00.206 M6X16 L=25 | ||
| 1 | I8-98132 001-2 | PAN ASM; OIL | 1 | 1812- | C | 4X2(UCB***) EURO5 SPECIFICATION(NT5) | ||
| 27 | I8-98225 709-3 | CRANKCASE | 1 | 1812- | B | 4X2 (UCB***) | ||
| 28 | I0-28050 825-0 | BOLT; CRANKCASE TO C/BL | 12 | 1812- | A | 03 .275 M8X2 5 FLANGE | ||
| 8 | I8-98228 277-2 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1812- | B | (A) | ||
| 25 | I0-41010 816-0 | STUD; OIL PAN | 2 | 1812- | BC | M8X16 L=2 8 | ||
| 345 | I0-28050 812-A | BOLT; SENSOR,OIL LEVEL | 14 | 1812- | BC | 4X4(UCS***) 02 .343 M8X12 FLANGE | ||
| 2 | I8-98228 327-2 | GAUGE; OIL LEVEL | 1 | 1812- | B | 4X2 (UCB***) (C) | ||
| 27 | I8-98225 708-2 | CRANKCASE | 1 | 1812- | B | M/T MUA 5 SPEED 5H(MWQ) | ||
| 21 | I0-28050 612-0 | BOLT; BAFFLE PLATE,CRANKCASE | 8 | 1812- | A | 03.162 M6X12 FLANGE | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1812- | BC | ID=14.2 OD=24 ALSO INCLUDED IN GASKET SET | ||
| 2 | I8-98228 328-2 | GAUGE; OIL LEVEL | 1 | 1812- | B | 4X4(UCS***) (A) | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 2 | 1812- | C | EURO5 SPECIFICATION(NT5) 02 .343 M8X16 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 1812- | C | EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI 02 .343 M8X16 FLANGE | ||
| 345 | I0-28050 812-A | BOLT; SENSOR,OIL LEVEL | 21 | 1812- | B | 4X2(UCB***) 02 .343 M8X12 FLANGE | ||
| 24 | I0-91180 208-0 | NUT; OIL PAN | 2 | 1812- | BC | 01.540 M8 FLANGE | ||
| 2 | I8-98228 328-2 | GAUGE; OIL LEVEL | 1 | 1812- | C | 4X4(UCS***) EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI (A) | ||
| 1 | I8-98132 001-2 | PAN ASM; OIL | 1 | 1812- | BC | 4X4 (UCS** *) | ||
| 10 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 1812- | AB | 02 .343 M8X16 FLANGE | ||
| 2 | I8-98228 327-2 | GAUGE; OIL LEVEL | 1 | 1812- | C | 4X2(UCB***) EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI (C) | ||
| 345 | I0-28050 812-A | BOLT; SENSOR,OIL LEVEL | 14 | 1812- | C | 4X2(UCB***) EURO5 SPECIFICATION(NT5) 02 .343 M8X12 FLANGE | ||
| 345 | I0-28050 812-A | BOLT; SENSOR,OIL LEVEL | 21 | 1812- | C | 4X2(UCB***) EMISSION SYSTEM R15-04(K75 ICATION(NT2),EURO4 SPECIFI 02.343 M8X12 FLANGE | ||
| 4 | I8-97329 621-0 | PLUG; DRAIN,OIL | 1 | 1812- | ABC | M14X14 |
