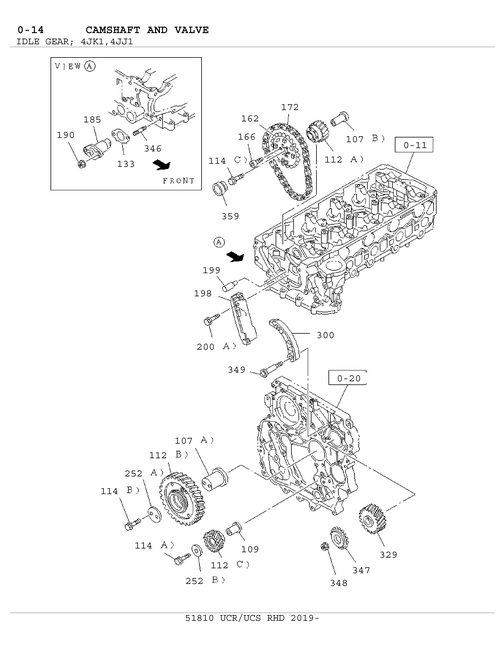

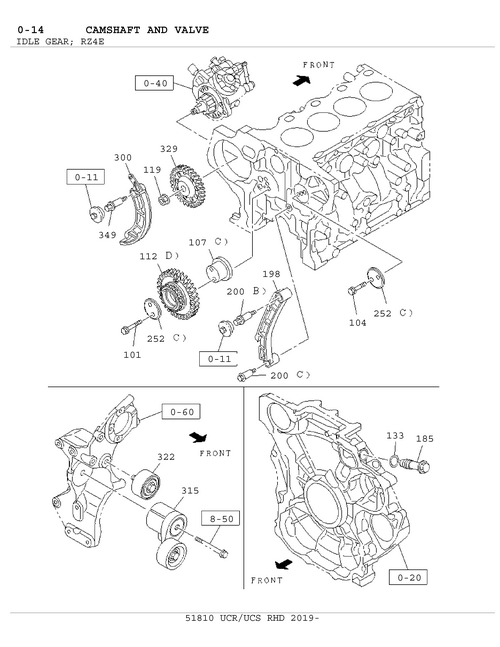

0-14 | CAMSHAFT AND VALVE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | I8-97312 336-0 | GASKET; CHAIN TENSIONER | 1 | 1812- | BC | ALSO INCLUDED IN GASKET SET (EN | ||
| 252 | I8-97312 323-1 | FLANGE; IDLE SHAFT | 1 | 1812- | BC | (B) | ||
| 226 | I8-98204 889-0 | SPRING; CMPR,ROCKER ARM | 8 | 1812- | BC | |||
| 114 | I8-98176 233-0 | BOLT; IDLE GEAR | 1 | 1812- | BC | 05 . 506 (C) M12X75 FLANGE | ||
| 114 | I0-28061 060-0 | BOLT; IDLE GEAR | 2 | 1812- | BC | (B) M10X60 FLANGE | ||
| 349 | I8-97312 328-0 | PIVOT; CHAIN LEVER | 1 | 1812- | BC | |||
| 166 | I0-58330 616-0 | BOLT; SPROCKET TO LAYSHAFT | 6 | 1812- | BC | M6X16 HEX SOCKET | ||
| 114 | I0-28161 260-0 | BOLT; IDLE GEAR | 1 | 1812- | BC | (A) M12X6 0 FLANGE | ||
| 362 | I8-98233 620-0 | PLATE | 6 | 1812- | BC | |||
| 359 | I8-97947 983-0 | SLEEVE; GEAR | 1 | 1812- | BC | |||
| 112 | I8-98231 907-0 | GEAR; IDLE | 1 | 1812- | BC | (A) Z=35 | ||
| 172 | I8-98119 279-1 | CHAIN; TIMING,CM/SHF | 1 | 1812- | BC | |||
| 190 | I0-91180 206-0 | NUT; CHAIN TENSIONER | 2 | 1812- | BC | 01.540 M6 FLANGE | ||
| 198 | I8-98173 188-0 | GUIDE; TIMING CHAIN | 1 | 1812- | BC | |||
| 346 | I0-41010 618-0 | STUD; CHAIN | 2 | 1812- | BC | 01.062 M6X18 L=2 7 | ||
| 300 | I8-98119 278-1 | LEVER; TENSION,TIMING CHAIN | 1 | 1812- | BC | |||
| 329 | I8-97312 298-3 | GEAR; INJ PUMP | 1 | 1812- | BC | Z=44 | ||
| 347 | I8-98246 954-0 | SPROCKET; I/PUMP | 1 | 1812- | BC | |||
| 348 | I8-97312 423-2 | NUT; SPROCKET | 1 | 1812- | BC | M14 FLANGE | ||
| 107 | I8-97312 315-2 | SHAFT; IDLE GEAR | 1 | 1812- | BC | (A) | ||
| 200 | I1-09070 120-1 | BOLT; CHAIN GUIDE,LWR | 2 | 1812- | BC | 01.064 (A) M8X2 0 FLANGE | ||
| 185 | I8-98258 885-0 | TENSIONER; CHAIN | 1 | 1812- | BC | |||
| 162 | I8-98193 179-0 | SPROCKET; IDLE | 1 | 1812- | BC | |||
| 252 | I8-97312 316-1 | FLANGE; IDLE SHAFT | 1 | 1812- | BC | (A) | ||
| 104 | I0-28151 020-0 | BOLT; SHAFT IDLE | 2 | 1812- | A | 03 .417 M10X20 FLANGE | ||
| 199 | I8-97356 061-1 | JET; OIL,TIMING CHAIN | 1 | 1812- | BC | |||
| 112 | I8-98021 052-1 | GEAR; IDLE | 1 | 1812- | BC | (C) Z=34 | ||
| 107 | I8-98245 905-0 | SHAFT; IDLE GEAR | 1 | 1812- | BC | (B) | ||
| 109 | I8-97312 319-1 | SHAFT; IDLE GEAR | 1 | 1812- | BC | |||
| 112 | I8-98233 470-1 | GEAR; IDLE | 1 | 1812- | BC | (B) Z=80 |
