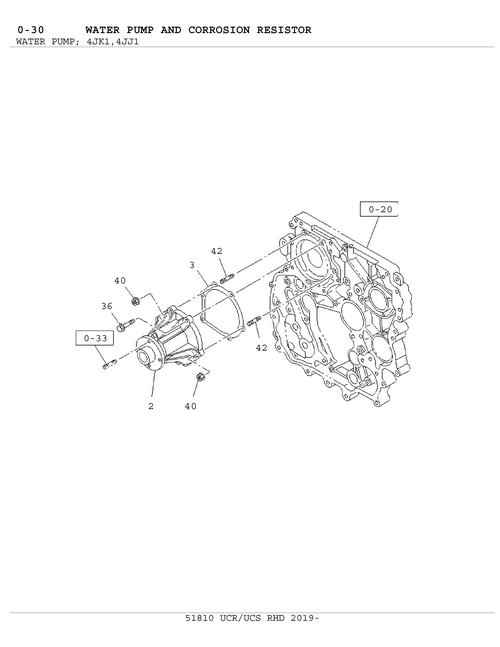

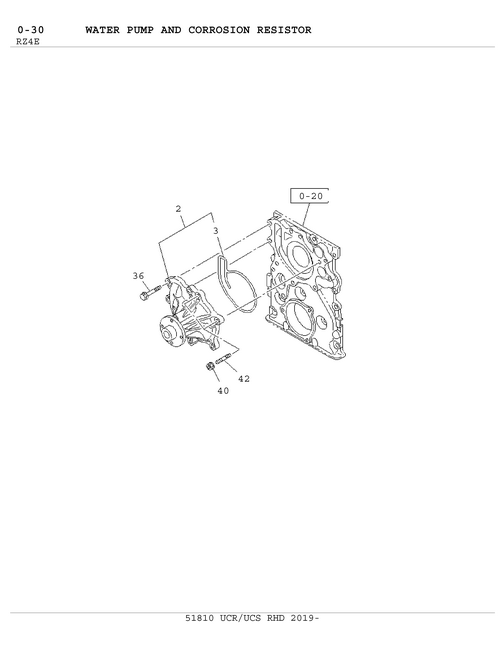

0-30 | WATER PUMP AND CORROSION RESISTOR
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 6 | 1812- | A | M8X50 FLANGE | ||
| 2 | I8-97312 147-4 | PUMP ASM; WATER | 1 | 1812- | BC | |||
| 40 | I0-91180 208-0 | NUT; WATER PUMP | 2 | 1812- | ABC | 01.540 M8 FLANGE | ||
| 3 | I8-97312 156-0 | GASKET; PUMP TO C/BL | 1 | 1812- | BC | ALSO INCLUDED IN GASKET SET(ENGIN | ||
| 63 | I0-28050 880-0 | BOLT; INL PIPE | 1 | 1812- | BC | 01.252 (B) M8X8 0 FLANGE | ||

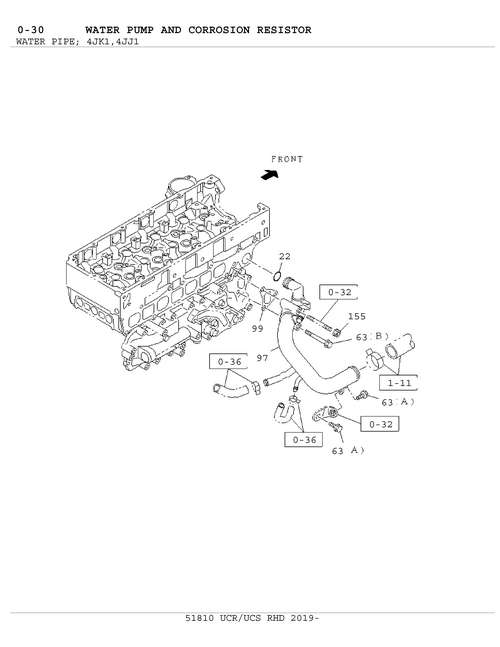

| 97 | I8-98228 422-0 | PIPE; WATER | 1 | 1812- | B | AUTO COOLER SYSTEM(CJ2),COOLER W/ IR(C65),COOLER WO/FRESH AIR(8NF) | ||
| 42 | I0-49140 822-0 | STUD; WATER PUMP | 2 | 1812- | BC | M8X22 L=40 | ||
| 99 | I8-98233 994-0 | GASKET; WATER PIPE | 1 | 1812- | BC | |||
| 42 | I0-41010 825-0 | STUD; WATER PUMP | 2 | 1812- | A | 03.275 M8X25 L=37 | ||
| 155 | I0-91180 208-0 | NUT; PIPE | 2 | 1812- | BC | 01. 540 M8 FLANGE | ||
| 97 | I8-98228 422-0 | PIPE; WATER | 1 | 1812- | C | AUTO COOLER SYSTEM(CJ2),COOLER W/ IR(C65),COOLER WO/FRESH AIR(8NF) EMISSION SYSTEM R15-04(K75),EURO2 ICATION(NT2) | ||
| 36 | I0-28050 850-0 | BOLT; WATER PUMP TO C/BL | 4 | 1812- | BC | M8X50 FLANGE | ||
| 63 | I0-28050 816-0 | BOLT; INL PIPE | 2 | 1812- | BC | 02 . 343 (A) M8X16 FLANGE | ||
| 22 | I0-95690 226-0 | GASKET | 1 | 1812- | BC | 01.159 ID=26.2 |
