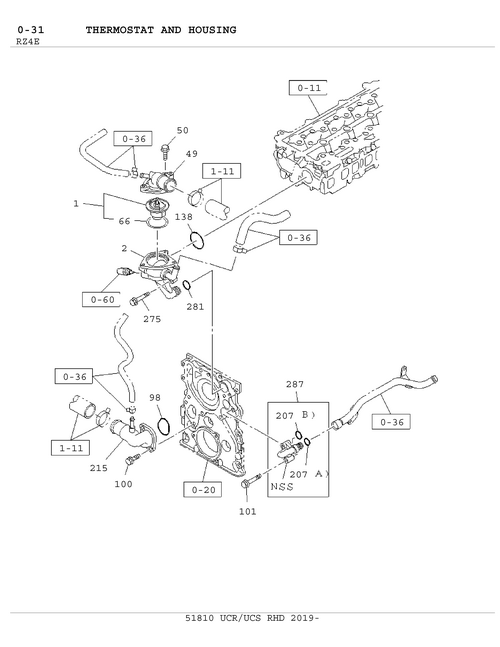

0-31 | THERMOSTAT AND HOUSING
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 100 | I0-28050 820-0 | BOLT; WATER PIPE | 2 | 1812- | A | 04.338 M8X2 0 FLANGE | ||
| 275 | I0-28050 830-0 | BOLT; THERMOSTAT HSG | 2 | 1812- | A | 00.206 M8X3 0 FLANGE | ||
| 50 | I0-28050 880-0 | BOLT; OUTLET PIPE | 2 | 1812- | BC | M8X8 0 FLANGE | ||
| 1 | I8-98017 027-2 | THERMOSTAT | 1 | 1812- | BC | 8 5 CELSIUS | ||
| 49 | I8-98120 945-0 | PIPE; WATER OUTLET | 1 | 1812- | BC | |||
| 66 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 1812- | ABC |
