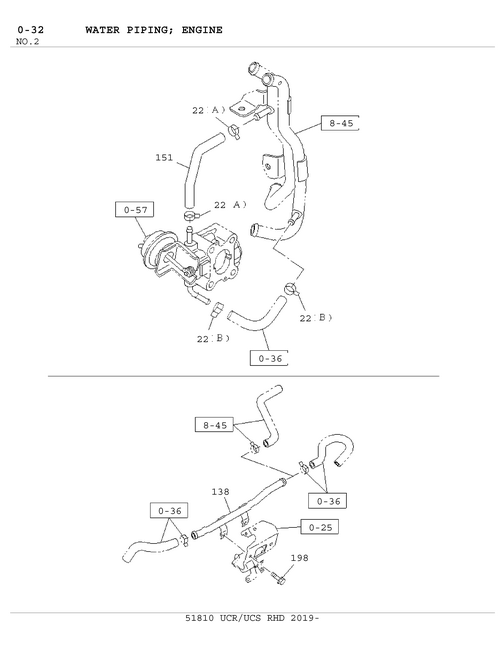

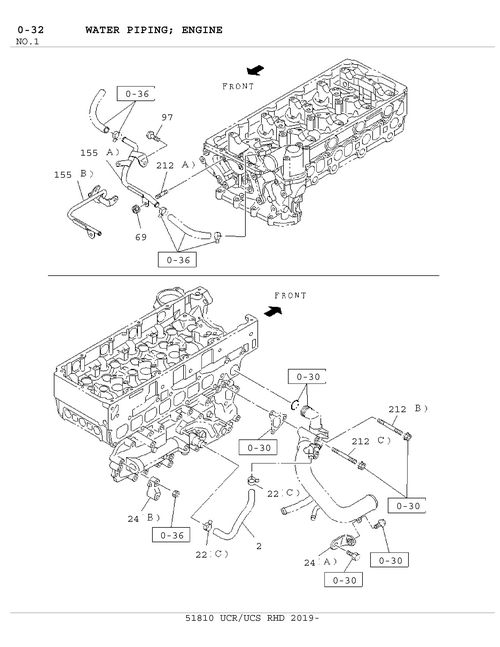

0-32 | WATER PIPING; ENGINE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I8-98008 096-0 | CLIP; WATER HOSE | 2 | 1812- | C | EURO5 SPECIFICATION(NT5) 03 .330 (B) ID=11.5 | ||
| 22 | I8-98179 581-0 | CLIP; WATER HOSE | 2 | 1812- | B | 03 .342 (C) ID=15.1 | ||
| 212 | I0-41010 875-0 | STUD; PIPE | 1 | 1812- | BC | 03 .275 (C) M8X75 L=87 | ||
| 198 | I0-28050 616-0 | BOLT; PIPE | 2 | 1812- | A | 09.242 M6X16 FLANGE | ||
| 2 | I8-98225 143-0 | HOSE; WATER,BY-PASS | 1 | 1812- | B | |||
| 97 | I0-28050 612-0 | BOLT; WATER PIPE | 1 | 1812- | BC | 03.162 M6X12 FLANGE | ||
| 155 | I8-98205 964-0 | PIPE ASM; WATER | 1 | 1812- | B | (B) | ||
| 24 | I8-98228 424-1 | BRACKET; WATER PIPE | 1 | 1812- | BC | (A) | ||
| 22 | I8-98179 581-0 | CLIP; WATER HOSE | 2 | 1812- | C | EMISSION SYSTEM R15-04(K7 5),EURO2 SPEC ICATION(NT2) 03 .342 (C) ID=15.1 | ||
| 2 | I8-98225 143-0 | HOSE; WATER,BY-PASS | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 5),EURO2 SPEC ICATION(NT2) | ||
| 69 | I0-91180 206-0 | NUT; WATER PIPE | 1 | 1812- | BC | 01.540 M6 FLANGE | ||
| 212 | I0-41010 840-0 | STUD; PIPE | 1 | 1812- | BC | 01.540 (B) M8X40 L=52 | ||
| 212 | I0-41010 612-0 | STUD; PIPE | 1 | 1812- | BC | 01.453 (A) M6X12 L=21 | ||
| 155 | I8-98205 964-0 | PIPE ASM; WATER | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 5),EURO2 SPEC ICATION(NT2),EURO4 SPECIFICATION(NT4) (B) |
