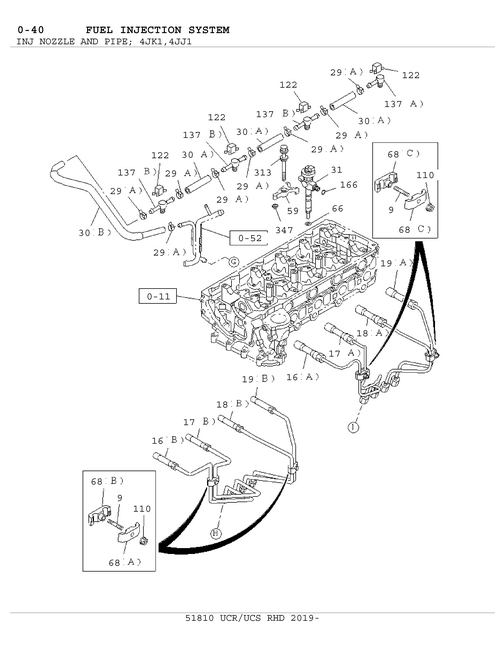

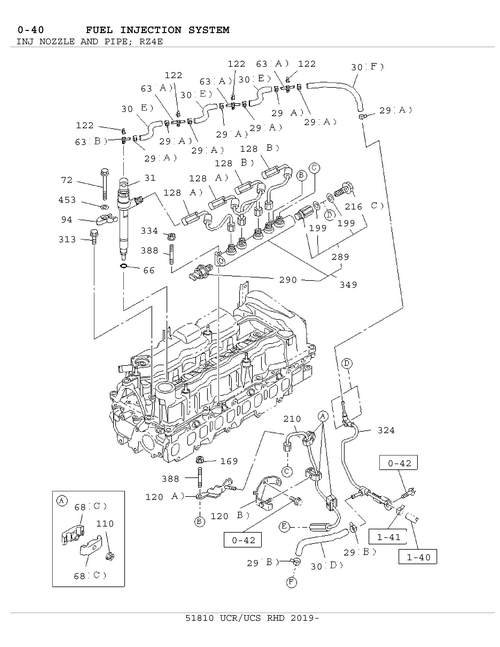

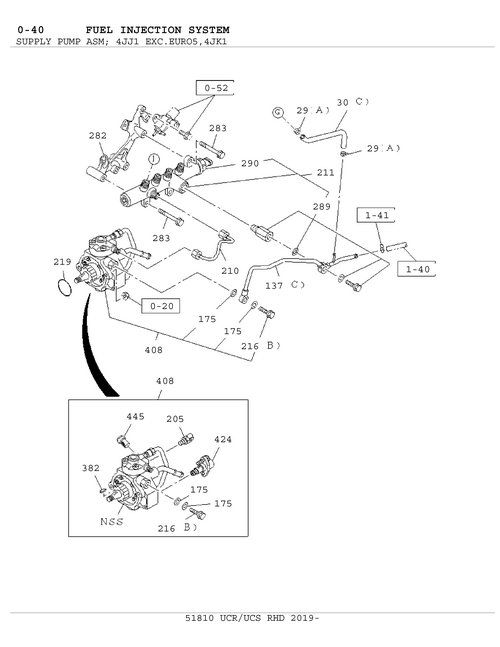

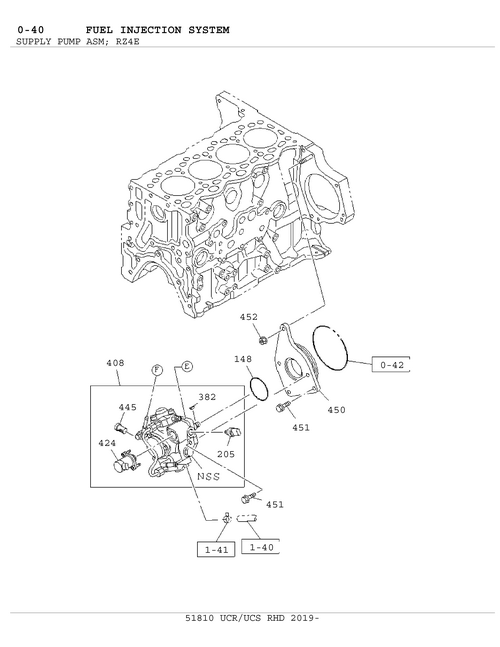

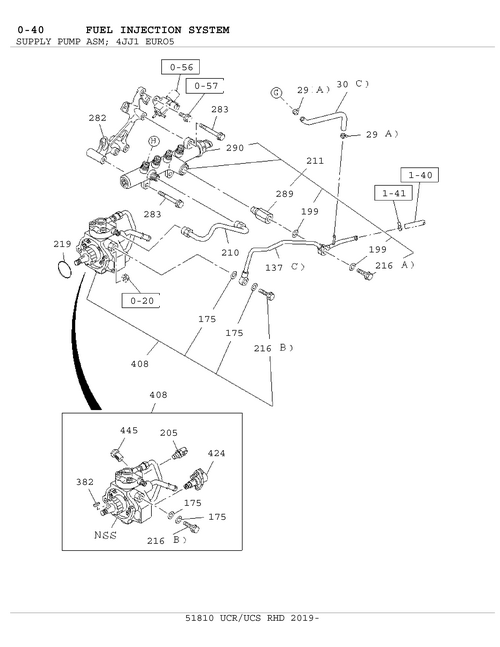

0-40 | FUEL INJECTION SYSTEM
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 289 | I8-98032 549-0 | LIMITER; FUEL PRESS | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF | ||
| 137 | I8-98158 737-1 | PIPE ASM; LEAK OFF | 1 | 1812- | BC | (C) | ||
| 424 | I8-98145 455-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1812- | BC | |||
| 59 | I8-98092 539-0 | CLAMP; NOZZLE HOLDER | 4 | 1812- | BC | |||
| 289 | I8-98032 549-0 | LIMITER; FUEL PRESS | 1 | 1812- | B | |||
| 210 | I8-98233 237-0 | PIPE; INJ,C/R | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF | ||
| 313 | I8-98228 637-0 | BOLT; BRKT,INJ NOZZLE | 4 | 1812- | BC | M8X8 5 W/WASHER | ||
| 18 | I8-98223 196-0 | PIPE; INJ NO.3 | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF (A) | ||
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 1812- | ABC | |||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 6 | 1812- | A | (C) ID=11 & 11 L=19 | ||
| 31 | I8-98246 130-0 | NOZZLE ASM; INJ | 4 | 1812- | B | |||
| 122 | I8-97315 286-0 | CLIP; LEAK OFF PIPE | 4 | 1812- | ABC | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 1812- | A | 01. 062 M6 FLANGE | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 1812- | BC | 01.062 M6 FLANGE | ||
| 210 | I8-98233 237-0 | PIPE; INJ,C/R | 1 | 1812- | B | |||
| 282 | I8-98205 942-0 | BRACKET; COMMON RAIL | 1 | 1812- | BC | |||
| 166 | I9-09566 111-0 | GASKET; FUEL INJECTOR | 4 | 1812- | BC | 03 . 332 ID=11 OD=14.8 | ||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 4 | 1812- | B | (C) ID=11 & 11 L=19 | ||
| 148 | I1-09623 541-0 | RING | 1 | 1812- | A | 03.162 ID=49.7 | ||
| 9 | I0-41010 630-0 | STUD; CLIP | 2 | 1812- | BC | 00.413 M6X30 L=38 | ||
| 408 | I8-98155 988-4 | PUMP ASM; FUEL,SUPPLY | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF | ||
| 452 | I0-91180 208-0 | NUT; SUPPLY PUMP | 2 | 1812- | A | 01.540 M8 FLANGE | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 1812- | A | (A) ID=10.5 | ||
| 334 | I0-91180 208-0 | NUT; FLANGE | 2 | 1812- | A | 01.540 M8 FLANGE | ||
| 16 | I8-98223 194-0 | PIPE; INJ NO.1 | 1 | 1812- | B | (A) | ||
| 18 | I8-98223 196-0 | PIPE; INJ NO.3 | 1 | 1812- | B | (A) | ||
| 16 | I8-98223 194-0 | PIPE; INJ NO.1 | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF (A) | ||
| 19 | I8-98223 197-0 | PIPE; INJ NO.4 | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF (A) | ||
| 219 | I1-09623 541-0 | GASKET | 1 | 1812- | BC | ID=49.7 | ||
| 283 | I8-98228 566-0 | BOLT; COMMON RAIL | 3 | 1812- | BC | M8X6 6 FLANGE | ||
| 408 | I8-98155 988-4 | PUMP ASM; FUEL,SUPPLY | 1 | 1812- | B | |||
| 17 | I8-98223 195-1 | PIPE; INJ NO.2 | 1 | 1812- | B | (A) | ||
| 211 | I8-98228 475-0 | RAIL ASM; COMMON | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF | ||
| 169 | I0-91180 108-0 | NUT; BRKT | 1 | 1812- | A | 01.062 M8 FLANGE | ||
| 290 | I8-98181 616-0 | SENSOR; PRESS | 1 | 1812- | B | |||
| 445 | I8-98209 778-0 | SCREW; FILTER,INLET | 1 | 1812- | ABC | |||
| 211 | I8-98228 475-0 | RAIL ASM; COMMON | 1 | 1812- | B | |||
| 30 | I8-98189 998-0 | HOSE; RUBBER,FUEL LEAK | 1 | 1812- | BC | (B) | ||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 1812- | ABC | ID= 7.1 | ||
| 19 | I8-98223 197-0 | PIPE; INJ NO.4 | 1 | 1812- | B | (A) | ||
| 17 | I8-98223 195-1 | PIPE; INJ NO.2 | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF (A) | ||
| 30 | I8-98179 014-0 | HOSE; RUBBER,FUEL LEAK | 1 | 1812- | BC | (C) | ||
| 451 | I0-28050 825-0 | BOLT; SUPPLY PUMP | 3 | 1812- | A | 03.275 M8X2 5 FLANGE | ||
| 216 | I8-98209 777-0 | BOLT; EYE | 1 | 1812- | BC | (B) EURO5 SPECIFICATION(NT5) (A) M10X23 EYE-BOLT | ||
| 30 | I8-98053 693-0 | HOSE; RUBBER,FUEL LEAK | 3 | 1812- | BC | (A) L=96 | ||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 4 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF (C) ID=11 & 11 L=19 | ||
| 347 | I8-98165 035-0 | PIN | 4 | 1812- | BC | |||
| 175 | I1-15619 508-0 | GASKET; EYE BOLT,OUTLET,FUEL FEE | 2 | 1812- | BC | ID=10.2 OD=15.2 | ||
| 137 | I8-98211 775-0 | PIPE ASM; LEAK OFF | 3 | 1812- | BC | (B) | ||
| 290 | I8-98181 616-0 | SENSOR; PRESS | 1 | 1812- | C | EMISSION SYSTEM R15-04(K7 ICATION(NT2),EURO4 SPECIF | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 10 | 1812- | BC | (A) ID=10.5 | ||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 1812- | ABC | |||
| 137 | I8-98211 776-0 | PIPE ASM; LEAK OFF | 1 | 1812- | BC | (A) |
