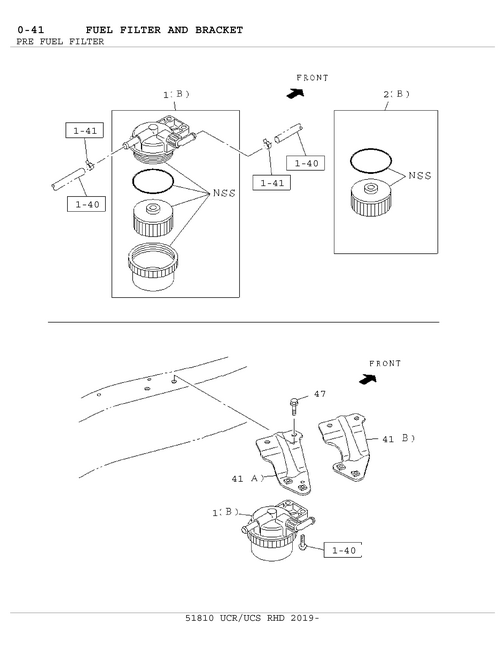

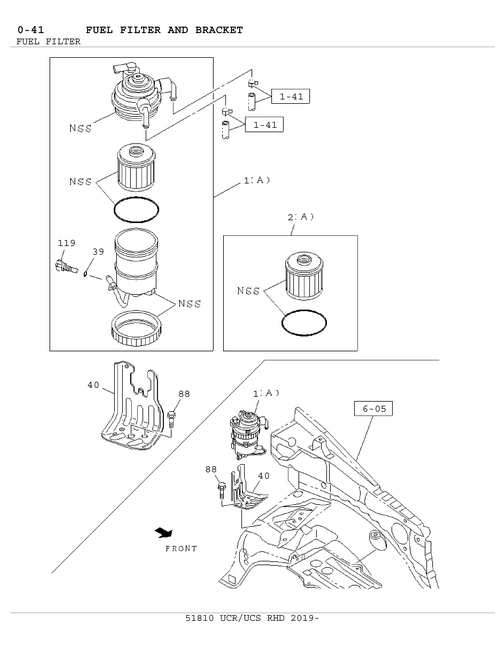

0-41 | FUEL FILTER AND BRACKET
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98182 445-0 | FILTER ASM; FUEL | 1 | 1812- | ABC | PRE FUEL FILTER<KF0> (B) | ||
| 88 | I8-97948 261-0 | BOLT; BRKT,FUEL FILTER | 3 | 1812- | ABC | M8X16 FLANGE | ||
| 47 | I8-98276 856-0 | BOLT; BRKT,FUEL FILTER | 2 | 1812- | ABC | PRE FUEL FILTER<KF0> M10X3 0 FLANGE | ||
| 1 | I8-98067 761-3 | FILTER ASM; FUEL | 1 | 1812- | A | (A) | ||
| 1 | I8-98067 761-3 | FILTER ASM; FUEL | 1 | 1812- | BC | EXC. RETURN FUEL RECIRCULATION VA L FILTER(V10) (A) | ||
| 39 | I8-98188 943-0 | GASKET; DRAIN PLUG | 1 | 1812- | ABC | |||
| 2 | I8-98159 693-A | ELEMENT KIT; FUEL FILTER | 1 | 1812- | ABC | (IADG) (A) ORANGE PLATE END | ||
| 2 | I6-98194 119-0 | ELEMENT KIT; FUEL FILTER | 1 | 1812- | ABC | (IADG) PRE FUEL FILTER<KF0> (B) BLUE PLATE END | ||
| 41 | I8-98197 461-0 | BRACKET; FUEL FILTER | 1 | 1812- | ABC | 4X2(UCB***) PRE FUEL FILTER<KF0> (B) | ||
| 2 | I8-98194 119-0 | ELEMENT KIT; FUEL FILTER | 1 | 1812- | ABC | PRE FUEL FILTER<KF0> (B) BLUE PLATE END | ||
| 41 | I8-97947 677-0 | BRACKET; FUEL FILTER | 1 | 1812- | ABC | 4X4(UCS***) PRE FUEL FILTER<KF0> (A) | ||
| 40 | I8-98104 468-4 | BRACKET; FUEL FILTER | 1 | 1812- | ABC | |||
| 2 | I8-98159 693-0 | ELEMENT KIT; FUEL FILTER | 1 | 1812- | ABC | (A) ORANGE PLATE END | ||
| 119 | I8-98188 941-0 | PLUG; DRAIN,FUEL FILTER | 1 | 1812- | ABC |
