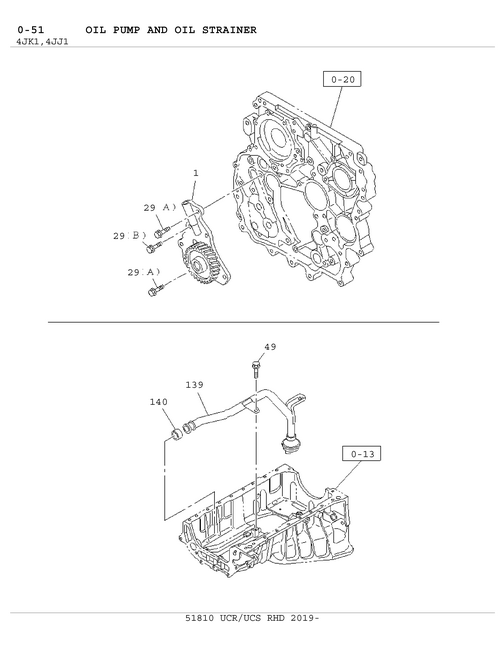

0-51 | OIL PUMP AND OIL STRAINER
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 1812- | BC | 02 . 343 M8X16 FLANGE | ||
| 139 | I8-98127 247-0 | PIPE; OIL STRAINER | 1 | 1812- | C | 4X2(UCB***) EMISSION SYSTEM R15-04(K75),EURO2 ICATION(NT2),EURO4 SPECIFICATION( | ||
| 139 | I8-98132 012-0 | PIPE; OIL STRAINER | 1 | 1812- | C | 4X2(UCB***) EURO5 SPECIFICATION(NT5) | ||
| 61 | I0-58330 820-0 | BOLT; OIL STRAINER | 2 | 1812- | A | 01.758 M8X20 HEX SOCKET | ||
| 29 | I0-28050 860-0 | BOLT; OIL PUMP | 2 | 1812- | A | 04 . 686 (C) M8X60 FLANGE | ||
| 139 | I8-98127 247-0 | PIPE; OIL STRAINER | 1 | 1812- | B | 4X2(UCB***) | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 1812- | A | 00.206 (B) M8X3 0 FLANGE | ||
| 139 | I8-98132 012-0 | PIPE; OIL STRAINER | 1 | 1812- | BC | 4X4(UCS***) | ||
| 1 | I8-98232 624-1 | PUMP ASM; OIL | 1 | 1812- | BC | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 1812- | BC | 00.206 (B) M8X3 0 FLANGE | ||
| 140 | I8-97356 150-0 | GASKET; OIL STRAINER | 1 | 1812- | BC | ALSO INCLUDED IN GASKET SET(ENGIN | ||
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 1812- | BC | 09.173 (A) M8X4 5 FLANGE |
