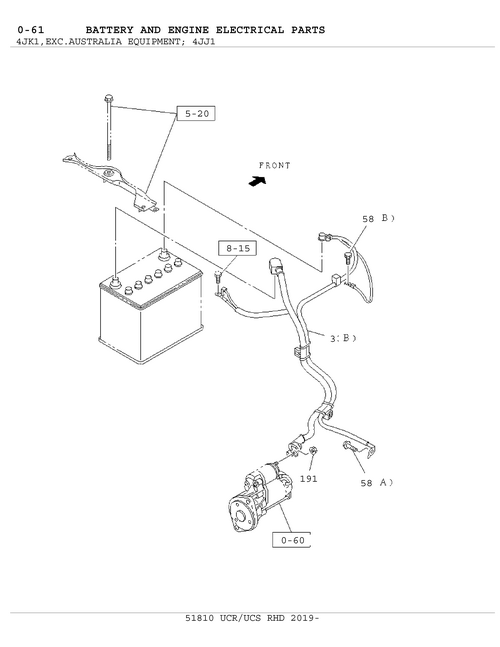

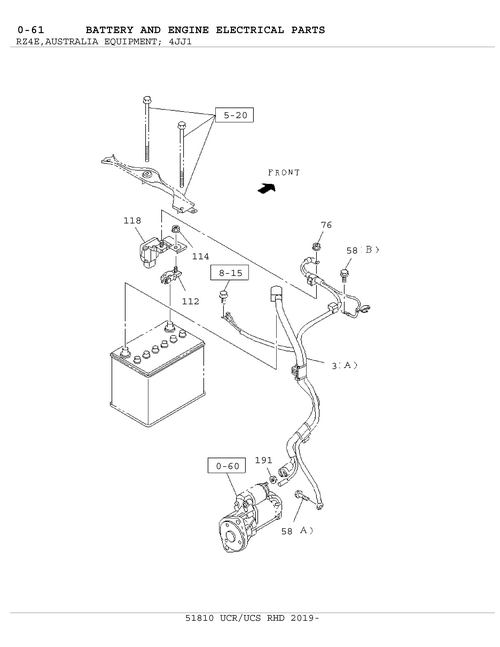

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 58 | I8-98164 836-0 | BOLT; CABLE,BATTERY | 1 | 1812- | ABC | 02.559 (B) M6X14 W/PL WASHER | ||
| 58 | I0-28651 020-0 | BOLT; CABLE,BATTERY | 1 | 1812- | BC | (A) M10X2 0 FLANGE | ||
| 3 | I8-98238 380-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1812- | B | BATTERY 80D26L(TM1) (B) | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 1812- | C | AUSTRALIA EQUIPMENT(B13) 01.062 M8 FLANGE | ||
| 58 | I0-28650 820-0 | BOLT; CABLE,BATTERY | 1 | 1812- | A | 01.531 (A) M8X2 0 FLANGE | ||
| 191 | I0-91180 108-0 | NUT; STARTER | 1 | 1812- | ABC | 01. 062 M8 FLANGE | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 1 | 1812- | C | AUSTRALIA EQUIPMENT(B13) 01.062 M8 FLANGE | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 1812- | A | 01. 062 M8 FLANGE | ||
| 3 | I8-98238 380-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1812- | C | BATTERY 80D26L(TM1) EXC. AUSTRALIA EQUIPMENT( (B) | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 1 | 1812- | A | 01. 062 M8 FLANGE |
