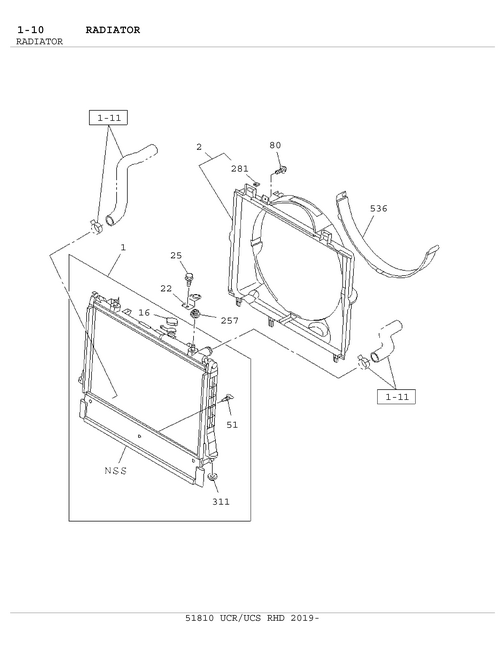

1-10 | RADIATOR
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I8-97942 268-1 | CAP; RAD | 1 | 1812- | ABC | |||

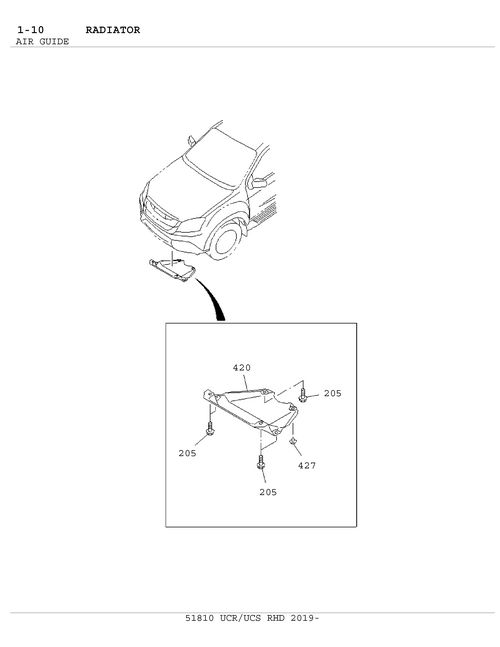

| 420 | I8-98176 508-1 | GUIDE; AIR,RAD | 1 | 1812- | ABC | 4X2(UCB***) | ||
| 51 | I8-97171 437-0 | PLUG; DRAIN | 1 | 1812- | ABC | W/GASKET | ||
| 205 | I8-97945 706-0 | BOLT; AIR GUIDE | 5 | 1812- | ABC | 4X2(UCB***) EXC. UNDER FRT GUARD<6RJ>,SKID PLATE<7W > M10X28 W/LK&PL WASHER | ||
| 22 | I8-98102 383-2 | BRACKET; RAD MTG | 2 | 1812- | ABC | |||
| 427 | I8-98178 267-0 | CLIP; FAN GUIDE | 1 | 1812- | ABC | 4X2(UCB***) | ||
| 80 | I8-98189 890-0 | BOLT; FAN GUIDE | 1 | 1812- | ABC | |||
| 1 | I8-98249 991-1 | RADIATOR ASM | 1 | 1812- | B | A/T 5 SPEED-AISIN(MA1) | ||
| 281 | I8-98189 891-0 | NUT; FAN GUIDE | 2 | 1812- | ABC | |||
| 25 | I0-28650 616-0 | BOLT; BRKT | 2 | 1812- | ABC | 02 . 343 M6X16 FLANGE | ||
| 2 | I8-98250 005-0 | GUIDE; FAN | 1 | 1812- | BC | |||
| 536 | I8-97372 866-1 | SHROUD; FAN | 1 | 1812- | ABC | |||
| 311 | I8-97942 297-0 | RUBBER; MTG,RAD | 2 | 1812- | ABC | |||
| 1 | I8-98249 999-1 | RADIATOR ASM | 1 | 1812- | B | M/T MUA 5 SPEED 5H(MWQ) | ||
| 257 | I8-97249 541-1 | MOUNTING; RAD STAY | 2 | 1812- | ABC |
