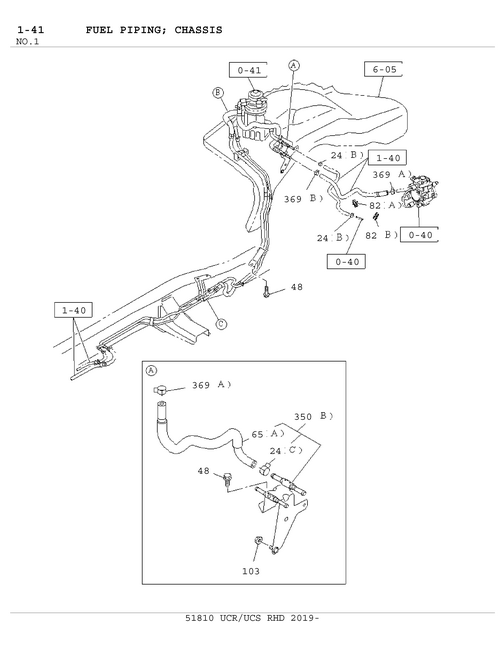

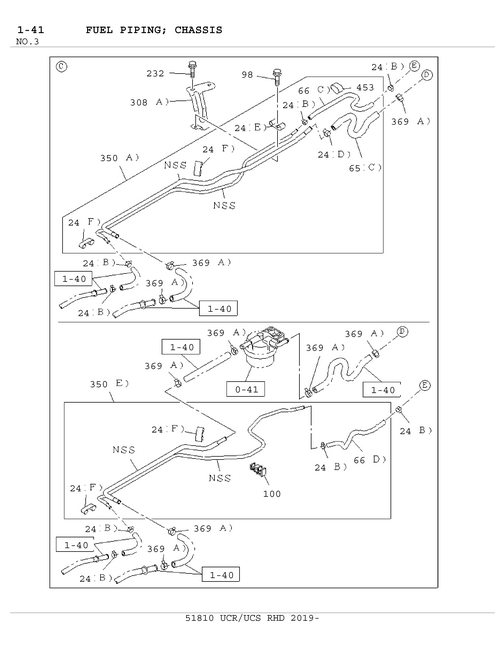

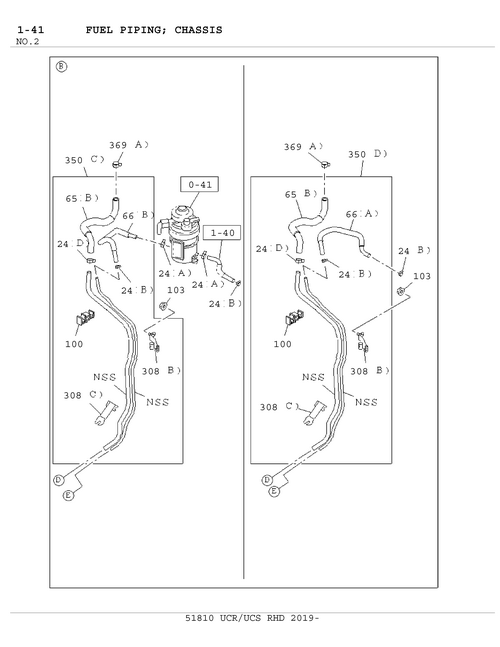

1-41 | FUEL PIPING; CHASSIS
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 308 | I8-98233 890-0 | BRACKET; FUEL PIPE | 1 | 1812- | ABC | |||
| 350 | I8-98248 732-0 | PIPE; FUEL,DEL & RET | 1 | 1812- | BC | 4X2(UCB***) PROVISIONAL PACKAGE SPEC (BCC) PRE FUEL FILTER<KF0> (E) EXC. AUSTRALIA EQUIPMENT(B13),PRE ILTER<KF0> (A) | ||
| 369 | I8-98052 395-0 | CLAMP; HOSE,FUEL | 6 | 1812- | ABC | EXC. PRE FUEL FILTER<KF0 >,RETURN CIRCULATION VALVE FUEL FILTER(V10 03.145 (A) ID=17.2 | ||
| 103 | I0-91180 106-0 | NUT; BRKT | 2 | 1812- | ABC | 01.062 M6 FLANGE | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | PRE FUEL FILTER<KF0> 03 . 330 (B) ID=11.5 | ||
| 24 | I8-98052 395-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | 03 . 145 (D) ID=17.2 | ||
| 82 | I8-94382 792-1 | CLIP; FUEL HOSE | 1 | 1812- | BC | 06.672 (A) ID=17 | ||
| 369 | I8-98186 048-0 | CLAMP; HOSE,FUEL | 1 | 1812- | BC | EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=15.2 | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 1812- | A | INDONESIA EQUIPMENT(B00),MALAYSIA ENT(B10) PRE FUEL FILTER<KF0> | ||
| 82 | I8-94382 792-1 | CLIP; FUEL HOSE | 1 | 1812- | A | EXC. INDONESIA EQUIPMENT(B00),MAL QUIPMENT(B10) 06.672 (A) ID=17 | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 1812- | BC | PRE FUEL FILTER<KF0> | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | 03 . 330 (B) ID=11.5 | ||
| 24 | I8-98233 886-0 | CLIP; FUEL HOSE | 2 | 1812- | A | EXC. PRE FUEL FILTER<KF0 > (F) | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | 03 . 330 (B) ID=11.5 | ||
| 350 | I8-98248 733-0 | PIPE; FUEL,DEL & RET | 1 | 1812- | BC | PROVISIONAL PACKAGE SPEC (BCC) PRE FUEL FILTER<KF0> (E) | ||
| 66 | I8-98248 703-0 | HOSE; FUEL,RETURN PIPE | 1 | 1812- | BC | PRE FUEL FILTER<KF0> (D) | ||
| 98 | I0-28650 616-0 | BOLT; BRKT,FUEL PIPE | 1 | 1812- | C | RETURN FUEL RECIRCULATION VALVE F TER (V10) 02 . 343 M6X16 FLANGE | ||
| 369 | I8-98186 048-0 | CLAMP; HOSE,FUEL | 1 | 1812- | A | (B) ID=15.2 | ||
| 369 | I8-98052 395-0 | CLAMP; HOSE,FUEL | 9 | 1812- | ABC | PRE FUEL FILTER<KF0> 03 . 145 (A) ID=17.2 | ||
| 308 | I8-98233 889-0 | BRACKET; FUEL PIPE | 1 | 1812- | ABC | (B) (C) EXC. PRE FUEL FILTER<KF0 >,RETURN CIRCULATION VALVE FUEL FILTER(V10 (A) | ||
| 24 | I8-98233 886-0 | CLIP; FUEL HOSE | 2 | 1812- | A | INDONESIA EQUIPMENT(B00),MALAYSIA ENT(B10) PRE FUEL FILTER<KF0> (F) | ||
| 24 | I8-98233 886-0 | CLIP; FUEL HOSE | 2 | 1812- | BC | PRE FUEL FILTER<KF0> (F) | ||
| 24 | I8-98008 096-0 | CLIP; FUEL HOSE | 6 | 1812- | ABC | 03 . 330 (B) ID=11.5 | ||
| 98 | I0-28650 616-0 | BOLT; BRKT,FUEL PIPE | 1 | 1812- | ABC | EXC. PRE FUEL FILTER<KF0 >,RETURN CIRCULATION VALVE FUEL FILTER(V10 02.343 M6X16 FLANGE | ||
| 369 | I8-98052 395-0 | CLAMP; HOSE,FUEL | 6 | 1812- | C | RETURN FUEL RECIRCULATION VALVE F TER(V10) 03.145 (A) ID=17.2 | ||
| 369 | I8-98030 682-0 | CLAMP; HOSE,FUEL | 1 | 1812- | C | AUSTRALIA EQUIPMENT(B13) 01.762 (B) ID=16 | ||
| 48 | I0-28650 616-0 | BOLT; BRKT | 2 | 1812- | ABC | 02 . 343 M6X16 FLANGE | ||
| 24 | I8-98052 395-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | EXC. PRE FUEL FILTER<KF0 > 03 . 145 (D) ID=17.2 | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 1812- | ABC | |||
| 24 | I8-98233 886-0 | CLIP; FUEL HOSE | 2 | 1812- | BC | (F) | ||
| 24 | I8-98030 682-0 | CLIP; FUEL HOSE | 1 | 1812- | ABC | 01. 762 (C) ID=16 |
