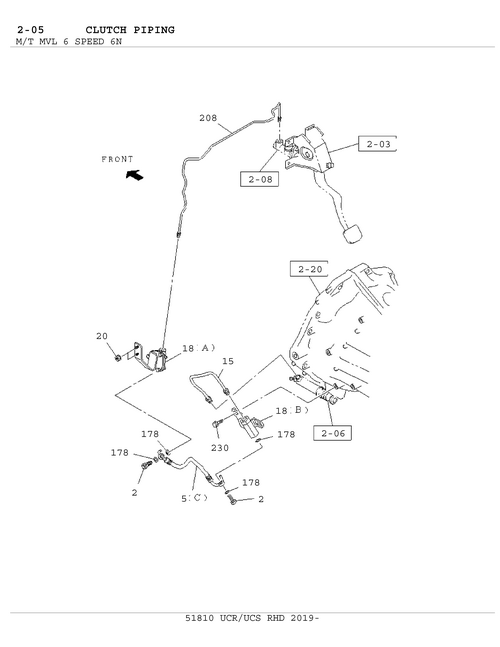

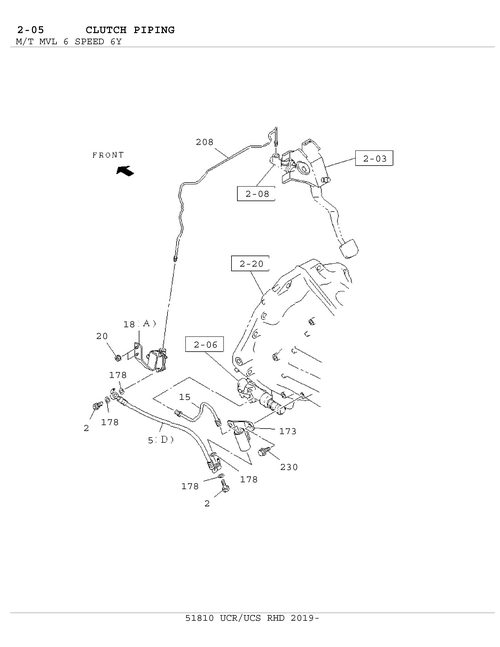

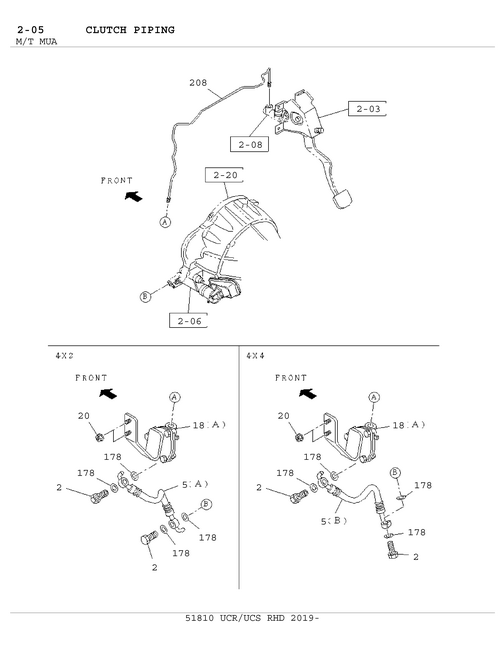

2-05 | CLUTCH PIPING
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 1812- | ABC | 01.062 M6 FLANGE | ||
| 18 | I8-97946 616-1 | DAMPER ASM; CLU OIL | 1 | 1812- | ABC | (A) | ||
| 57 | I8-98097 543-1 | HOSE; CLU M/CYL TO OIL TANK | 1 | 1812- | AB | |||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 1812- | ABC | ID=12 WO/PVC COATING | ||
| 5 | I8-98221 241-0 | HOSE; FLEX,CLU PIPE | 1 | 1812- | A | 4X4(UCS** *) (B) | ||
| 230 | I0-28650 820-0 | BOLT; ACTUATOR | 2 | 1812- | BC | 01.531 M8X2 0 FLANGE |
