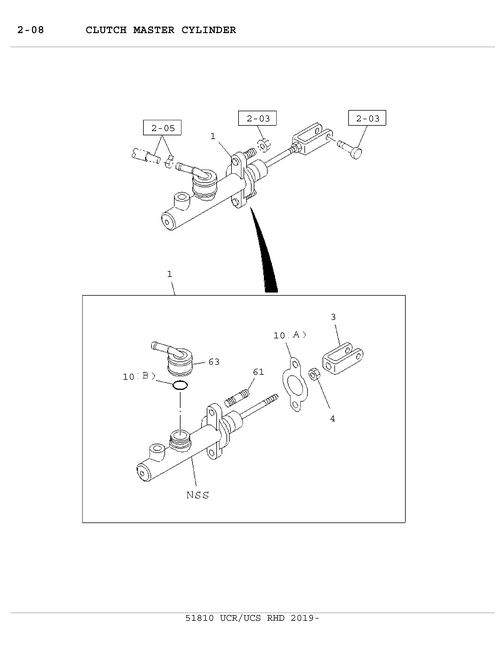

2-08 | CLUTCH MASTER CYLINDER
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97945 449-0 | JOINT; JAW,CLU M/CYL | 1 | 1812- | ABC | |||
| 61 | I8-97945 450-0 | BOLT; STUD | 2 | 1812- | ABC | |||
| 4 | I9-09111 508-A | NUT; JAW JOINT | 1 | 1812- | ABC | M8 | ||
| 63 | I8-97947 776-0 | ADAPTER | 1 | 1812- | ABC | |||
| 10 | I8-97947 775-0 | GASKET; CLU M/CYL | 1 | 1812- | ABC | (B) | ||
| 1 | I8-97946 626-1 | CYLINDER ASM; CLUTCH MASTER | 1 | 1812- | ABC | |||
| 10 | I8-97184 654-0 | GASKET; CLU M/CYL | 1 | 1812- | ABC | (A) |
