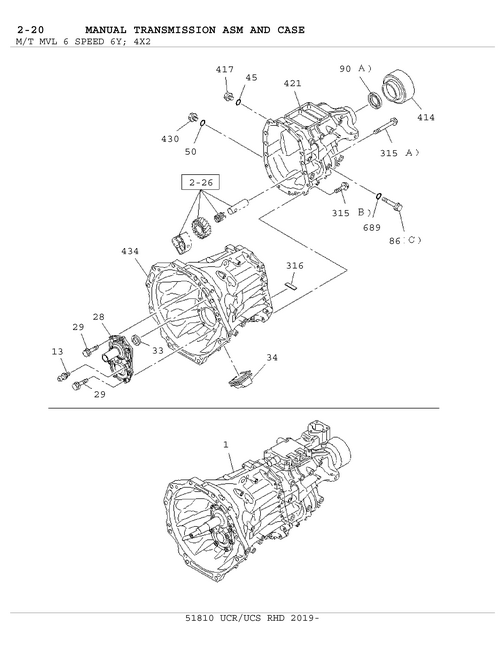

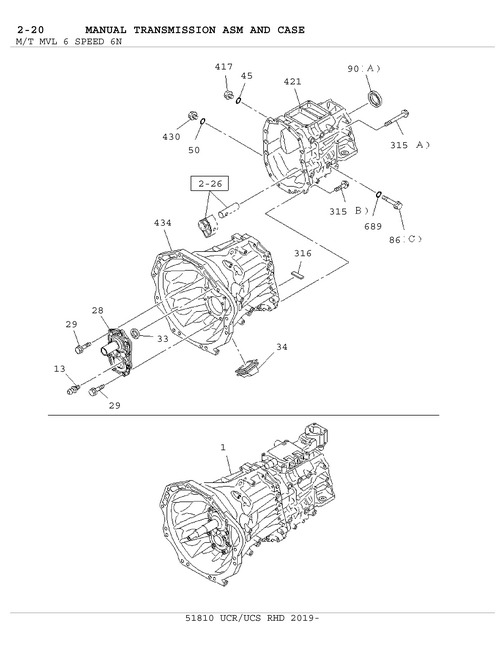

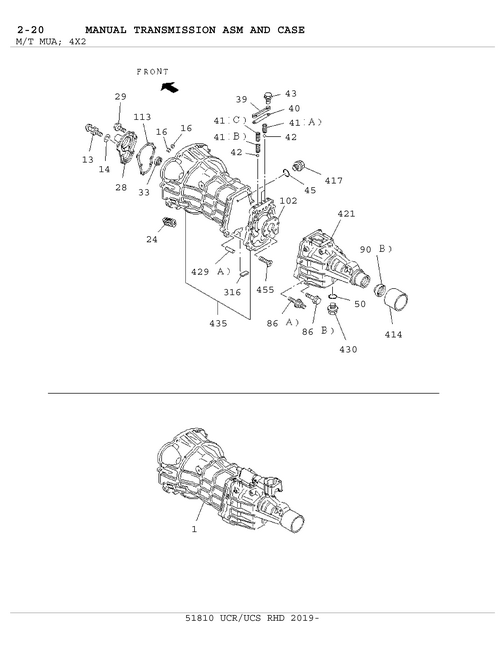

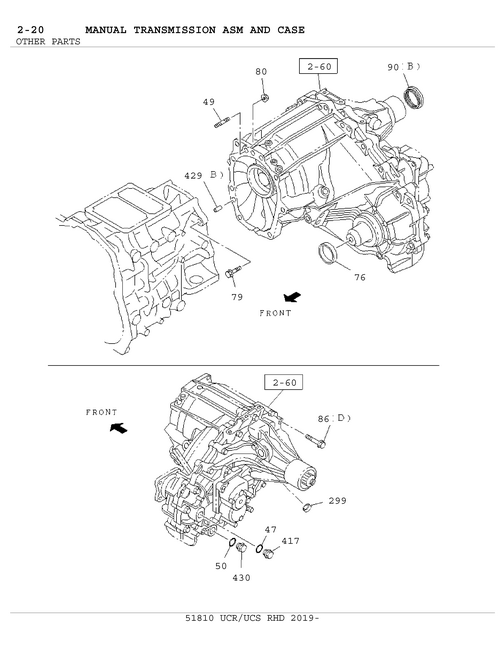

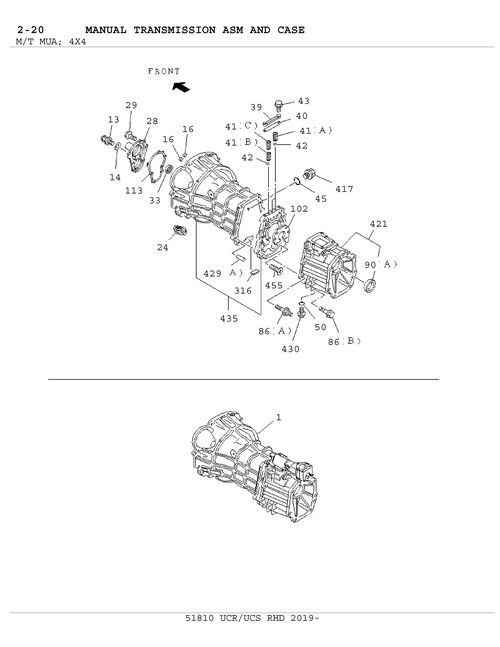

2-20 | MANUAL TRANSMISSION ASM AND CASE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 90 | I8-97046 701-2 | SEAL; OIL,RR COVER | 1 | 1812- | A | 4X4(UCS***) 04.510 (A) NOK | ||
| 33 | I8-97046 699-3 | SEAL; OIL,FRT COVER,T/M | 1 | 1812- | ABC | NOK | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1812- | ABC | ID=17 | ||
| 455 | I8-98050 437-0 | SCREW; BRG RET | 4 | 1812- | A | M8X22 | ||
| 16 | I8-97358 601-0 | PLUG; SHIFT ROD | 2 | 1812- | A | OD=14 | ||
| 29 | I8-97365 376-0 | BOLT; FRT COVER | 6 | 1812- | A | M8X22 FLANGE | ||
| 14 | I0-91510 512-0 | WASHER; LK,SUPPORT | 1 | 1812- | A | 03.634 ID=12.2 | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1812- | ABCDE | 4X4(UCS***) ID=17 | ||
| 86 | I0-28050 845-0 | BOLT; RR COVER | 16 | 1812- | A CDE | 4X4(UCS***) 09. 173 (D) M8X4 5 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 1812- | ABCDE | 4X4(UCS***) | ||
| 90 | I8-97046 701-2 | SEAL; OIL,RR COVER | 1 | 1812- | A | 4X4(UCS***) 04.510 (A) TKK | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 1812- | A CDE | 4X4(UCS***) 04.510 (B) OD=10 L=20 | ||
| 47 | I8-97115 712-0 | GASKET; FILLER PLUG,TRANSFER CAS | 1 | 1812- | A CDE | 4X4(UCS***) 04.105 ID=17 | ||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 1812- | ABC | ID=17 | ||
| 24 | I8-94156 700-0 | COVER; CHECK HOLE,DUST | 1 | 1812- | A | .8527777777778 | ||
| 41 | I8-94320 193-0 | SPRING; DETENT BALL | 2 | 1812- | A | (A) L=2 6.8 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1812- | ABC | |||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 6 | 1812- | B | M10X3 5 FLANGE | ||
| 76 | I8-97238 999-0 | SEAL; OIL,TRANSFER CASE | 1 | 1812- | B | NOK | ||
| 76 | I8-97238 999-0 | SEAL; OIL,TRANSFER CASE | 1 | 1812- | A CDE | 4X4(UCS***) NOK | ||
| 28 | I8-97104 676-0 | COVER; FRT,TRANS CASE | 1 | 1812- | A | |||
| 43 | I8-97365 376-0 | BOLT; PLATE TO PLATE | 2 | 1812- | A | 04 .356 M8X22 FLANGE | ||
| 421 | I8-98277 853-0 | COVER; RR,TRANS | 1 | 1812- | A | 4X4(UCS***) | ||
| 13 | I8-97072 827-0 | SUPPORT; SHIFT FORK | 1 | 1812- | ABC | L=4 7.5 | ||
| 40 | I8-97083 600-1 | GASKET; DETENT SPR PLATE | 1 | 1812- | A | |||
| 315 | I0-28050 800-0 | BOLT; CASE | 6 | 1812- | BC | 00.386 (A) M8X100 FLANGE | ||
| 42 | I8-94435 335-0 | BALL; DETENT,GEAR SHIFT | 3 | 1812- | A | |||
| 86 | I0-28050 845-0 | BOLT; RR COVER | 16 | 1812- | B | 09.173 (D) M8X4 5 FLANGE | ||
| 429 | I5-09740 018-1 | PIN; STRAIGHT | 2 | 1812- | A | (A) OD=10 L=40 | ||
| 435 | I8-98277 968-0 | CASE; TRANS | 1 | 1812- | A | 4X4(UCS***) | ||
| 86 | I8-98035 672-0 | BOLT; RR COVER | 7 | 1812- | A | (B) M10X55 FLANGE | ||
| 86 | I8-97305 468-0 | BOLT; RR COVER | 1 | 1812- | A | (A) M10X18 M10X55 L=86.8 | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 1812- | B | 04.510 (B) OD=10 L=20 | ||
| 102 | I8-97138 673-0 | RETAINER; BRG UPR,MAINSHAFT | 1 | 1812- | A | |||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 1 | 1812- | B | 03.162 M10 FLANGE | ||
| 24 | I6-94156 700-0 | COVER; CHECK HOLE,DUST | 1 | 1812- | A | (IADG) 06 . 868 | ||
| 39 | I8-98035 571-0 | PLATE; DETENT SPR | 1 | 1812- | A | |||
| 90 | I8-97046 705-3 | SEAL; OIL,RR COVER | 1 | 1812- | AB | (B) NOK | ||
| 113 | I8-97083 589-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 1812- | A | |||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 1812- | ABC | |||
| 33 | I8-97046 699-3 | SEAL; OIL,FRT COVER,T/M | 1 | 1812- | A | TKK | ||
| 49 | I8-98035 677-0 | STUD; TRANSFER CASE | 1 | 1812- | A | 4X4(UCS***) M10X27 L=4 3.5 | ||
| 299 | I8-94173 641-0 | PLUG; SHIFTER ROD | 2 | 1812- | A CDE | 4X4(UCS***) 00.034 OD=15.6 | ||
| 41 | I8-97214 403-0 | SPRING; DETENT BALL | 1 | 1812- | A | (C) L=2 6.6 | ||
| 80 | I0-91180 110-0 | NUT; TRANSFER CASE | 1 | 1812- | A C | 4X4(UCS***) 03.162 M10 FLANGE | ||
| 79 | I0-28051 035-0 | BOLT; TRANSFER CASE | 6 | 1812- | A C | 4X4(UCS***) M10X3 5 FLANGE | ||
| 79 | I0-28051 045-0 | BOLT; TRANSFER CASE | 7 | 1812- | DE | 4X4(UCS***) 00. 685 M10X4 5 FLANGE | ||
| 90 | I8-97046 705-3 | SEAL; OIL,RR COVER | 1 | 1812- | CDE | 4X4(UCS***) (B) NOK | ||
| 47 | I8-97115 712-0 | GASKET; FILLER PLUG,TRANSFER CAS | 1 | 1812- | B | 04.105 ID=17 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1812- | ABCDE | 4X4(UCS***) | ||
| 41 | I8-97214 402-0 | SPRING; DETENT BALL | 1 | 1812- | A | (B) L=2 7.6 | ||
| 1 | I8-98278 659-0 | TRANSMISSION ASM; MANUAL | 1 | 1812- | A | 4X4(UCS***) | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1812- | ABC | |||
| 299 | I8-94173 641-0 | PLUG; SHIFTER ROD | 2 | 1812- | B | 00.034 OD=15.6 |
