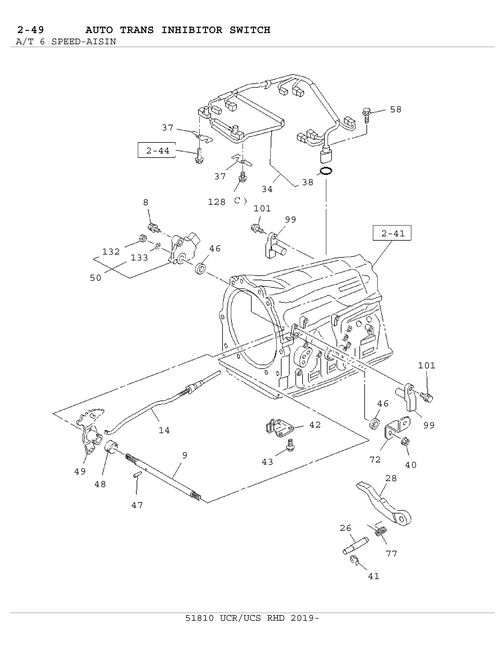

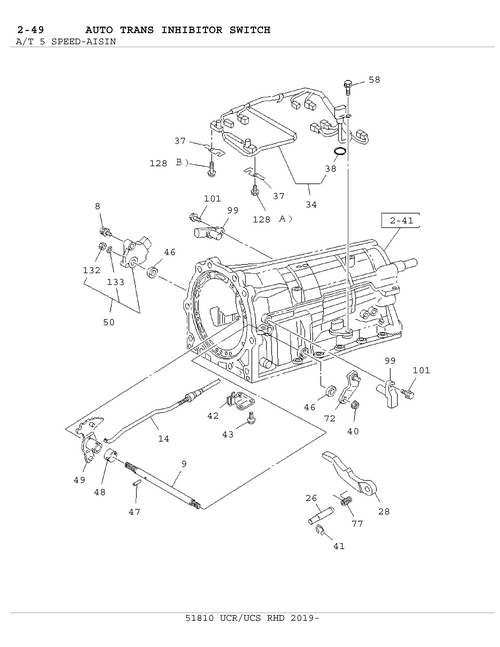

2-49 | AUTO TRANS INHIBITOR SWITCH
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 58 | I8-94479 978-0 | BOLT; SOLENOID TO A/T | 1 | 1812- | E | 04.290 M6X14 | ||
| 9 | I8-98189 472-0 | SHAFT; MANUAL,A/T | 1 | 1812- | DE | |||
| 8 | I8-97130 929-0 | BOLT; NEUTRAL START SW,A/T | 1 | 1812- | DE | M8X30 | ||
| 48 | I8-97362 483-0 | COVER; SLEEVE | 1 | 1812- | DE | |||
| 14 | I8-98189 508-0 | ROD ASM; PARKING,A/T | 1 | 1812- | D | |||
| 49 | I8-98189 504-0 | LEVER ASM; CAM | 1 | 1812- | D | |||
| 101 | I8-94479 978-0 | BOLT; SPD SENSOR | 2 | 1812- | DE | 04.290 M6X14 | ||
| 38 | I8-98189 471-0 | GASKET; SOLENOID INNER | 1 | 1812- | D | ID=22 | ||
| 46 | I8-94479 740-0 | SEAL; OIL | 2 | 1812- | DE | 04.027 OD=22 | ||
| 41 | I5-34488 002-0 | RETAINER; SPR,SHAFT | 1 | 1812- | DE | |||
| 128 | I8-94473 630-0 | BOLT; CLAMP | 4 | 1812- | D | 04 .265 (A) M6X36 | ||
| 42 | I8-98189 509-0 | BRACKET; PARKING LOCK | 1 | 1812- | D | |||
| 101 | I8-94479 978-0 | BOLT; SPD SENSOR | 2 | 1812- | DE | 04.290 M6X14 | ||
| 133 | I8-97354 889-0 | WASHER; SWITCH | 1 | 1812- | DE | ID=16 | ||
| 26 | I8-98189 505-0 | SHAFT; PARKING PAWL,A/T | 1 | 1812- | DE | |||
| 34 | I8-98189 470-0 | SOLENOID ASM; A/T | 1 | 1812- | D | |||
| 43 | I8-94479 978-0 | BOLT; BRKT | 3 | 1812- | D | M6X14 | ||
| 43 | I8-94479 978-0 | BOLT; BRKT | 3 | 1812- | D | M6X14 | ||
| 133 | I8-97354 889-0 | WASHER; SWITCH | 1 | 1812- | DE | ID=16 | ||
| 40 | I0-91180 108-0 | NUT; LEVER TO SHAFT | 1 | 1812- | DE | 01. 062 M8 FLANGE | ||
| 72 | I8-98077 401-0 | LEVER; SELECT CONT | 1 | 1812- | D | |||
| 77 | I8-98189 506-0 | SPRING; TORSION,PARKING BRK LK,A | 1 | 1812- | DE | |||
| 26 | I8-98189 505-0 | SHAFT; PARKING PAWL,A/T | 1 | 1812- | DE | |||
| 128 | I8-94479 927-0 | BOLT; CLAMP | 1 | 1812- | D | 04 .265 (B) M6X12 | ||
| 128 | I8-94473 630-0 | BOLT; CLAMP | 4 | 1812- | D | 04 .265 (A) M6X36 | ||
| 132 | I8-97354 883-0 | NUT; SWITCH | 1 | 1812- | DE | M16 | ||
| 42 | I8-98189 509-0 | BRACKET; PARKING LOCK | 1 | 1812- | D | |||
| 58 | I8-94479 712-0 | BOLT; SOLENOID TO A/T | 1 | 1812- | D | 04.050 M6X16 | ||
| 28 | I8-98189 507-0 | PAWL; PARKING,A/T | 1 | 1812- | D | |||
| 77 | I8-98189 506-0 | SPRING; TORSION,PARKING BRK LK,A | 1 | 1812- | DE | |||
| 28 | I8-98189 507-0 | PAWL; PARKING,A/T | 1 | 1812- | D | |||
| 9 | I8-98189 472-0 | SHAFT; MANUAL,A/T | 1 | 1812- | DE | |||
| 128 | I8-94479 927-0 | BOLT; CLAMP | 1 | 1812- | D | 04 .265 (B) M6X12 | ||
| 48 | I8-97362 483-0 | COVER; SLEEVE | 1 | 1812- | DE | |||
| 40 | I0-91180 108-0 | NUT; LEVER TO SHAFT | 1 | 1812- | DE | 01. 062 M8 FLANGE | ||
| 14 | I8-98189 508-0 | ROD ASM; PARKING,A/T | 1 | 1812- | D | |||
| 128 | I8-98189 500-0 | BOLT; CLAMP | 1 | 1812- | E | 04.052 (C) M6X14 | ||
| 41 | I5-34488 002-0 | RETAINER; SPR,SHAFT | 1 | 1812- | DE | |||
| 132 | I8-97354 883-0 | NUT; SWITCH | 1 | 1812- | DE | M16 | ||
| 34 | I8-98189 470-0 | SOLENOID ASM; A/T | 1 | 1812- | D | |||
| 47 | I8-94257 081-0 | PIN; ROLL SHAFT | 1 | 1812- | DE | 04.052 D=4 | ||
| 58 | I8-94479 712-0 | BOLT; SOLENOID TO A/T | 1 | 1812- | D | 04.050 M6X16 | ||
| 50 | I8-98189 469-0 | SWITCH; NEUTRAL,A/T | 1 | 1812- | DE | |||
| 50 | I8-98189 469-0 | SWITCH; NEUTRAL,A/T | 1 | 1812- | DE | |||
| 8 | I8-97130 929-0 | BOLT; NEUTRAL START SW,A/T | 1 | 1812- | DE | M8X30 | ||
| 72 | I8-98077 401-0 | LEVER; SELECT CONT | 1 | 1812- | D | |||
| 47 | I8-94257 081-0 | PIN; ROLL SHAFT | 1 | 1812- | DE | 04.052 D=4 | ||
| 99 | I8-98189 474-0 | SENSOR; SPD | 2 | 1812- | D | |||
| 37 | I8-98189 741-0 | CLAMP; SOLENOID,A/T | 2 | 1812- | D | |||
| 49 | I8-98189 504-0 | LEVER ASM; CAM | 1 | 1812- | D | |||
| 99 | I8-98189 474-0 | SENSOR; SPD | 2 | 1812- | D | |||
| 38 | I8-98189 471-0 | GASKET; SOLENOID INNER | 1 | 1812- | D | ID=22 | ||
| 37 | I8-98189 741-0 | CLAMP; SOLENOID,A/T | 2 | 1812- | D | |||
| 58 | I8-94479 978-0 | BOLT; SOLENOID TO A/T | 1 | 1812- | E | 04.290 M6X14 | ||
| 46 | I8-94479 740-0 | SEAL; OIL | 2 | 1812- | DE | 04.027 OD=22 | ||
| 128 | I8-98189 500-0 | BOLT; CLAMP | 1 | 1812- | E | 04.052 (C) M6X14 |
