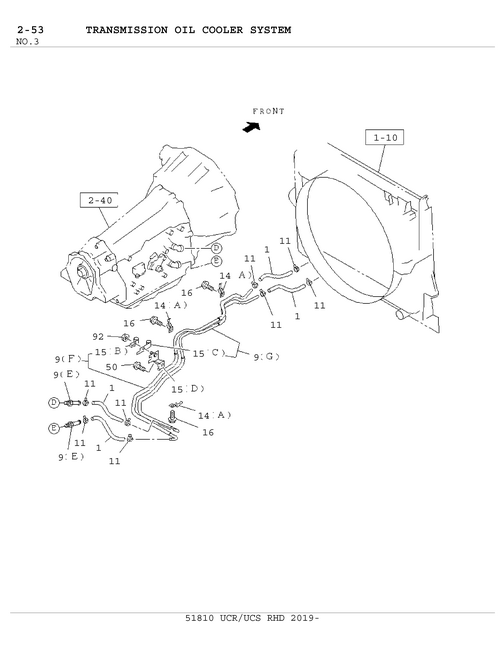

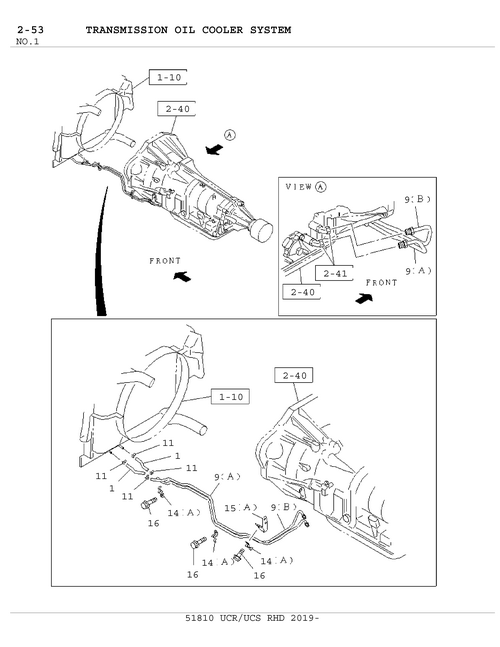

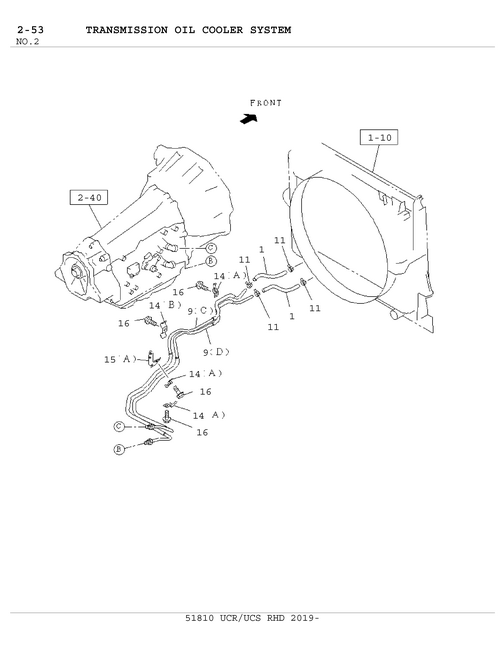

2-53 | TRANSMISSION OIL COOLER SYSTEM

Partial Engine Partial Engine Partial Engine

MUX

MU-X 2019

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
1 I0-02259 300-0 HOSE; ATF 2 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC(BCC) L=180 SERVICED BY L=3000
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 2 1812- E 4X2(UCB***) AUSTRALIA EQUIPMENT(B13) (A)
1 I0-02259 300-0 HOSE; ATF 2 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC(BCC) L=180 SERVICED BY L=3000
1 I0-02259 300-0 HOSE; ATF 4 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) L=180 SERVICED BY L=3000
50 I0-28651 020-0 BOLT; CLIP 1 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 02.343 M10X20 FLANGE
11 I8-98008 165-0 CLIP; PIPE 8 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC)
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 2 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC (BCC) (A)
9 I8-98100 274-2 PIPE; ATF,INL,A/T 1 1812- D 4X2(UCB***) (B) RETURN
11 I8-98008 165-0 CLIP; PIPE 8 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC)
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 3 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- D 02.343 M8X16 FLANGE
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- D 02.343 M8X16 FLANGE
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- E 4X4(UCS***) 02.343 M8X16 FLANGE
92 I0-91180 108-0 NUT; CLIP 1 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 01.062 M8 FLANGE
9 I8-98100 272-2 PIPE; ATF,INL,A/T 1 1812- D 4X2(UCB***) (A) INLET
11 I8-98008 165-0 CLIP; PIPE 4 1812- DE 4X2(UCB***)
11 I8-98008 165-0 CLIP; PIPE 4 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC (BCC)
50 I0-28651 020-0 BOLT; CLIP 1 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.343 M10X20 FLANGE
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 2 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC (BCC) (A)
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 3 1812- DE 4X2(UCB***) EXC. AUSTRALIA EQUIPMENT(B13) (A)
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- E 4X4(UCS***) 02.343 M8X16 FLANGE
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 2 1812- E 4X2(UCB***) AUSTRALIA EQUIPMENT(B13) (A)
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 3 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)
15 I8-98100 277-0 BRACKET; ATF PIPE 1 1812- D (A)
92 I0-91180 108-0 NUT; CLIP 1 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 01.062 M8 FLANGE
11 I8-98008 165-0 CLIP; PIPE 4 1812- DE 4X2(UCB***)
11 I8-98008 165-0 CLIP; PIPE 4 1812- DE 4X4(UCS***) PROVISIONAL PACKAGE SPEC (BCC)
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 2 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 02.343 M8X16 FLANGE
92 I0-91180 108-0 NUT; CLIP 1 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) 01. 062 M8 FLANGE
1 I0-02259 300-0 HOSE; ATF 2 1812- DE 4X2(UCB***) L=180 SERVICED BY L=3000
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- E 4X2(UCB***) 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE
50 I0-28651 020-0 BOLT; CLIP 1 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) 02.343 M10X20 FLANGE
50 I0-28651 020-0 BOLT; CLIP 1 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 02.343 M10X20 FLANGE
15 I8-98100 277-0 BRACKET; ATF PIPE 1 1812- D (A)
9 I8-98100 272-2 PIPE; ATF,INL,A/T 1 1812- D 4X2(UCB***) (A) INLET
92 I0-91180 108-0 NUT; CLIP 1 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) 01. 062 M8 FLANGE
14 I8-98008 163-0 CLIP; PIPE TO ENG SIDE 3 1812- DE 4X2(UCB***) EXC. AUSTRALIA EQUIPMENT(B13) (A)
9 I8-98100 274-2 PIPE; ATF,INL,A/T 1 1812- D 4X2(UCB***) (B) RETURN
1 I0-02259 300-0 HOSE; ATF 2 1812- DE 4X2(UCB***) L=180 SERVICED BY L=3000
1 I0-02259 300-0 HOSE; ATF 4 1812- E 4X4(UCS***) EXC. PROVISIONAL PACKAGE SPEC(BCC) L=180 SERVICED BY L=3000
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 2 1812- E 4X2(UCB***) RZ4E-TC ENG(RDZ) 02.343 M8X16 FLANGE
16 I0-28050 816-0 BOLT; CLIP,ENG SIDE 3 1812- E 4X2(UCB***) 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE
