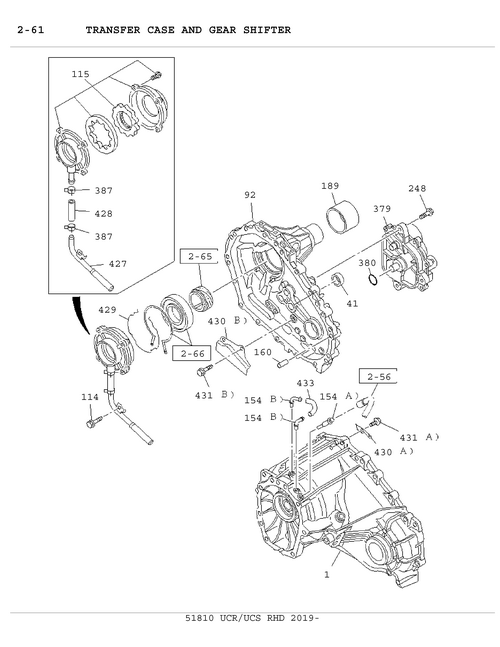

2-61 | TRANSFER CASE AND GEAR SHIFTER
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98177 505-0 | CASE; TRANSFER | 1 | 1812- | B | |||
| 160 | I8-97135 423-0 | PIN; KNOCK,SHIFT CASE | 2 | 1812- | B | 04.510 OD=10 L=20 | ||
| 380 | I8-97318 475-0 | GASKET; ACTUATOR | 1 | 1812- | B | ID=29.7 OD=3 6.7 | ||
| 160 | I8-97135 423-0 | PIN; KNOCK,SHIFT CASE | 2 | 1812- | B | 04.510 OD=10 L=20 | ||
| 431 | I0-28650 616-0 | BOLT; BAFFLE PLATE | 1 | 1812- | B | 02.343 (A) M6X16 FLANGE | ||
| 92 | I8-98118 921-0 | COVER; RR,TRANSFER | 1 | 1812- | B | |||
| 248 | I0-28650 830-0 | BOLT | 3 | 1812- | B | 03.403 M8X3 0 FLANGE | ||
| 114 | I0-28650 820-0 | BOLT; OIL PUMP,TRANSFER | 1 | 1812- | B | 01.531 M8X2 0 FLANGE | ||
| 379 | I8-98196 415-0 | ACTUATOR; TRANSFER,2-4 SHIFT | 1 | 1812- | B | |||
| 431 | I0-28650 616-0 | BOLT; BAFFLE PLATE | 1 | 1812- | B | 02.343 (A) M6X16 FLANGE | ||
| 387 | I8-98030 682-0 | CLAMP; HOSE | 2 | 1812- | B | 01.097 ID=16 | ||
| 115 | I8-98029 157-0 | PUMP ASM; OIL,TRANSFER | 1 | 1812- | B | |||
| 430 | I8-97239 130-0 | PLATE; BAFFLE | 1 | 1812- | B | (A) | ||
| 429 | I8-97240 666-0 | RING; SNAP,OIL PUMP | 1 | 1812- | B | |||
| 427 | I8-98063 358-0 | SCREEN; OIL PUMP | 1 | 1812- | B | |||
| 154 | I8-97358 318-0 | PIPE; BREATHER | 2 | 1812- | B | (B) | ||
| 428 | I8-98064 220-0 | HOSE; OIL PUMP | 1 | 1812- | B | L=50 | ||
| 154 | I8-97358 318-0 | PIPE; BREATHER | 2 | 1812- | B | (B) | ||
| 380 | I8-97318 475-0 | GASKET; ACTUATOR | 1 | 1812- | B | ID=29.7 OD=3 6.7 | ||
| 1 | I8-98177 505-0 | CASE; TRANSFER | 1 | 1812- | B | |||
| 429 | I8-97240 666-0 | RING; SNAP,OIL PUMP | 1 | 1812- | B | |||
| 189 | I8-98173 748-0 | COVER; DUST,OIL SEAL | 1 | 1812- | B | |||
| 41 | I8-97238 998-0 | SEAL; OIL,SHIFT ROD | 1 | 1812- | B | |||
| 428 | I8-98064 220-0 | HOSE; OIL PUMP | 1 | 1812- | B | L=50 | ||
| 427 | I8-98063 358-0 | SCREEN; OIL PUMP | 1 | 1812- | B | |||
| 430 | I8-97239 130-0 | PLATE; BAFFLE | 1 | 1812- | B | (A) | ||
| 154 | I8-97358 319-0 | PIPE; BREATHER | 1 | 1812- | B | (A) | ||
| 433 | I8-97236 080-0 | HOSE; AIR,TRANSFER | 1 | 1812- | B | |||
| 431 | I0-28650 820-0 | BOLT; BAFFLE PLATE | 2 | 1812- | B | 01.531 (B) M8X2 0 FLANGE | ||
| 115 | I8-98029 157-0 | PUMP ASM; OIL,TRANSFER | 1 | 1812- | B | |||
| 431 | I0-28650 820-0 | BOLT; BAFFLE PLATE | 2 | 1812- | B | 01.531 (B) M8X2 0 FLANGE | ||
| 41 | I8-97238 998-0 | SEAL; OIL,SHIFT ROD | 1 | 1812- | B | |||
| 248 | I0-28650 830-0 | BOLT | 3 | 1812- | B | 03.403 M8X3 0 FLANGE | ||
| 114 | I0-28650 820-0 | BOLT; OIL PUMP,TRANSFER | 1 | 1812- | B | 01.531 M8X2 0 FLANGE | ||
| 430 | I8-98063 360-0 | PLATE; BAFFLE | 1 | 1812- | B | (B) | ||
| 430 | I8-98063 360-0 | PLATE; BAFFLE | 1 | 1812- | B | (B) | ||
| 92 | I8-98118 921-0 | COVER; RR,TRANSFER | 1 | 1812- | B | |||
| 379 | I8-98196 415-0 | ACTUATOR; TRANSFER,2-4 SHIFT | 1 | 1812- | B | |||
| 387 | I8-98030 682-0 | CLAMP; HOSE | 2 | 1812- | B | 01.097 ID=16 | ||
| 189 | I8-98173 748-0 | COVER; DUST,OIL SEAL | 1 | 1812- | B | |||
| 154 | I8-97358 319-0 | PIPE; BREATHER | 1 | 1812- | B | (A) |
