3-58 | FIXING PARTS; OIL PIPING
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

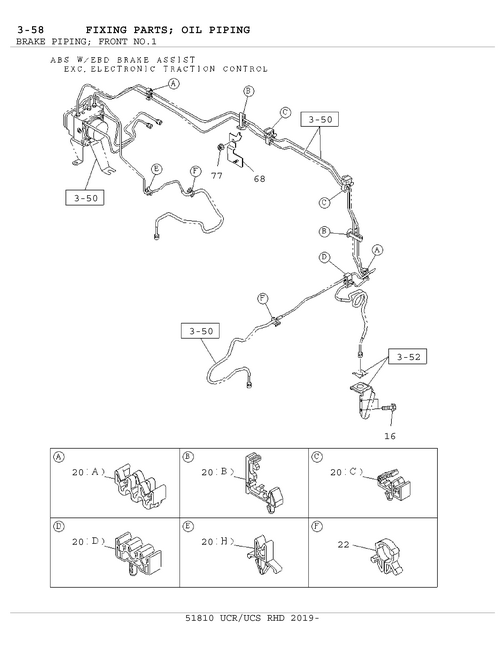

| 20 | I8-98113 389-0 | CLIP; BRK PIPE | 3 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> REAR COOLER WO/HEATER<C6 9> (C) ID=4.76X3 & 6.35X1 OR 10X1 | ||
| 20 | I8-94487 369-0 | CLIP; BRK PIPE | 2 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 | ||

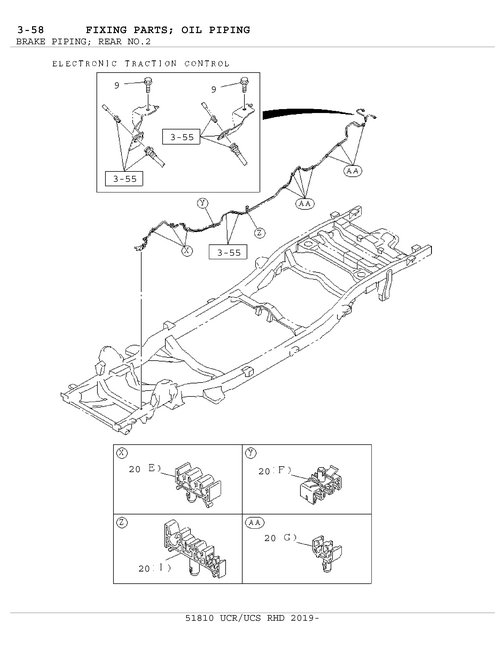

| 20 | I8-97216 721-1 | CLIP; BRK PIPE | 3 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> 04.685 (E) ID=4.76X3 | ||

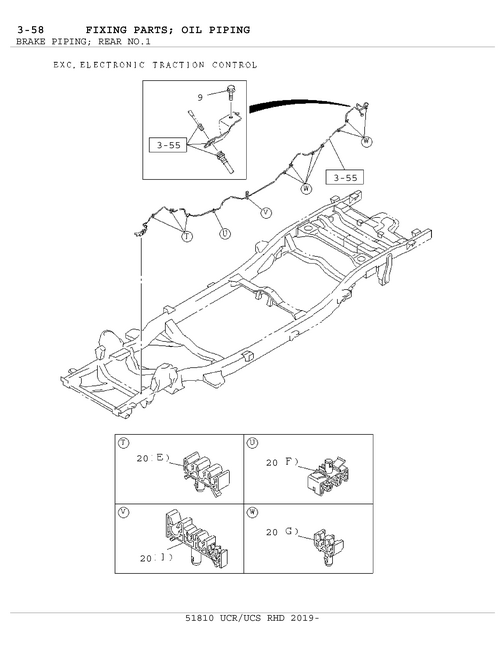

| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 1812- | AB | EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 | ||
| 20 | I8-97216 721-1 | CLIP; BRK PIPE | 3 | 1812- | AB | EXC. ELECTRONIC TRACTION CONTROL<NW9> 04.685 (E) ID=4.76X3 | ||
| 77 | I0-91180 106-0 | NUT; BRKT,OIL PIPE | 1 | 1812- | AB | REAR COOLER WO/HEATER<C69> 01 . 062 M6 FLANGE | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 1812- | AB | EXC. ELECTRONIC TRACTION CONTROL<NW9> 03.162 (F) ID=10 & 6.8X2 OR 8.4X3 | ||
| 9 | I0-28650 820-0 | BOLT; BRKT | 2 | 1812- | AB | ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE | ||
| 22 | I5-09707 027-0 | CLIP; PIPE TO FRAME | 2 | 1812- | AB | 16.065 ID=9 | ||

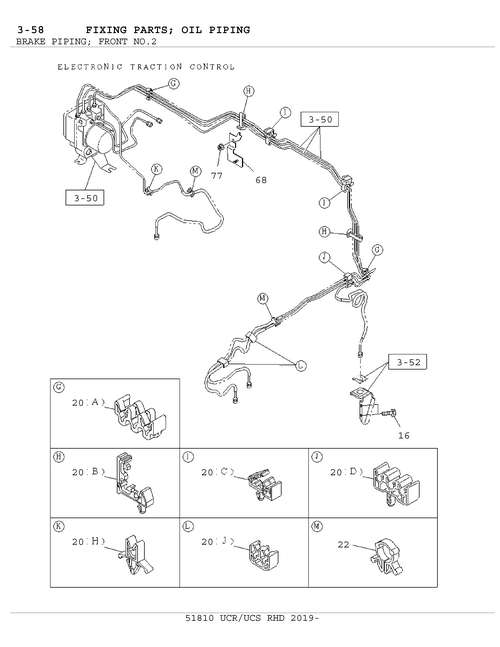

| 20 | I8-97251 122-0 | CLIP; BRK PIPE | 1 | 1812- | AB | RZ4E-TC ENG(RDZ) ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 | ||
| 20 | I8-97251 122-0 | CLIP; BRK PIPE | 2 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9 > (J) ID=6.8X2 | ||
| 20 | I8-98113 389-0 | CLIP; BRK PIPE | 2 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> EXC. REAR COOLER WO/HEATER<C69> (C) ID=4.76X3 & 6.35X1 OR 10X1 | ||
| 20 | I8-97251 124-0 | CLIP; BRK PIPE | 7 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 1 | 1812- | AB | EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 9 | I0-28650 820-0 | BOLT; BRKT | 1 | 1812- | AB | EXC. ELECTRONIC TRACTION CONTROL<NW9> 01.531 M8X20 FLANGE | ||
| 20 | I8-98113 394-0 | CLIP; BRK PIPE | 1 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 16 | I0-28650 820-0 | BOLT; BRKT TO FRAME | 4 | 1812- | AB | 01.531 M8X2 0 FLANGE | ||
| 20 | I8-97300 443-0 | CLIP; BRK PIPE | 1 | 1812- | AB | (H) ID=4.76 | ||
| 20 | I8-98113 388-0 | CLIP; BRK PIPE | 2 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> EXC. REAR COOLER WO/HEATER< C6 9> (B) ID=4.76X3 | ||
| 20 | I8-98113 396-0 | CLIP; BRK PIPE | 1 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 | ||
| 68 | I8-98211 446-0 | BRACKET; CLIP | 1 | 1812- | AB | REAR COOLER WO/HEATER<C6 9> 09.242 | ||
| 20 | I8-94487 369-0 | CLIP; BRK PIPE | 1 | 1812- | AB | EXC. ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 | ||
| 20 | I8-98113 388-0 | CLIP; BRK PIPE | 1 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> REAR COOLER WO/HEATER<C6 9> (B) ID=4.76X3 | ||
| 20 | I8-97249 906-1 | CLIP; BRK PIPE | 1 | 1812- | AB | ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> 03.162 (F) ID=10 & 6.8X2 OR 8.4X3 |
