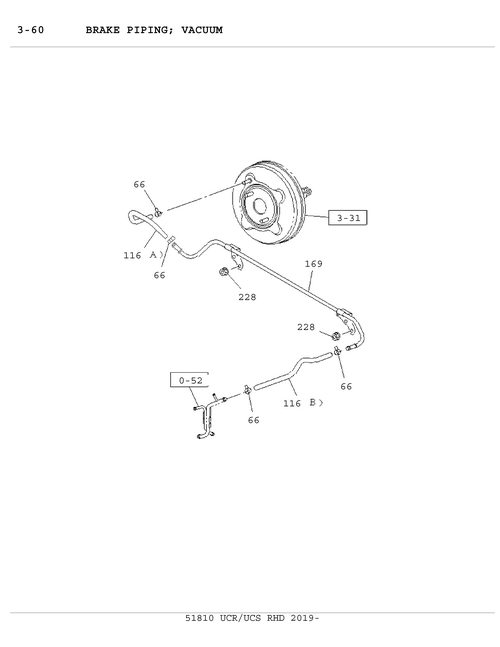

3-60 | BRAKE PIPING; VACUUM
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I8-98036 539-0 | CLIP; VAC HOSE,M/VAC | 4 | 1812- | AB | ID=16 | ||
| 169 | I8-98100 266-1 | PIPE; VAC,BOOSTER SIDE | 1 | 1812- | AB | |||
| 116 | I8-98100 736-0 | HOSE; VAC,M/VAC | 1 | 1812- | AB | (A) | ||
| 228 | I0-91180 106-0 | NUT; PIPE | 2 | 1812- | AB | 01. 062 M6 FLANGE | ||
| 116 | I8-98100 737-1 | HOSE; VAC,M/VAC | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) |
