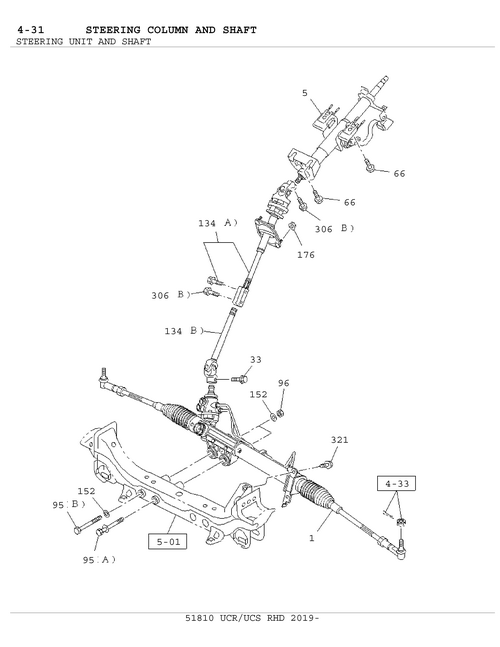

4-31 | STEERING COLUMN AND SHAFT
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 306 | I8-98133 262-0 | BOLT; STRG SHAFT | 2 | 1812- | AB | EXC. PASSIVE ENTRY AND START 06.500 (A) M8X18.5 TORQUE SHEAR BOLT | ||
| 5 | I8-98226 628-1 | COLUMN; STRG | 1 | 1812- | AB | PASSIVE ENTRY AND START SYST TILT STEERING<N33> EXC. AUSTRALIA EQUIPMENT(B1 | ||
| 134 | I8-97946 136-0 | SHAFT; STRG,2ND | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX EMISSION SYSTEM R15-04(K75) CATION(NT2) (B) | ||
| 5 | I8-98273 325-0 | COLUMN; STRG | 1 | 1812- | AB | TILT STEERING<N33> EXC. PASSIVE ENTRY AND STAR AUSTRALIA EQUIPMENT(B13) | ||
| 306 | I8-98133 262-0 | BOLT; STRG SHAFT | 1 | 1812- | AB | PASSIVE ENTRY AND START SYST 06.500 (A) M8X18.5 TORQUE SHEAR BOLT | ||
| 140 | I8-98134 652-0 | BRACKET; STRG COWL | 1 | 1812- | AB | EXC. PASSIVE ENTRY AND STAR | ||
| 176 | I0-91180 106-0 | NUT; STRG | 2 | 1812- | AB | 01.062 M6 FLANGE | ||
| 134 | I8-98190 776-0 | SHAFT; STRG,2ND | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX EMISSION SYSTEM R15-04(K75) CATION(NT2) (A) | ||

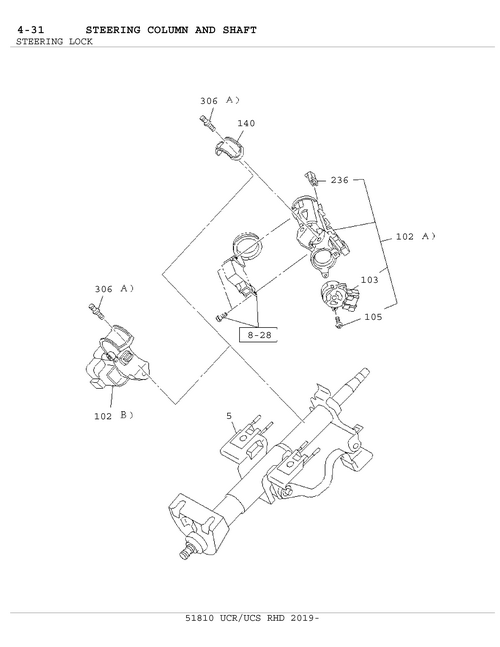

| 102 | I8-98226 269-0 | LOCK ASM; STRG | 1 | 1812- | AB | PASSIVE ENTRY AND START SYS (B) | ||
| 1 | I8-97495 970-0 | STEERING UNIT | 1 | 1812- | AB | AUSTRALIA EQUIPMENT(B13) | ||
| 103 | I8-98132 719-0 | SWITCH; IGNITION | 1 | 1812- | AB | EXC. PASSIVE ENTRY AND STAR | ||
| 321 | I0-28661 230-0 | BOLT; BRKT,STRG | 2 | 1812- | AB | 06.509 M12X3 0 FLANGE | ||
| 5 | I8-98273 326-0 | COLUMN; STRG | 1 | 1812- | AB | EXC. TILT STEERING<N33 > | ||
| 95 | I8-98162 884-1 | BOLT; STRG UNIT | 1 | 1812- | AB | (A) M16X18 6.5 W/PL WASHER | ||
| 33 | I8-97249 320-0 | BOLT; STRG SHAFT TO UNIT | 1 | 1812- | AB | M8X3 5 FLANGE | ||
| 152 | I8-98296 670-0 | WASHER; LK,STRG UNIT | 3 | 1812- | AB | ID=17 | ||
| 96 | I0-91110 516-0 | NUT; STRG UNIT | 2 | 1812- | AB | M16 | ||
| 95 | I8-97947 503-0 | BOLT; STRG UNIT | 1 | 1812- | AB | (B) M16X186.5 | ||
| 306 | I8-97249 320-0 | BOLT; STRG SHAFT | 2 | 1812- | AB | (B) M8X3 5 FLANGE | ||
| 134 | I8-97946 136-0 | SHAFT; STRG,2ND | 1 | 1812- | AB | RZ4E-TC ENG(RDZ) (B) | ||
| 102 | I8-98076 117-0 | LOCK ASM; STRG | 1 | 1812- | AB | M/T MUA 5 SPEED 5H(MWQ),M/T N (Y5Z) ,M/T MVL 6 SPEED 6Y(Y EXC. PASSIVE ENTRY AND STAR (A) | ||
| 102 | I8-98076 120-0 | LOCK ASM; STRG | 1 | 1812- | AB | A/T 5 SPEED-AISIN(MA1),A/T Y6A) EXC. PASSIVE ENTRY AND STAR (A) | ||
| 66 | I0-28650 825-0 | BOLT; STRG COLUMN | 4 | 1812- | AB | 06 .216 M8X2 5 FLANGE | ||
| 105 | I8-98192 449-0 | SCREW; IGN SW | 2 | 1812- | AB | EXC. PASSIVE ENTRY AND STAR | ||
| 236 | I8-98132 720-0 | SWITCH; DOOR WARNING,STRG LOCK | 1 | 1812- | AB | EXC. PASSIVE ENTRY AND STAR | ||
| 134 | I8-98190 776-0 | SHAFT; STRG,2ND | 1 | 1812- | AB | RZ4E-TC ENG(RDZ) (A) |
