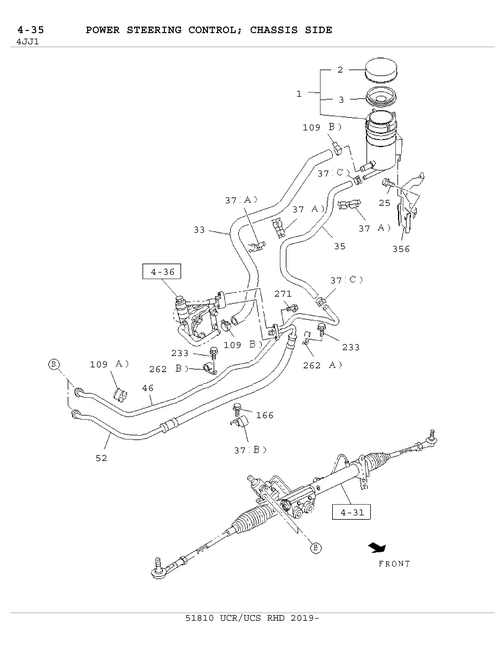

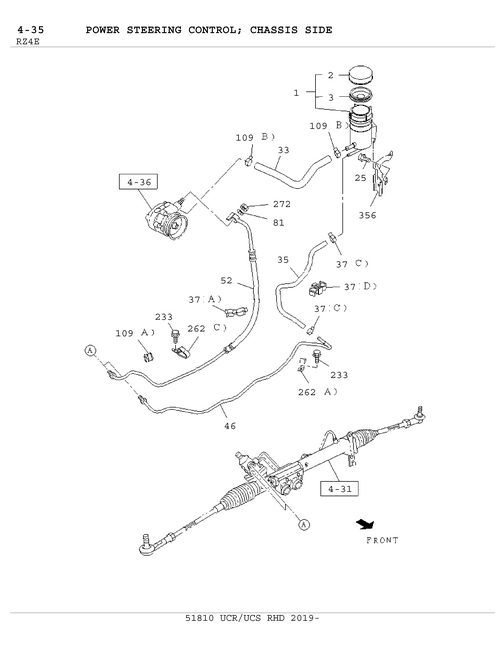

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-97177 580-0 | CLIP; HOSE,P/S | 2 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX 06.672 (A) ID=17.5 & 21 | ||
| 37 | I8-98242 629-0 | CLIP; HOSE,P/S | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX (B) ID=21.5 | ||
| 356 | I8-97946 163-0 | BRACKET; P/S,RESERVOIR | 1 | 1812- | AB | |||
| 109 | I8-97944 127-0 | CLIP; RUBBER HOSE | 2 | 1812- | AB | 08.846 (B) ID=20.8 | ||
| 3 | I8-97349 477-0 | GASKET; OIL TANK,P/S | 1 | 1812- | AB | |||
| 46 | I8-98228 468-1 | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX | ||
| 25 | I0-28650 616-0 | BOLT; OIL TANK BRKT | 2 | 1812- | AB | 02 . 343 M6X16 FLANGE | ||
| 33 | I8-97946 138-2 | HOSE; RUBBER,POWER STRG | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX | ||
| 37 | I8-97177 580-0 | CLIP; HOSE,P/S | 1 | 1812- | AB | 06.672 (A) ID=17.5 & 21 | ||
| 271 | I0-28650 616-0 | BOLT; P/S OIL PIPE FIX | 2 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX 02 . 343 M6X16 FLANGE | ||
| 262 | I0-95235 032-0 | CLIP; P/S PIPE | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX 02.559 (B) ID=11 L=20 | ||
| 1 | I8-97234 350-0 | TANK ASM; OIL,P/S | 1 | 1812- | AB | |||
| 166 | I0-28650 616-0 | BOLT; CLIP | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX 02 . 343 M6X16 FLANGE | ||
| 2 | I8-97349 476-0 | CAP; OIL TANK,P/S | 1 | 1812- | AB | |||
| 233 | I0-28650 616-0 | BOLT; PIPE CLIP,P/S | 2 | 1812- | AB | 02.343 M6X16 FLANGE | ||
| 52 | I8-98231 296-1 | HOSE; FLEX,P/S CONT VLV | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX | ||
| 35 | I8-97946 140-1 | HOSE; RETURN,P/S TANK | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX | ||
| 109 | I8-94252 455-2 | CLIP; RUBBER HOSE | 1 | 1812- | AB | (A) ID=10X2 H=22 | ||
| 37 | I8-98030 682-0 | CLIP; HOSE,P/S | 2 | 1812- | AB | (C) ID=16 | ||
| 262 | I0-95207 310-0 | CLIP; P/S PIPE | 1 | 1812- | AB | 03.162 (A) ID=11 H=20 L=2 0 |
