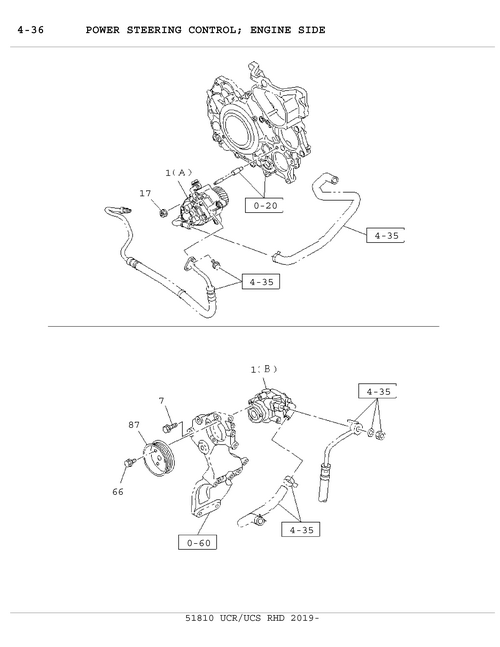

4-36 | POWER STEERING CONTROL; ENGINE SIDE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I0-28050 812-A | BOLT; PULLEY | 3 | 1812- | AB | RZ4E-TC ENG(RDZ) 02 . 343 M8X12 FLANGE | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 1812- | AB | RZ4E-TC ENG(RDZ) 00.206 M8X3 0 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.540 M8 FLANGE | ||
| 1 | I8-97946 164-2 | PUMP ASM; OIL,P/S | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) |
