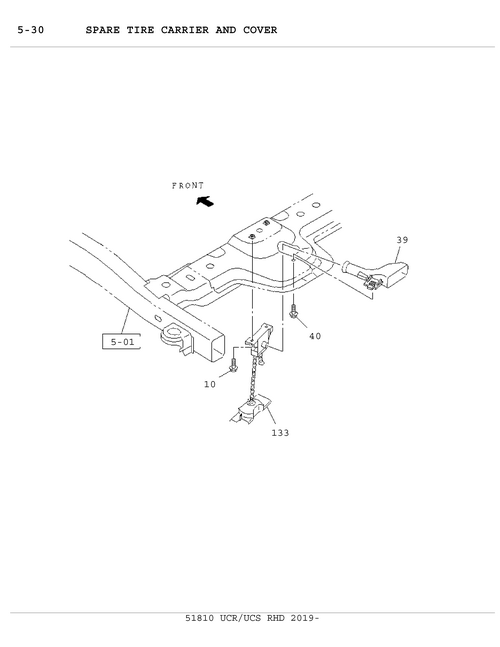

5-30 | SPARE TIRE CARRIER AND COVER
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98212 427-0 | GUIDE; SPARE TIRE HANGER | 1 | 1812- | AB | |||
| 40 | I0-28650 820-0 | BOLT; GUIDE TO FRAME | 1 | 1812- | AB | 01.531 M8X2 0 FLANGE | ||
| 10 | I0-28650 820-0 | BOLT; TIRE HANGER | 2 | 1812- | AB | 01.531 M8X2 0 FLANGE | ||
| 133 | I8-98240 301-0 | HANGER; SPARE TIRE | 1 | 1812- | AB |
