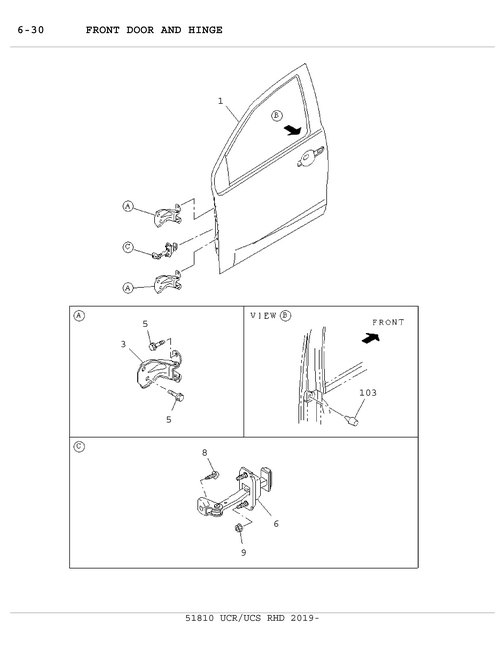

6-30 | FRONT DOOR AND HINGE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98268 838-1 | DOOR ASM; FRT,WO/TRIM | 1 | 1812- | AB | DOOR MIRROR POWER FOLDING CHROME T NAL<DE3 >,DOOR MIRROR POWER ADJUST URN SIGNAL<DF9> | ||
| 3 | I8-98105 296-0 | HINGE; DOOR FRT | 2 | 1812- | AB | UPR RH & LWR LH | ||
| 9 | I8-98049 362-0 | NUT; CHECK ARM | 4 | 1812- | AB | M6 FLANGE | ||
| 103 | I8-98202 864-0 | PROTECTOR; FRT DOOR | 4 | 1812- | AB | |||
| 5 | I8-98005 842-0 | BOLT; HINGE | 8 | 1812- | AB | 09 . 171 M8X23 FLANGE | ||
| 8 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 1812- | AB | M8X23 | ||
| 1 | I8-98268 841-1 | DOOR ASM; FRT,WO/TRIM | 1 | 1812- | AB | DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 5 | I8-98005 842-0 | BOLT; HINGE | 8 | 1812- | AB | 09 . 171 M8X23 FLANGE | ||
| 3 | I8-98105 297-0 | HINGE; DOOR FRT | 2 | 1812- | AB | LWR RH & UPR LH | ||
| 6 | I8-98103 030-5 | ARM; CHECK,FRT DOOR | 2 | 1812- | AB | |||
| 1 | I8-98268 839-1 | DOOR ASM; FRT,WO/TRIM | 1 | 1812- | AB | DOOR MIRROR POWER FOLDING CHROME TU NAL<DE3 >,DOOR MIRROR POWER ADJUST URN SIGNAL<DF9> | ||
| 1 | I8-98268 840-1 | DOOR ASM; FRT,WO/TRIM | 1 | 1812- | AB | DOOR MIRROR MATERIAL BLACK<RT9> |
