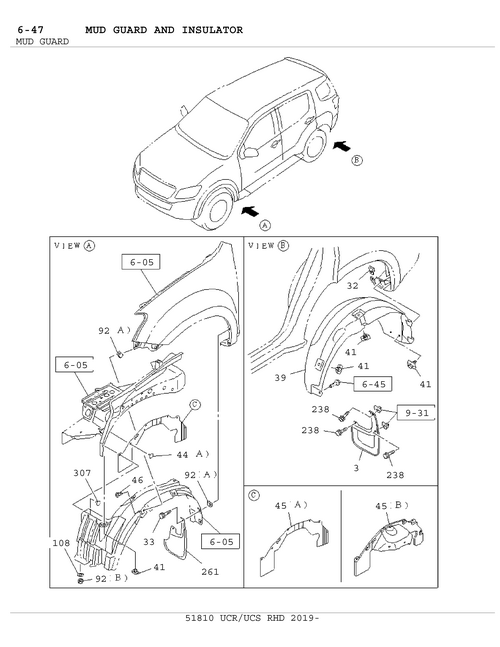

6-47 | MUD GUARD AND INSULATOR
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-97125 519-0 | NUT; MUD GUARD | 2 | 1812- | AB | |||
| 39 | I8-98190 331-1 | LINER; FENDER | 1 | 1812- | L | AB | ||
| 39 | I8-98190 330-1 | LINER; FENDER | 1 | 1812- | R | AB | ||
| 694 | I8-98361 605-0 | PROTECTOR; WHEEL HOUSE | 1 | 1812- | AB | |||
| 45 | I8-98077 270-0 | COVER; MUD,FENDER SKIRT | 1 | 1812- | L | AB | EXC. AUSTRALIA EQUIPMENT(B13) (A) | |
| 261 | I8-98077 272-0 | RUBBER; FRT,MUD GUARD | 1 | 1812- | R | AB | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 2 | 1812- | AB | EXC. AUSTRALIA EQUIPMENT(B13) 08.154 | ||
| 307 | I8-98050 462-0 | RETAINER | 2 | 1812- | AB | EXC. AUSTRALIA EQUIPMENT(B13) | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 24 | 1812- | AB | 8154 | ||
| 3 | I8-98189 866-1 | GUARD; MUD,RR | 1 | 1812- | R | AB | ||
| 693 | I8-98191 606-0 | GROMMET; ACCESSORY HOLE | 1 | 1812- | AB | |||
| 33 | I8-98167 444-0 | BOLT; MUD COVER | 6 | 1812- | AB | 07.874 M6X20 TAPPING W/PL WASHER | ||
| 44 | I8-94215 211-0 | CLIP; ANCHOR | 10 | 1812- | AB | EXC. AUSTRALIA EQUIPMENT(B13) (A) OD=22 L=10.7 | ||
| 307 | I8-98050 462-0 | RETAINER | 2 | 1812- | B | M/T MVL 6 SPEED 6N(Y5Z) AUSTRALIA EQUIPMENT(B13) | ||
| 687 | I8-98191 602-1 | TAPE; PROTECT | 2 | 1812- | AB | |||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 4 | 1812- | AB | AUSTRALIA EQUIPMENT(B13) 08.154 | ||
| 3 | I8-98189 867-1 | GUARD; MUD,RR | 1 | 1812- | L | AB | ||
| 45 | I8-98077 268-1 | COVER; MUD,FENDER SKIRT | 1 | 1812- | R | B | M/T MVL 6 SPEED 6N(Y5Z) AUSTRALIA EQUIPMENT(B13) (A) | |
| 238 | I8-98167 444-0 | SCREW; MUD GUARD | 6 | 1812- | AB | 07.874 M6X20 TAPPING W/PL WASHER | ||
| 45 | I8-98077 270-0 | COVER; MUD,FENDER SKIRT | 1 | 1812- | L | B | M/T MVL 6 SPEED 6N(Y5Z) AUSTRALIA EQUIPMENT(B13) (A) | |
| 44 | I8-94279 921-0 | CLIP; ANCHOR | 1 | 1812- | AB | 16.069 (B) OD=12 L=14.8 | ||
| 43 | I8-98189 338-2 | INSULATION; FENDER SIDE | 1 | 1812- | R | AB | ||
| 24 | I8-97489 354-0 | PLATE; MUD COVER | 1 | 1812- | AB | |||
| 45 | I8-98077 268-1 | COVER; MUD,FENDER SKIRT | 1 | 1812- | R | AB | EXC. AUSTRALIA EQUIPMENT(B13) (A) | |
| 44 | I8-94215 211-0 | CLIP; ANCHOR | 10 | 1812- | B | M/T MVL 6 SPEED 6N(Y5Z) AUSTRALIA EQUIPMENT(B13) (A) OD=22 L=10.7 | ||
| 261 | I8-98077 274-0 | RUBBER; FRT,MUD GUARD | 1 | 1812- | L | AB |
