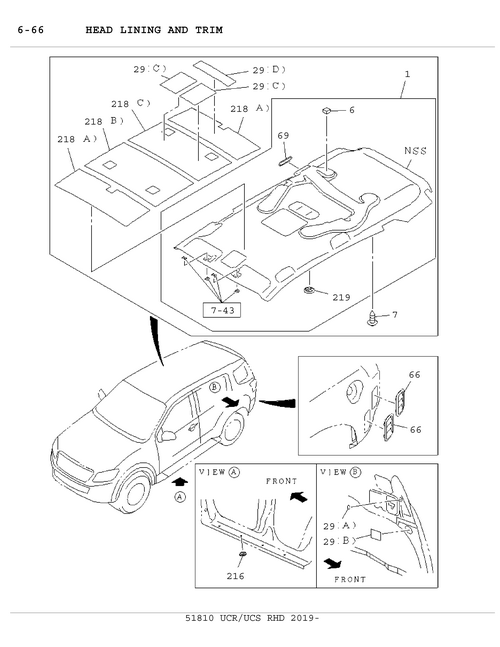

6-66 | HEAD LINING AND TRIM
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-98253 367-1 | DEADENER; ROOF PANEL | 1 | 1812- | AB | (D) | ||
| 69 | I8-98226 169-0 | SEAL; AIR OUTLET DUCT | 1 | 1812- | AB | REAR COOLER WO/HEATER<C6 9> 6 - SPEAKER SYSTEM BASE<UW5 >,8-SPE EM CUSTOM<U8 7> | ||
| 66 | I8-98190 079-2 | GRILLE; AIR OUTLET | 2 | 1812- | AB | |||
| 1 | I8-97427 814-2 | LINING; HD | 1 | 1812- | AB | GRADE CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5), RIVER & PASSENGER DELETE(AK6) REAR COOLER WO/HEATER<C6 9> HEADER CONSOLE<DK6 > 6 - SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY | ||
| 218 | I8-98228 817-3 | INSULATOR; ROOF | 2 | 1812- | AB | (A) | ||
| 29 | I8-98253 366-1 | DEADENER; ROOF PANEL | 2 | 1812- | AB | (C) | ||
| 7 | I8-97416 696-0 | RETAINER; HEADLINING RAIL | 4 | 1812- | AB | GRAY | ||
| 218 | I8-98228 819-3 | INSULATOR; ROOF | 1 | 1812- | AB | (C) | ||
| 1 | I8-97424 378-6 | LINING; HD | 1 | 1812- | AB | GRADE BASIC(RBA) INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5), RIVER & PASSENGER DELETE(AK6) REAR COOLER WO/HEATER<C6 9> 6 - SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6 >,2ND SEA ITOR<U4 8 > GRAY | ||
| 1 | I8-97466 028-0 | LINING; HD | 1 | 1812- | AB | GRADE CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5), RIVER & PASSENGER DELETE(AK6) REAR COOLER WO/HEATER<C6 9> HEADER CONSOLE<DK6 > 8 - SPEAKER SYSTEM CUSTOM<U8 7> EXC. 2ND SEAT DVD MONITOR<U48> GRAY | ||
| 29 | I8-98244 527-0 | DEADENER; ROOF PANEL | 2 | 1812- | AB | (B) | ||
| 6 | I8-98244 491-0 | SPACER; HD LINING | 4 | 1812- | AB | REAR COOLER WO/HEATER<C6 9> 6 - SPEAKER SYSTEM BASE<UW5 >,8-SPE EM CUSTOM<U8 7> | ||
| 29 | I8-98244 526-0 | DEADENER; ROOF PANEL | 2 | 1812- | AB | (A) | ||
| 218 | I8-98228 818-3 | INSULATOR; ROOF | 1 | 1812- | AB | (B) | ||
| 219 | I8-97425 070-0 | GRILLE; RR COOLER | 4 | 1812- | AB | REAR COOLER WO/HEATER<C6 9> 6 - SPEAKER SYSTEM BASE<UW5 >,8-SPE EM CUSTOM<U8 7> GRAY | ||
| 216 | I8-97365 823-0 | GROMMET; HOLE | 8 | 1812- | AB | 16 . 575 OD=19 |
